Stator Pickup Pulsar Coil for Honda TRX420 TRX450 TRX500 04-13

SKU: RMS00135


$159.99

or 4 fortnightly payments of $40.00 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

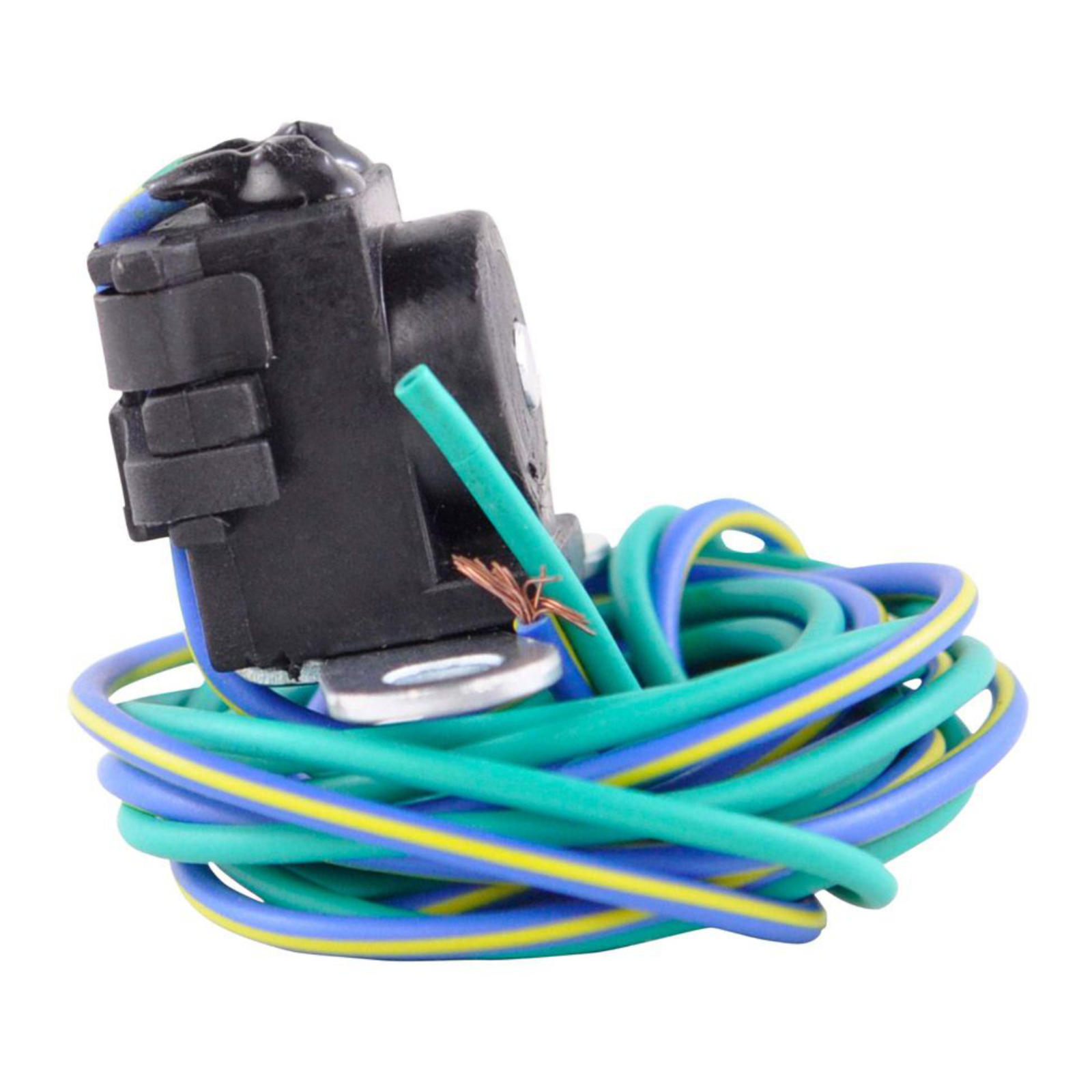

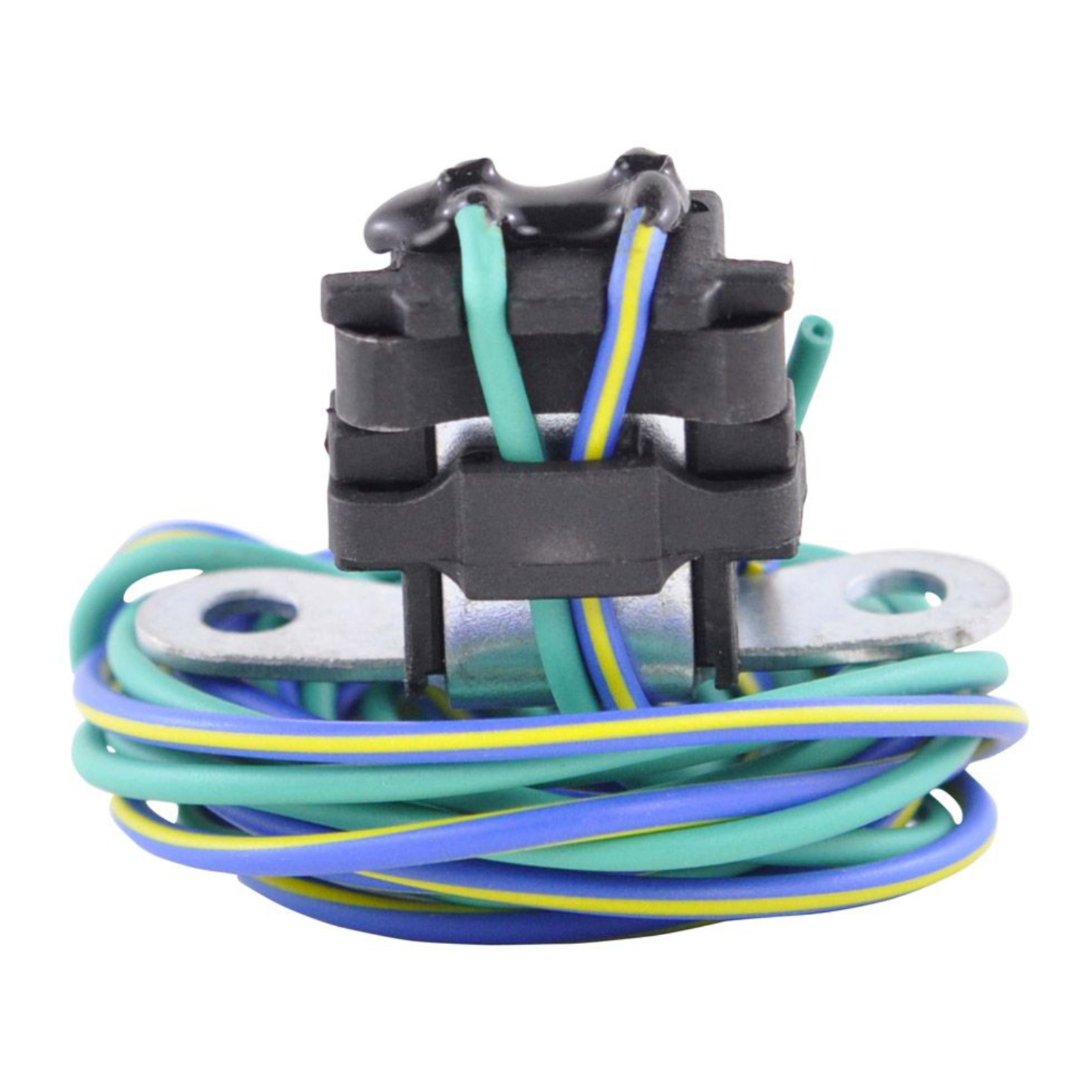

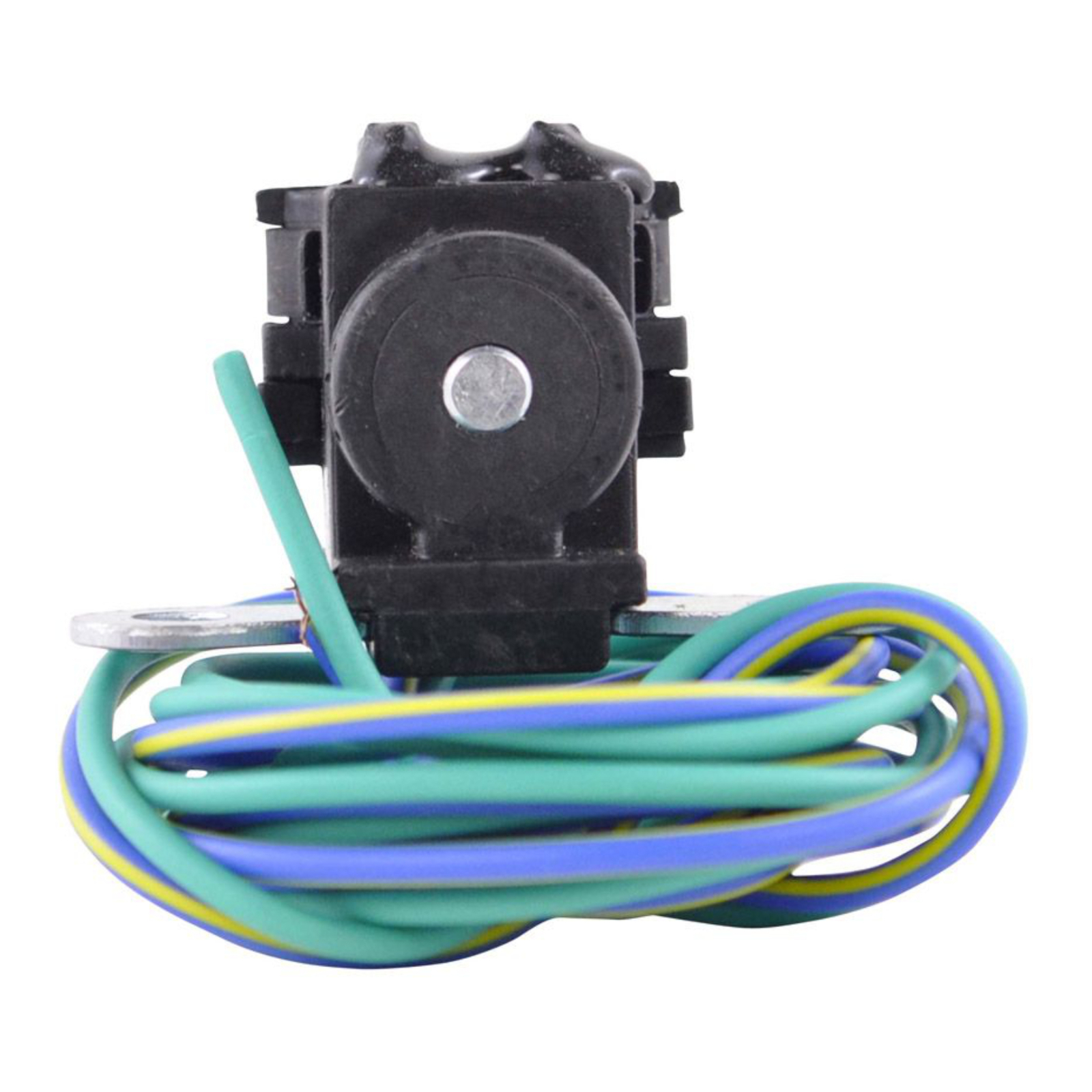

Brand new pick-up coil for Stator

  • We offer a brand new pickup/pulsar coil for you to repair your stator.
  • Often unavailable from the OEM manufacturer
  • All products shipped are tested

Dimensions:

  • Height: 27 mm
  • Length: 22 mm
  • Width: 24 mm
  • Bracket center to center: 34 mm

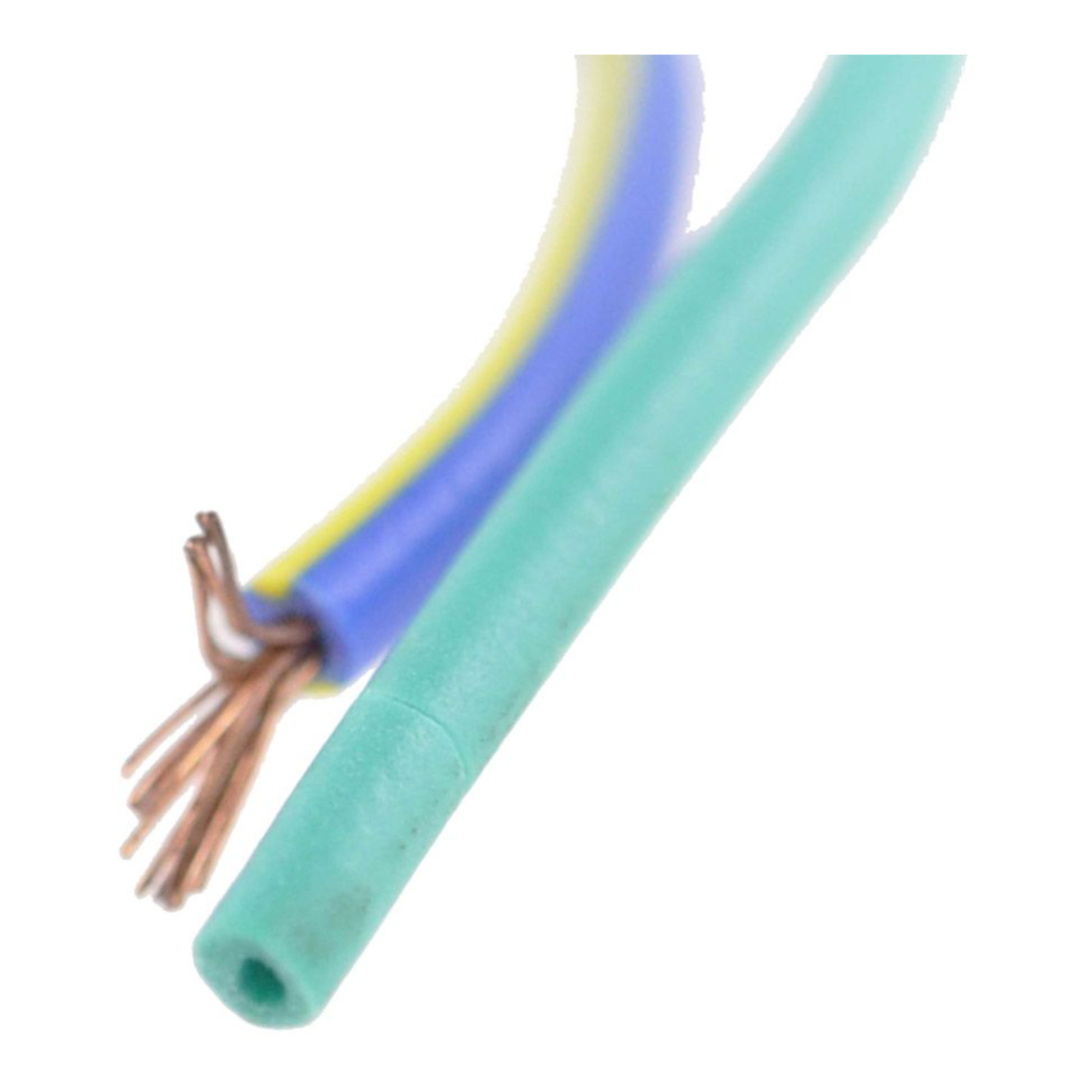

  • Wires length : 980 mm

Other specifications:

  • Number of wires : 2
  • Wire to wire resistance: = 250 ohms +/-20%

Fits Bikes:

Honda TRX420FE Fourtrax Rancher 07-13, TRX420FM Rancher 4X4 07-13, TRX420FPE Fourtrax Rancher 11-13, TRX420FPM Rancher 4X4 09-13, TRX420TE Fourtrax Rancher 07-13, TRX420TM 2X4 07-13, TRX450ER 2WD 06-14, TRX450R 2WD 047-09, TRX500FE Fourtrax Foreman 4X4 05-13, TRX500FM Foreman 4X4 05-13, TRX500FPE Fourtrax Foreman 4X4 07-13, TRX500FPM Foreman 4X4 08-13, TRX500TM Fourtrax Foreman 4X4 05-06



(RMS00135)

SKU RMS00135
Barcode # RM00135
Brand RM Stator
