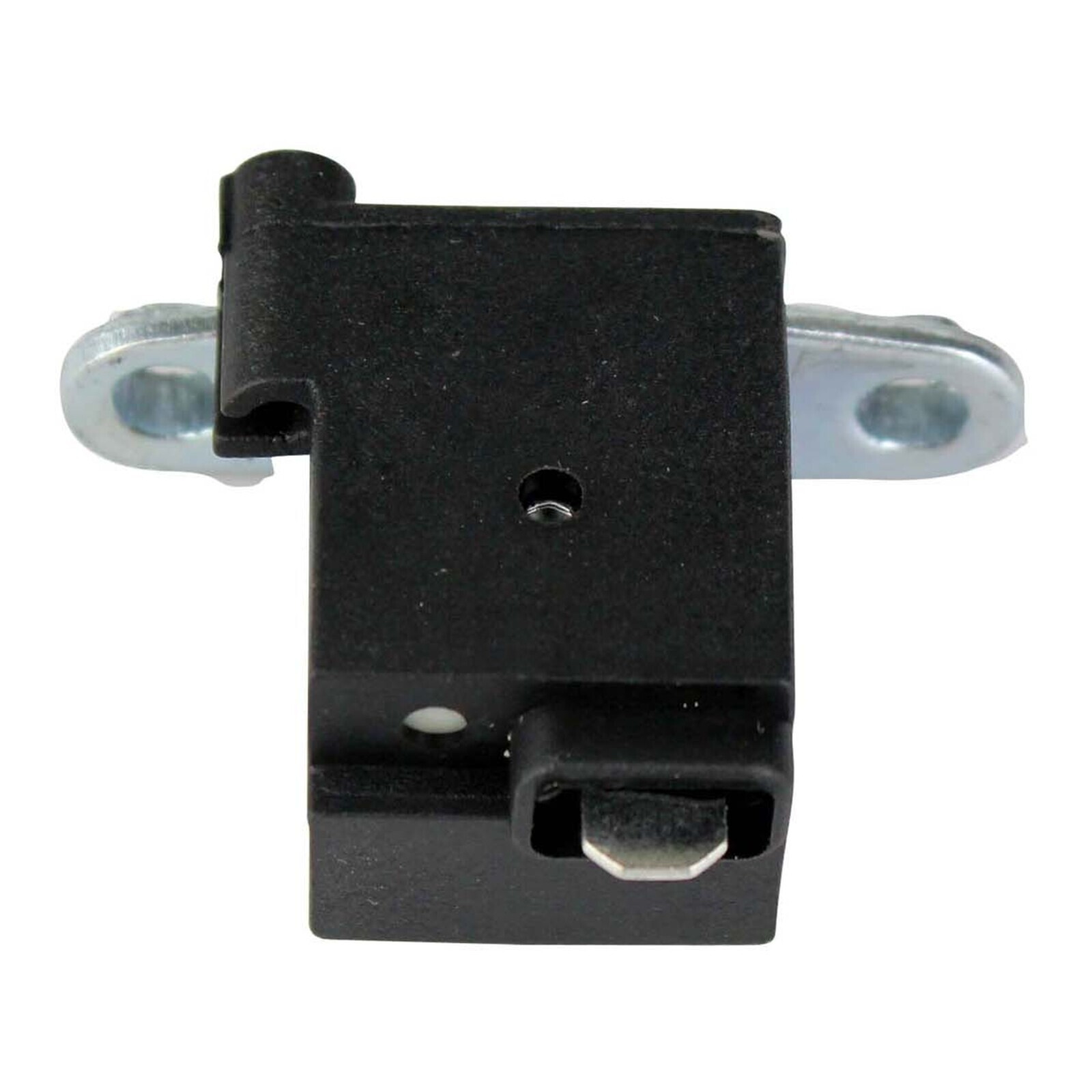

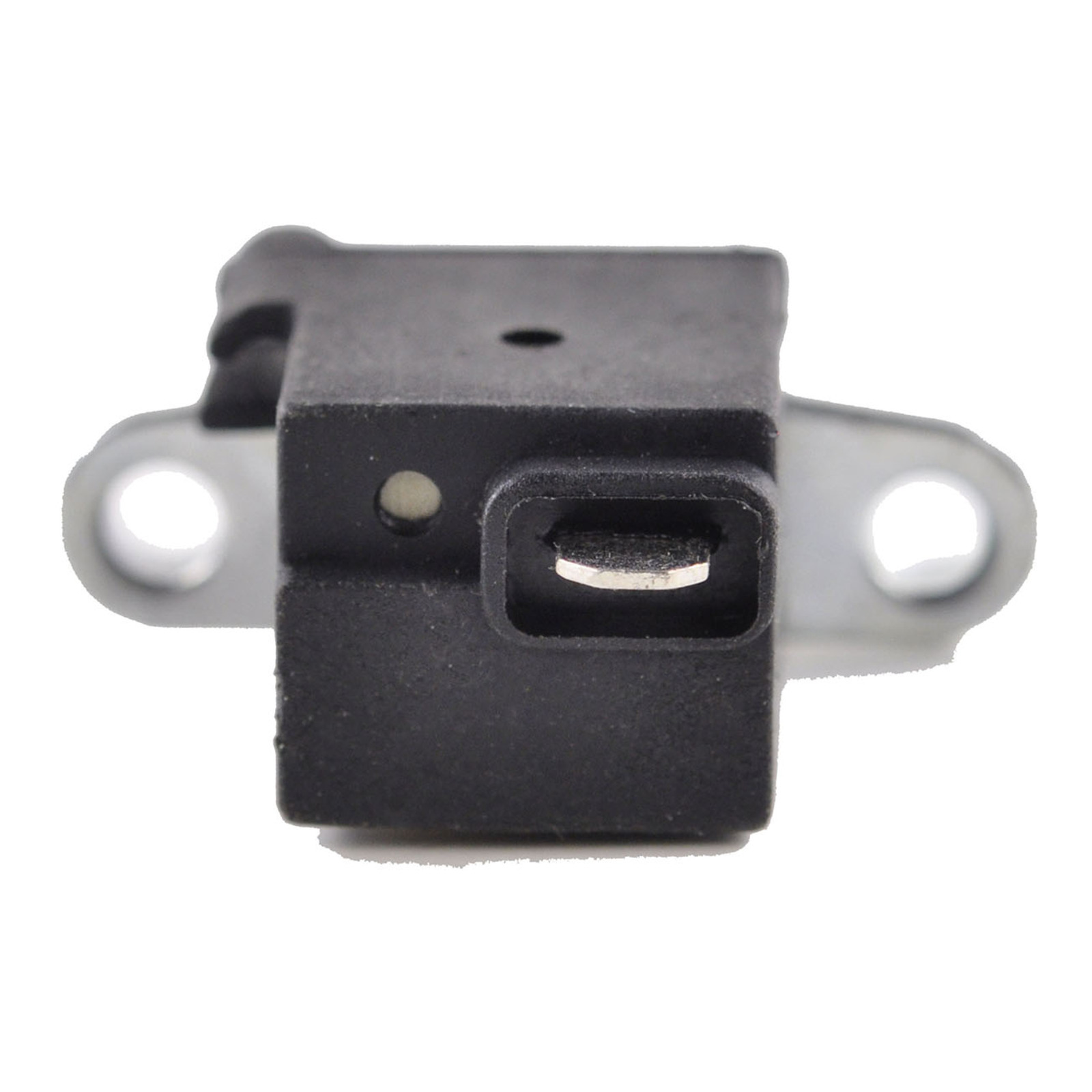

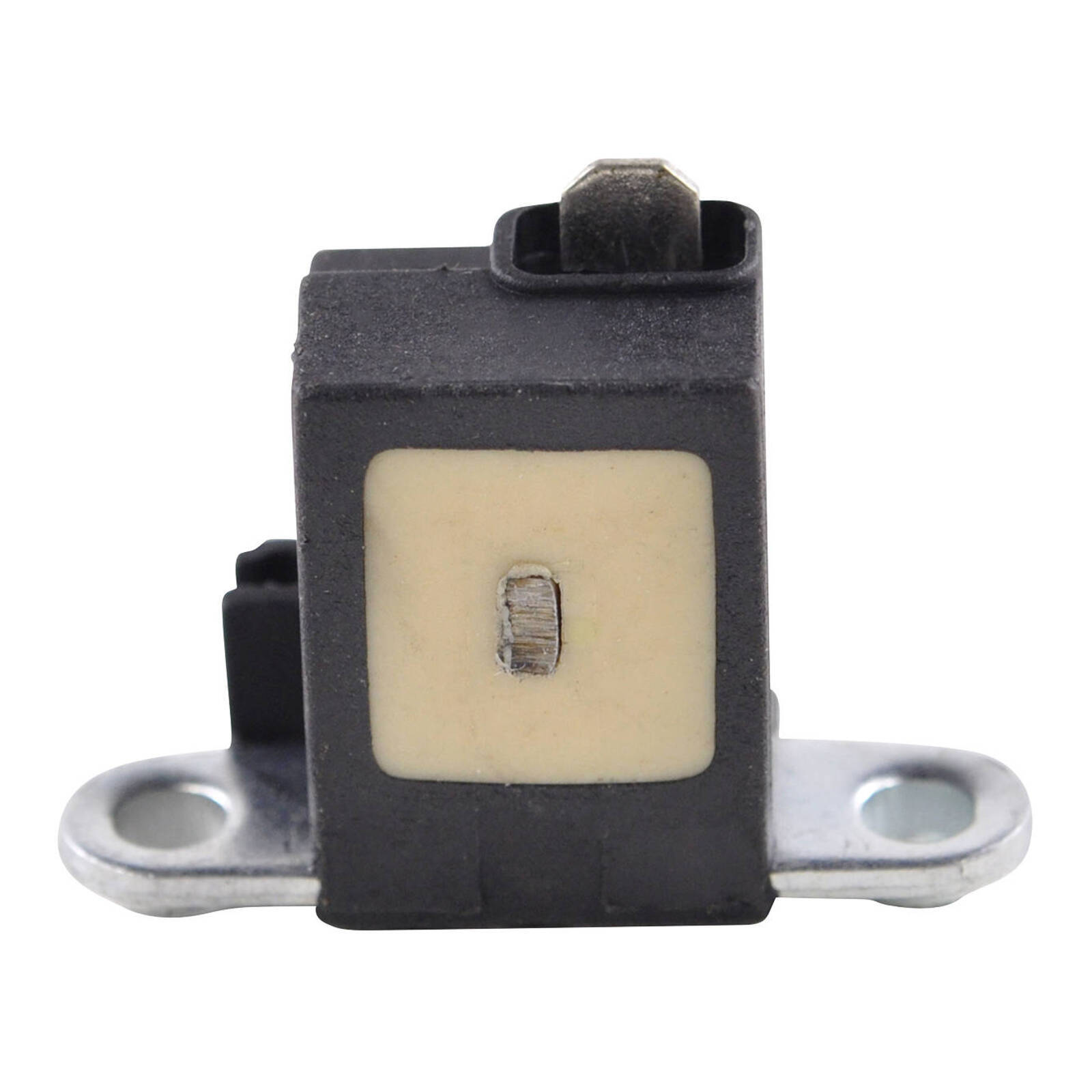

Stator Pickup Pulsar Coil for Honda ATC 125 200 250 Honda TRX 125-650

SKU: RMS00108


$89.99

or 4 fortnightly payments of $22.50 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of eit-her of points 1 or 2 above, will void any warranty.

Fits Bikes:

Honda ATCM 86-87, ATC200X 86-87, ATC250ES 1985, ATC250SX 85-87, FL400 Odyssey 89-90, TRX125 Fourtrax 87-88, TRX200 Fourtrax 90-97, TRX250 Fourtrax 85-87, TRX250EX Sportrax 01-08, TRX250TE Recon 99-14, TRX250TM Recon 2X4 99-17, TRX250X 87-88 & 91-92, TRX250X Sportrax 09-11, TRX300EX Sportrax 93-08, TRX300X 2009, TRX350 1987, TRX350D 87-89, TRX350FE Fourtrax Rancher 00-06, TRX350FM Rancher 4X4 00-06, TRX350TE Rancher 00-06, TRX350TM Rancher 2X4 00-06, TRX400 Foreman 4X4 95-05, TRX450ES Foreman 2X4 98-01, TRX450FE Foreman 4X4 02-04, TRX450FM Foreman 4X4 02-04, TRX450S Foreman 4X4 98-01, TRX500FA Rubicon 4X4 01-13, TRX500FPA Foreman 4X4 12-14, TRX650FA IRS Rincon 4X4 03-05, XR250R 96-98 & 2001 & 03-04

Yamaha YFS200 Blaster 1989



(RMS00108)

Dimensions:
Height: 31 mm
Length: 20 mm
Width: 22 mm
Bracket center to center: 35 mm

Wire to wire resistance:
Pin to Ground = 350 ohms+/-20%

SKU RMS00108
Barcode # RM00108
Brand RM Stator
