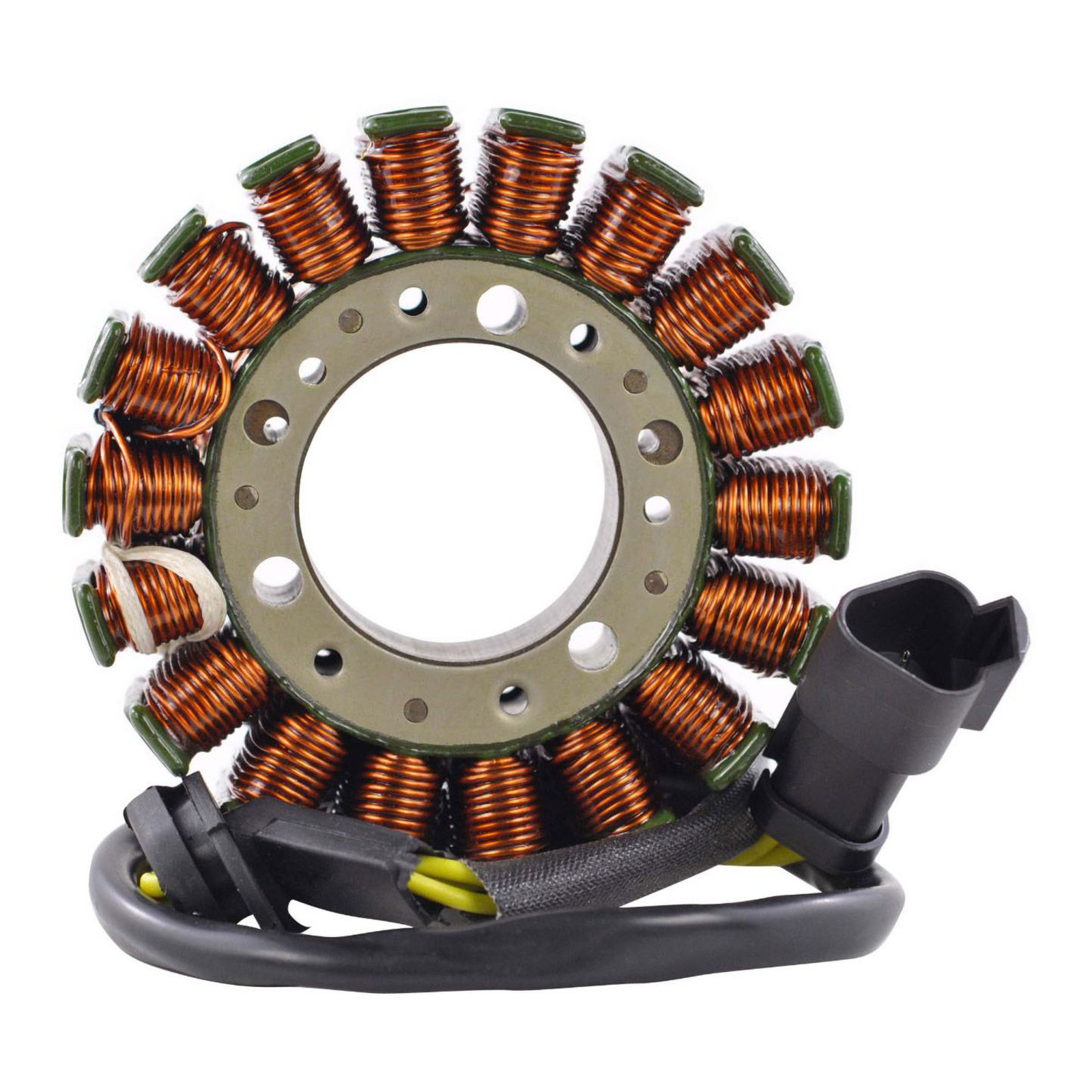

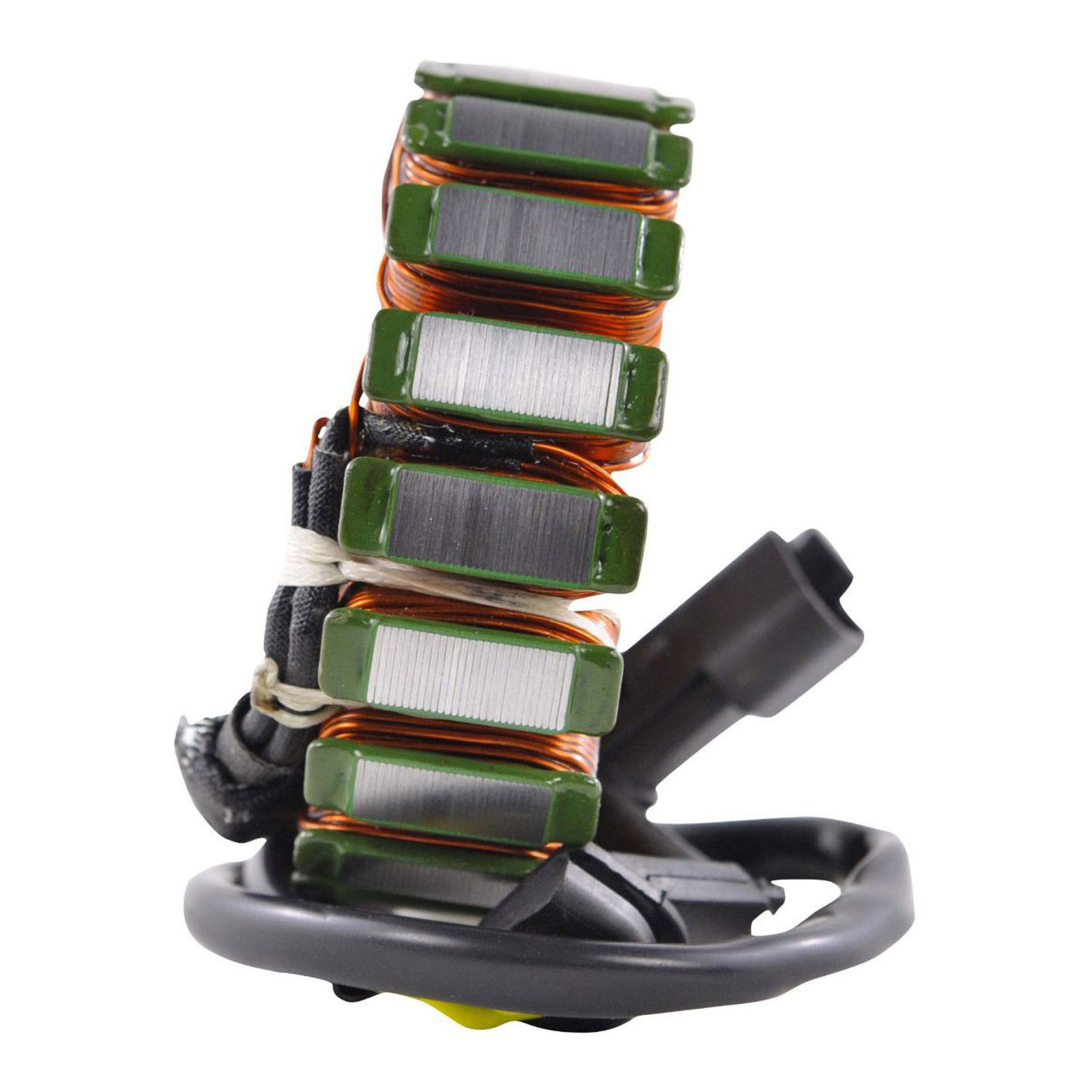

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

• Interior diameter: 42mm
• Exterior diameter: 104mm
• Thickness: 25mm
• Length of wires stator to grommet: 135mm
• Length of wires grommet to plug: 400mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire to wire resistance:

• Alternator: Yellow between Yellow = 0.5 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Fits: Sea-Doo 150 Speedster 155 Jet Boat 07-12, 180 SP 260 Jet Boat Twin Eng 2012, 200 Speedster 155 Jet Boat Twin Eng 05-06, 205 Utoptia 155 Edit 1 Jet Boat Twin Eng 2006, 205 Utoptia 155 Edit 2 Jet Boat Twin Eng 2006, 210 Challenger 155 Jet Boat Twin Eng 10-12, 210 Challenger SE 155 Jet Boat Twin Eng 10-12, 210 SP 155 Jet Boat Twin Eng 2012, 210 SP 215 Jet Boat Twin Eng 2012, 210 Wake 155 Jet Boat Twin Eng 10-12, 210 Wake 215 Jet Boat Twin Eng 10-12, 220 Islandia 155 Jet Boat Twin Eng 06-07, 230 SP 215 Jet Boat Twin Eng 11-12, 230 Wake 215 Jet Boat Twin Eng 2009, 230 Wake 215 Jet Boat Twin Eng 11-12, 230 Wake 255 Jet Boat Twin Eng 2009, 230 Wake 255 Jet Boat Twin Eng 11-12, 230 Wake SE 215 Jet Boat Twin Eng 2010, 230 Wake SE 255 Jet Boat Twin Eng 2010, 4-TEC GTI 130 155 08-17, 4-TEC GTR 215 12-16, 4-TEC GTR 230 2017, 4-TEC GTS 130 155 11-17, 4-TEC GTX 155 08-16, 4-TEC GTX 215 08-13, 4-TEC GTX LTD iS 260 12-17, 4-TEC GTX LTD iS 260 18CS 2012, 4-TEC RXP 215 04-09, 4-TEC RXP 260 12-15, 4-TEC RXT 260 10-17, -TEC Wake 155 08-16, 4-TEC Wake 215 2008, GTI LTD 11-12, GTI LTD 155 13-15, GTX 4-TEC 03-08, GTX LTD 07-08, TX Wake 05-08, RXP 2005, RXP 2007, RXP X 08-12, RXT 2005, RXT2007, RXT X 2009, Sportster 4-TEC 155 Jet Boat 2005, Sportster 4-TEC Edit 1 155 Jet Boat 2006, Sportster 4-TEC Edit 2 155 Jet Boat 2006, Sportster 4-TEC Jet Boat 03-04
