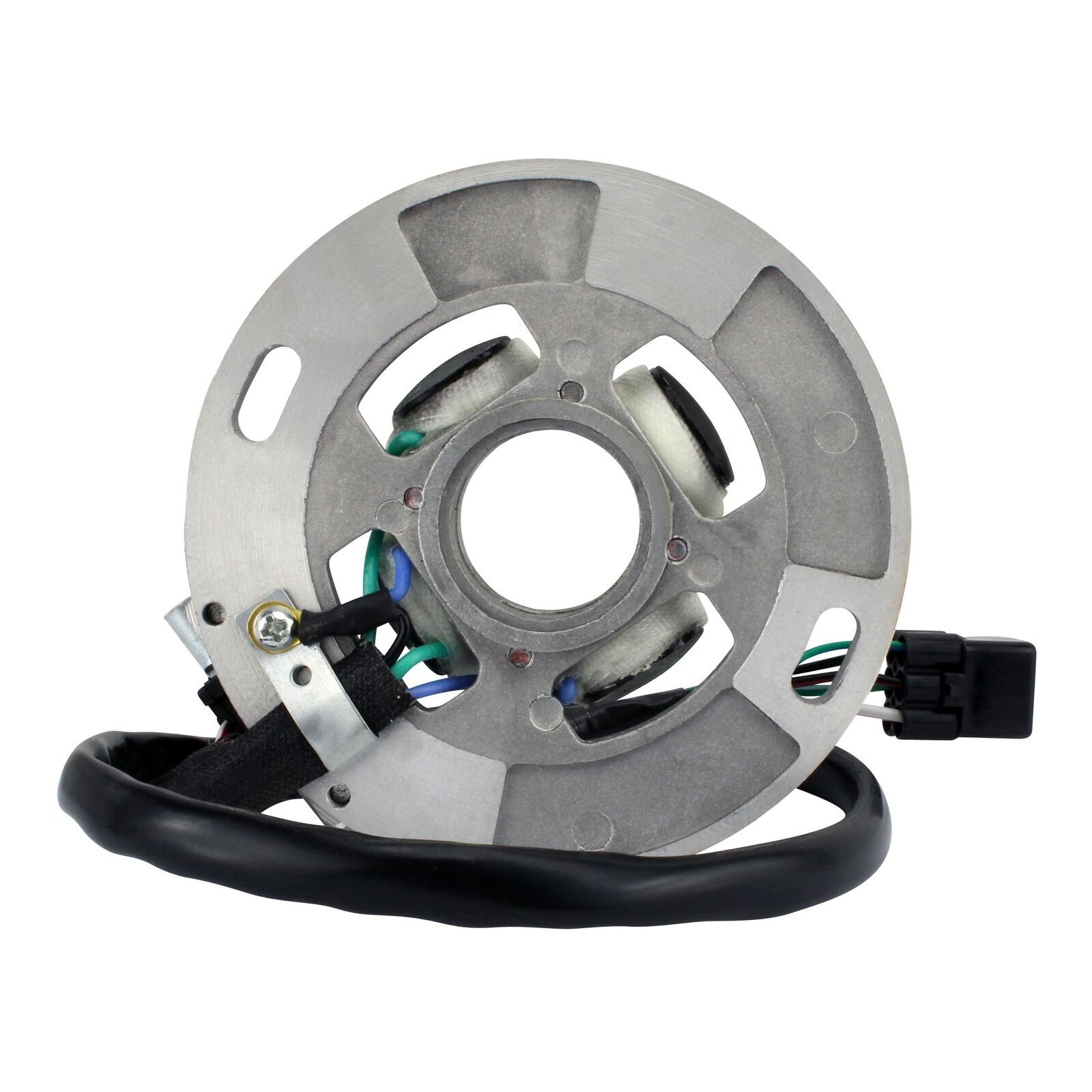

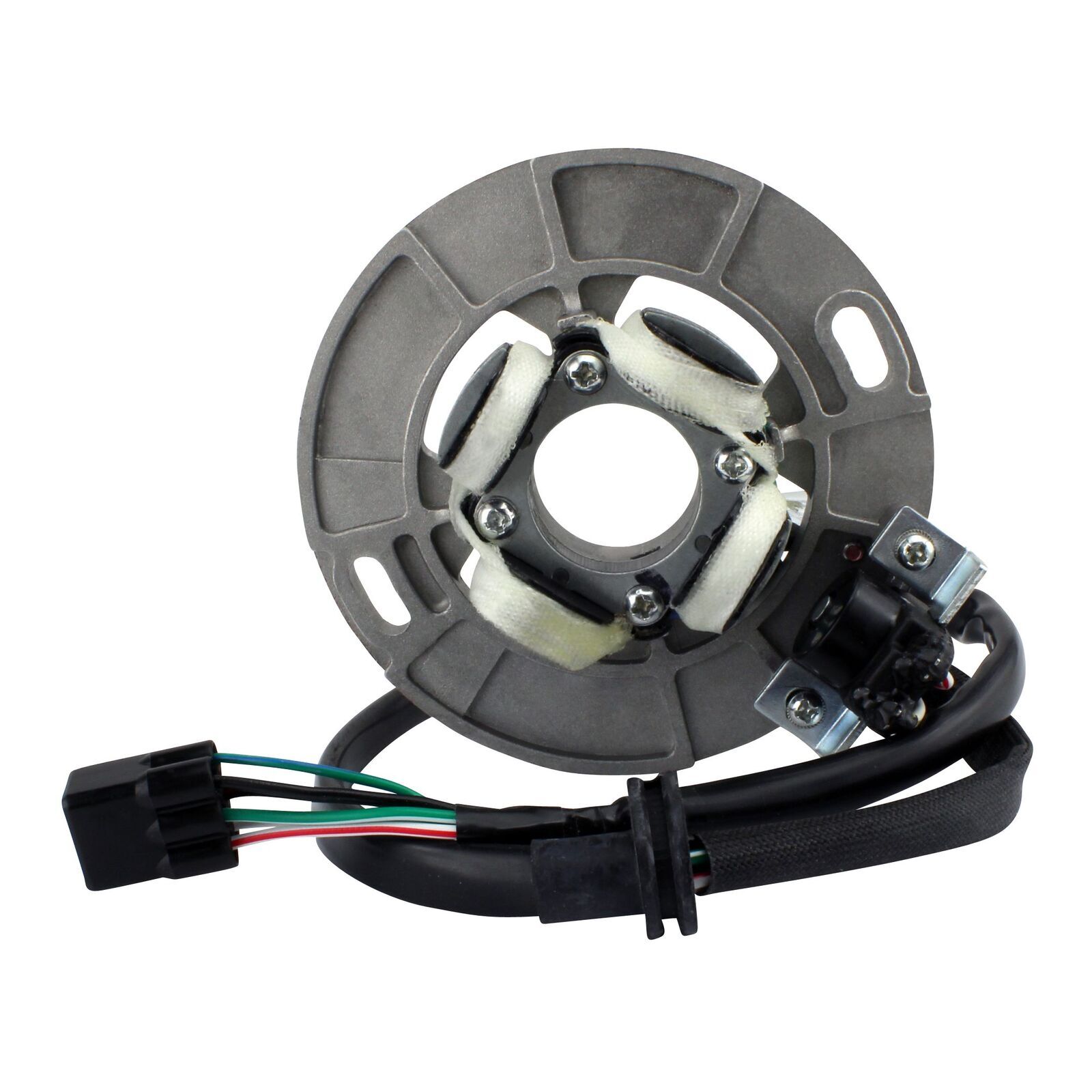

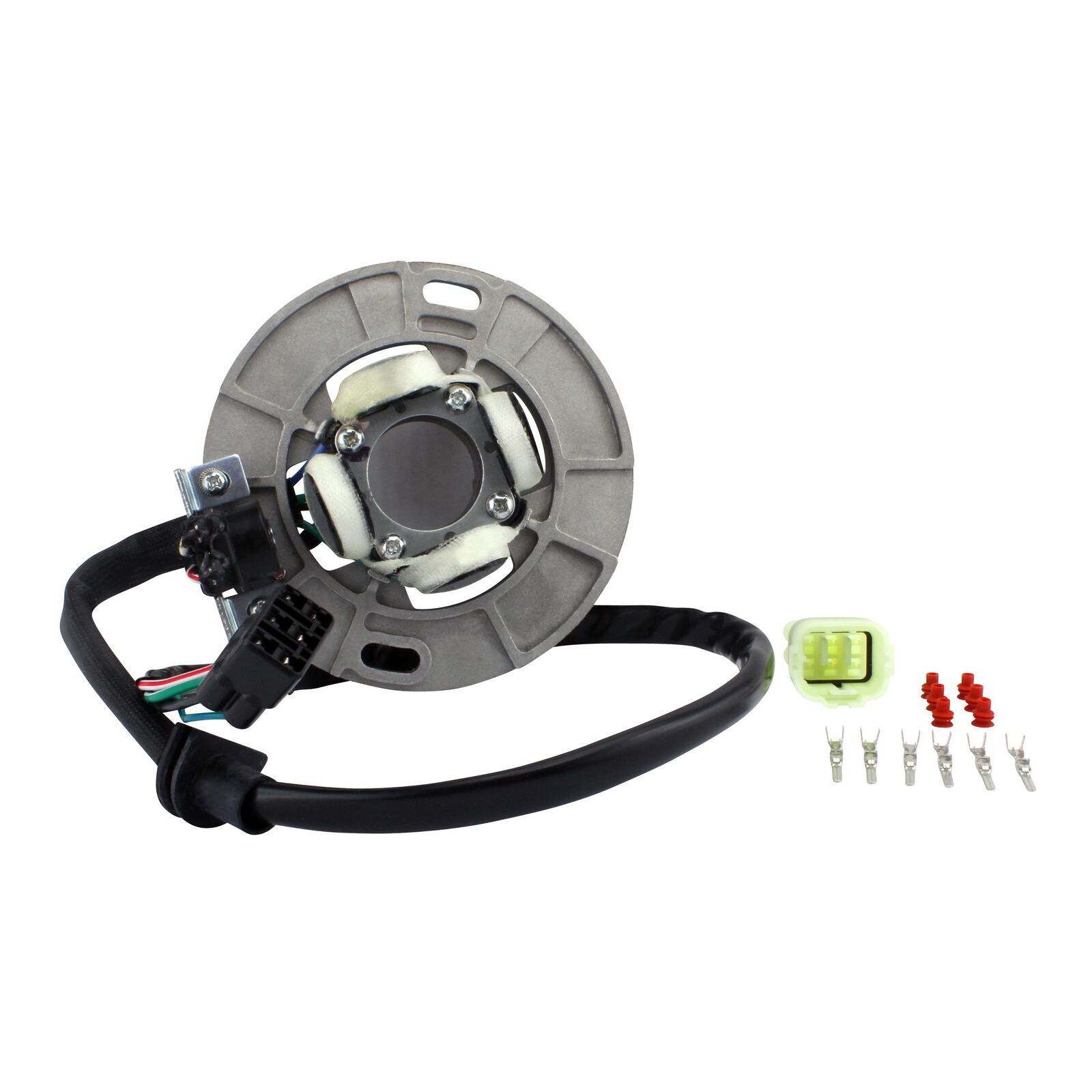

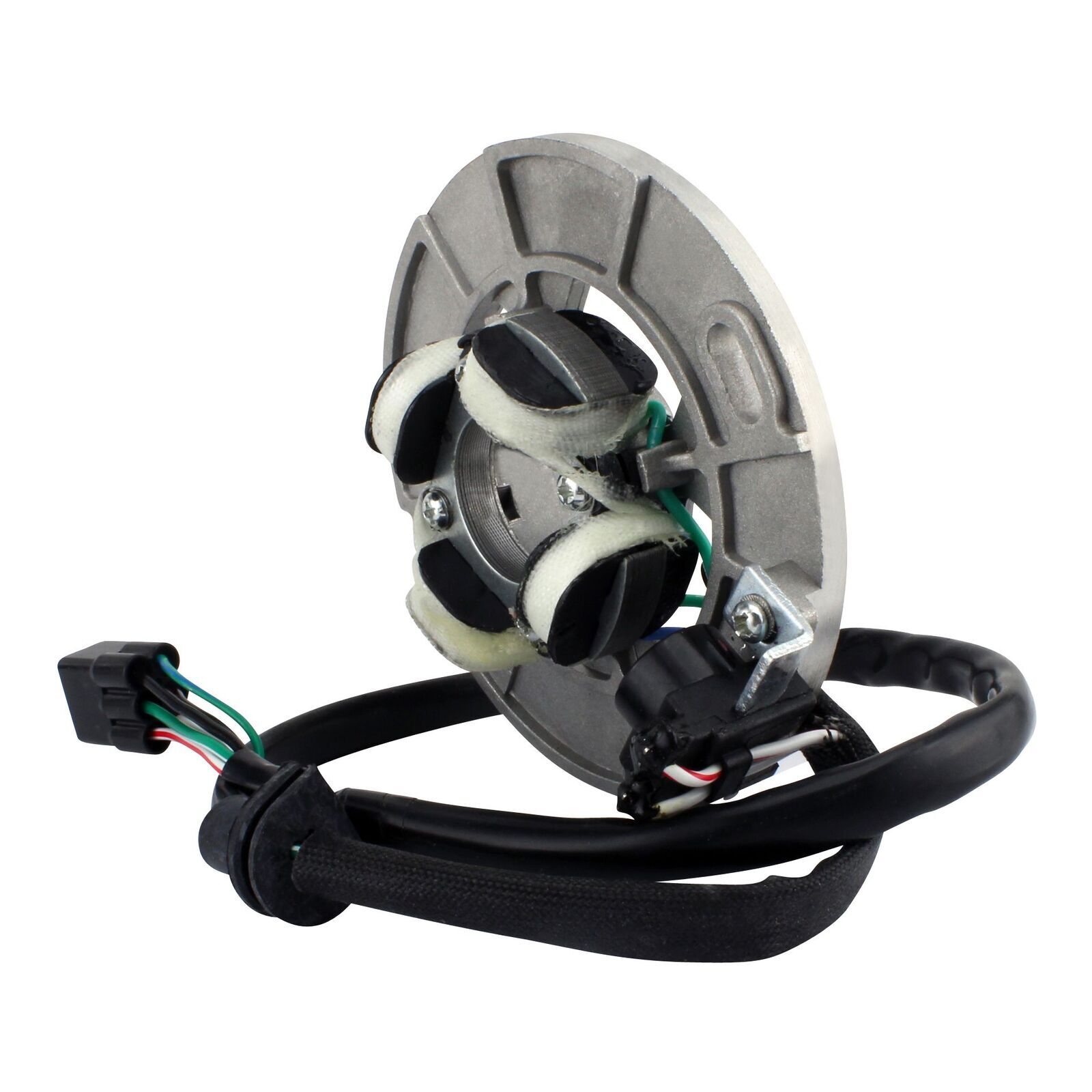

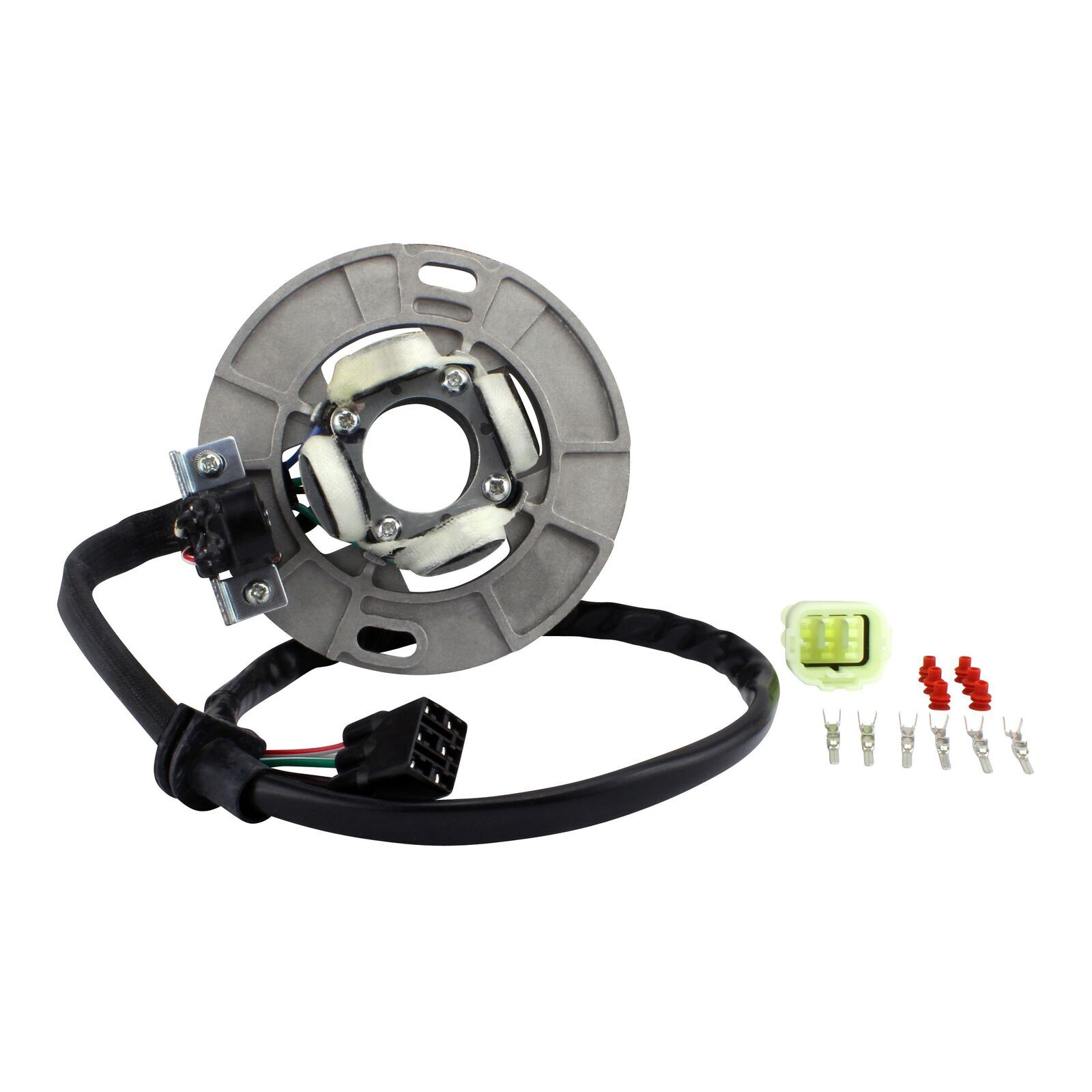

RM STATOR YAMAHA YZ65 18-25 YZ85 02-25 STATOR
SKU: RMS010108281
or 4 fortnightly payments of $92.50 with
Flat fee shipping!
Overnight courier just $5
*Conditions Apply
Order before 3.30pm,
we ship today
*Conditions Apply
RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

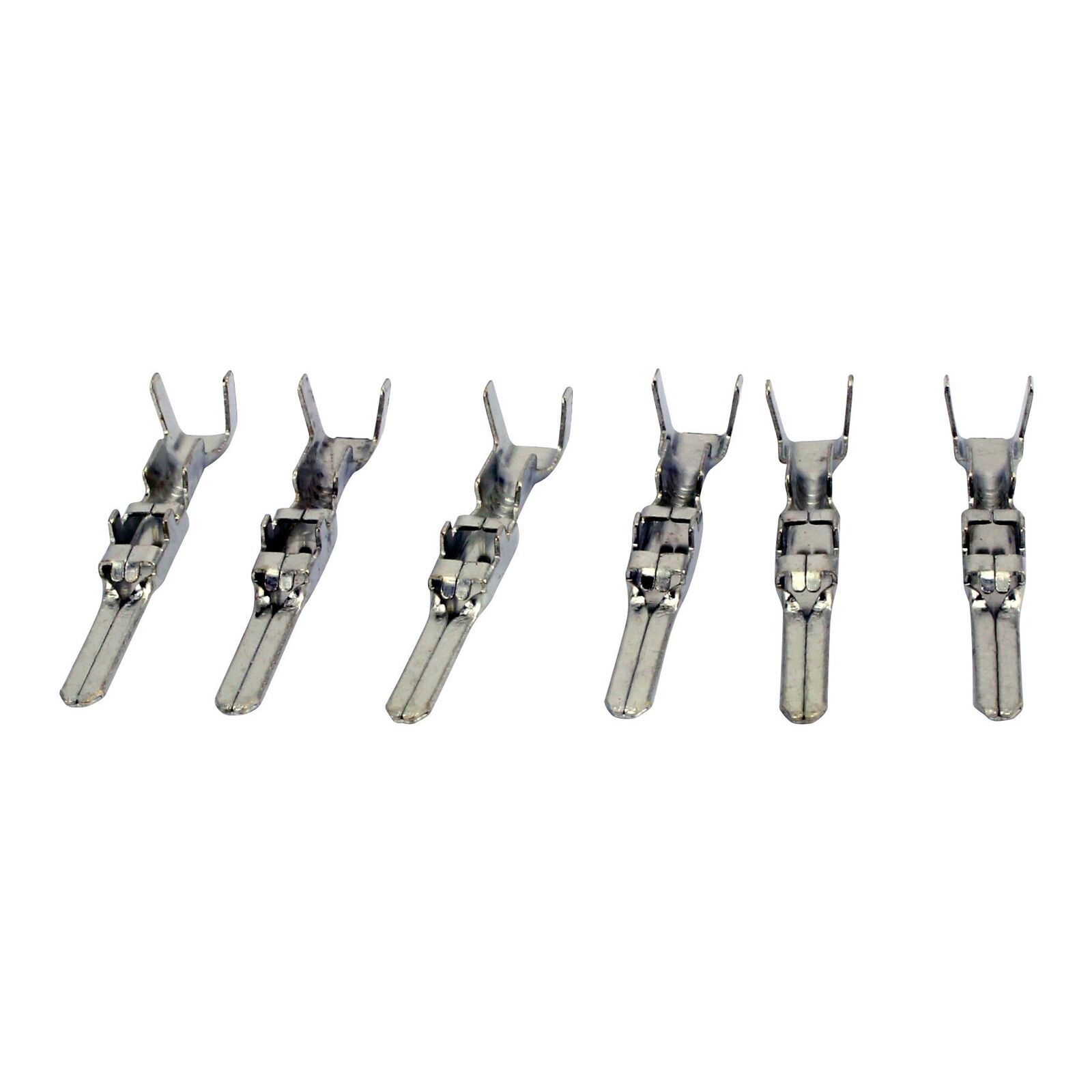

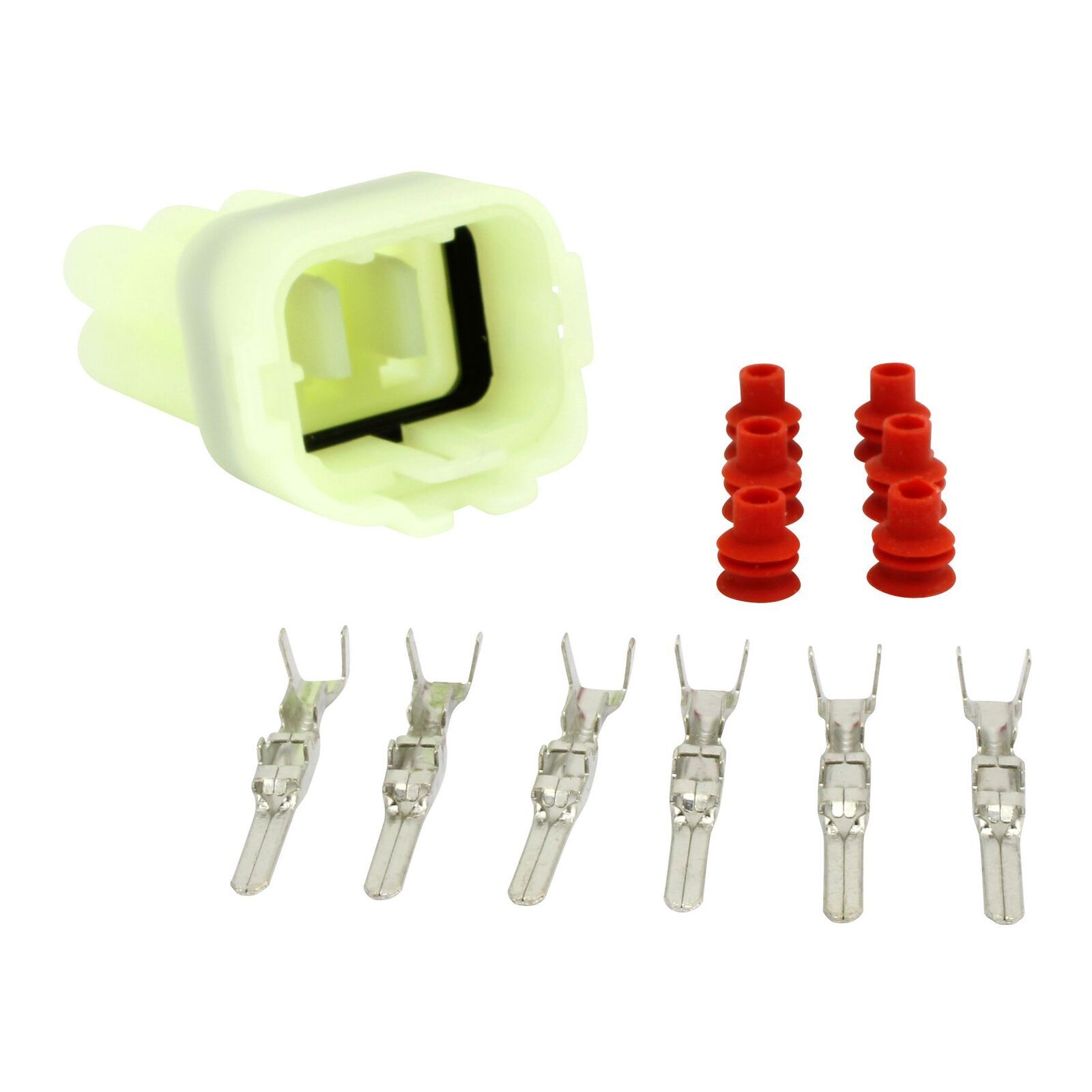

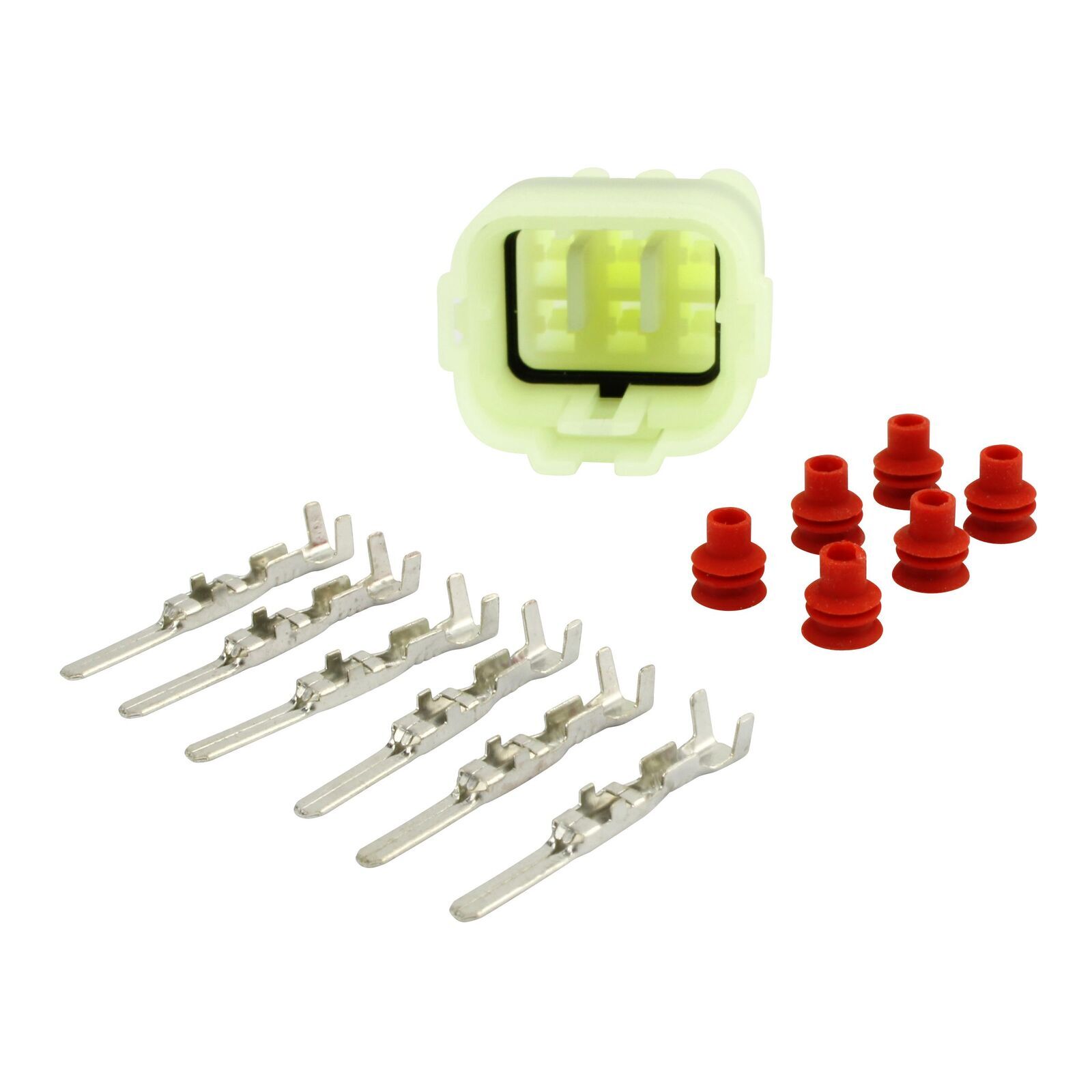

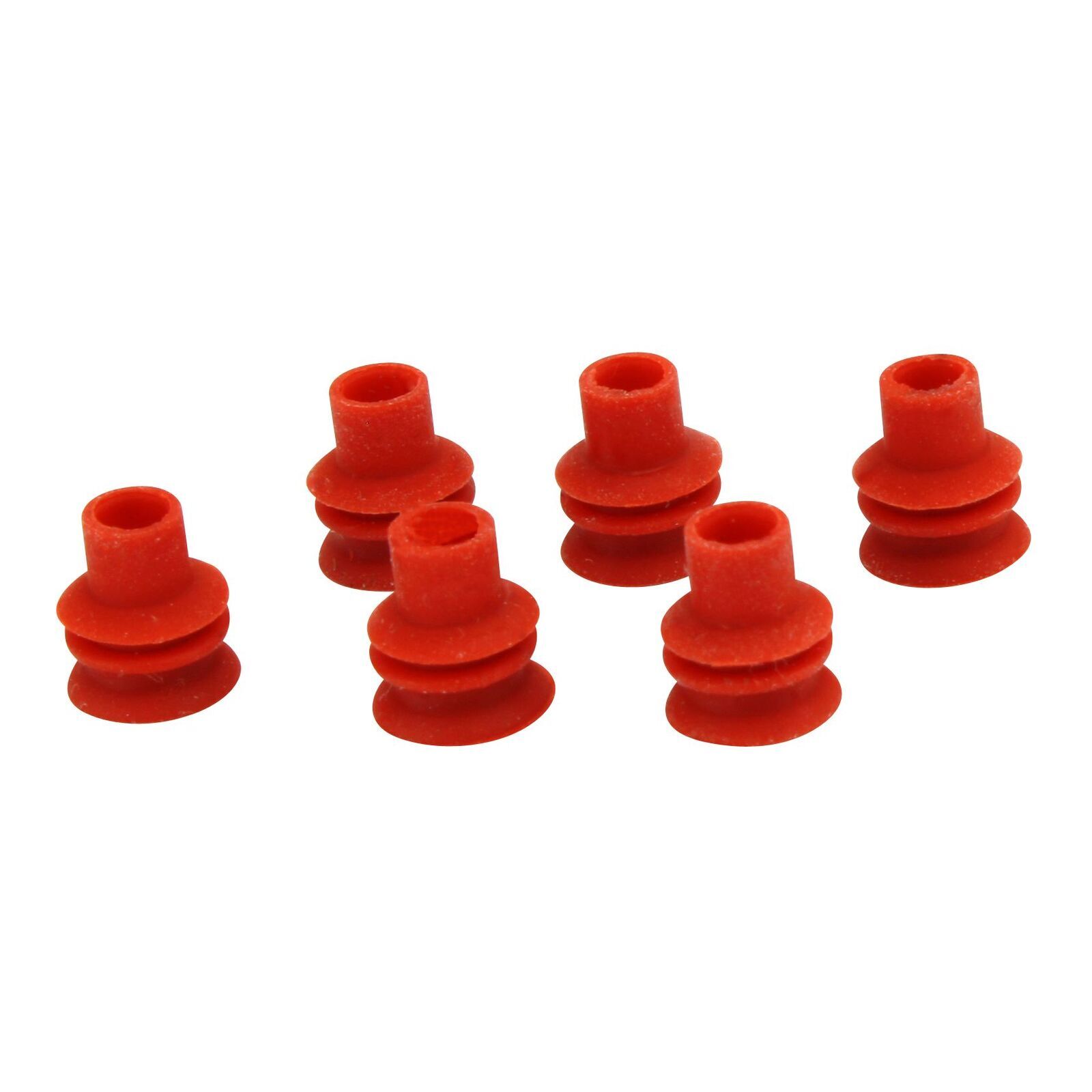

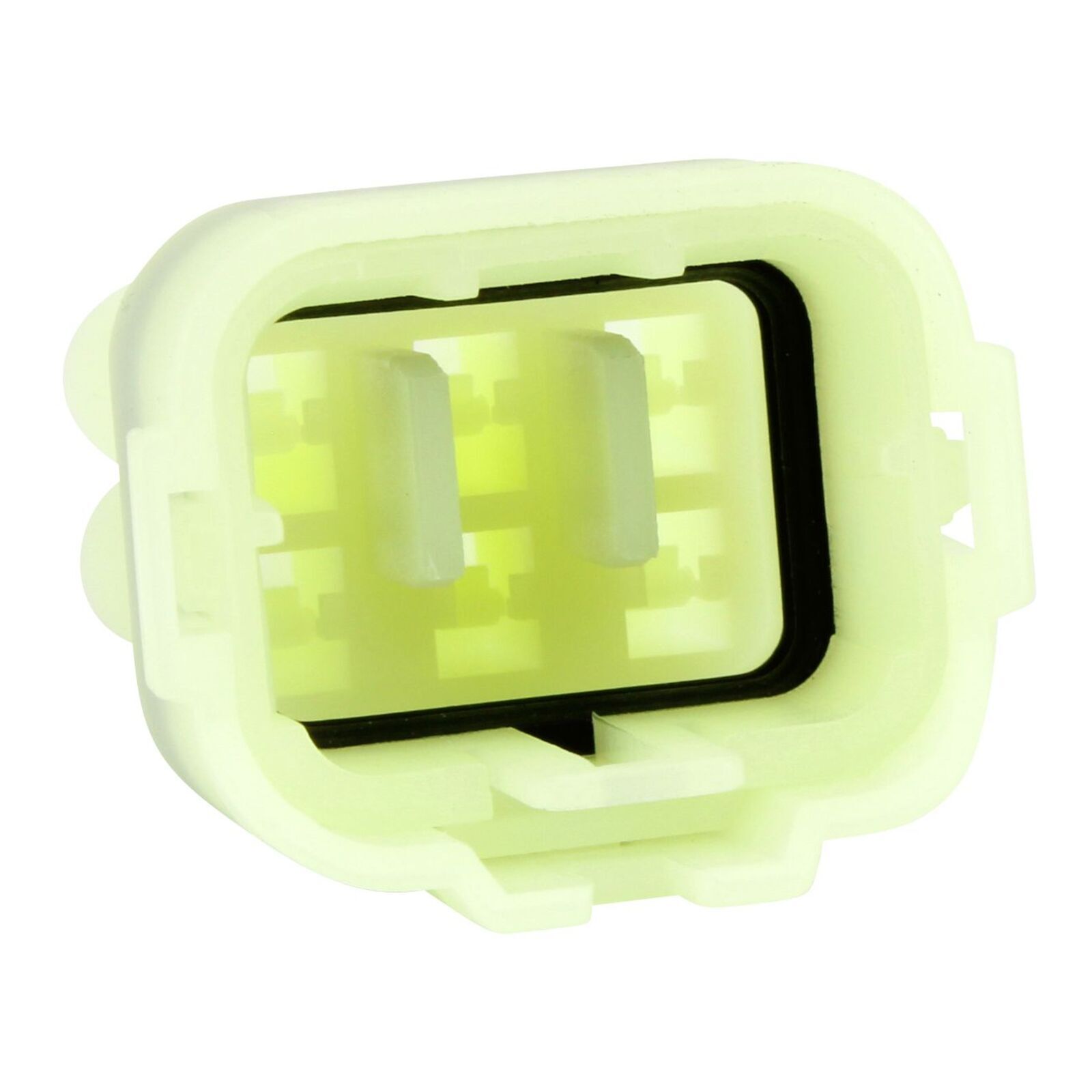

- Connector included
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Please Note:
- All electrical components must be fitted by a qualified technician.
- Before fitting electrical components ensure the root cause of the original failure has been addressed.
- The absence of either of points 1 or 2 above, will void any warranty.
(RMS010108281)
- Yamaha YZ 65 2021
- Yamaha YZ 85 Big Wheel 2003
- Yamaha YZ 85 Small Wheel 2016
- Yamaha YZ 85 Small Wheel 2017
- Yamaha YZ 85 Small Wheel 2018
- Yamaha YZ 85 Small Wheel 2019
- Yamaha YZ 85 Small Wheel 2002
- Yamaha YZ 85 Small Wheel 2020
- Yamaha YZ 85 Big Wheel 2002
- Yamaha YZ 65 2018
- Yamaha YZ 65 2019
- Yamaha YZ 65 2020
- Yamaha YZ 85 Big Wheel 2020
- Yamaha YZ 85 Big Wheel 2021
- Yamaha YZ 85 Small Wheel 2021
- Yamaha YZ 85 Small Wheel 2015
- Yamaha YZ 65 2022
- Yamaha YZ 65 2023
- Yamaha YZ 85 Big Wheel 2022
- Yamaha YZ 85 Small Wheel 2022
- Yamaha YZ 85 Big Wheel 2023
- Yamaha YZ 85 Small Wheel 2023
- Yamaha YZ 65 2024
- Yamaha YZ 85 Big Wheel 2024
- Yamaha YZ 85 Small Wheel 2024
- Yamaha YZ 65 2025
- Yamaha YZ 85 Small Wheel 2025
- Yamaha YZ 85 Big Wheel 2025
- Yamaha YZ 85 Big Wheel 2017
- Yamaha YZ 85 Big Wheel 2004
- Yamaha YZ 85 Big Wheel 2005
- Yamaha YZ 85 Big Wheel 2006
- Yamaha YZ 85 Big Wheel 2007
- Yamaha YZ 85 Big Wheel 2008
- Yamaha YZ 85 Big Wheel 2009
- Yamaha YZ 85 Big Wheel 2010
- Yamaha YZ 85 Big Wheel 2011
- Yamaha YZ 85 Big Wheel 2012
- Yamaha YZ 85 Big Wheel 2013
- Yamaha YZ 85 Big Wheel 2014
- Yamaha YZ 85 Big Wheel 2015
- Yamaha YZ 85 Big Wheel 2016
- Yamaha YZ 85 Small Wheel 2014
- Yamaha YZ 85 Big Wheel 2018
- Yamaha YZ 85 Big Wheel 2019
- Yamaha YZ 85 Small Wheel 2003
- Yamaha YZ 85 Small Wheel 2004
- Yamaha YZ 85 Small Wheel 2005
- Yamaha YZ 85 Small Wheel 2006
- Yamaha YZ 85 Small Wheel 2007
- Yamaha YZ 85 Small Wheel 2008
- Yamaha YZ 85 Small Wheel 2009
- Yamaha YZ 85 Small Wheel 2010
- Yamaha YZ 85 Small Wheel 2011
- Yamaha YZ 85 Small Wheel 2012
- Yamaha YZ 85 Small Wheel 2013
Dimensions:
Interior diameter: 27 mm
Exterior diameter: 109 mm
Thickness: 32.6 mm
Length of wires stator to grommet: 135 mm
Length of wires grommet to plug: 410 mm
Length of pickup coil's wire to grommet: 135 mm
Other specifications:

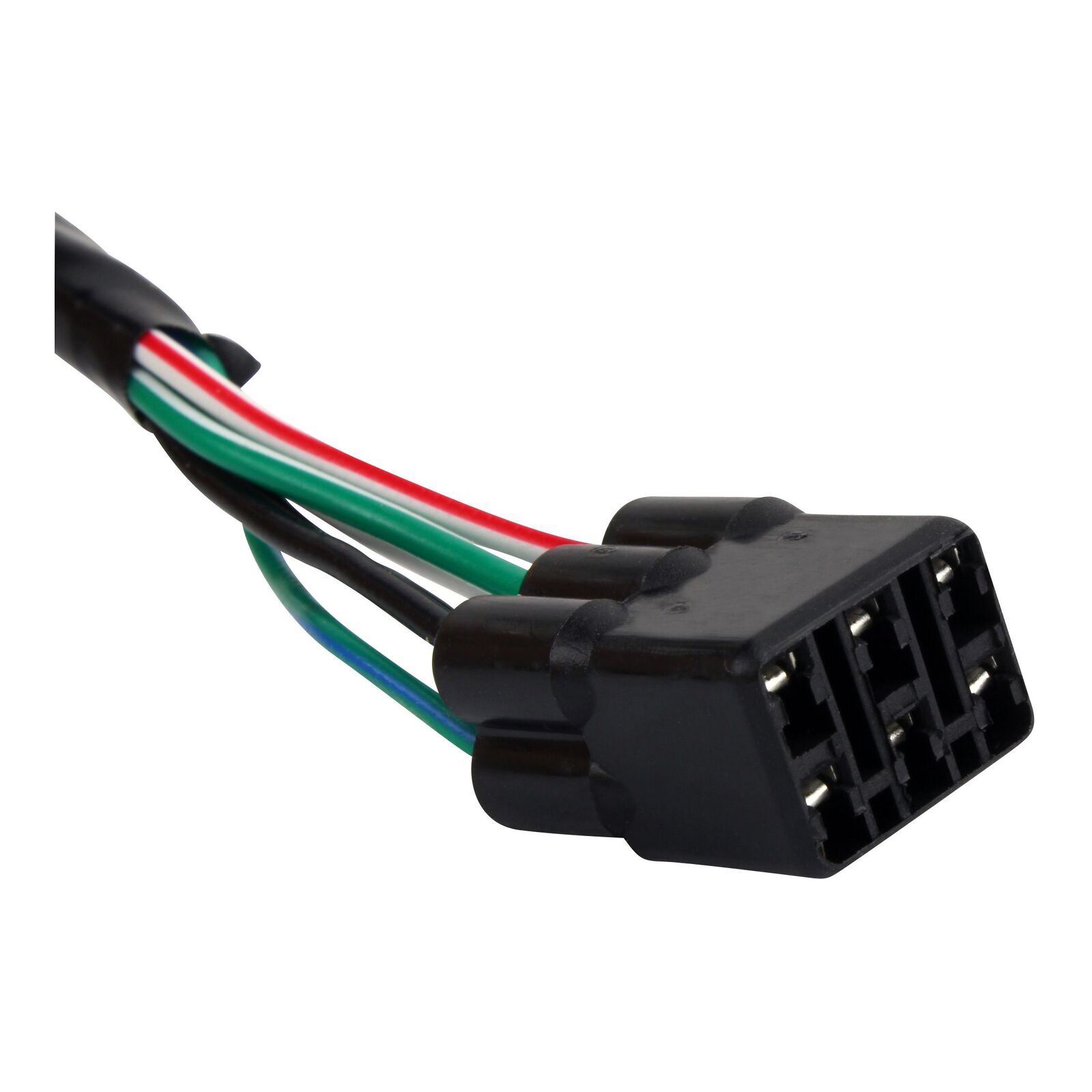

Number of wires: 6
Number of plugs: 1
Number of pins: 6
Number of poles: 4
Wire to wire resistance:
Pickup: White/Blue to White/Red = 293 ohms +-20%
Source: Green/White to Black/Red = 858 ohms +-20%
Source: Black to Green/Blue = 53 ohms +-20%
| SKU | RMS010108281 |
| Barcode # | RMS010-108281 |
| Brand | RM Stator |
