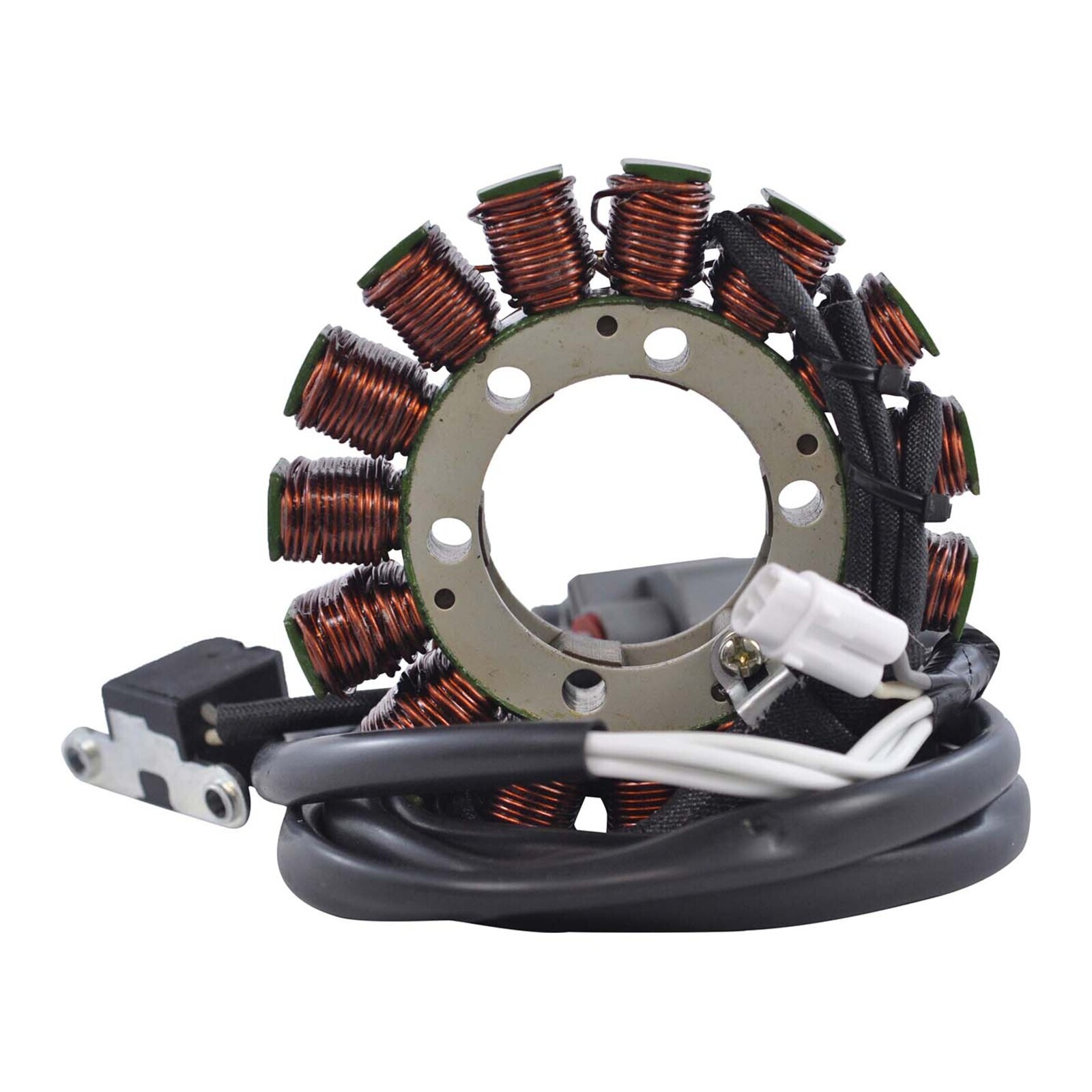

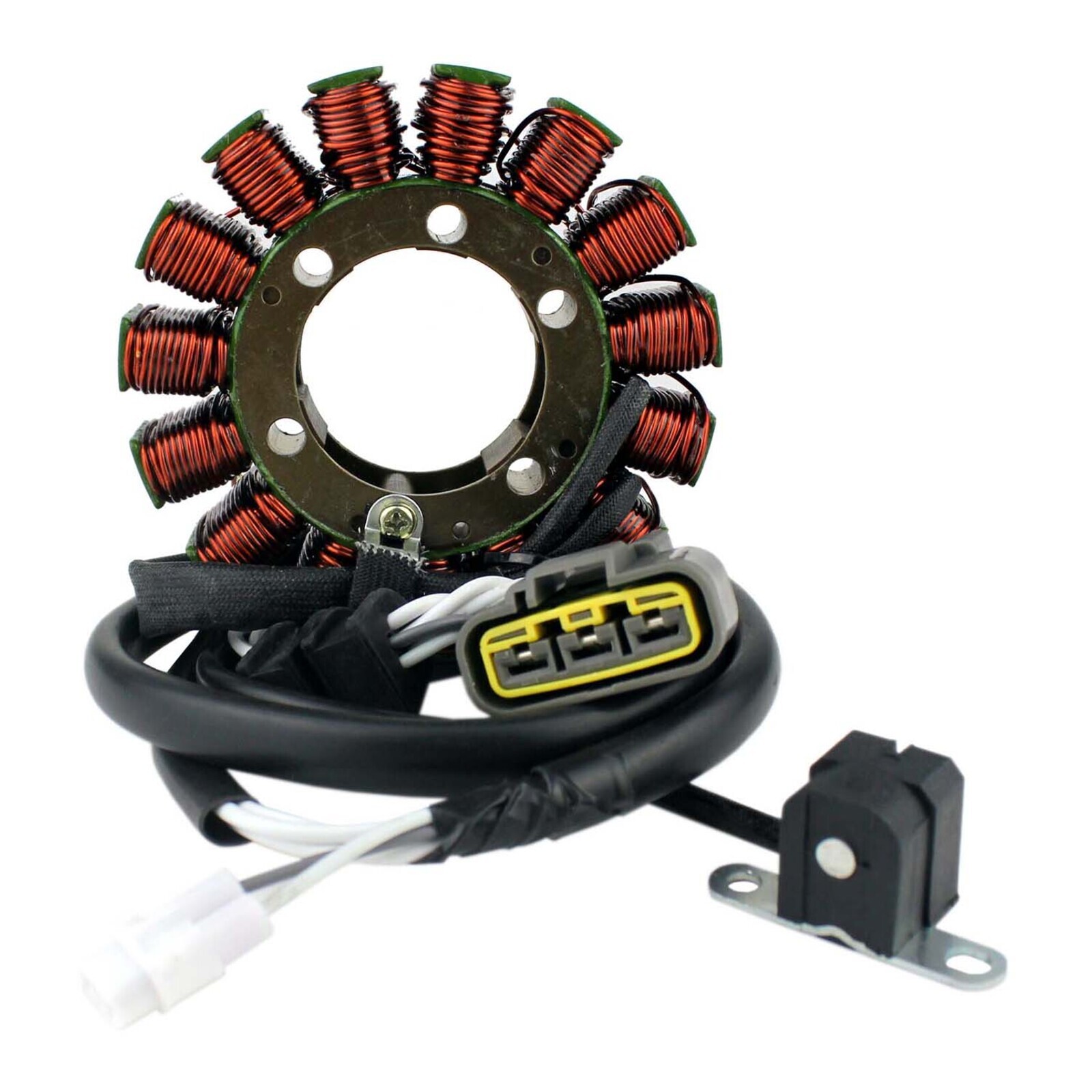

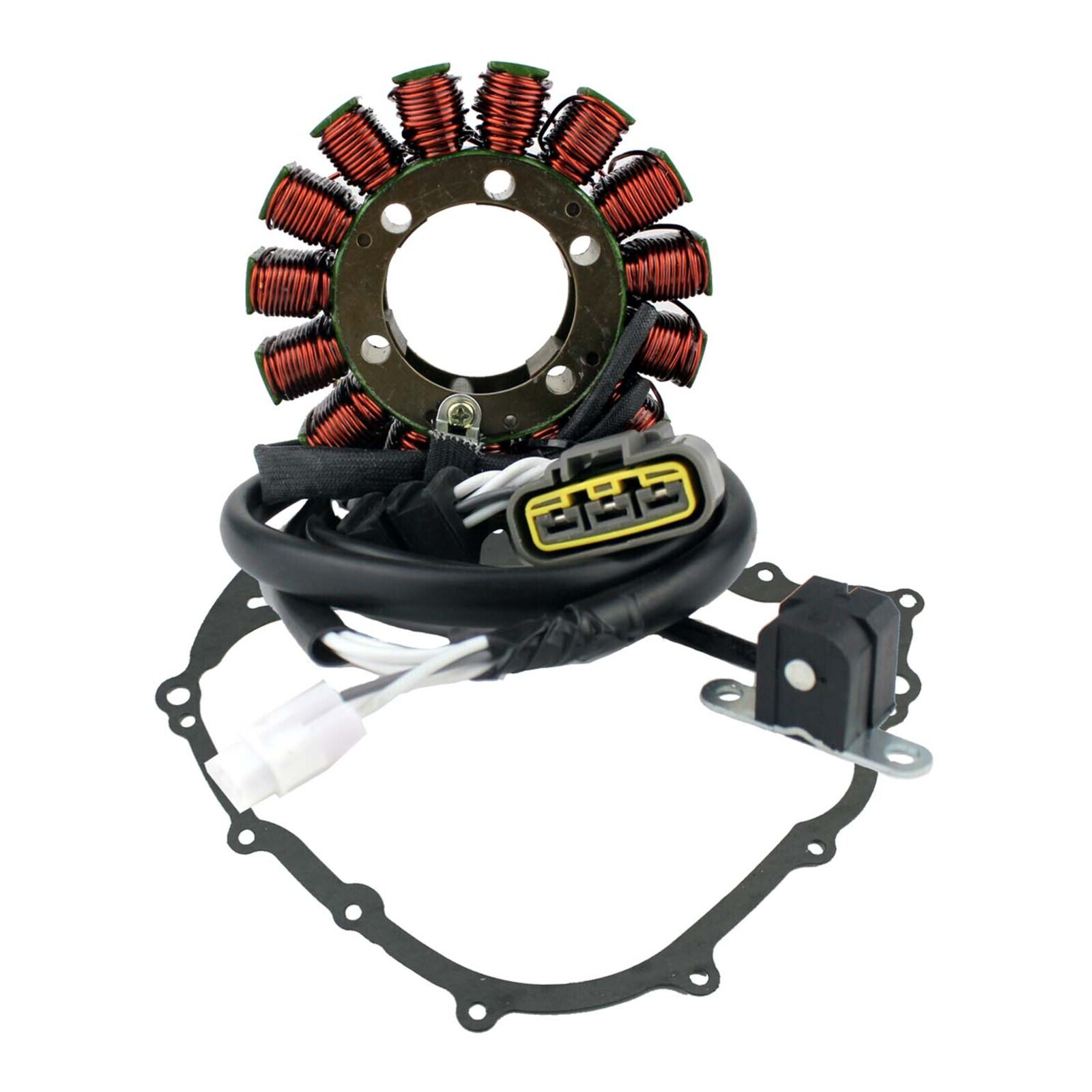

RM STATOR YAMAHA YFM550 / 700 Grizzly 07-15 STATOR KIT + GASKET

SKU: RMS01004G


NZ $529.99

or 4 fortnightly payments of NZ $132.50 with


Flat fee shipping!
Overnight courier just NZ $5.00
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

Fits Bikes: Yamaha YFM550FA EPS Grizzly 4X4 09-14, YFM550FA Grizzly 4X4 09-14, YFM700F Grizzly 08-11, YFM700FAP Grizzly EPS Auto 07-15



(RMS01004G)

Dimensions Stator :
Interior diameter : 45 mm
Exterior diameter : 106 mm
Thickness : 27 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 550 mm & 1100 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : White to Grey = 500 ohms +/-20%

SKU RMS01004G
Barcode # RM01004G
Brand RM Stator
