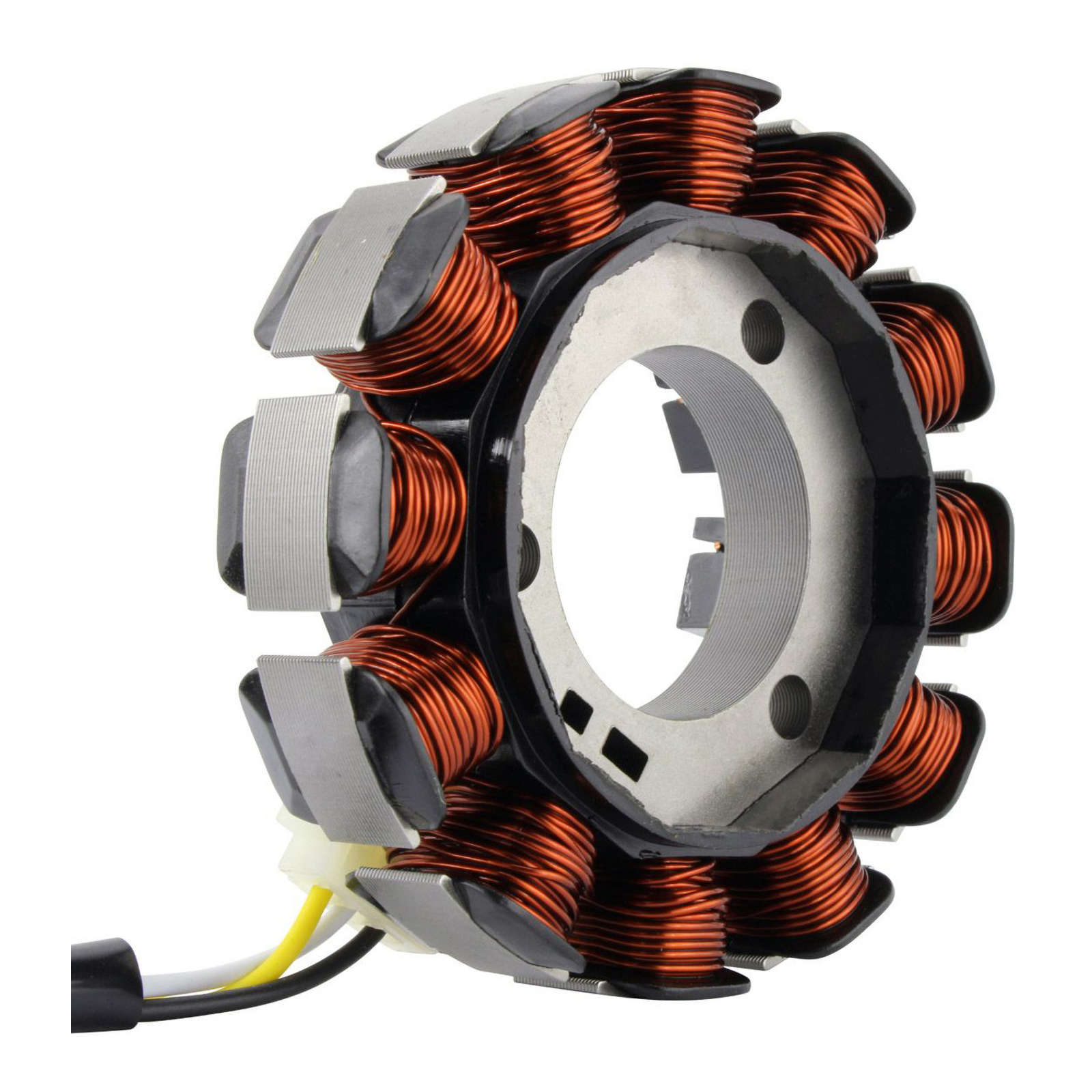

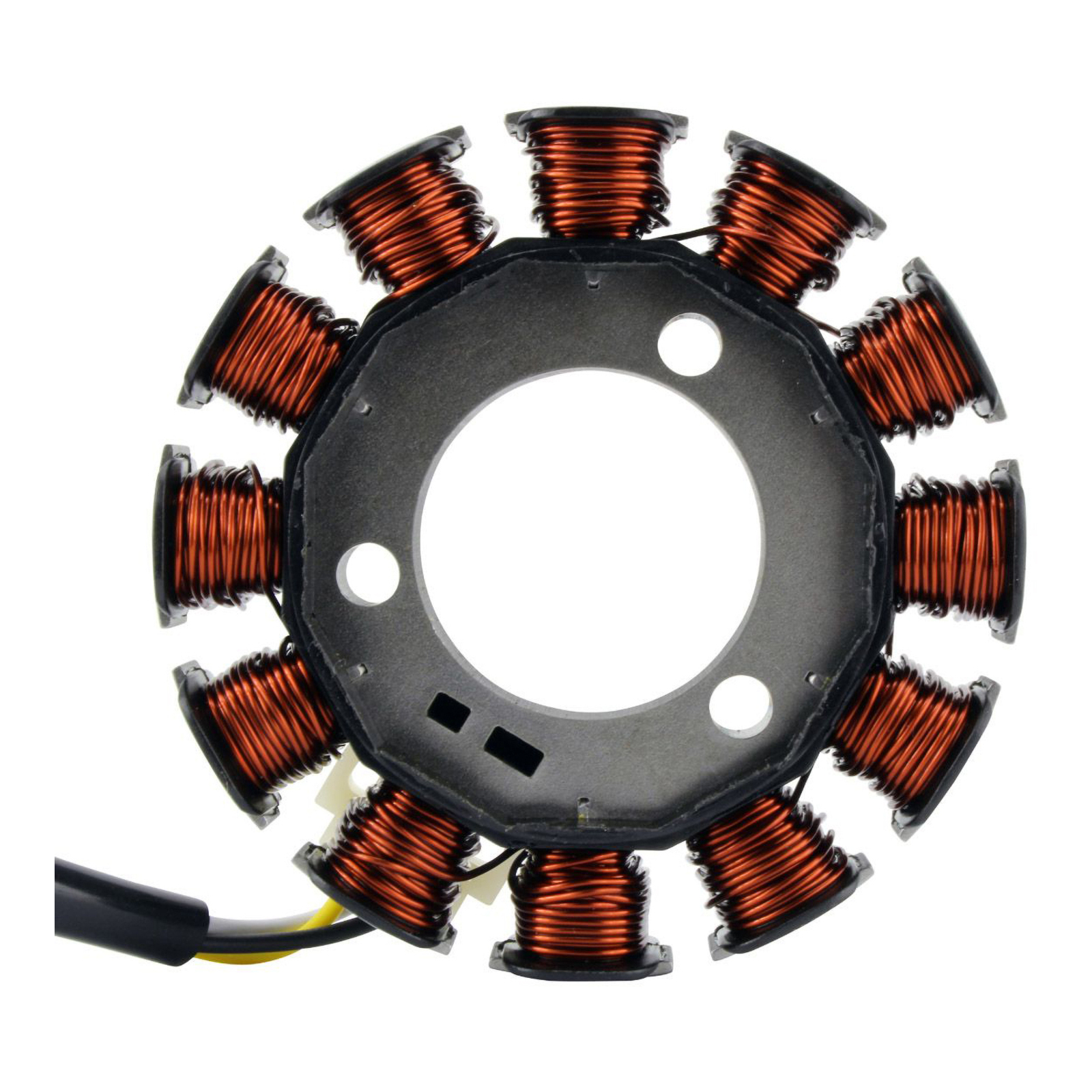

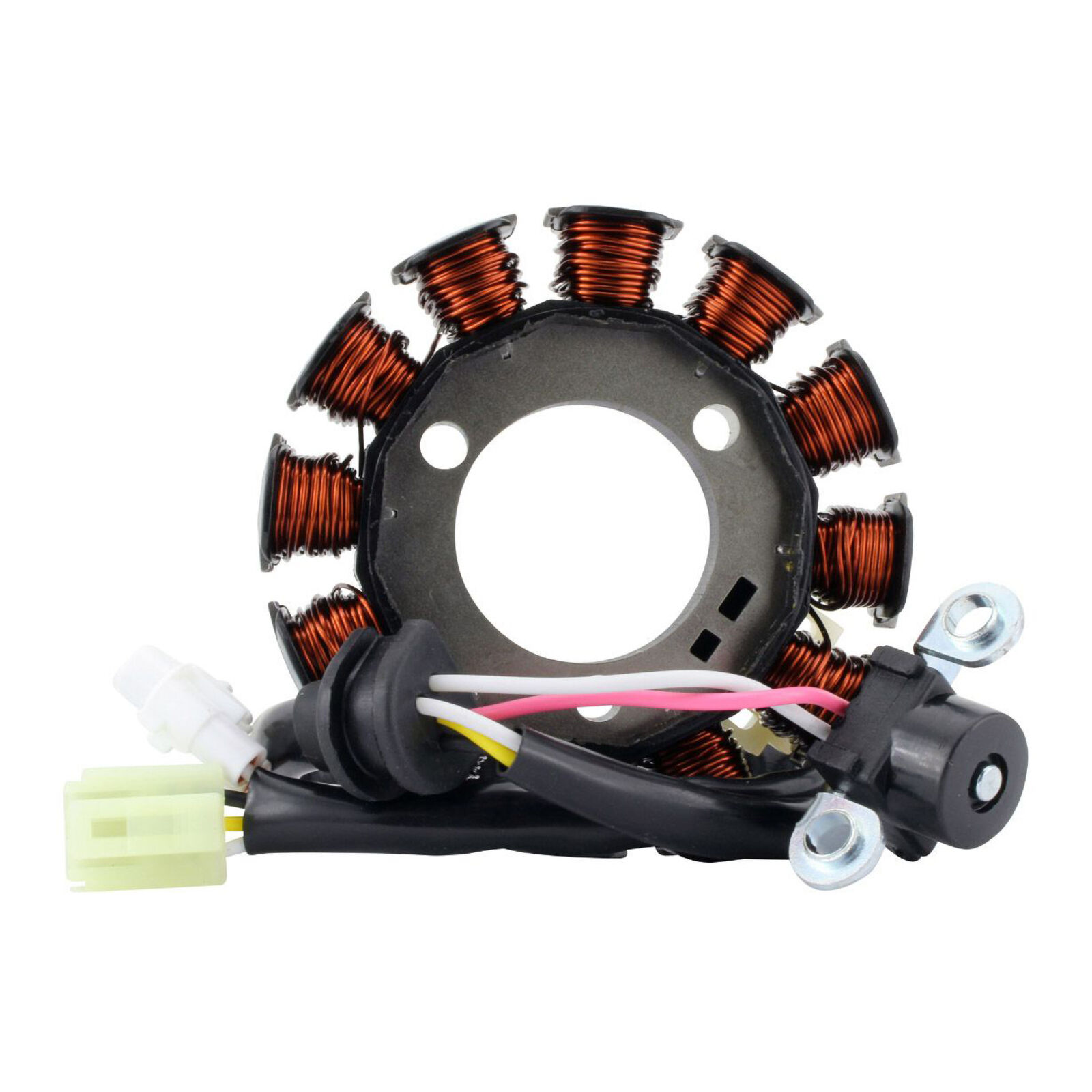

RM STATOR YAMAHA TTR 110 08-25 GENERATOR STATOR

SKU: RMS010107173


$159.99

or 4 fortnightly payments of $40.00 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

Direct replacement to your original unit.

  • Plug-and-play, direct fit, easy installation

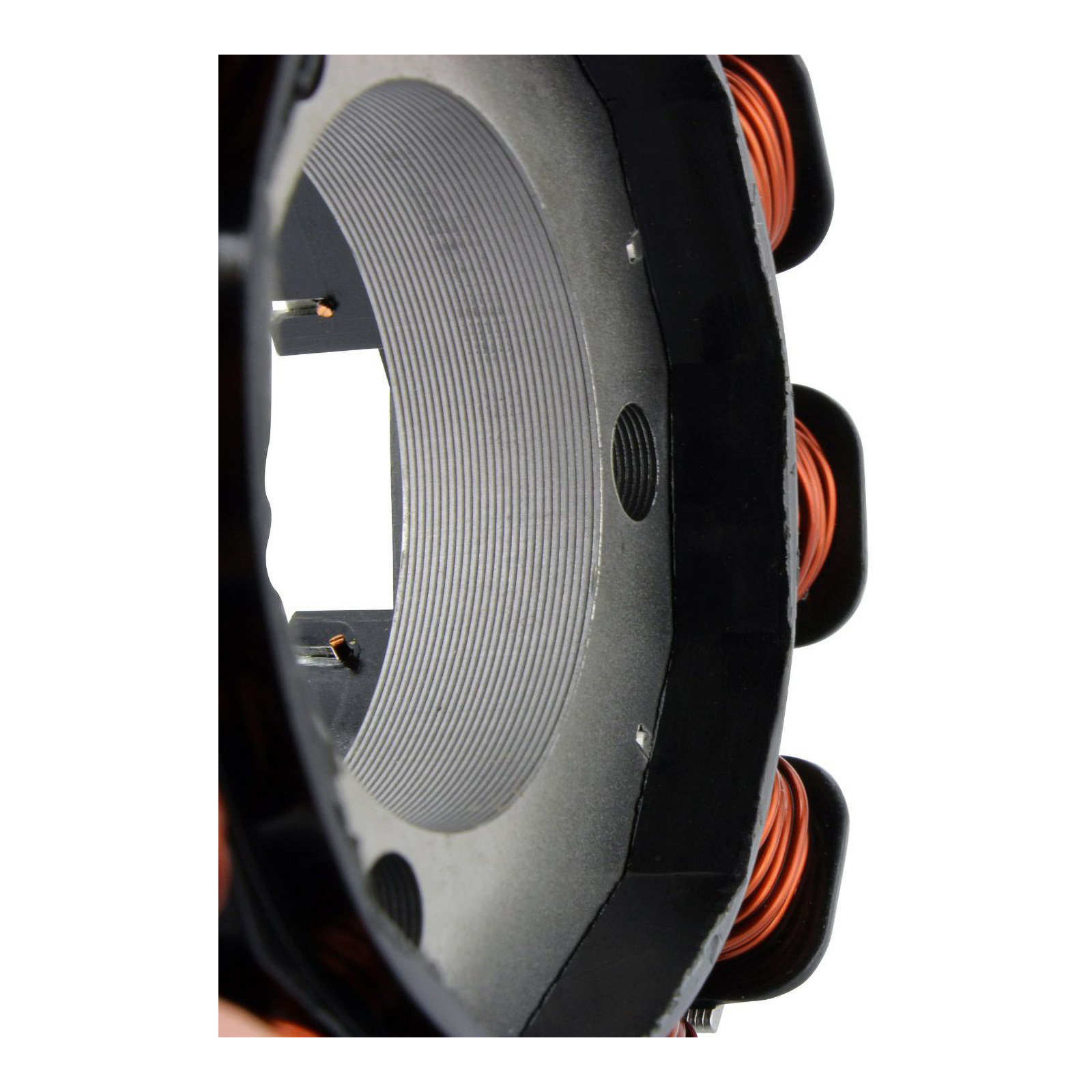

  • Highest grade of lamination materials

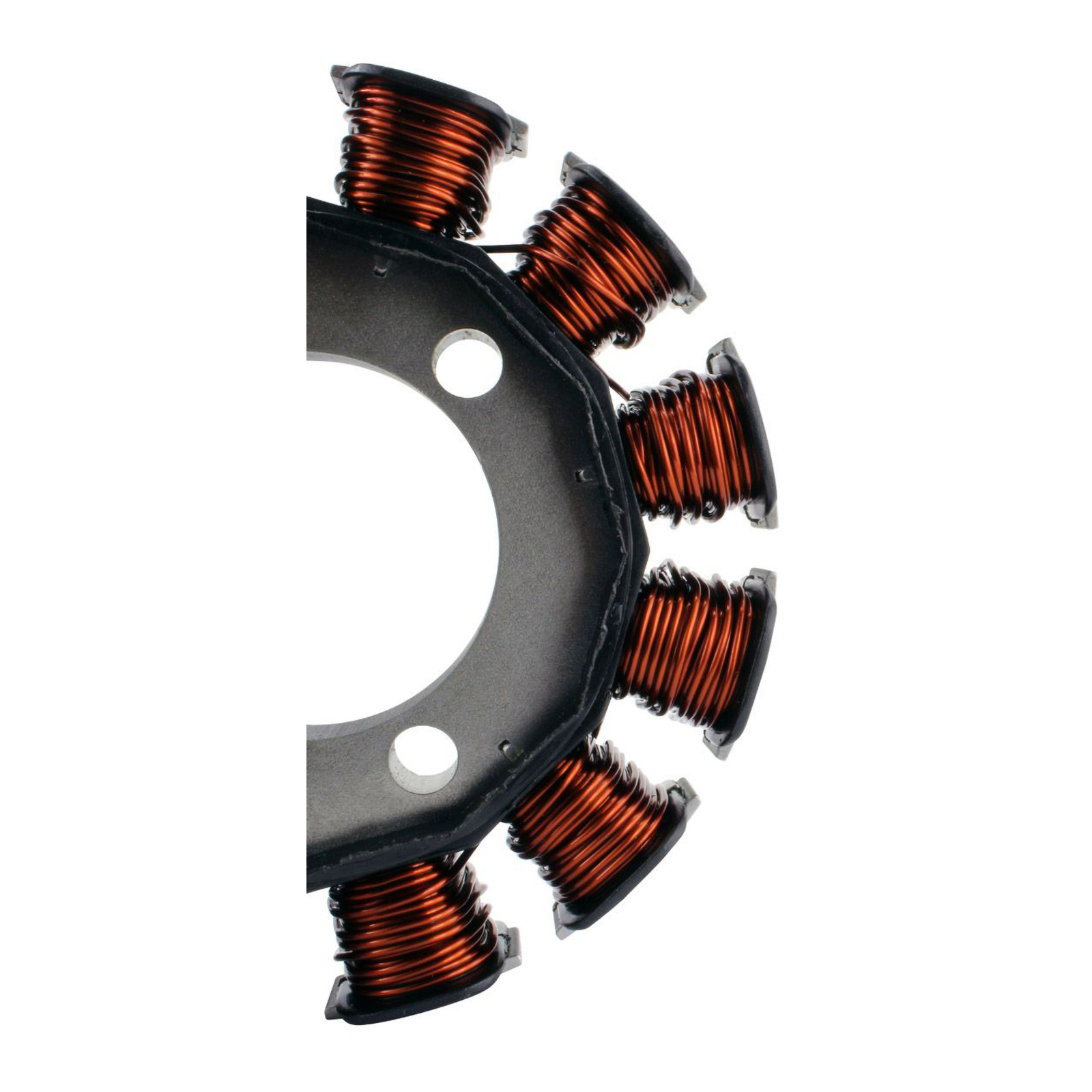

  • Highest grade of copper winding, resistant to 200 degrees Celsius

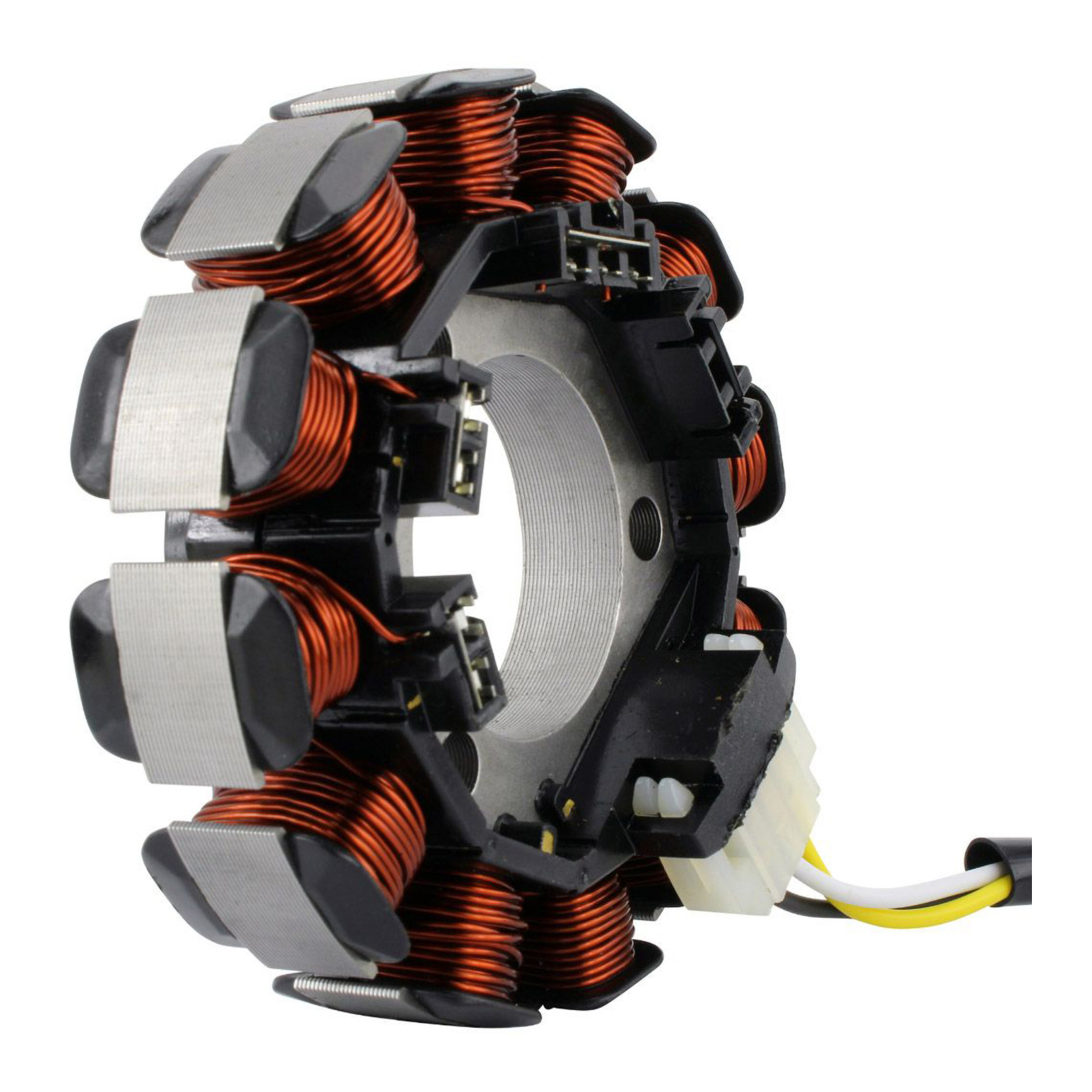

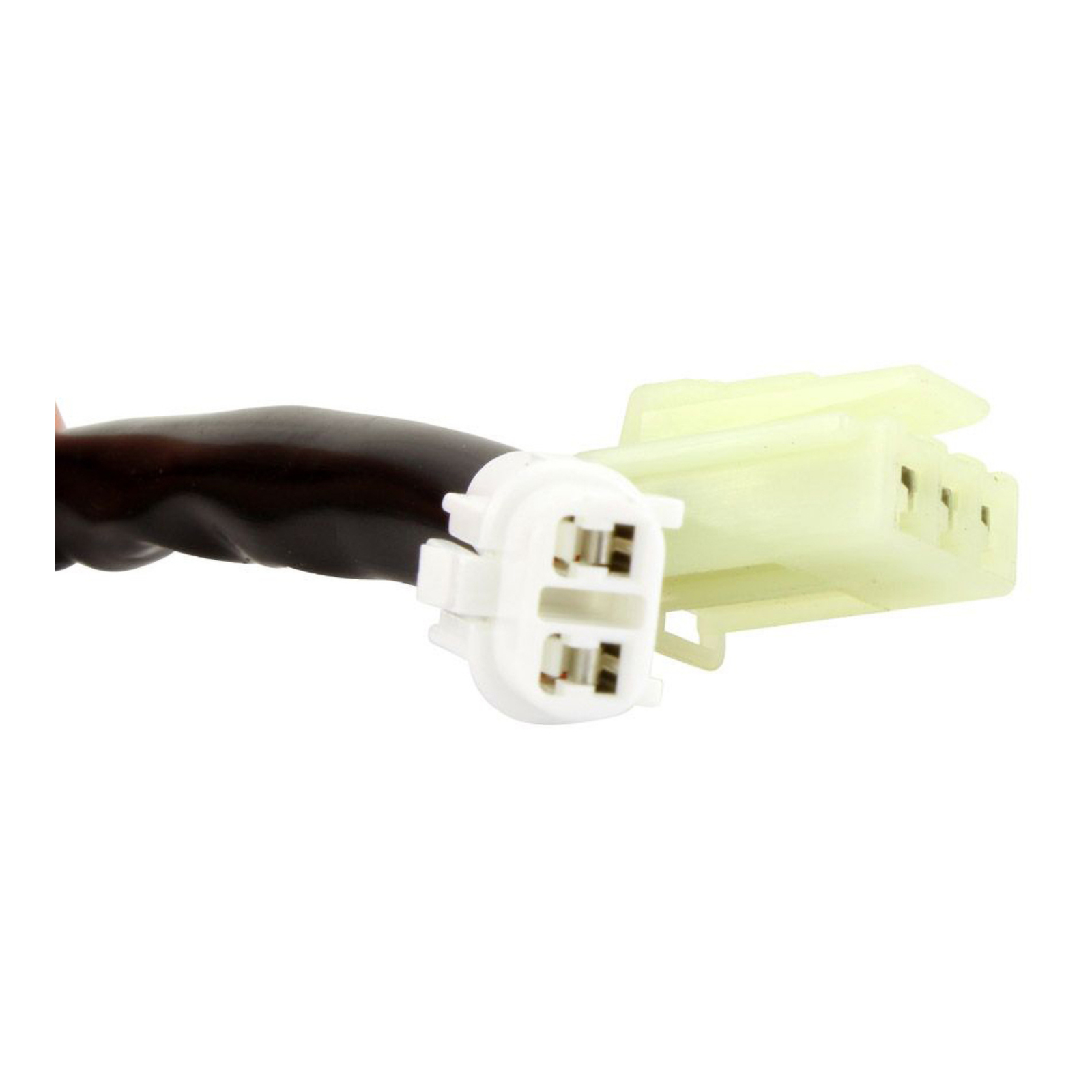

  • Connectors included

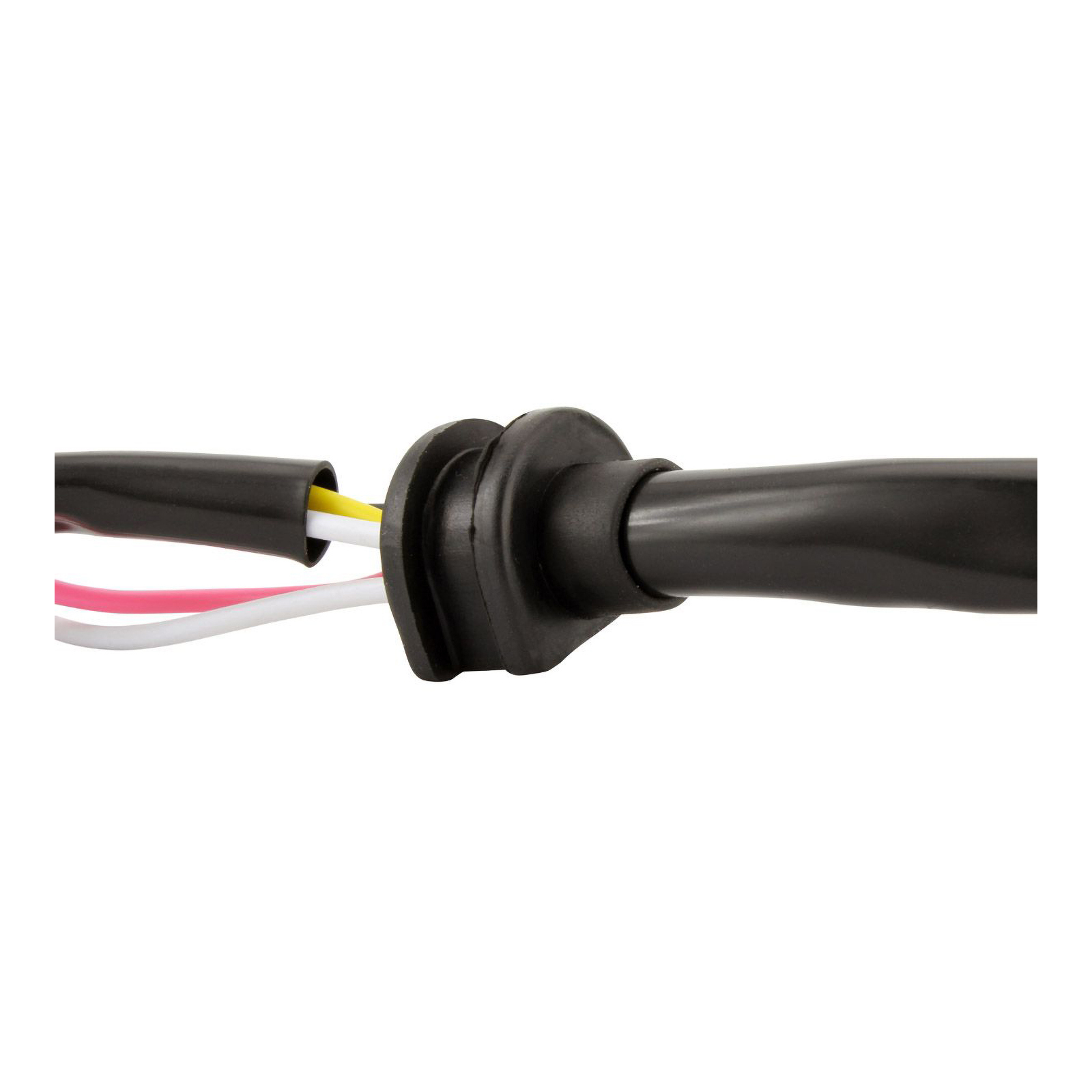

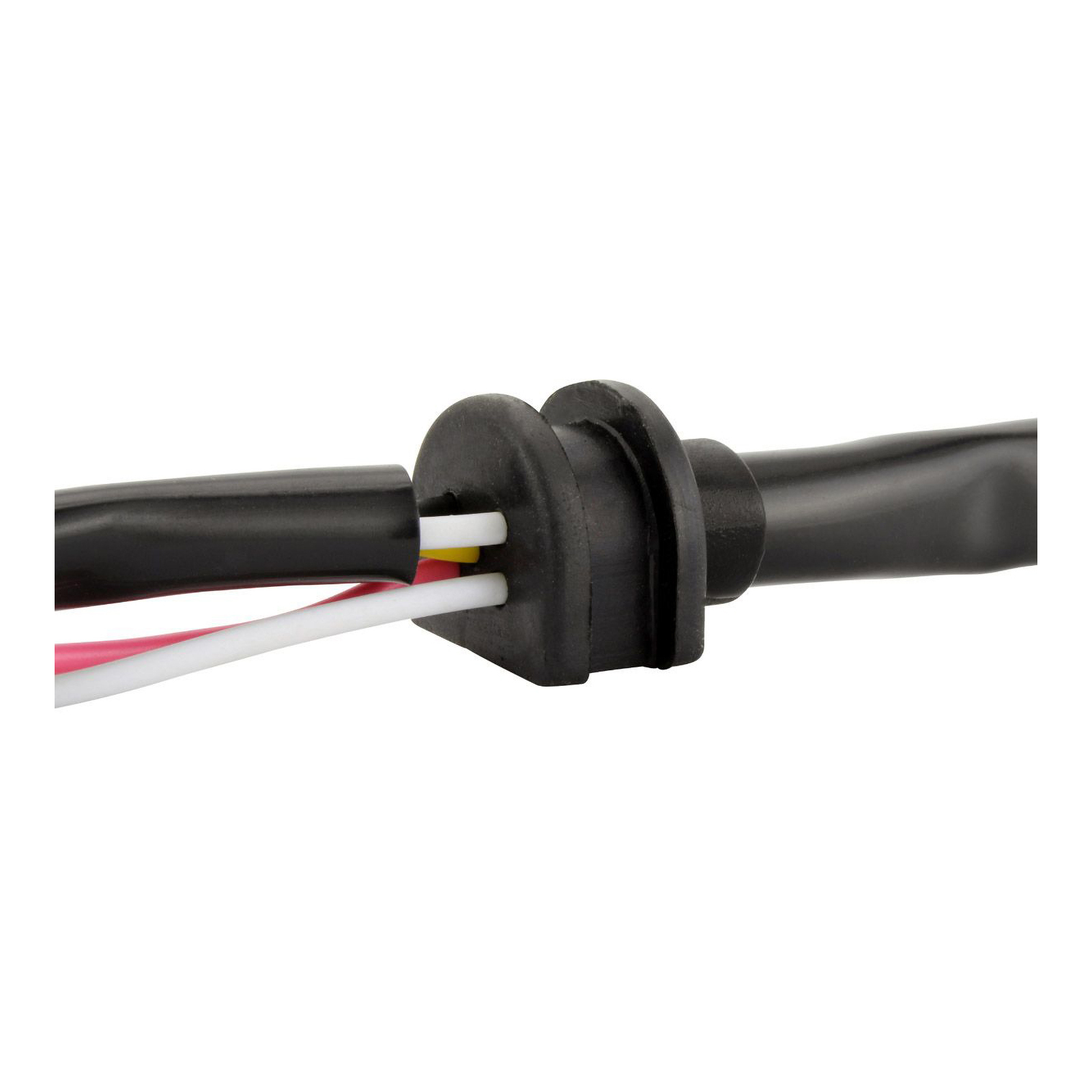

  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 37 mm
  • Exterior diameter: 92 mm

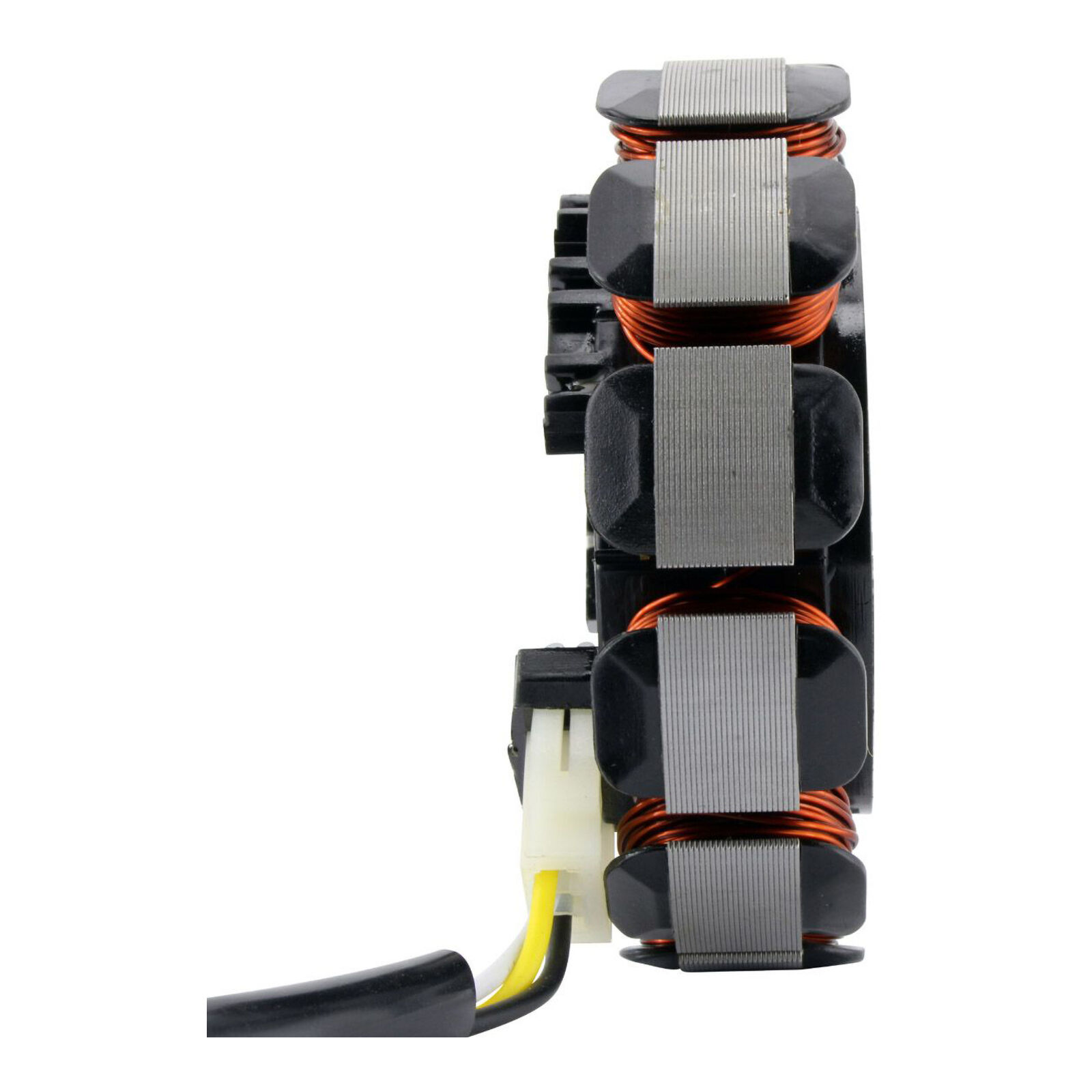

  • Thickness: 12 mm
  • Length of wires stator to grommet: 90 mm
  • Length of wires grommet to plug: 280 mm

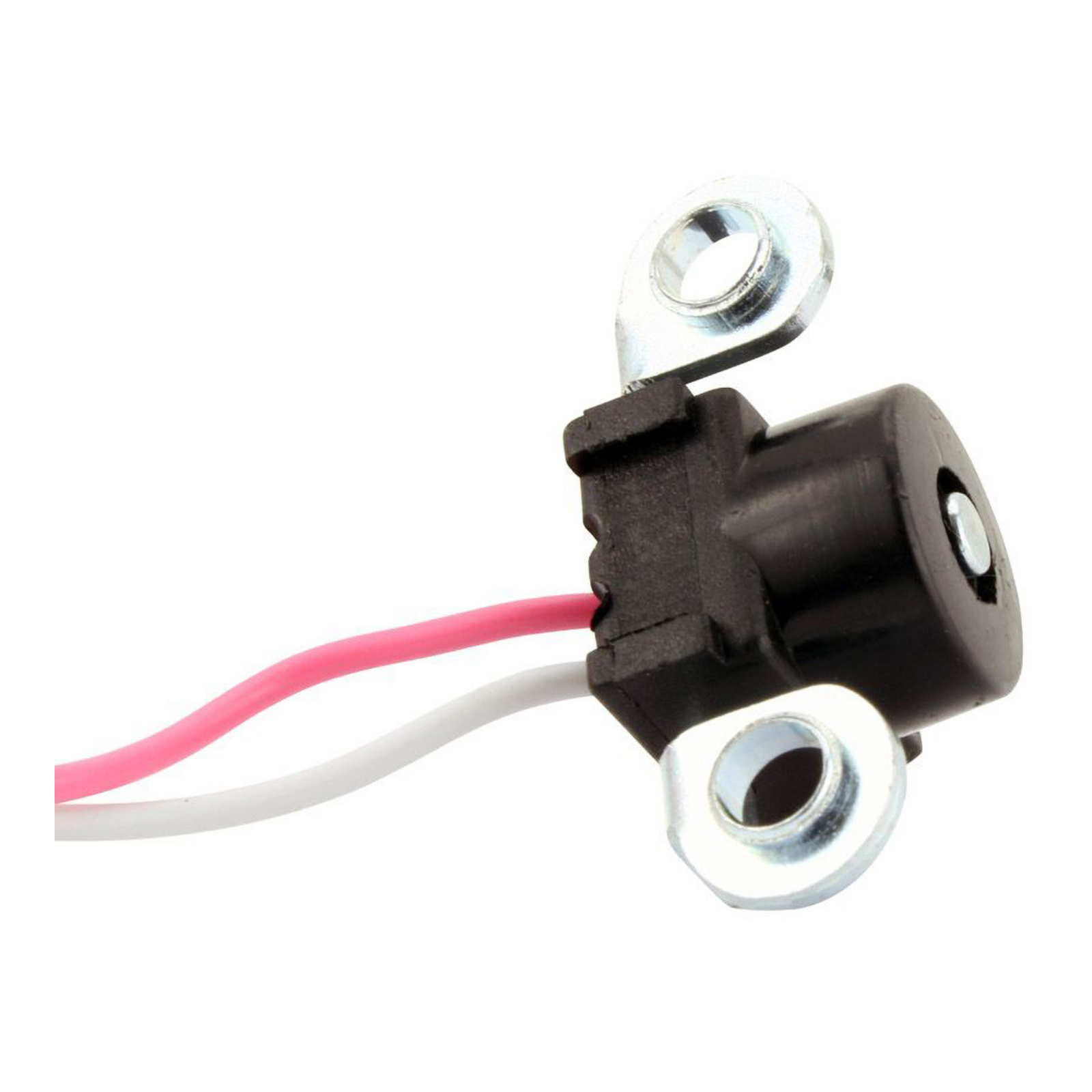

  • Length of pickup coil's wire to grommet: 55 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5

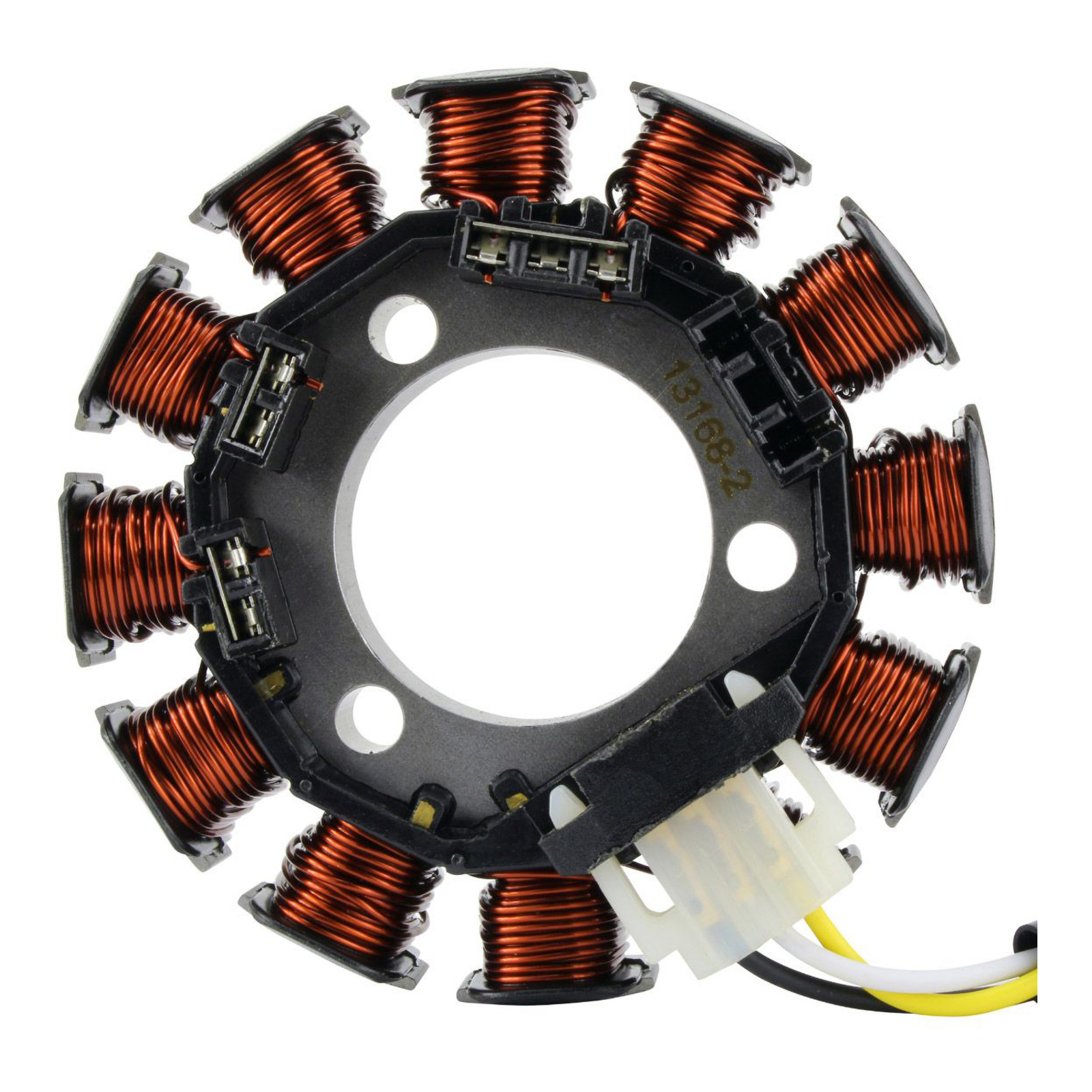

  • Number of poles: 12

Wire to wire resistance:

  • All 1p winding: Black to White = 0.9 ohms +-20%
  • Alternator #1: Yellow to Black = 0.6 ohms +-20%
  • Alternator #2: Yellow to White = 0.8 ohms +-20%
  • Pickup: Pink to White = 280 ohms +-20%

(RMS010107173)

SKU RMS010107173
Barcode # RMS010-107173
Brand RM Stator
