RM STATOR VESPA APRILIA GILERA PIAGGIO SCOOTER STATOR

SKU: RMS010104193


$259.99

or 4 fortnightly payments of $65.00 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

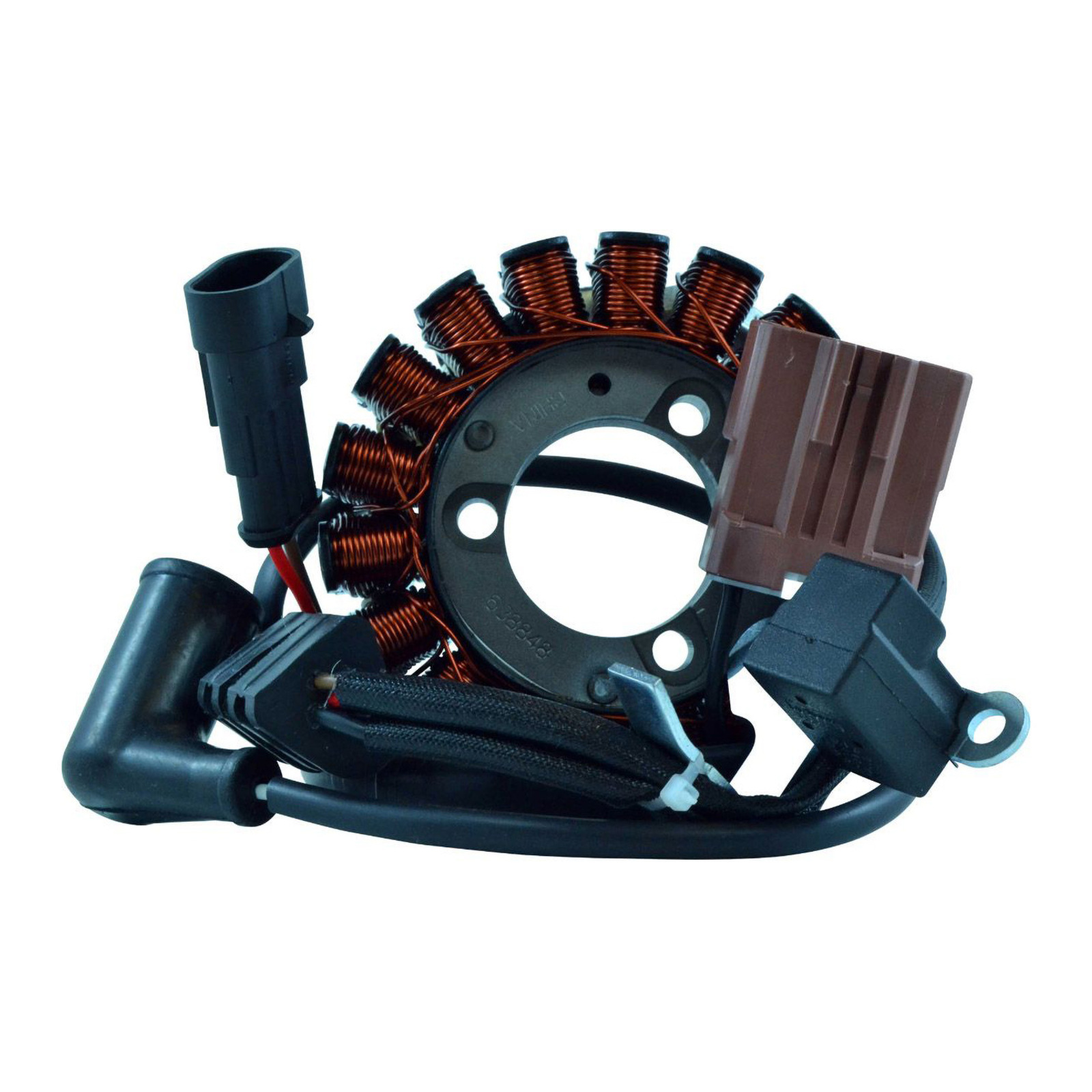

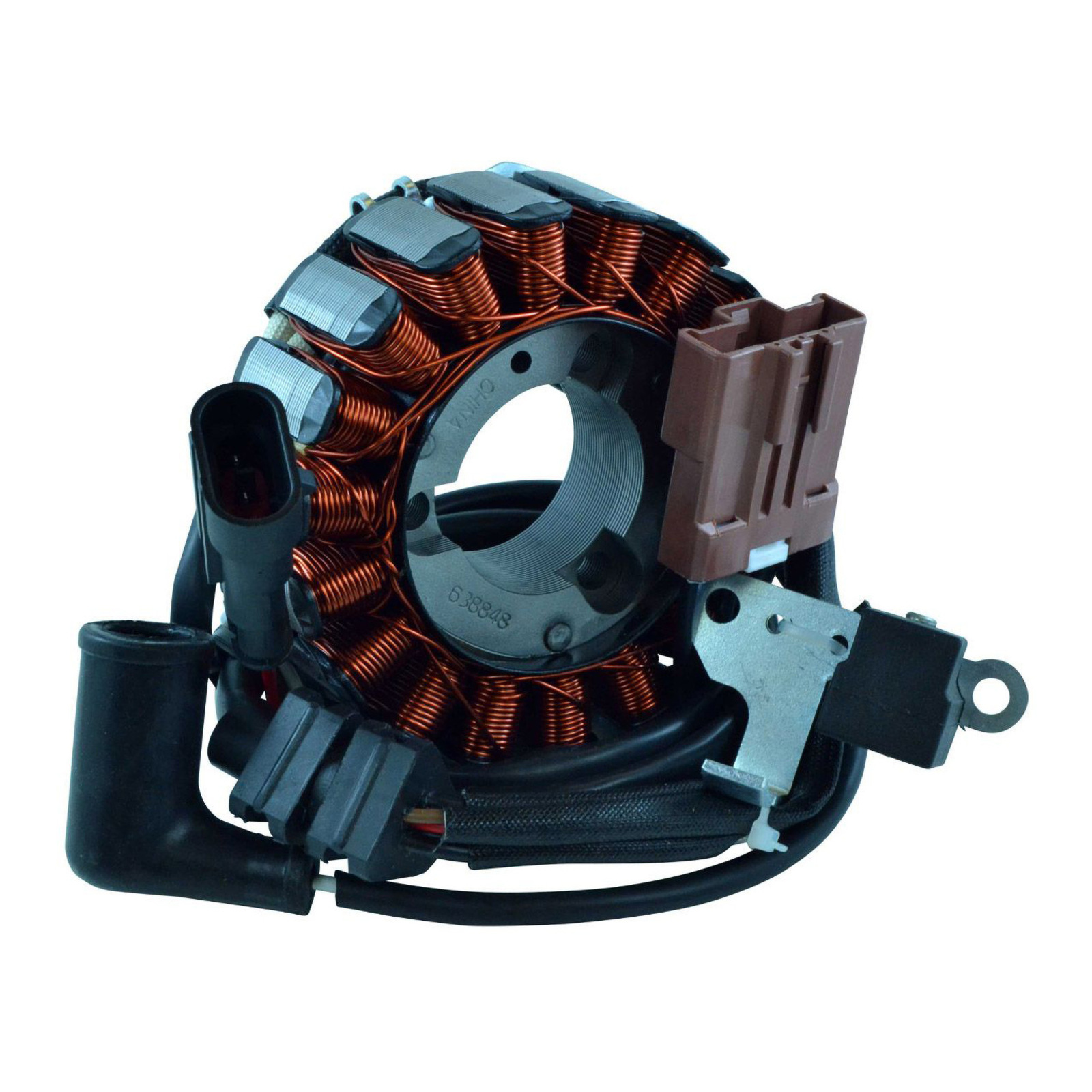

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick-up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 36 mm
  • Exterior diameter: 95 mm
  • Thickness: 32 mm
  • Length of wires stator to grommet: 165 mm
  • Length of wires grommet to plug: 585 mm / 780 mm
  • Length of pickup coil's wire to grommet: 88 mm

Other specifications:

  • Number of wires: 6
  • Number of plugs : 3
  • Number of pins: 6
  • Number of poles: 18

Wire to wire resistance:

  • Alternator: Yellow between each Yellow = 0.4 ohms +-20%
  • Pickup: Green/White to Yellow/White = 125 ohms +-20%
  • Source: Black/Red to Ground = 210 ohms +-20%

Fits: Aprilia 125 Sport City 04-08, Aprilia 250 Sport City IE 08-12, Aprilia SR300 Max IE 2012, Gilera Nexus 500 03-05, Piaggio MP3 300 2013, Piaggio/Vespa BV 250 Beverley 06-09, Piaggio/Vespa GTS 250 ABS, IE 06-08, Piaggio/Vespa GTS 300 Super, Supersport 08-12, Piaggio/Vespa GTV 250 06-08, Piaggio/Vespa GTV 250 2010, Piaggio/Vespa MP3 250 08-10, Vespa GTS250 ie 2011, Vespa GTS250 ie 2013, Vespa GTS300 Super 08-15, Vespa GTS300 Super Sport 13-15, Vespa GTV300 13-14



(RMS010104193)

SKU RMS010104193
Barcode # RMS010-104193
Brand RM Stator
