RM STATOR TRIUPMH 600 650 675 955 1050 / DUCATI 749 848 999 1098 1000 1099 REGULATOR RECTIFIER

SKU: RMS020102953


$329.99

or 4 fortnightly payments of $82.50 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

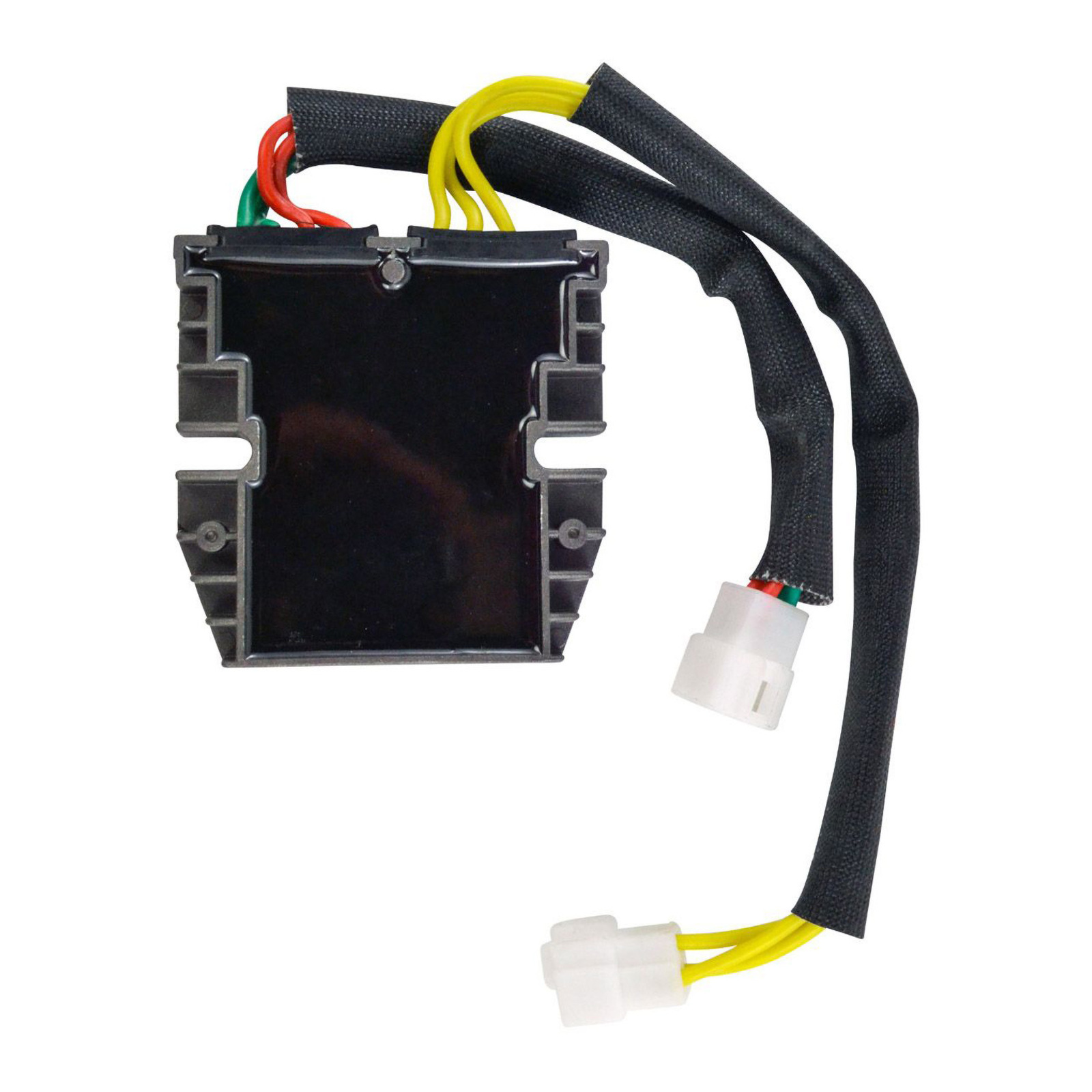

Brand new aftermarket voltage regulator rectifier

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • Higher grade of electric components.
  • Improved heat sink and charging capabilities
  • The quality exceeds the OEM equipment
  • All products shipped are tested

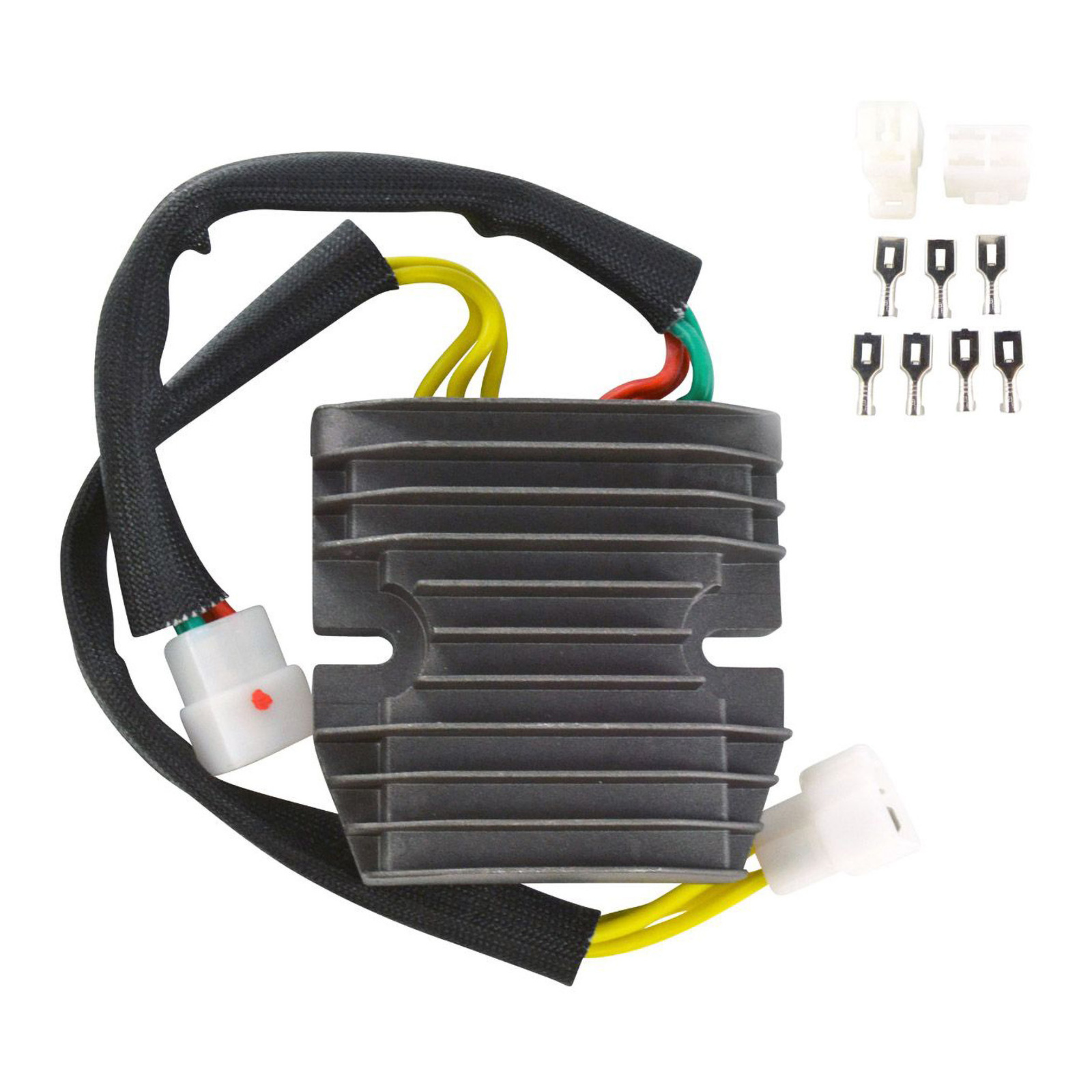

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

Dimensions:

  • Width: 90mm
  • Length: 94mm
  • Height: 30mm
  • Fixation holes centre to centre: 75mm
  • Wires Length: 320mm & 235mm

Other specifications:

  • Number of plugs: 2
  • Number of pins: 7
  • Number of wires: 7
  • Minimum Charging Voltage: 14.5 V +- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20° to 85°

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

Fits:

Ducati 1098 2007-2008, 1098 S/Tricolore 2007-2008, 1098R 2008-2009, 1198 2009-2011, 1198S 2009-2010, 749 2004-2006, 749 R (Ohlins) 2004-2005, 749/749S/749R 2003-2006, 848 2008-2010, 848 EVO 2011-2013, 999 R 2003-2006, 999 S 2006, 999/999S/999R 2003-2005, 999/999S/999R Facelift 2007, Multistrada 1000 DS 2003-2006, Streetfighter 848 2012-2015, Streetfighter S 1099 2010-2011

Triumph Daytona 600 2004, Daytona 650 2005, Daytona 955i 2002-2006, Speed Four 2002-2005, Speed Triple 1050 2005-2012, Speed Triple 955 1999-2004, Sprint RS 2000-2004, Sprint ST 2002-2009, Tiger 1050 2007-2012, Tiger 955 2001-2006

(RMS020102953)

SKU RMS020102953
Barcode # RMS020-102953
Brand RM Stator
