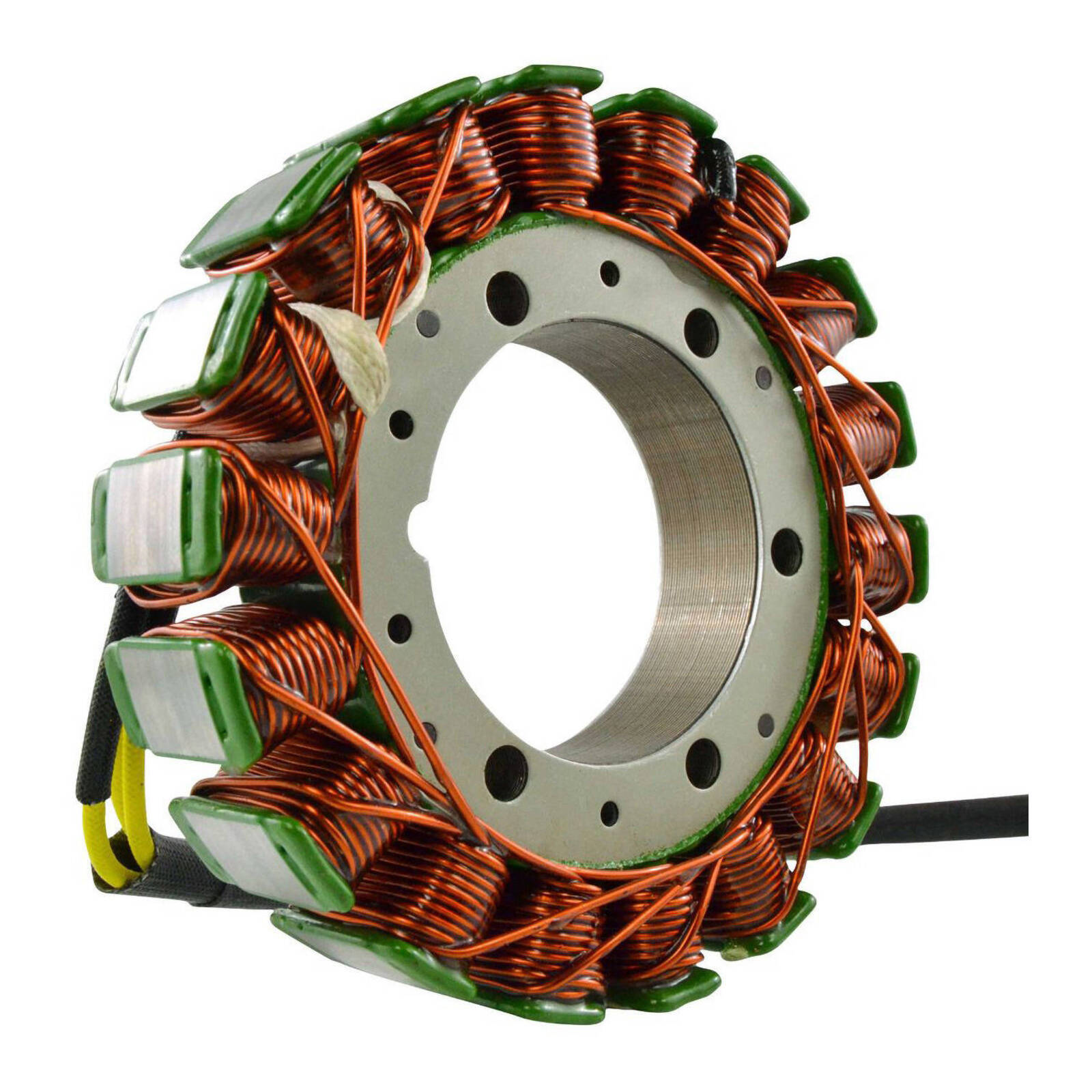

RM STATOR Triumph America 800/900 Bonneville T100 Speedmaster 800/900 Thruxton 900 STATOR

SKU: RMS010103225


$379.99

or 4 fortnightly payments of $95.00 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RM STATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

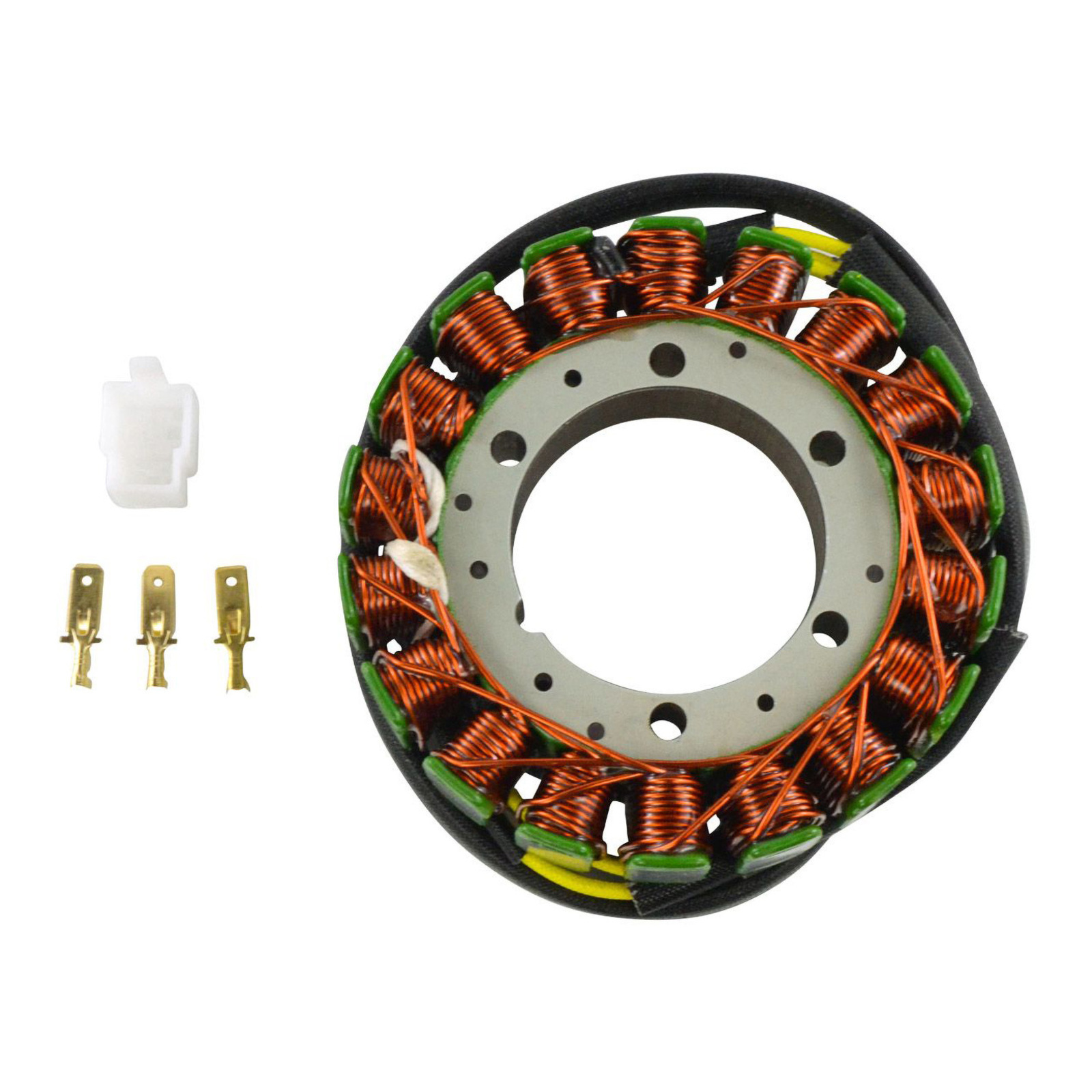

  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 115 mm
  • Thickness: 16 mm
  • Length of wires stator to grommet: 80 mm
  • Length of wires grommet to plug: 1140 mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3

Wire to wire resistance:

  • Alternator: Black to Black = 0.4 ohms +-20%

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
  4. There are some Triumph models that have two possible stators. Please refer to the note below to make sure you have the right part:
    • Scrambler from 2006 to 2008: This stator will only fit on the version with a carburator. For the EFI version, please look for part # RM01387S.

Fits: Triumph America 02-08, Triumph Bonneville 01-09, Triumph Bonneville T100 02-05, Triumph Scrambler 06-08, Triumph Speedmaster 800 03-05, Triumph Speedmaster 865 06-08, Triumph Thruxton 04-08

(RMS010103225)

SKU RMS010103225
Barcode # RMS010-103225
Brand RM Stator
