RM STATOR SUZUKI SV 650 / V-Strom 650 GENERATOR STATOR

SKU: RMS010102166


$489.99

or 4 fortnightly payments of $122.50 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

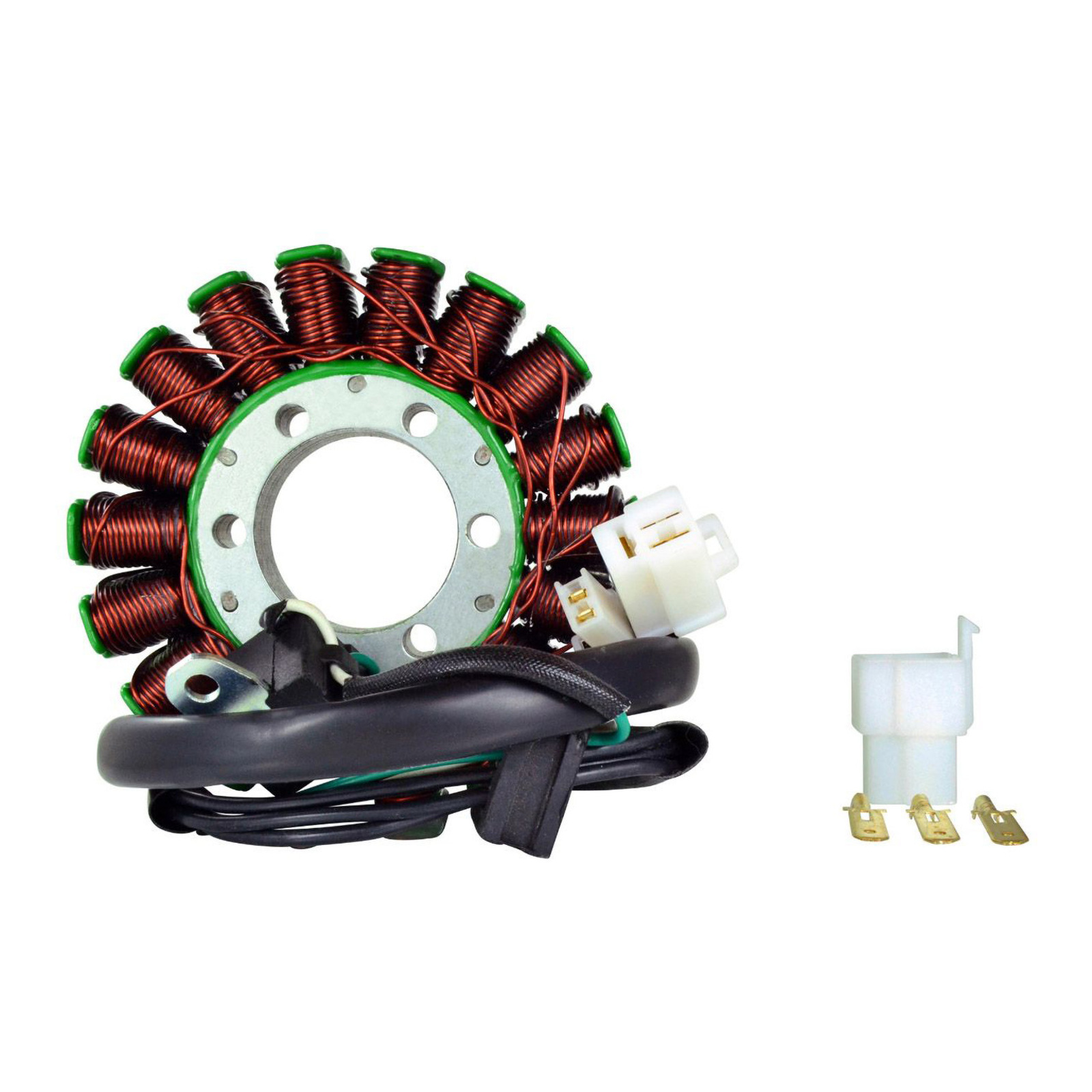

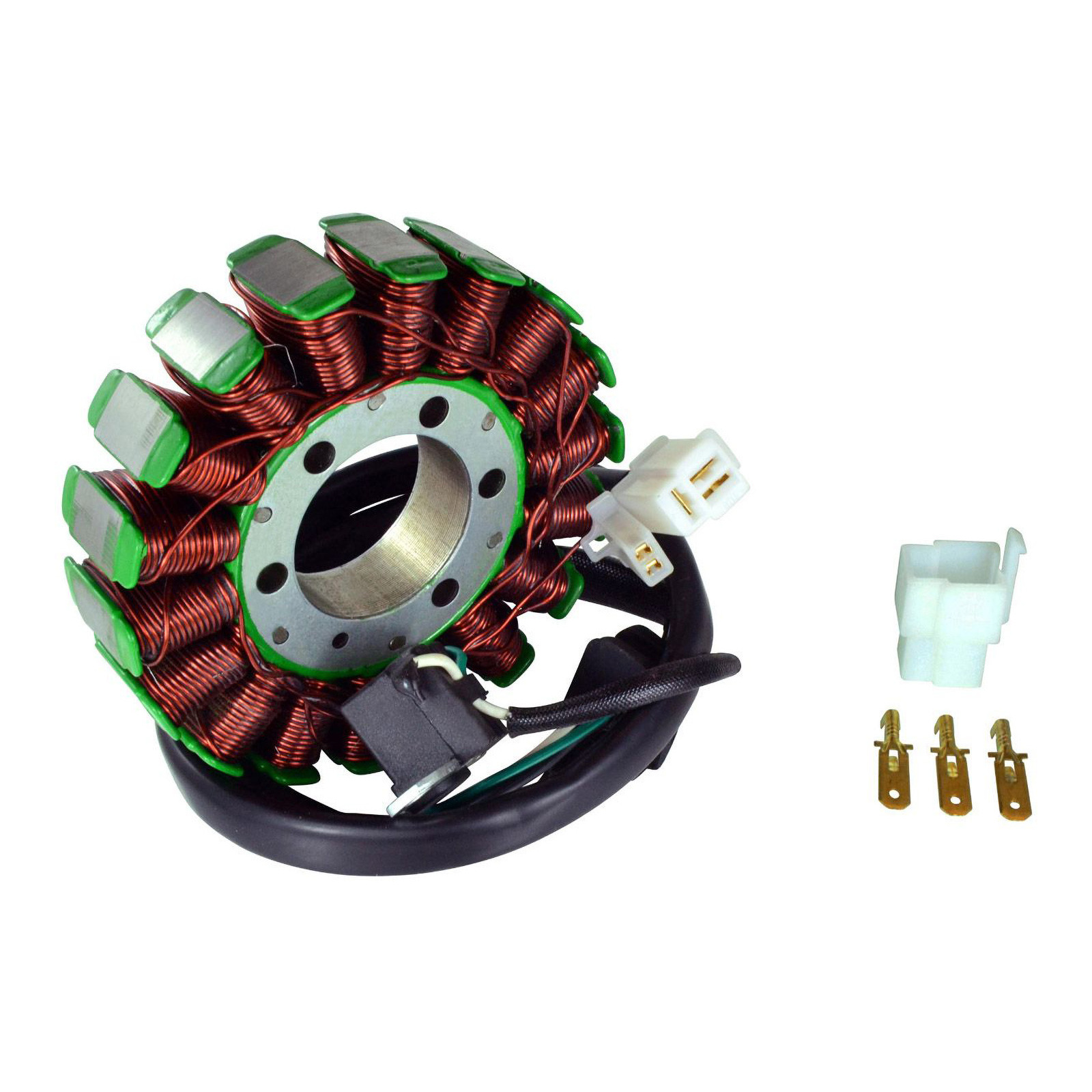

Brand new aftermarket generator stator for Suzuki SV 650 / V-Strom 650

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick-up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause for repetitive electrical issues.

Fits Bikes: Suzuki DL650 (V-Strom) 04-07, DL650A (V-Strom ABS) 2007, SV650 99-09, SV650S 99-09



(RMS010102166)

Dimensions :
Interior diameter : 38 mm
Exterior diameter : 108 mm
Thickness : 19 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 550 mm
Length of pickup coil's wire to grommet : 59 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Black to Black = 0.5 ohms +-20%
Pickup : Green to White = 194 ohms +-20%

SKU RMS010102166
Barcode # RMS010-102166
Brand RM Stator
