RM STATOR SUZUKI GSXR600 / GSXR750 2006-2019 STATOR + CNC MOSFET KIT

SKU: RMS900107319


$789.99

or 4 fortnightly payments of $197.50 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

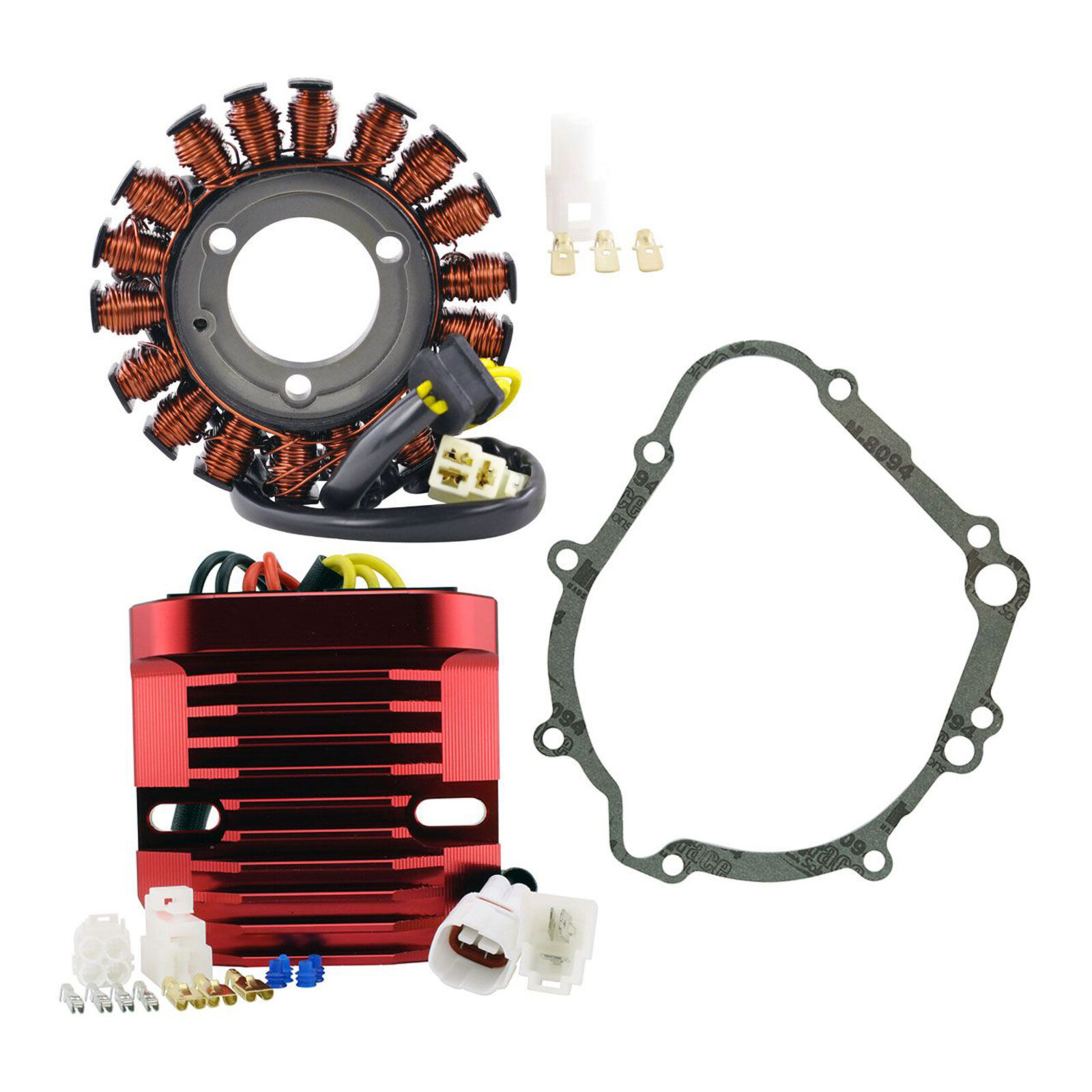

Brand new aftermarket Stator + Crankcase Cover Gasket + Mosfet Voltage Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

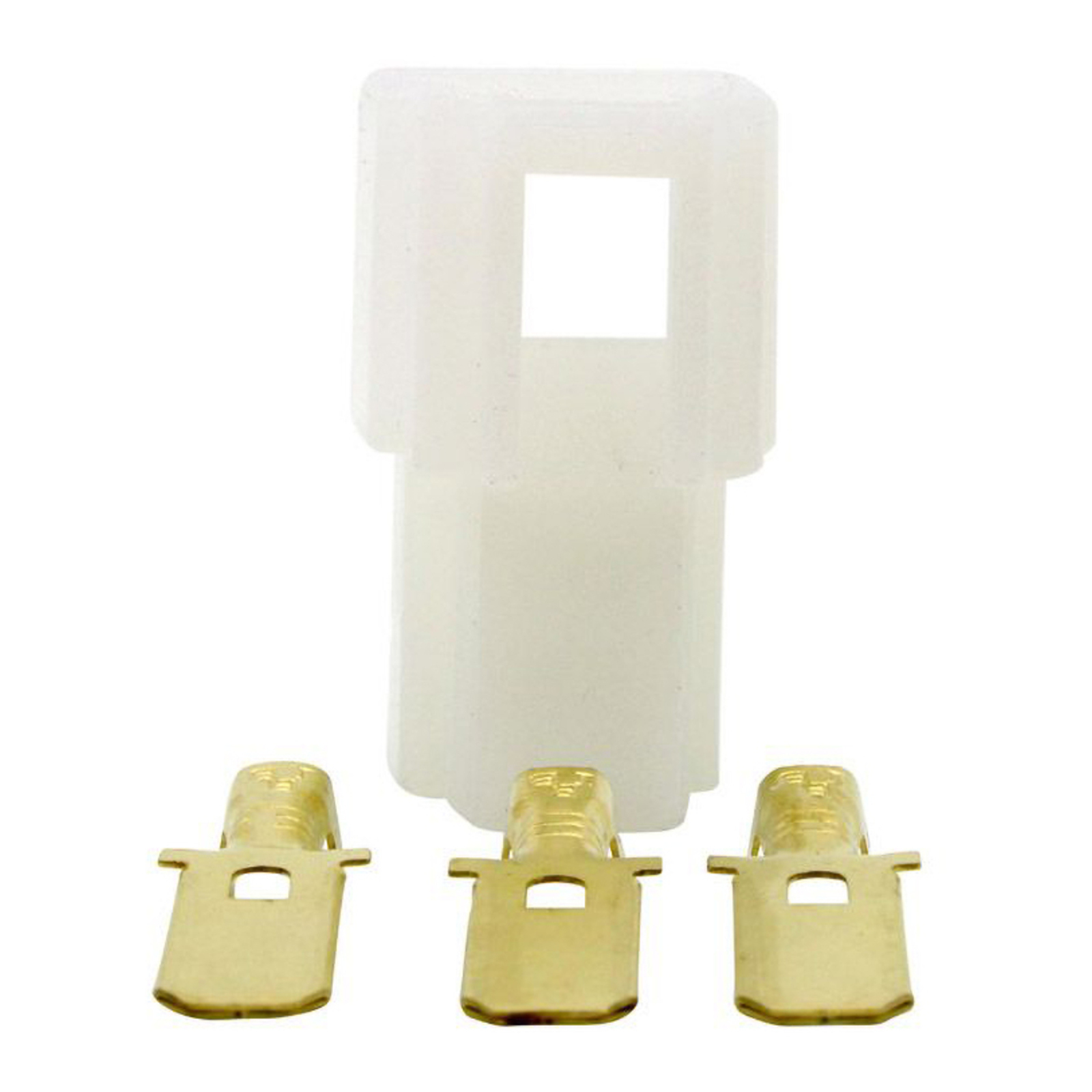

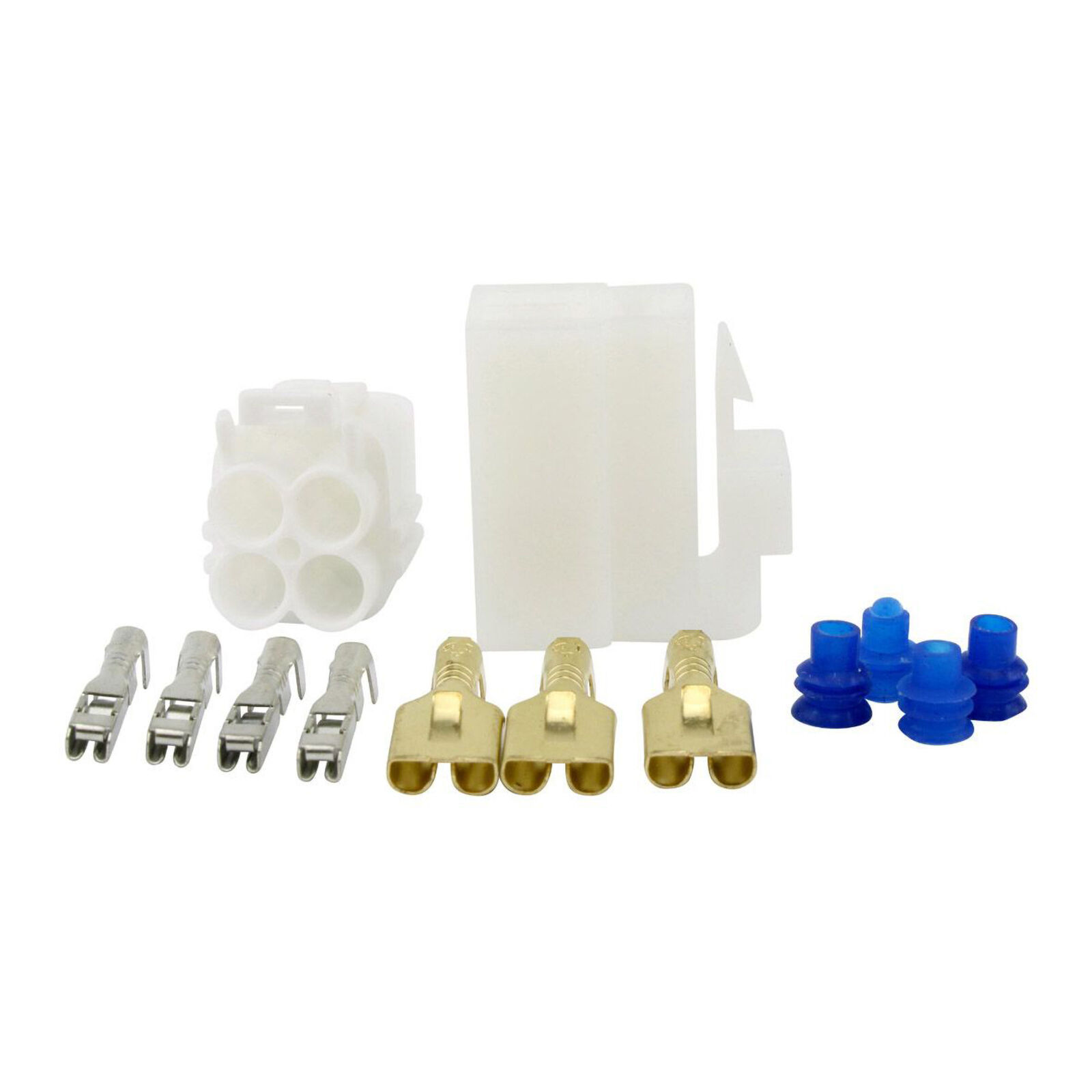

We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

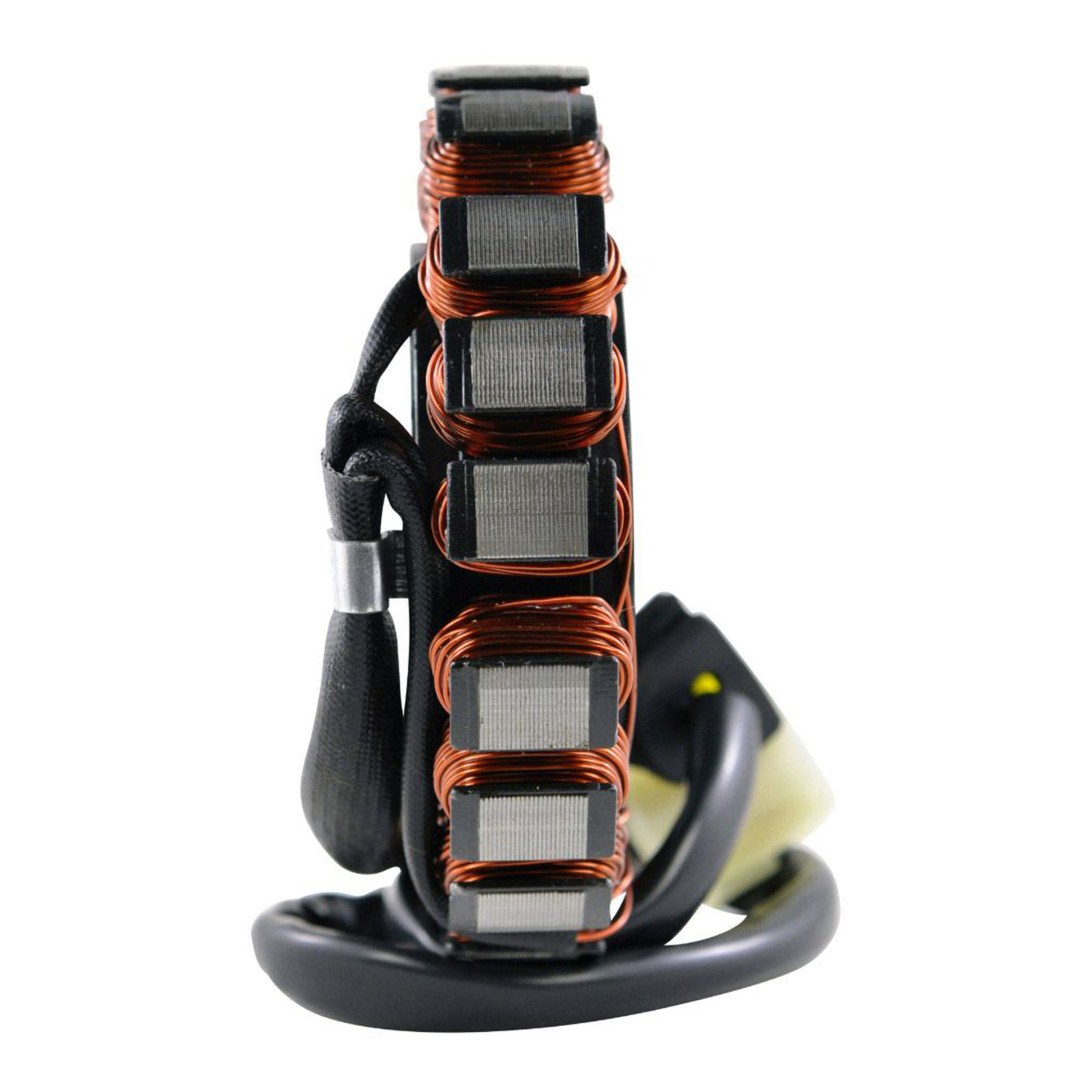

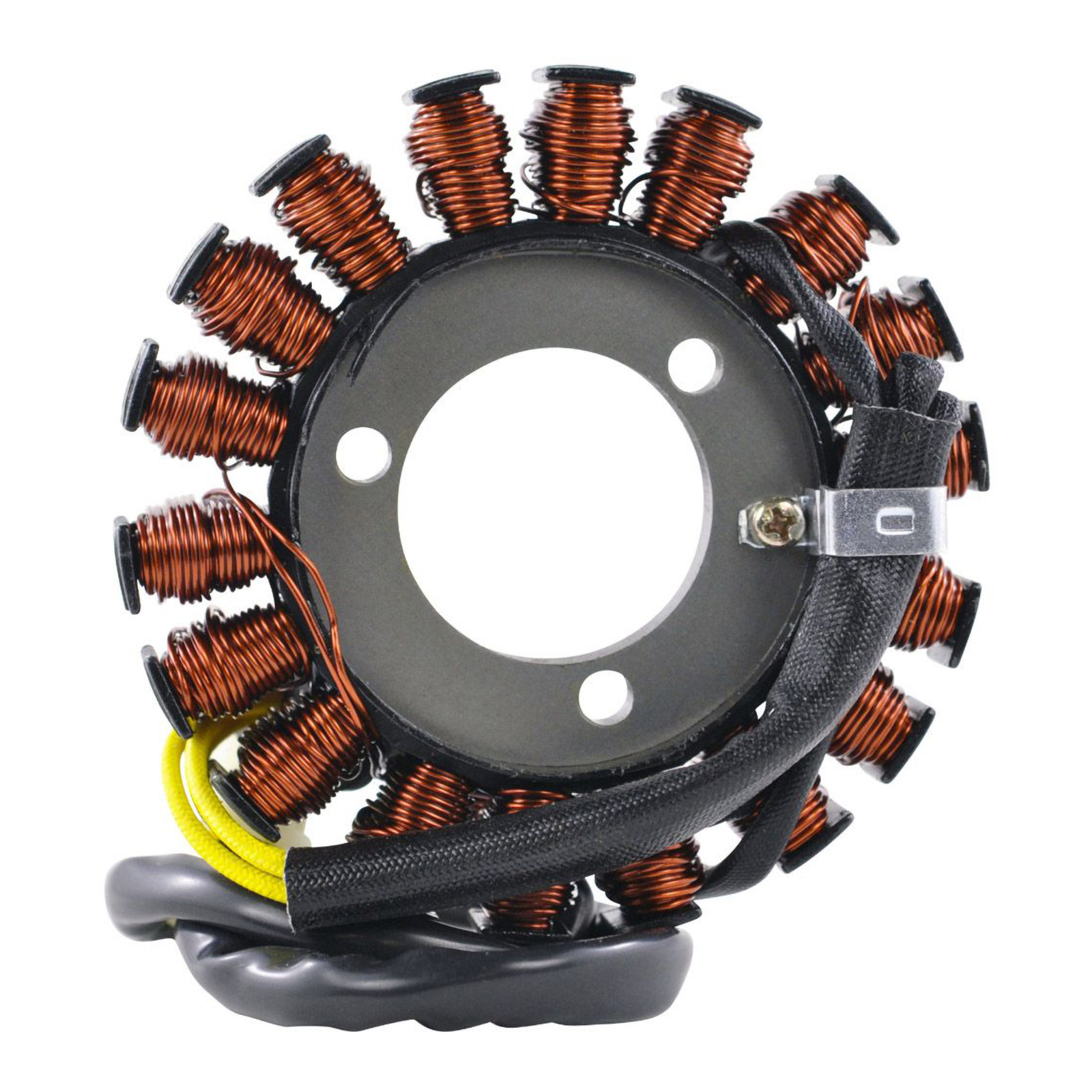

Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

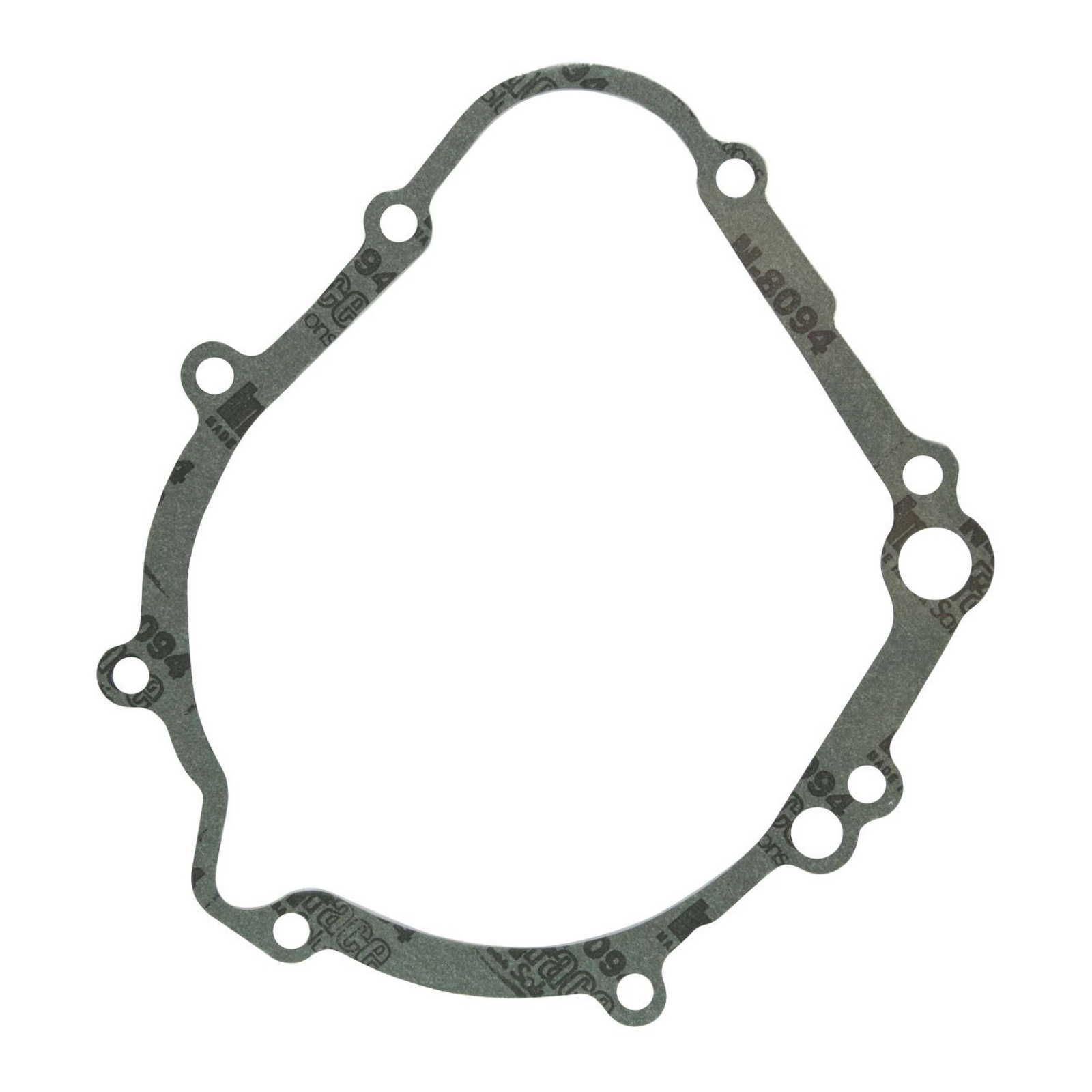

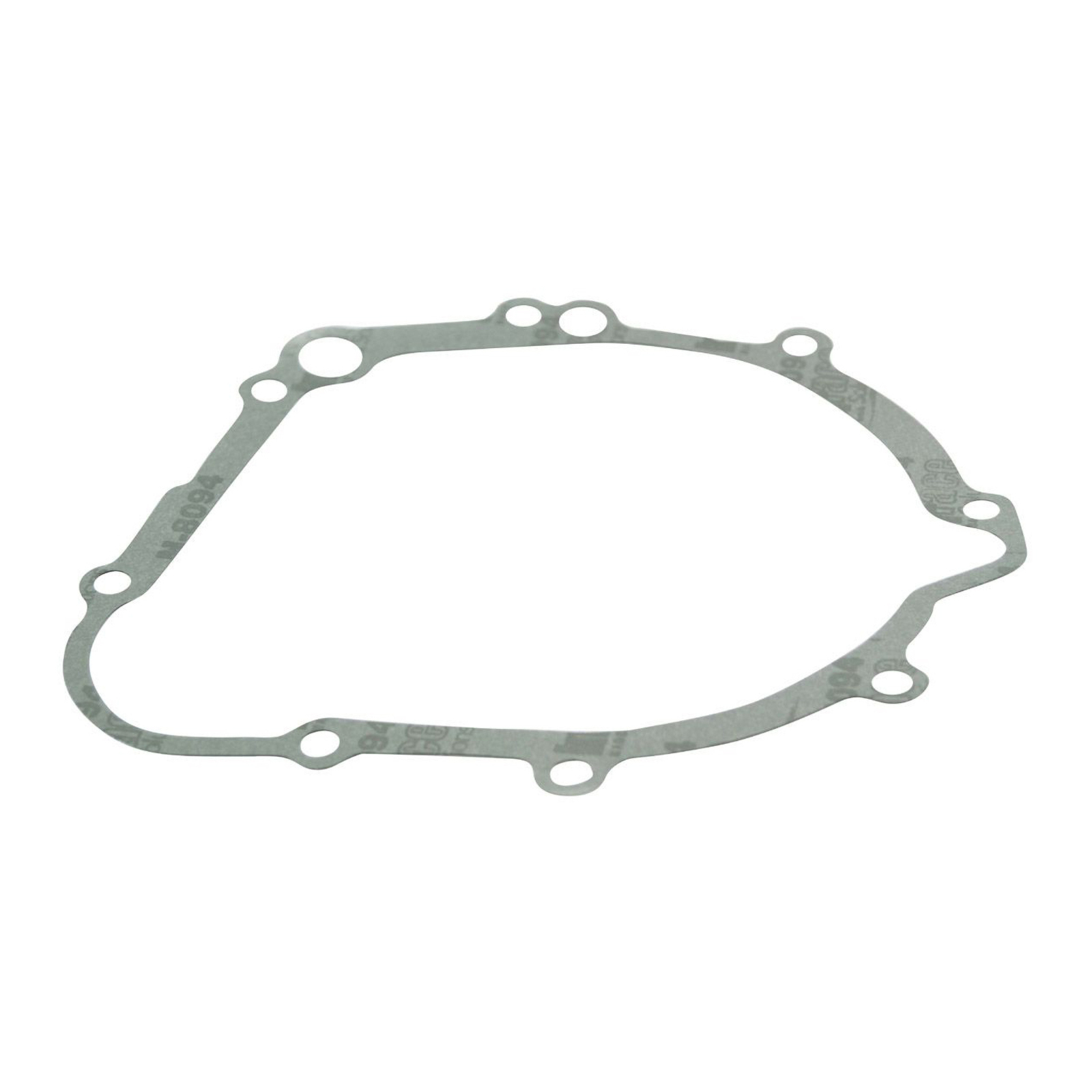

  • Stator crankcase cover gasket included

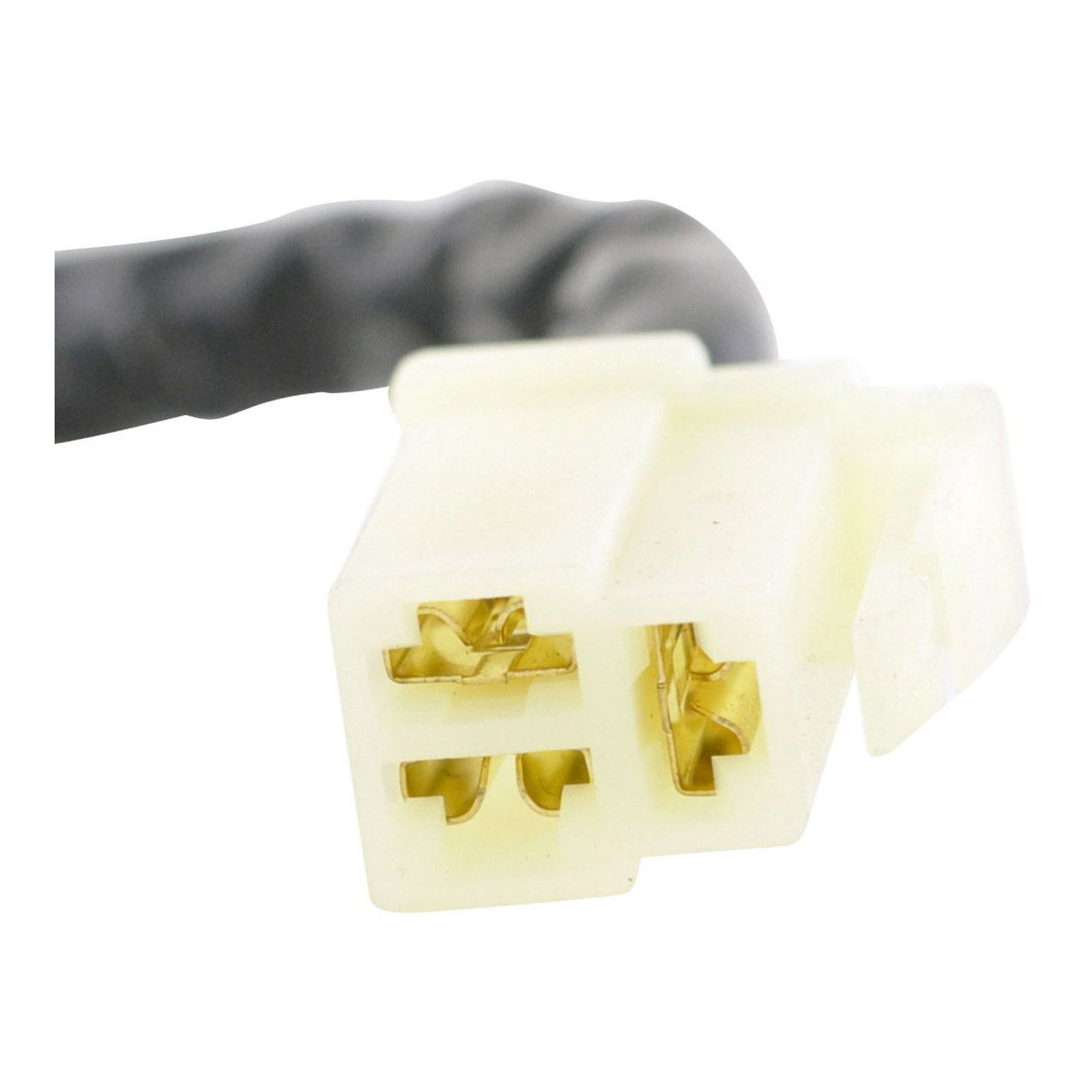

  • Connector included
  • Rubber grommet included

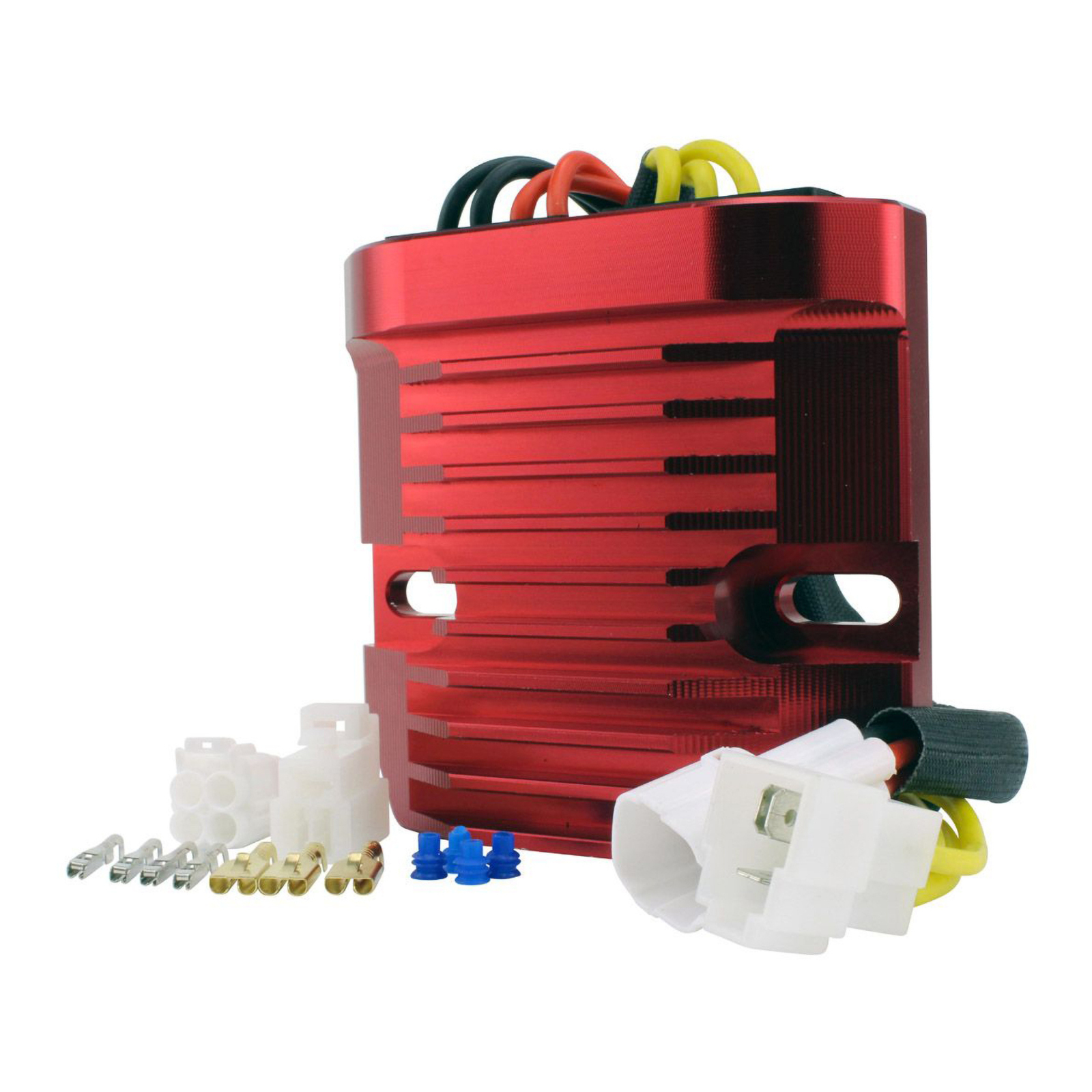

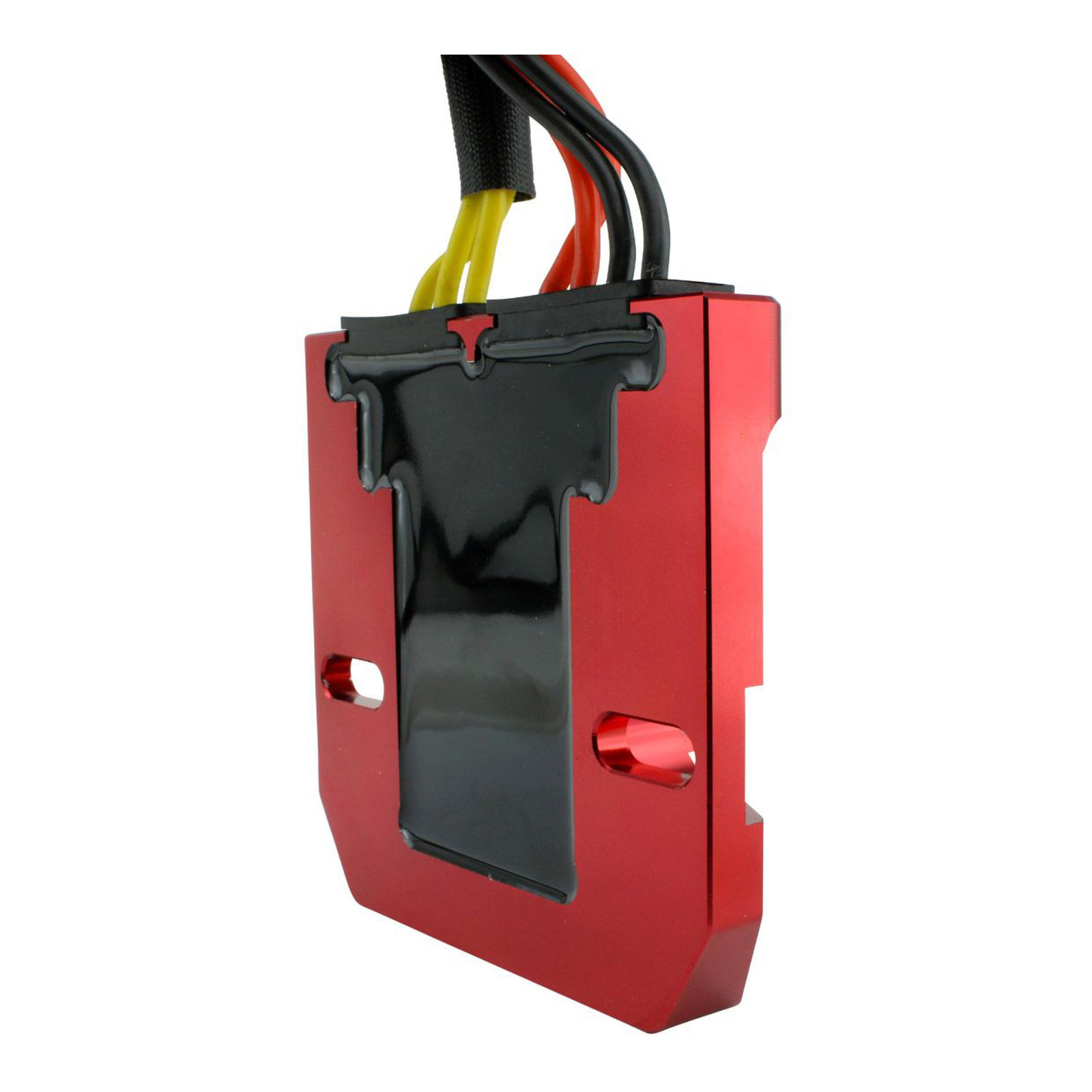

Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator

Our new RMSTATOR machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATOR red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

STOP BURNING YOUR REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.

  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

Stator dimension

Interior diameter: 38 mm
Exterior diameter: 107 mm
Thickness: 12 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 330 mm



Other specifications:
Number of wires:3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms +/-20%

Regulator dimension Width : 92 mm
Length: 92 mm
Height: 30 mm
Fixation holes center to center: 75 mm
Wires length: 300 mm

Other specifications :

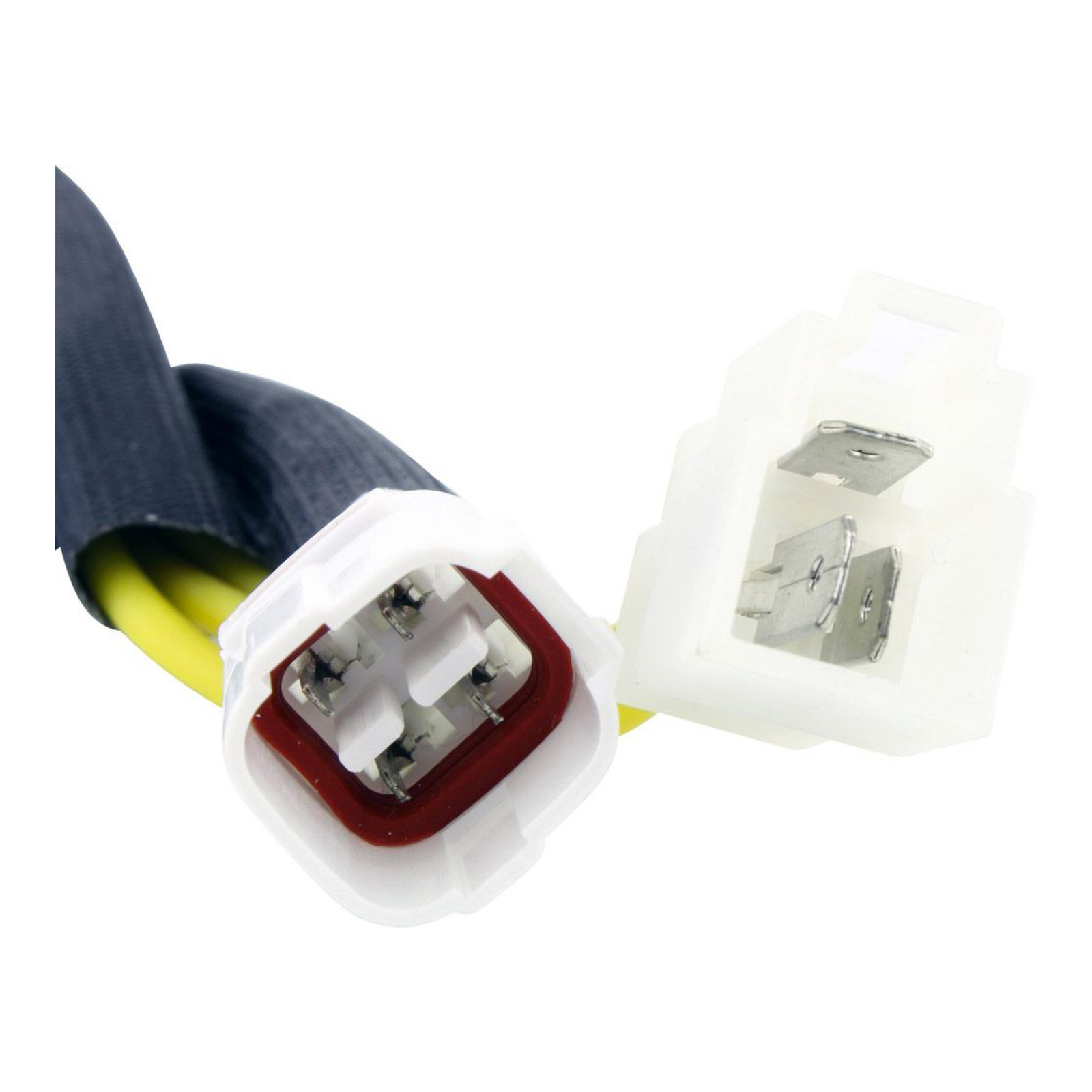

Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85° C

(RMS900107319)

SKU RMS900107319
Barcode # RMS900-107319
Brand RM Stator
