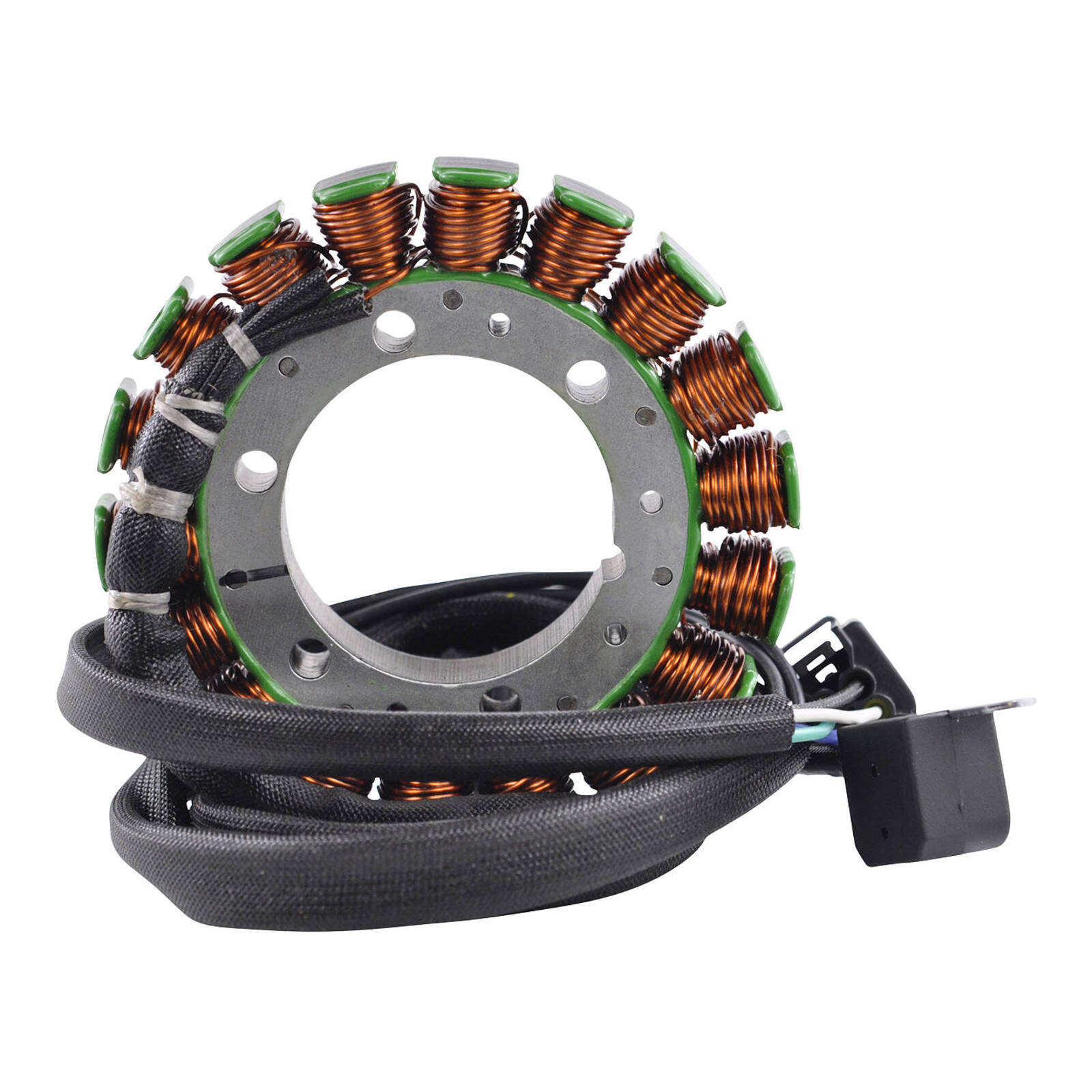

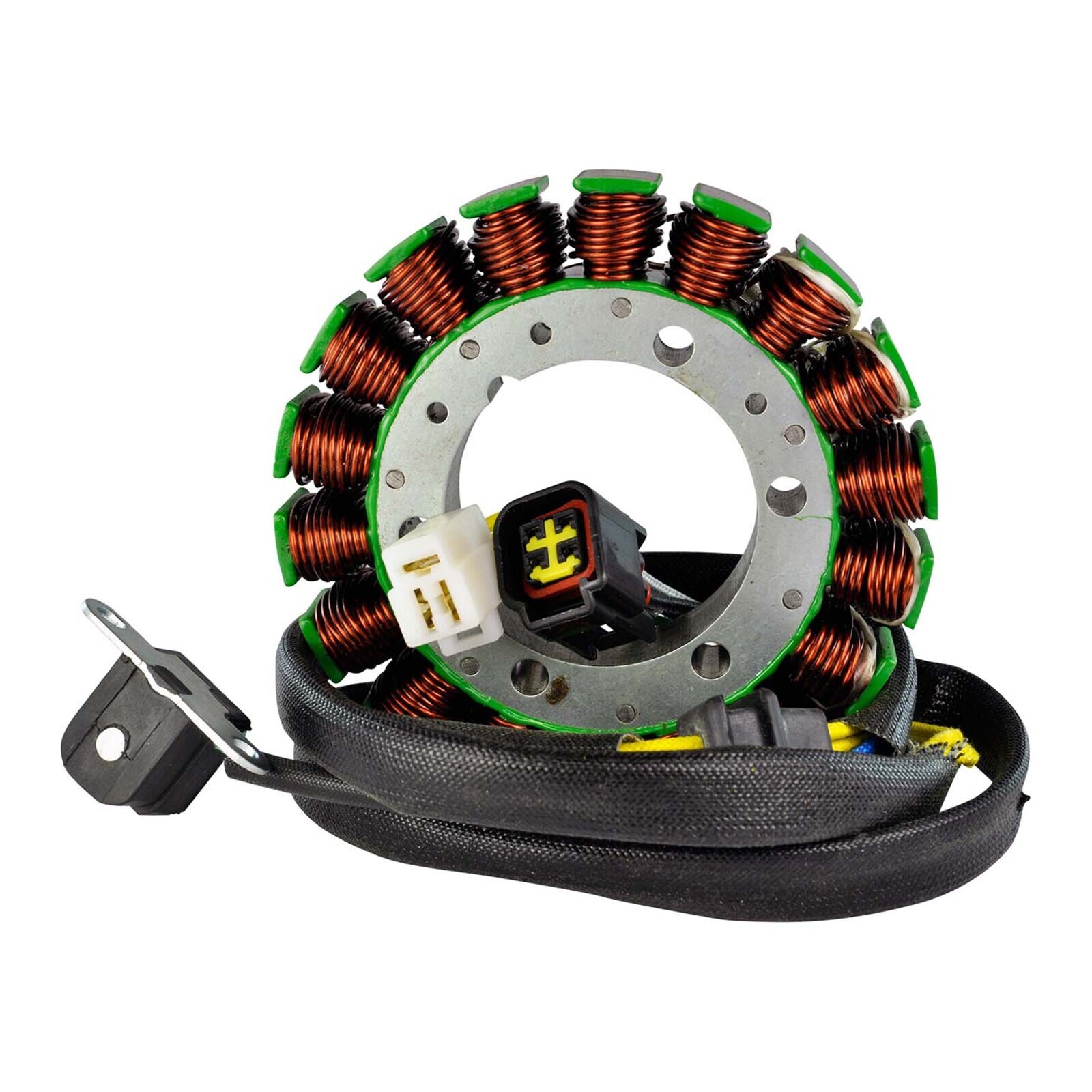

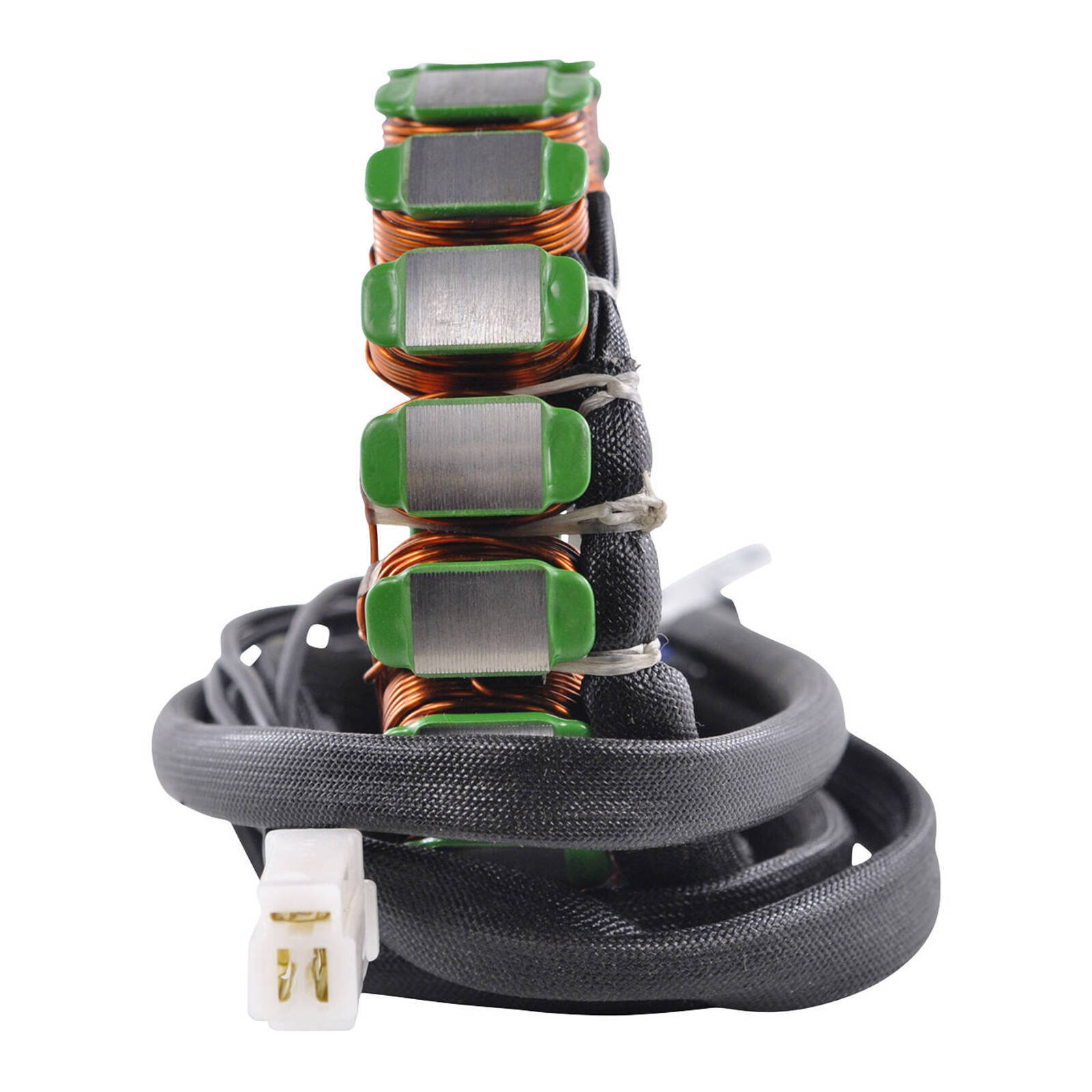

RM STATOR SUZUKI DR650SE 1996-2025 HIGH OUTPUT 250W STATOR

SKU: RMS01047


$499.99

or 4 fortnightly payments of $125.00 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RM STATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS. Produces a maximum of 250 Watts at 5000 RPM.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

(RMS01047)

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 18 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 825 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : White To White = 0.4 ohms +/-20%
Pickup : Green To Blue = 230 ohms +/-20%
Position Sensor : Black To white = 0.4 ohms +/-20%

SKU RMS01047
Barcode # RM01047
Brand RM Stator
