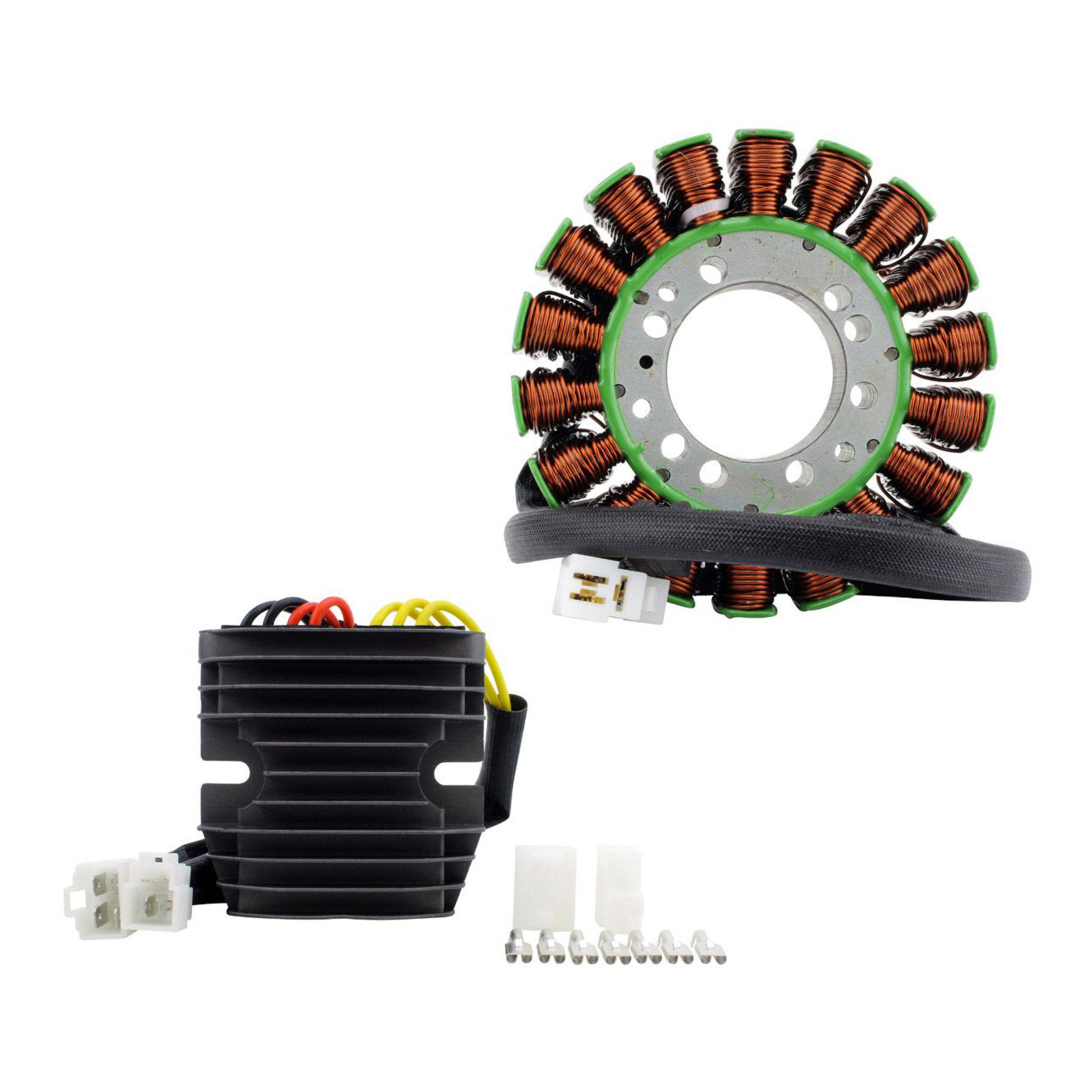

Brand new aftermarket Stator + Mosfet Regulator Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

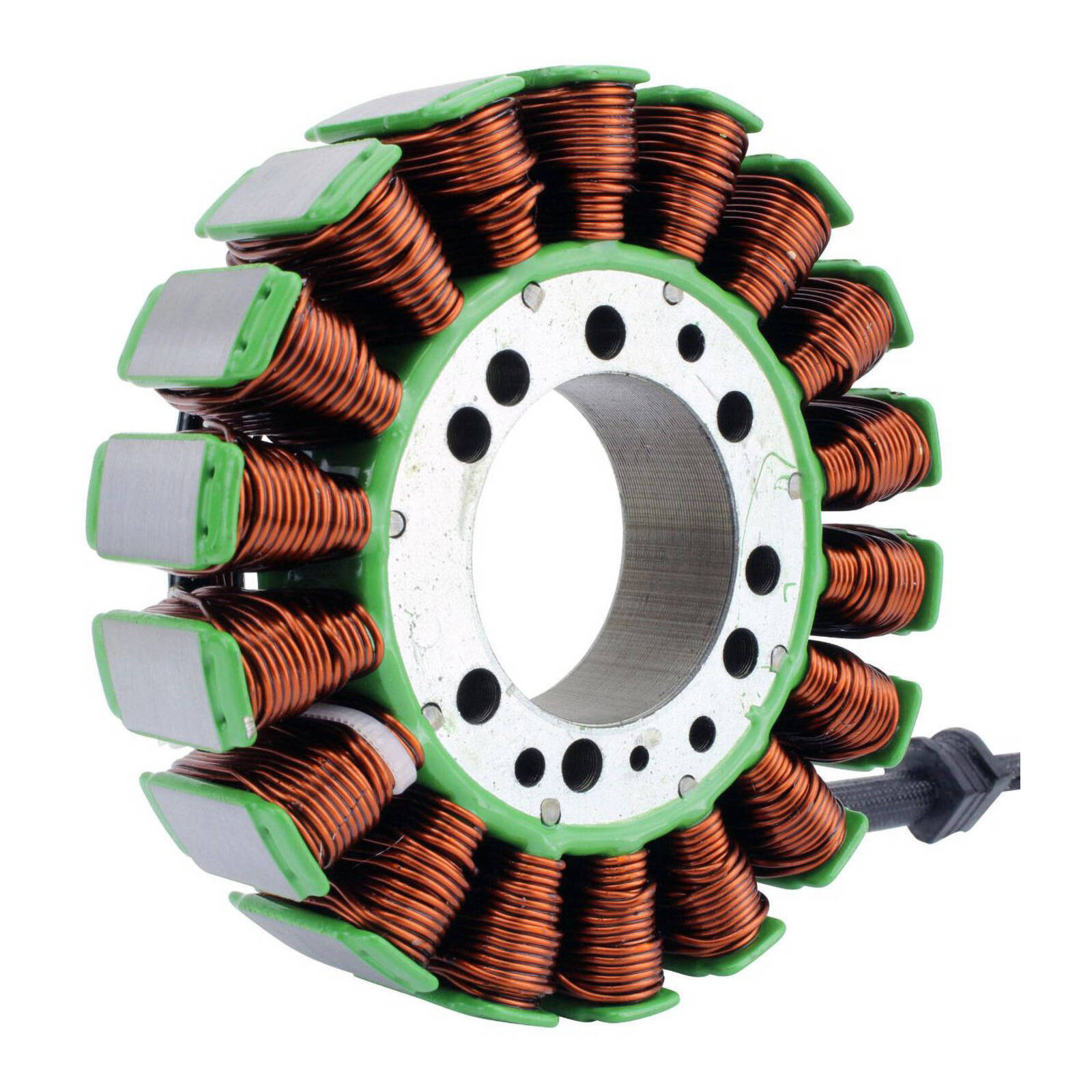

Brand new aftermarket Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included

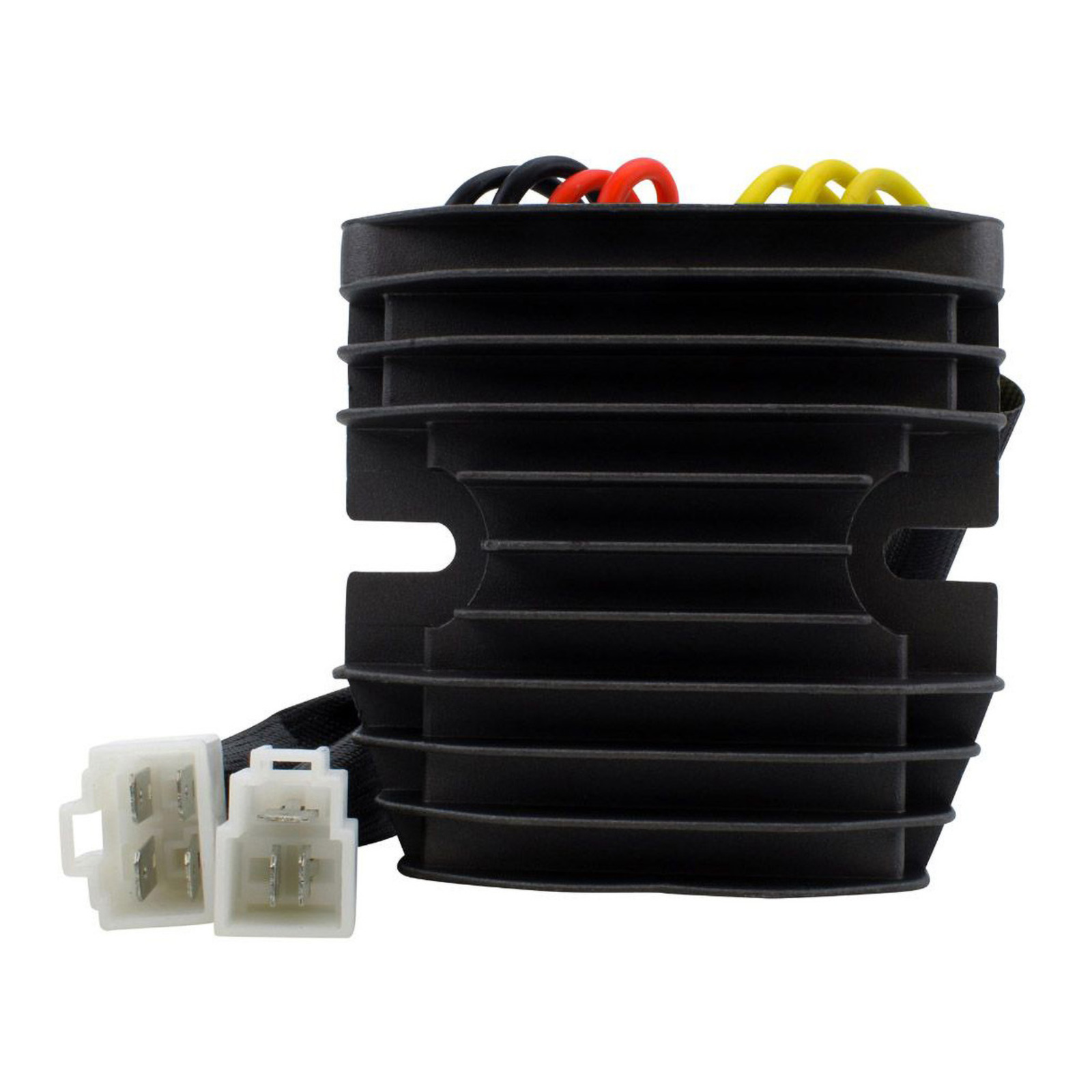

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER!

It is time to update or replace your voltage regulator with the advanced MOSFET type. It runs cooler than all OEM diode-style regulators. In addition, this rectifier has to overheat protection, rather than burn up it will simply turn off for a while and cool off.

• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Please Note: There are 2 possible stators for the Triumph Speed Triple 1050 2005-2010, compare the dimensions of your original product with the dimensions of our product before buying. This stator will fit engine serial number 356143 and up. The other possible product is RM01391S.

STATOR

Dimensions:

• Interi or diameter: 42mm
• Exterior diameter: 115mm
• Thickness: 22mm
• Length of wires stator to grommet: 110mm
• Length of wires grommet to plug: 600mm

Other Specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Number of poles: 18

Wire to wire resistance:

• Alternator 3p: Between each Black = 0.5 ohms +-20%

REGULATOR

Dimensions:

• Width: 90mm
• Length: 94mm
• Height: 30mm
• Wires length: 320mm & 235mm
• Fixation holes centre to centre: 75mm

Other Specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. There are 2 possible stators for the model's Triumph Speed Triple 1050 2005-2010, compare the dimensions of your original product with the dimensions of our product before buying. This stator will fit engine serial number 356143 and up. The other possible product is the RM01391S.

Fits Bikes: Triumph Speed Triple 1050 05-12, Triumph Sprint GT 1050 11-12, Triumph Sprint ST 05-09 and Triumph Tiger 1050 07-12
