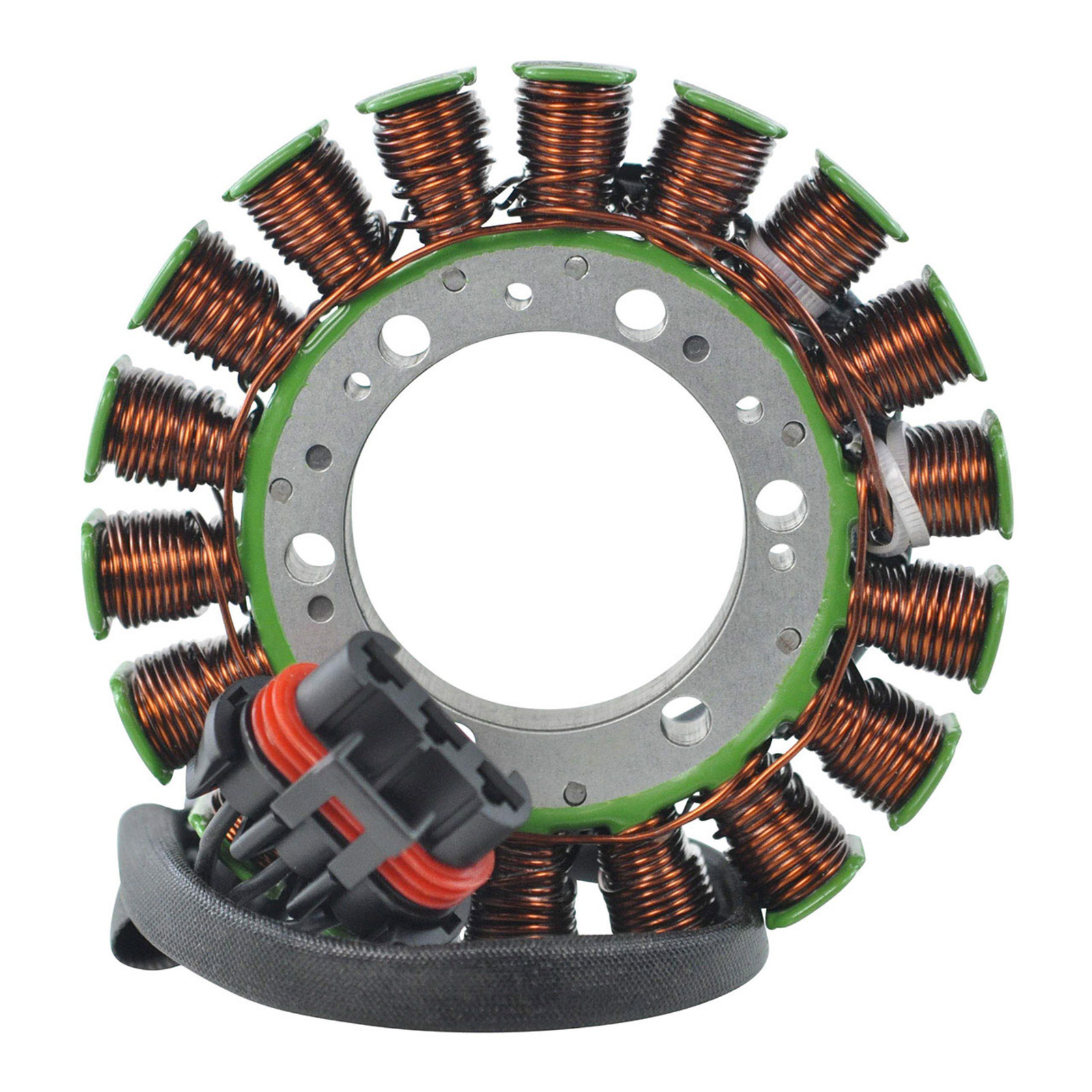

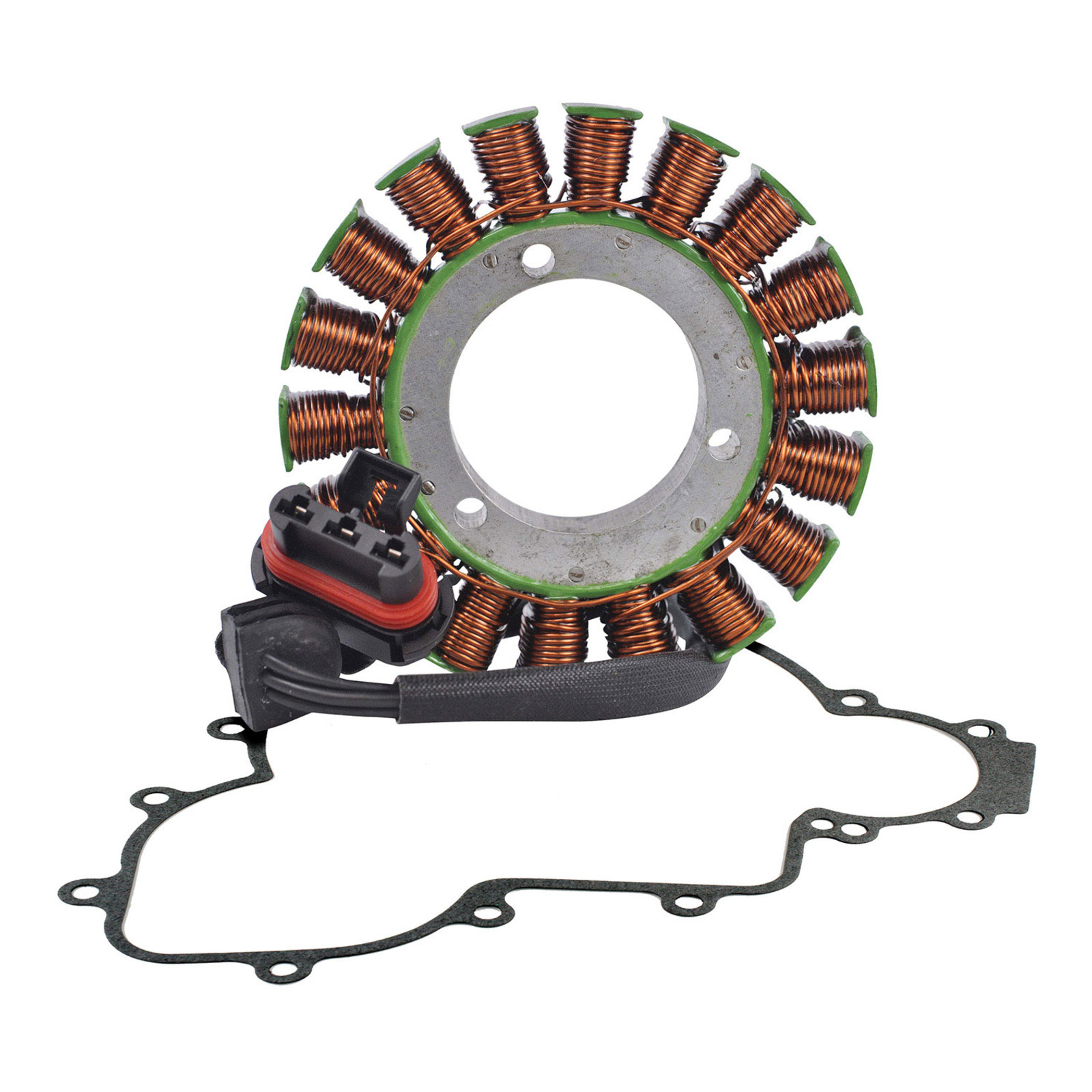

RM STATOR Polaris Ranger 500 570 900 | RZR 900 1000 | Sportsman 570 850 1000 STATOR KIT + GASKET

SKU: RMS01394G


$539.99

or 4 fortnightly payments of $135.00 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RM STATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

Fits: Polaris RZR 4 XP 900 2013, RZR 570 EFI 12-17, RZR 570 EPS 18-21, RZR 900 60" EPS 18-19, RZR 900 S 60" EPS 2020, RZR XP 1000 2014 & 19-21, RZR XP 1000 EPS 15-18, RZR XP 4 1000 19-20, RZR XP 4 1000 EPS 16-18, RZR XP 4 Turbo EPS 18-19, RZR XP Turbo 20-21, ZR XP Turbo EPS 16-18, Scrambler XP 1000 15-18, Scrambler XP 1000 EPS 2019, Sportsman 450 HO 17-19, Sportsman 570 2014, Sportsman 570 EFI EPS 2014, Sportsman 570 EFI HD 14-19, Sportsman 570 HD EPS 18-19, Sportsman XP 1000 16-18, Sportsman XP 1000 EPS 2019, ACE 325 2015, ACE 500 17-19, ACE 570 HD 17-18, ACE 570 HD EPS 18-19, ACE 900 XC 2018, General 1000 EPS 17-18, General 1000 EPS Deluxe 17-21, General 1000 EPS Premium 17-21,General 4 1000 EPS 18-20, Ranger 500 2X4 17-21, Ranger 500 4X4 17-21, Ranger 570 Mid Size 14-21, Ranger 900 XP Full Size 13-14, anger Crew 570 EFI 15-21, Ranger Crew 800 2014, Ranger Crew 900 15-17, Ranger ETX Mid Size 2015, Ranger XP 1000 17-18, Ranger XP 900 EPS Full Size 15-19

(RMS01394G)

Dimensions Stator:
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 19 mm
Length of wires stator to grommet : 85 mm
Length of wires grommet to plug : 290 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Black between each Black = 0.4 ohms +/-20%

SKU RMS01394G
Barcode # RM01394G
Brand RM Stator
