RM STATOR KAWASAKI KLX140 08-24 GENERATOR STATOR

SKU: RMS010107080


$379.99

or 4 fortnightly payments of $95.00 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

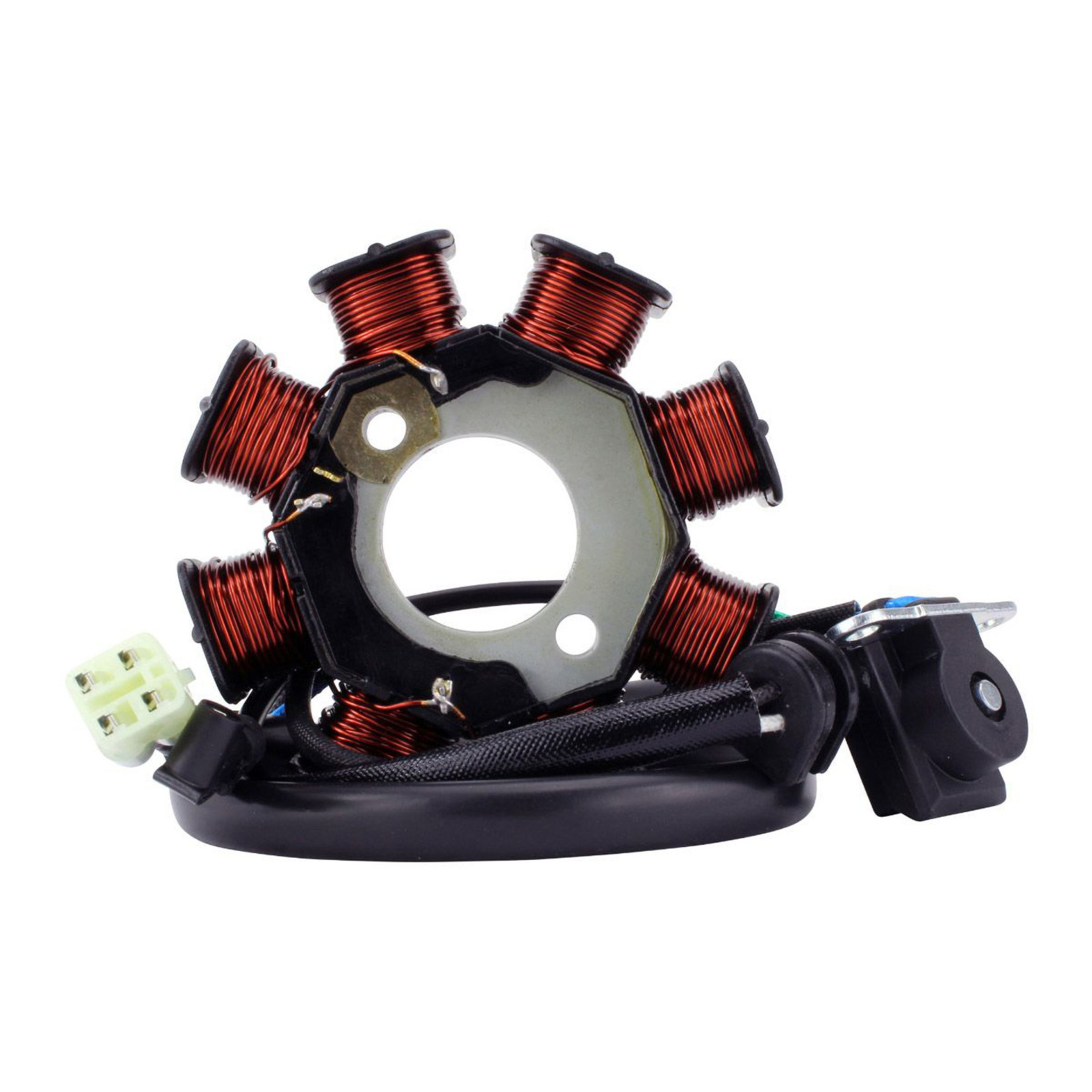

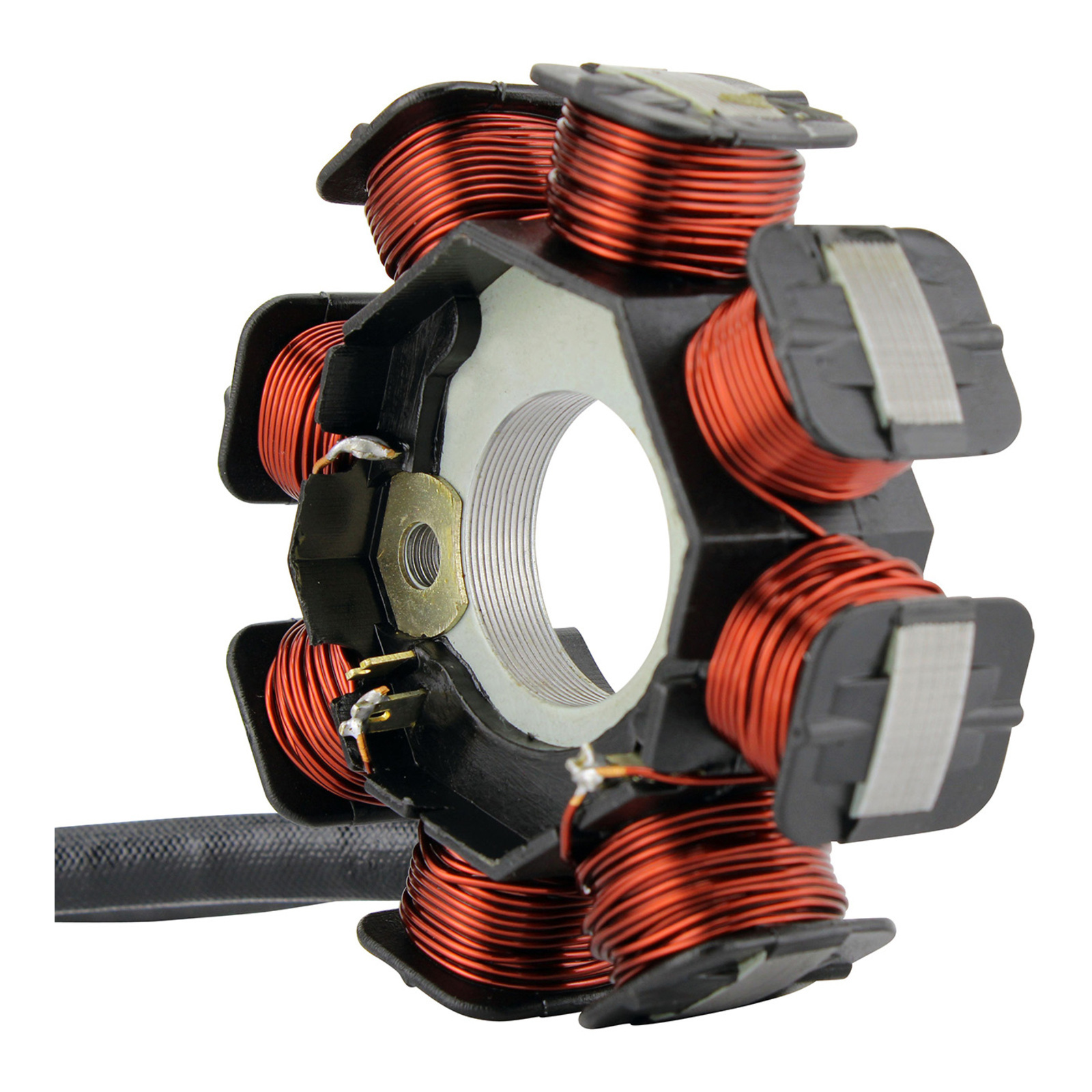

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick-up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested



(RMS010107080)

Dimensions:

  • Interior diameter: 29 mm
  • Exterior diameter: 88 mm
  • Thickness: 10 mm
  • Length of wires stator to grommet: 110 mm
  • Length of wires grommet to plug: 475, 100 mm
  • Length of pickup coil's wire to grommet: 145 mm

Other specifications:

  • Number of wires: 4
  • Number of plugs: 2
  • Number of holes: 2
  • Number of poles: 8

Wire to wire resistance:

  • Alternator: White to Ground = 1.1 ohms +-20%
  • Pickup: Blue/yellow to Ground = 119 ohms +-20%
SKU RMS010107080
Barcode # RMS010-107080
Brand RM Stator
