RM STATOR KAWASAKI KLX110 10-24 GENERATOR STATOR

SKU: RMS010107078


$379.99

or 4 fortnightly payments of $95.00 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

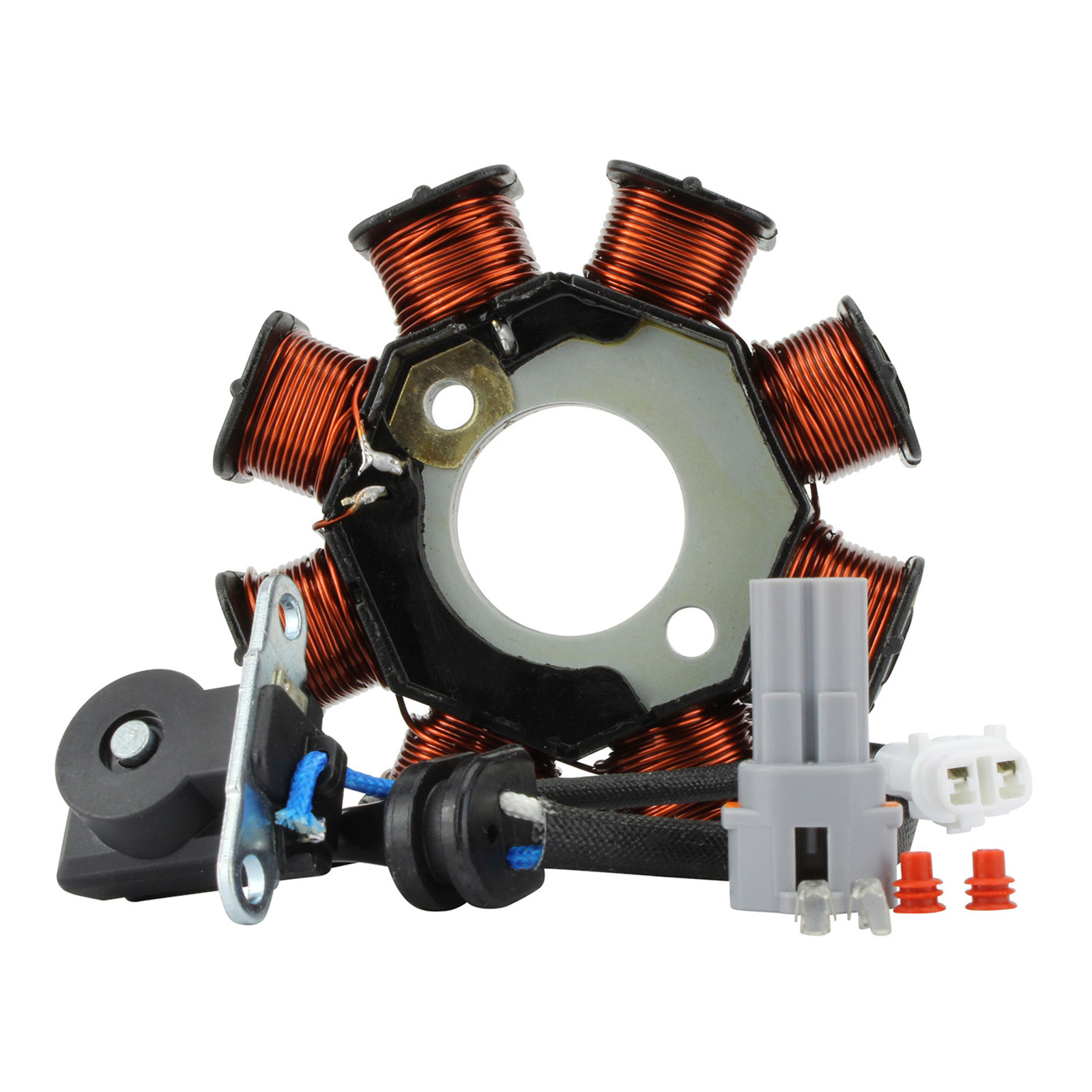

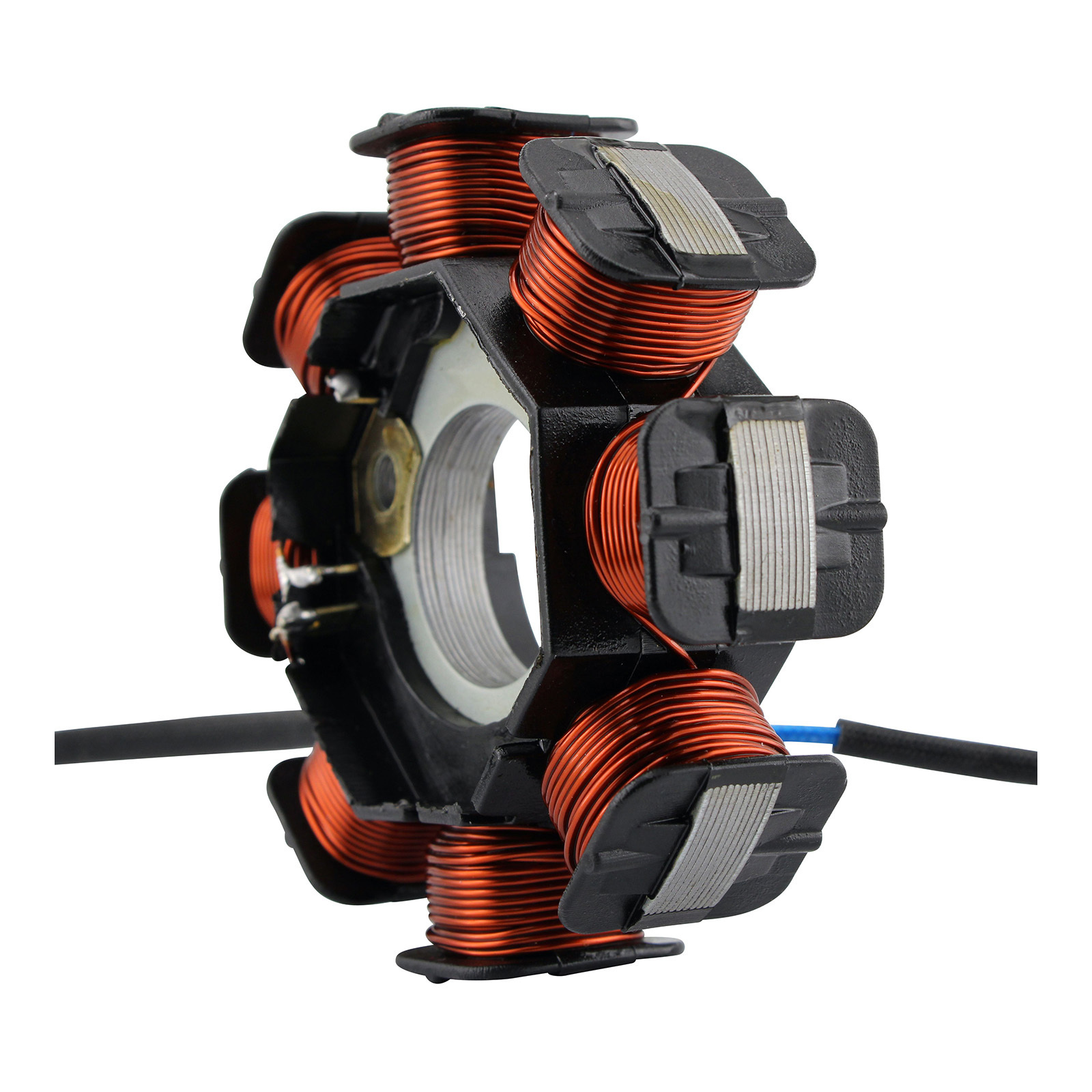

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick-up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 29 mm
  • Exterior diameter: 88 mm
  • Thickness: 10 mm
  • Length of wires stator to grommet: 150 mm
  • Length of wires grommet to plug: 150 mm
  • Length of pickup coil's wire to grommet: 120 mm

Other specifications:

  • Number of wires: 2
  • Number of plugs: 1
  • Number of holes: 2
  • Number of poles: 8

Wire to wire resistance:

  • Alternator: White to Ground = 1.2 ohms +-20%
  • Pickup: Blue/yellow to Ground = 118 ohms +-20%

(RMS010107078)

SKU RMS010107078
Barcode # RMS010-107078
Brand RM Stator
