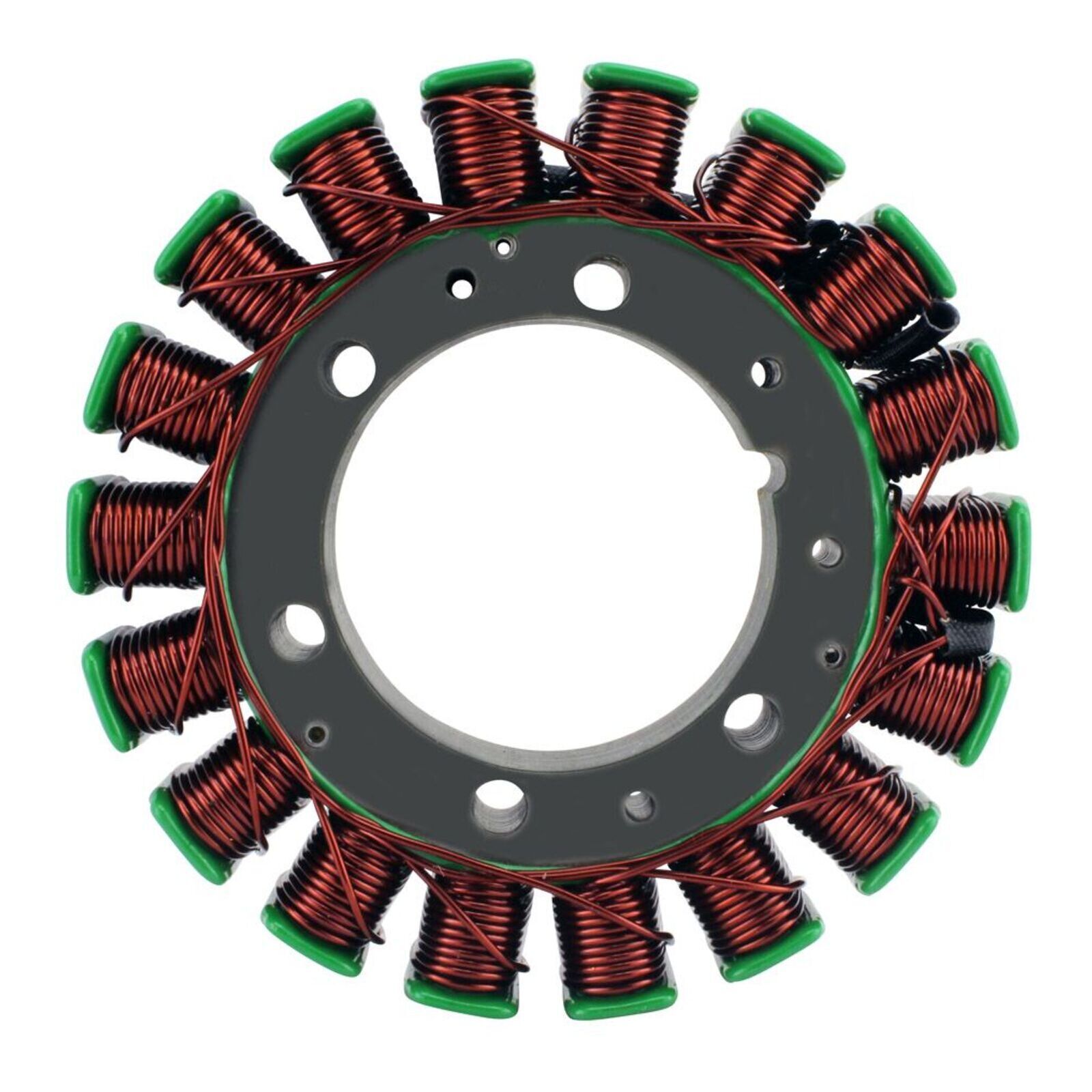

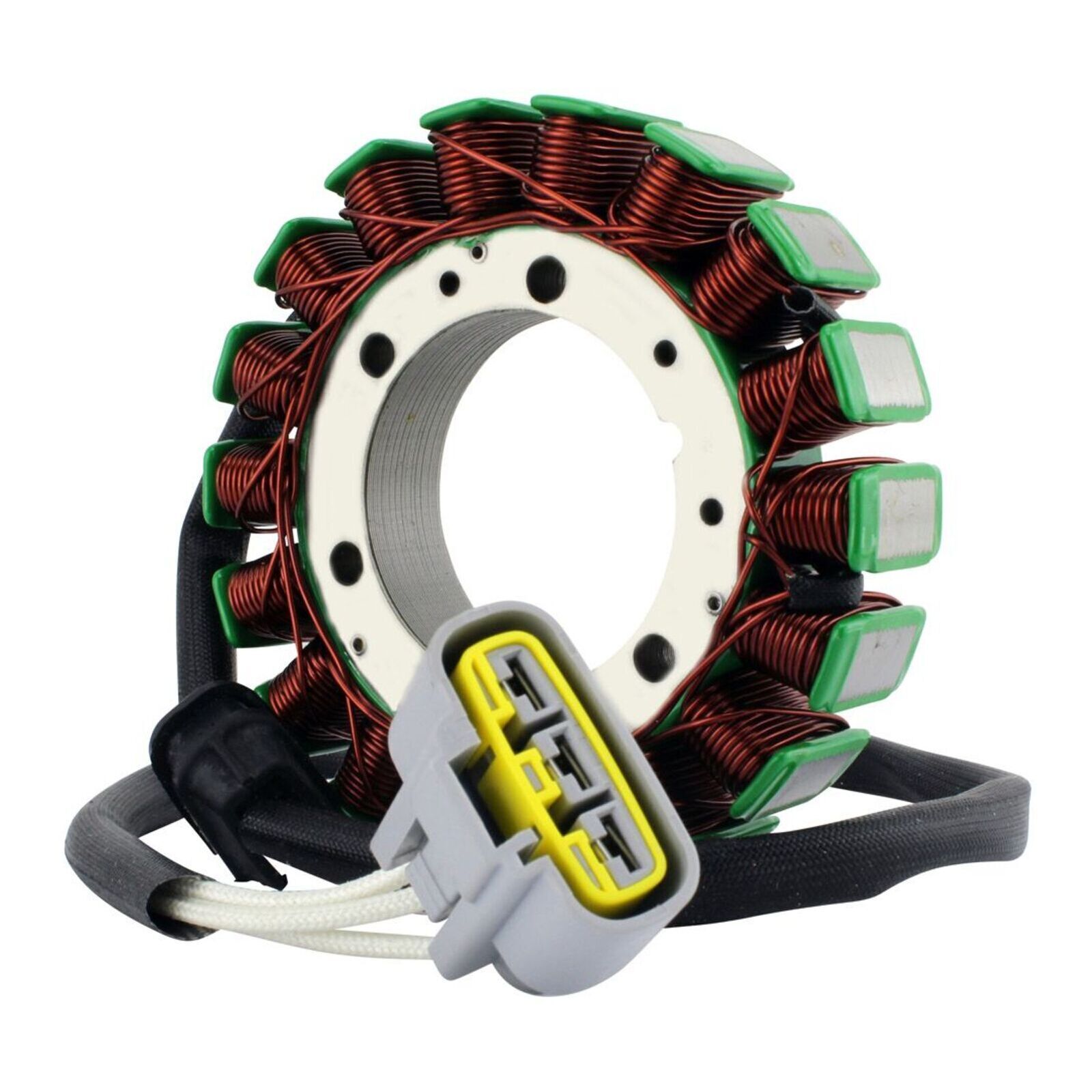

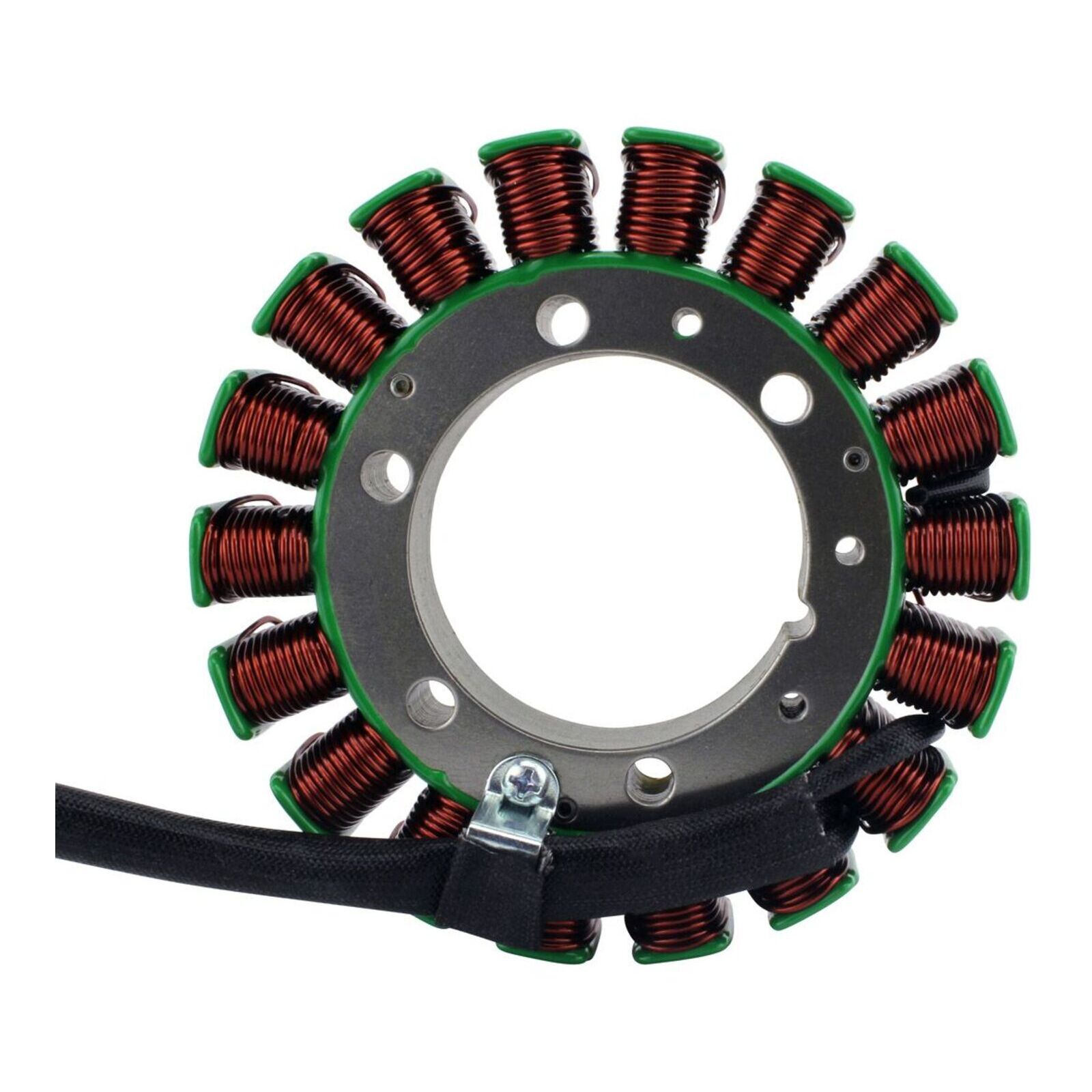

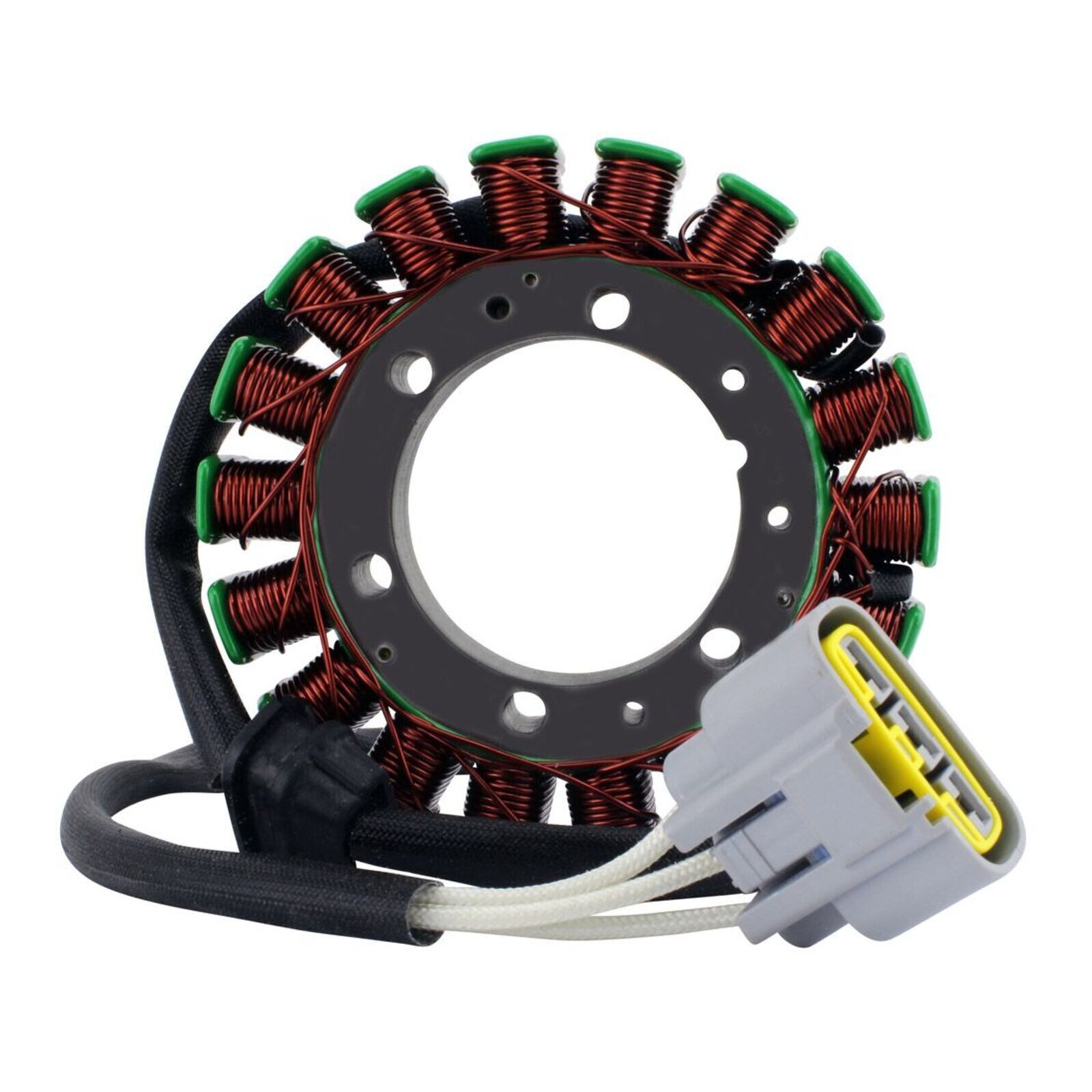

RM STATOR CFMOTO MODELS 20-24 STATOR

SKU: RMS010108086


$469.99

or 4 fortnightly payments of $117.50 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

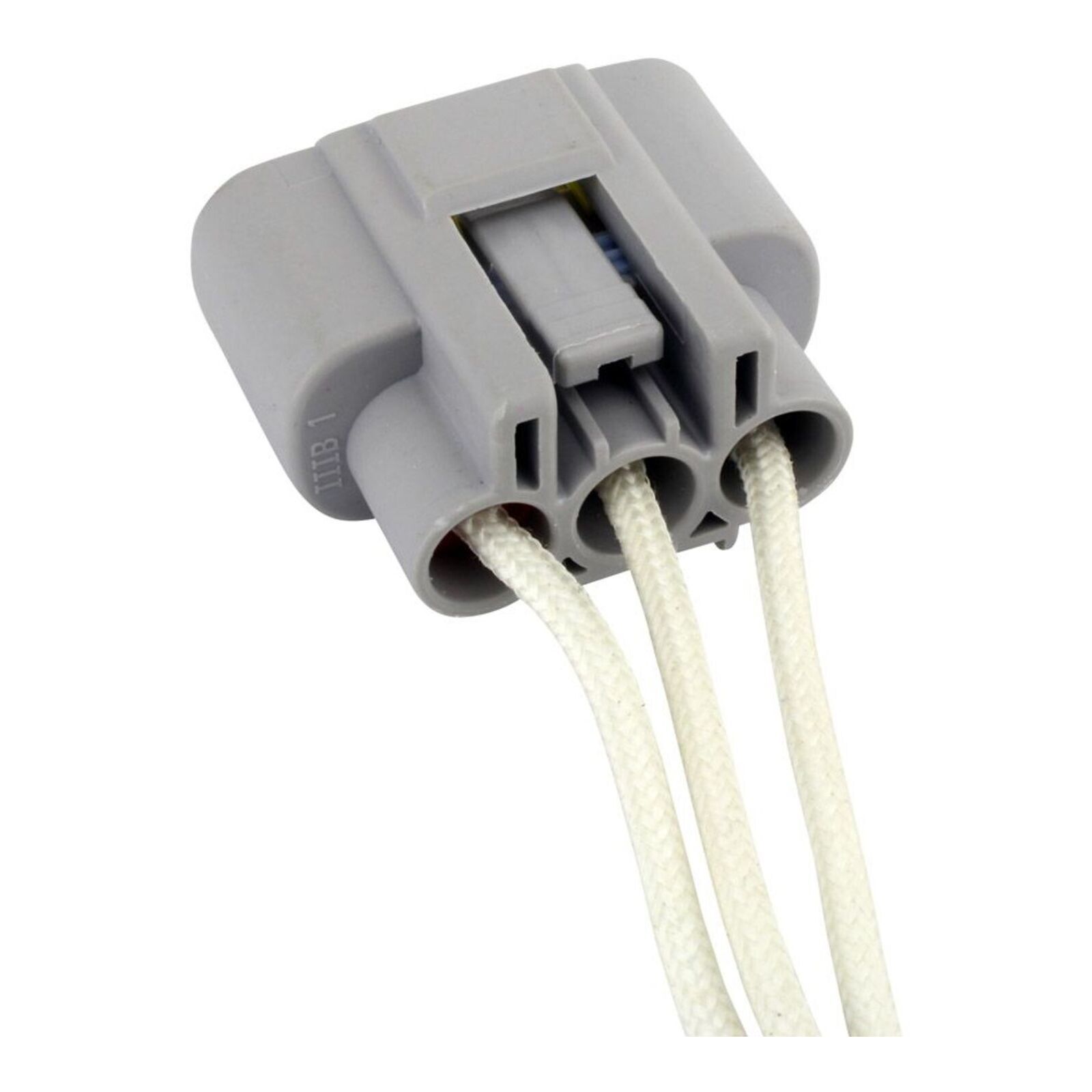

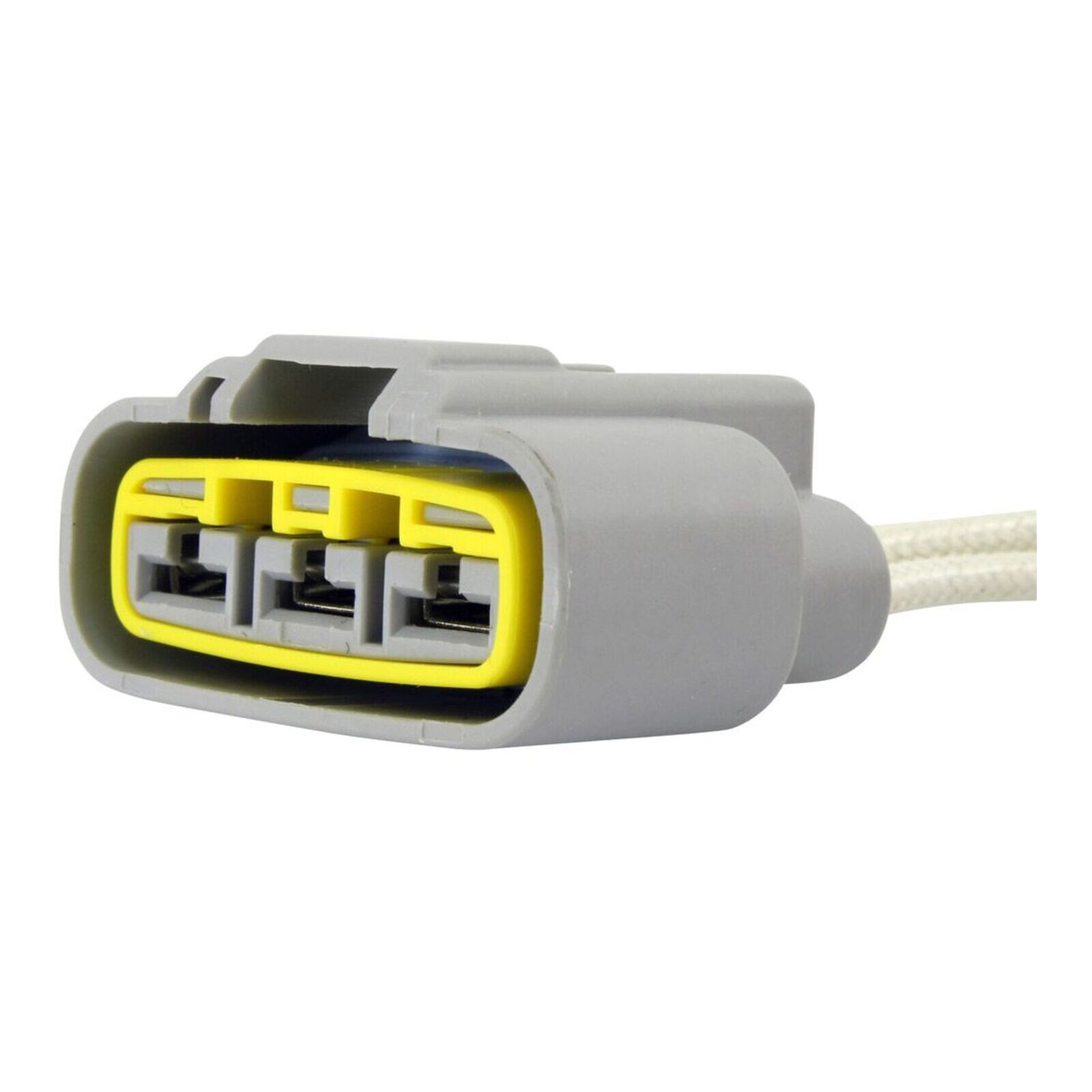

  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

Fits Bikes: CF MOTO CForce 1000 EPS 21-24, CForce 1000 EPS Overland 22-23, UForce 800 EPS 20-23, ZForce 800 EPS 21-24, ZForce 950 EPS Sport 23-24, ZForce 950 EPS Sport 4 2024



(RMS010108086)

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm

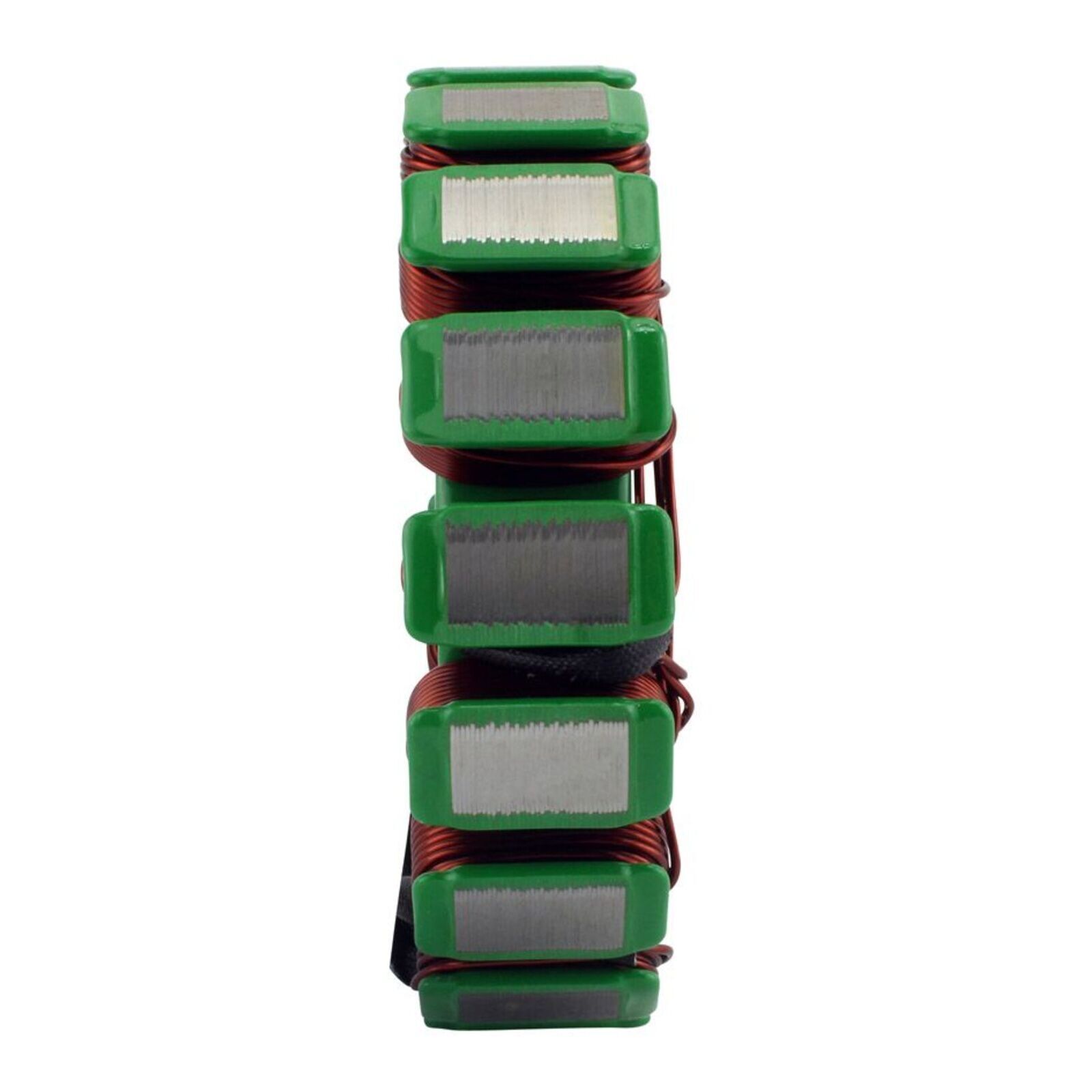

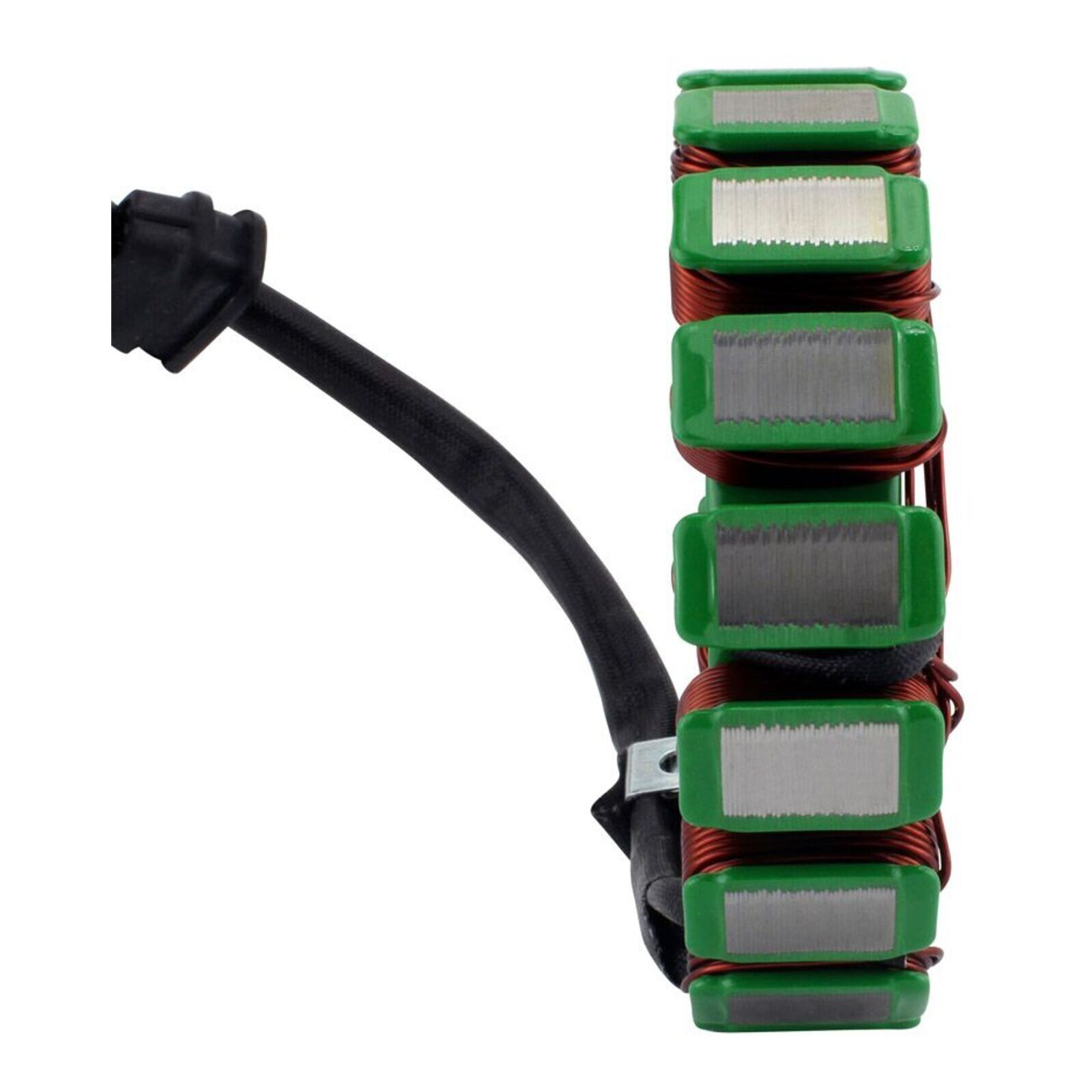

Thickness: 18 mm

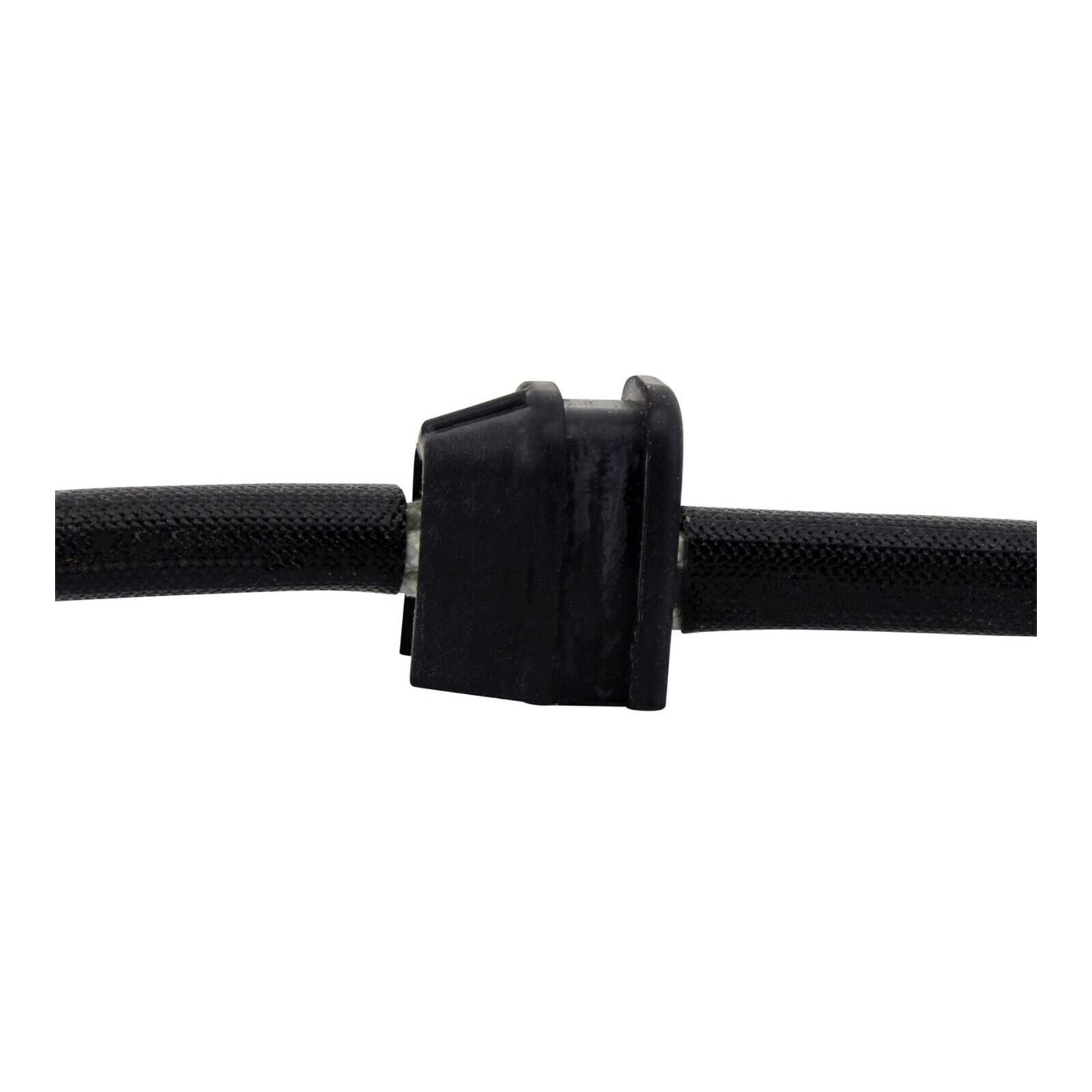

Length of wires stator to grommet: 125 mm
Length of wires grommet to plug: 480 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Alternator: Yellow to Yellow = 0.6 ohms +-20%
Alternator: Yellow to ground = O.L

SKU RMS010108086
Barcode # RMS010-108086
Brand RM Stator
