RM STATOR CAN-AM COMMANDER / MAVERICK / OUTLANDER GENERATOR STATOR

SKU: RMS01399


$509.99

or 4 fortnightly payments of $127.50 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

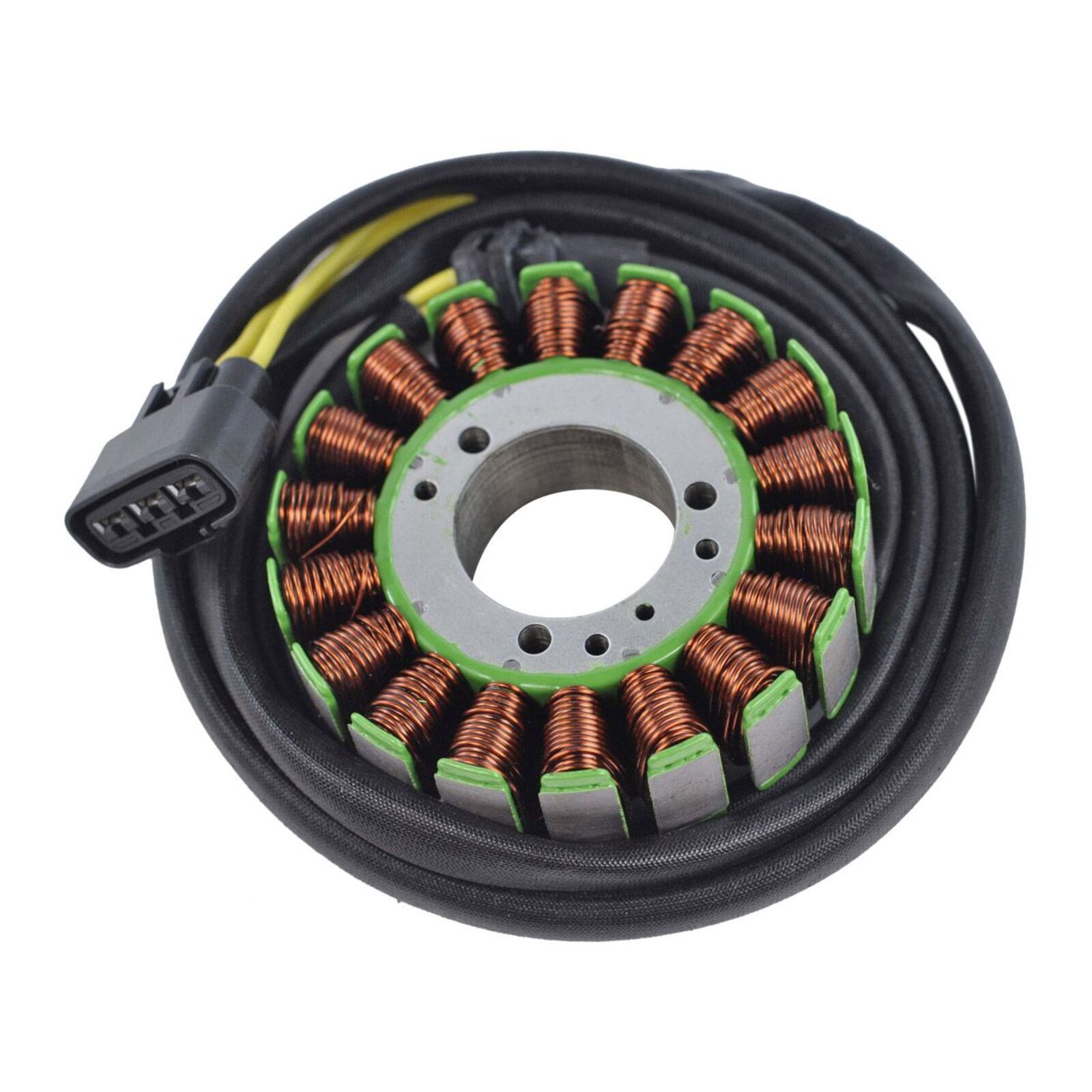

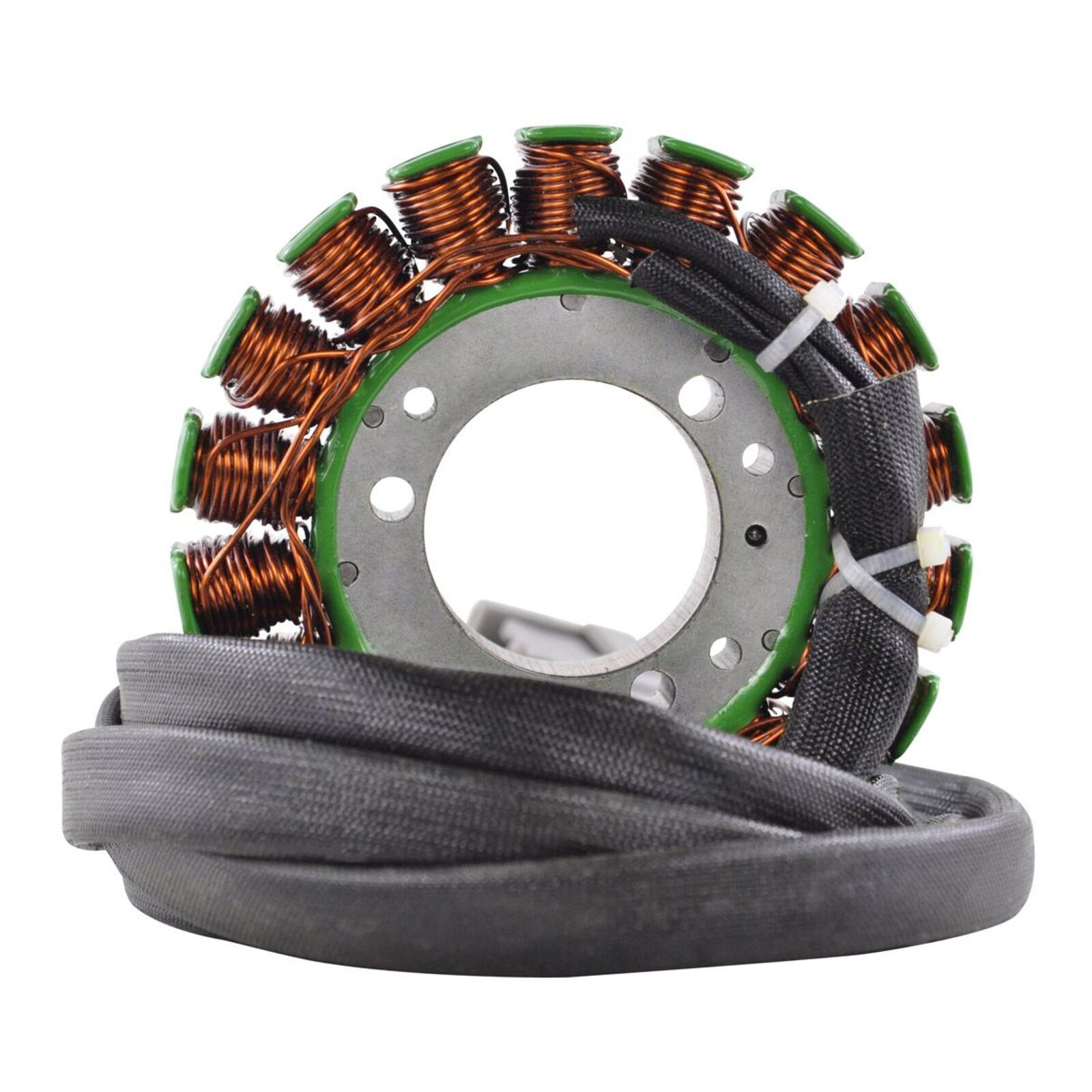

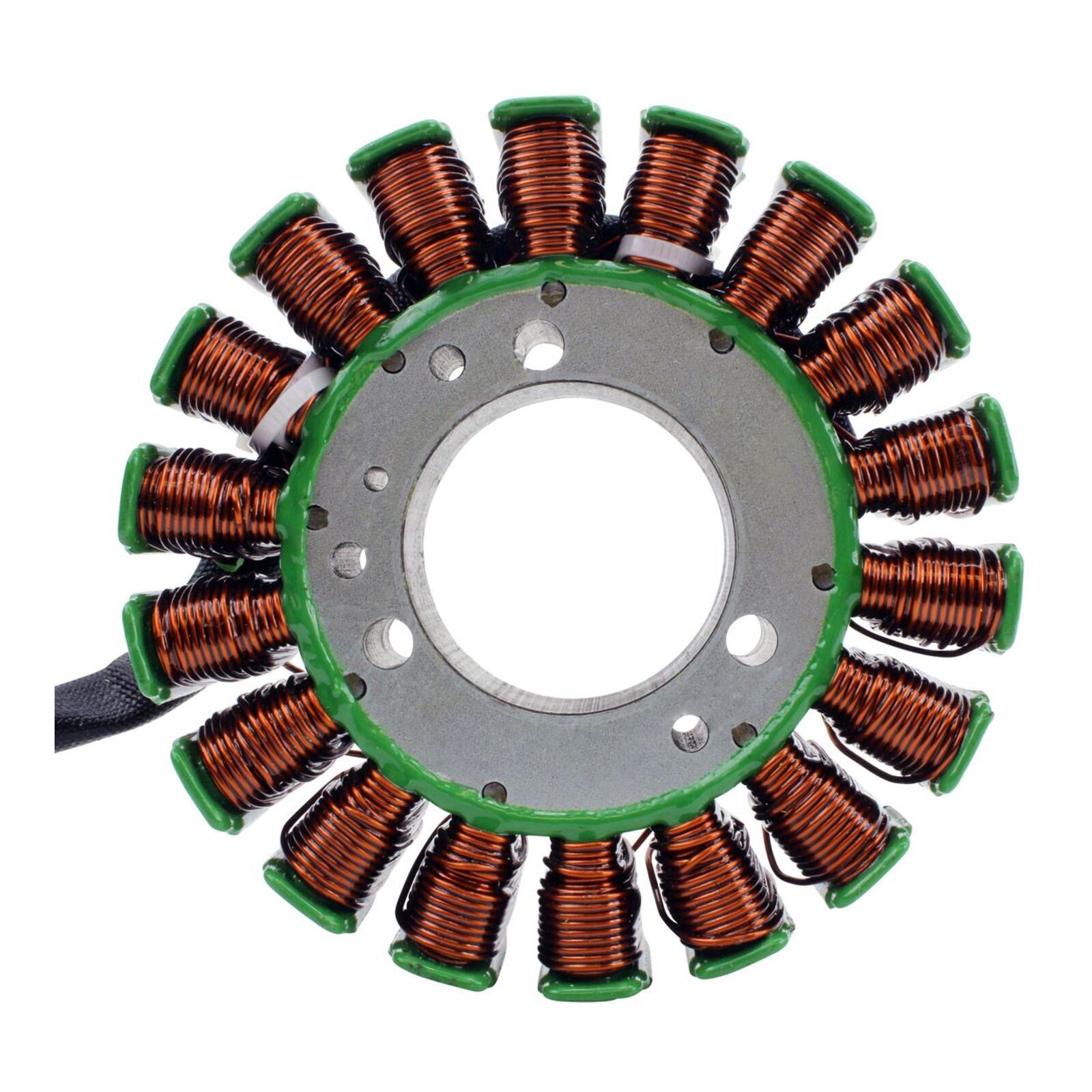

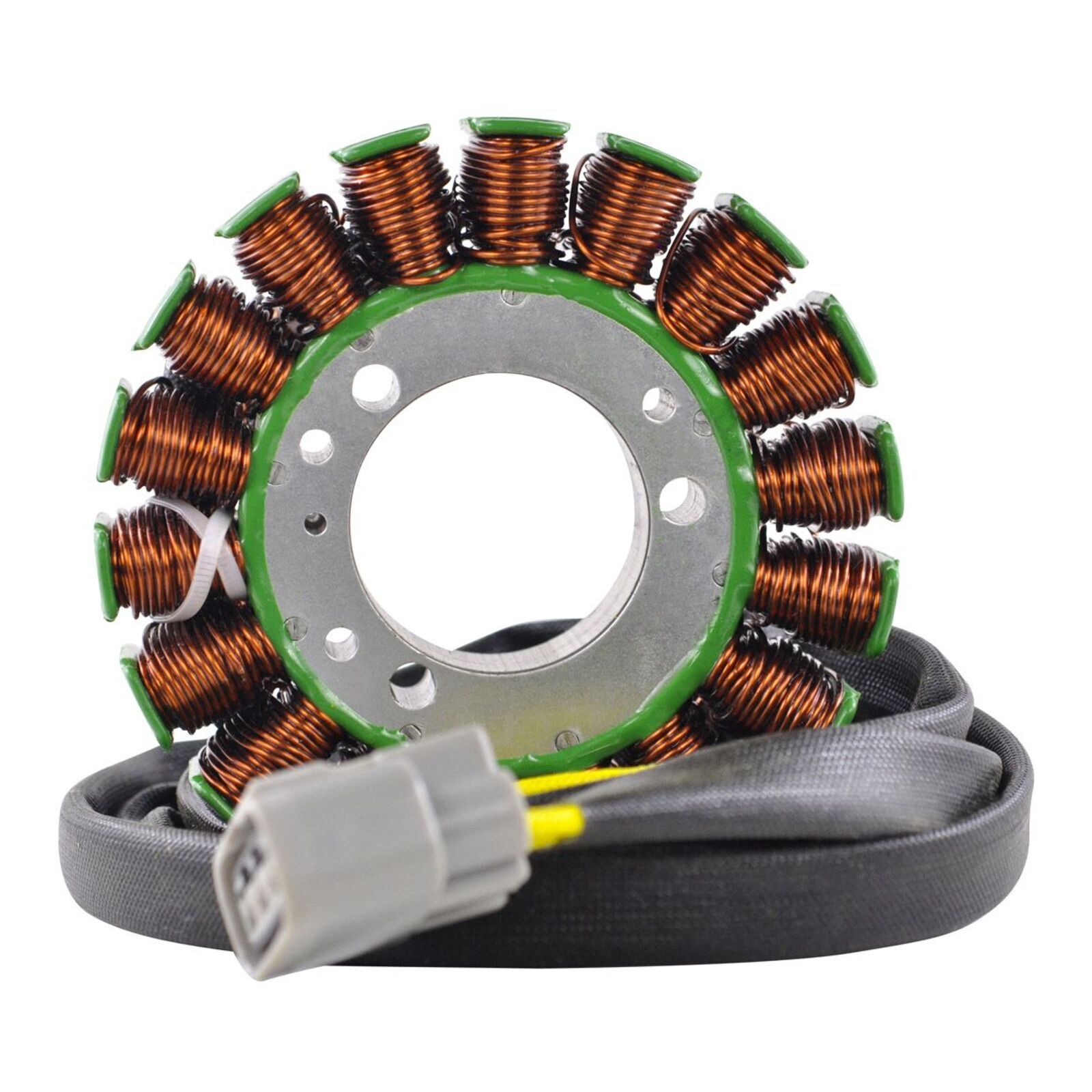

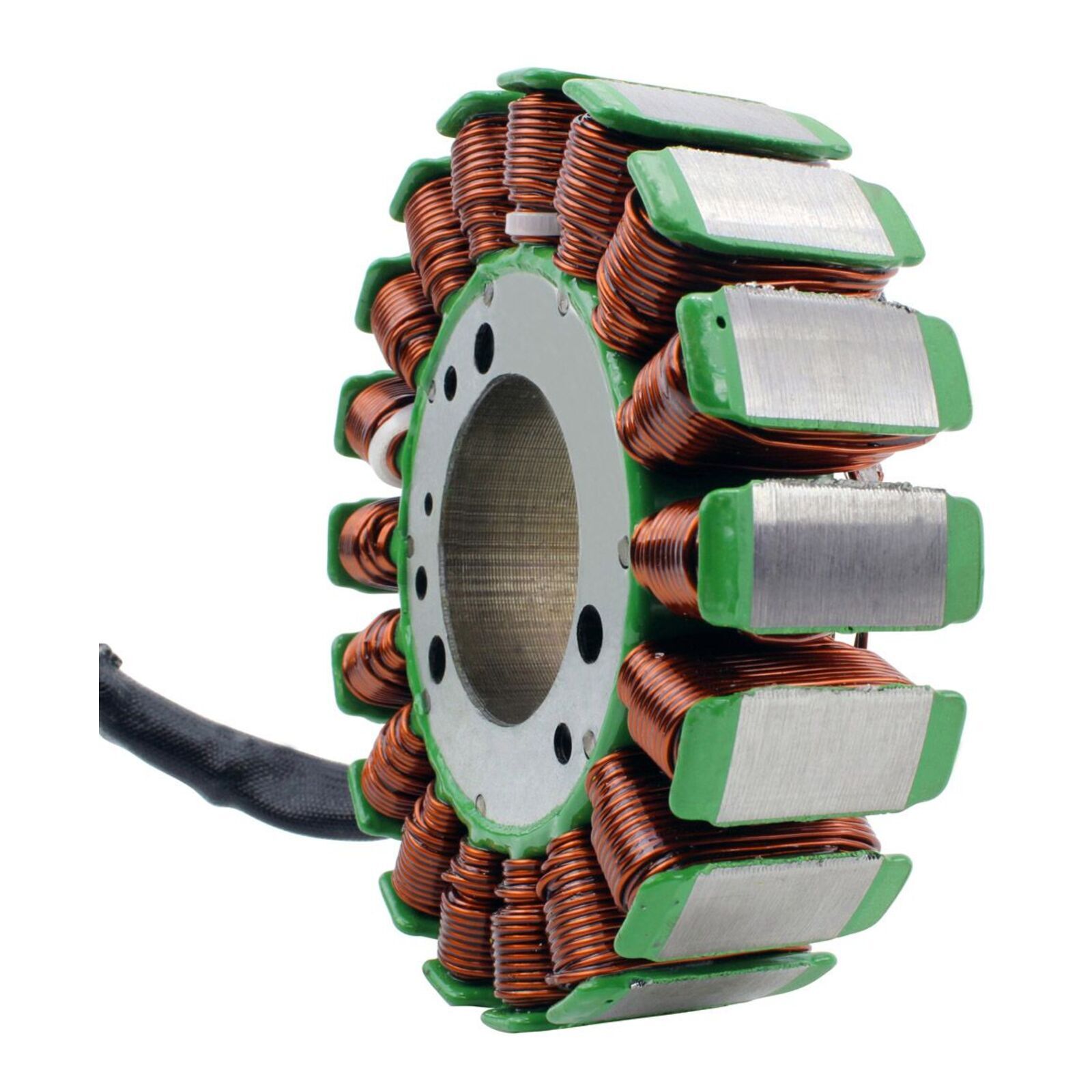

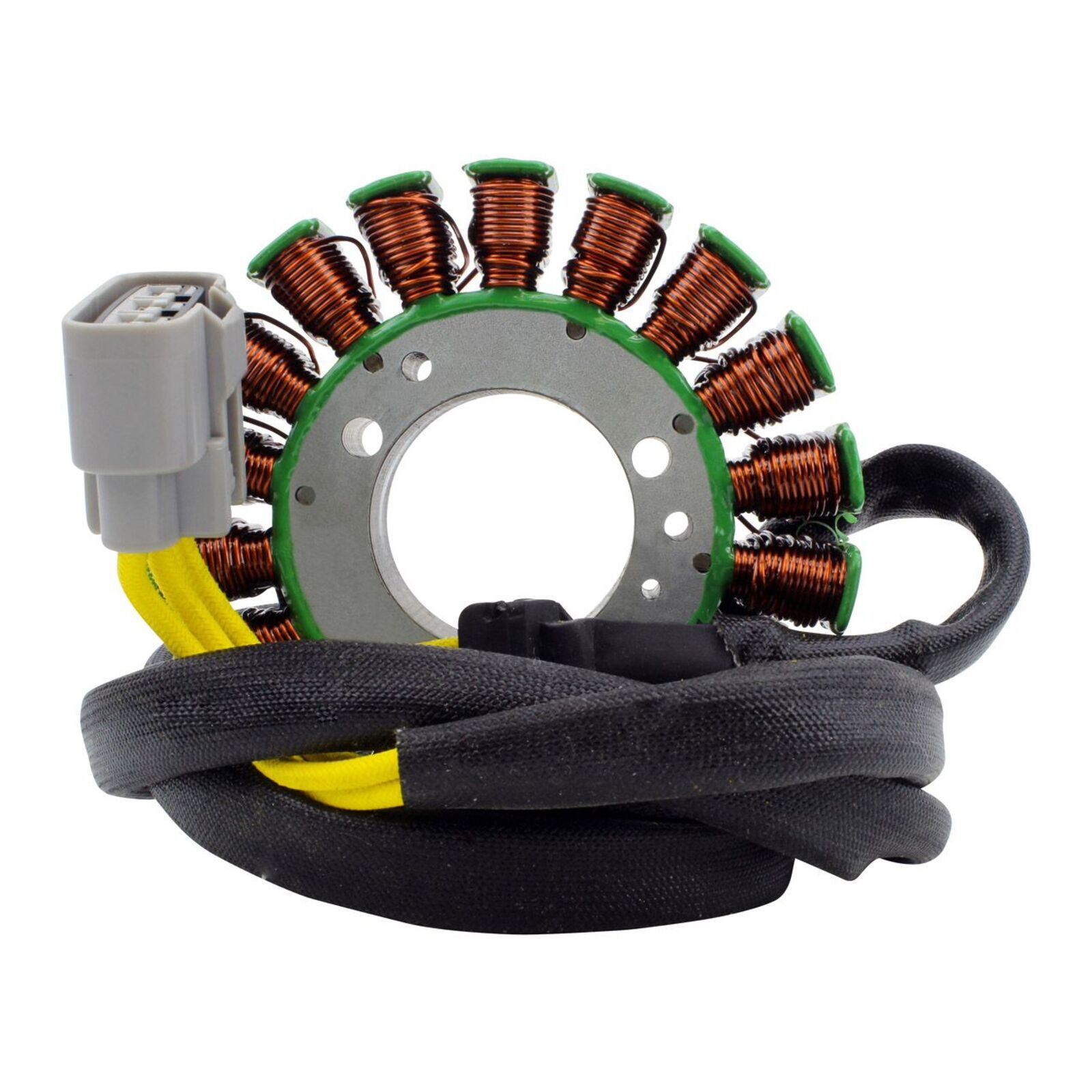

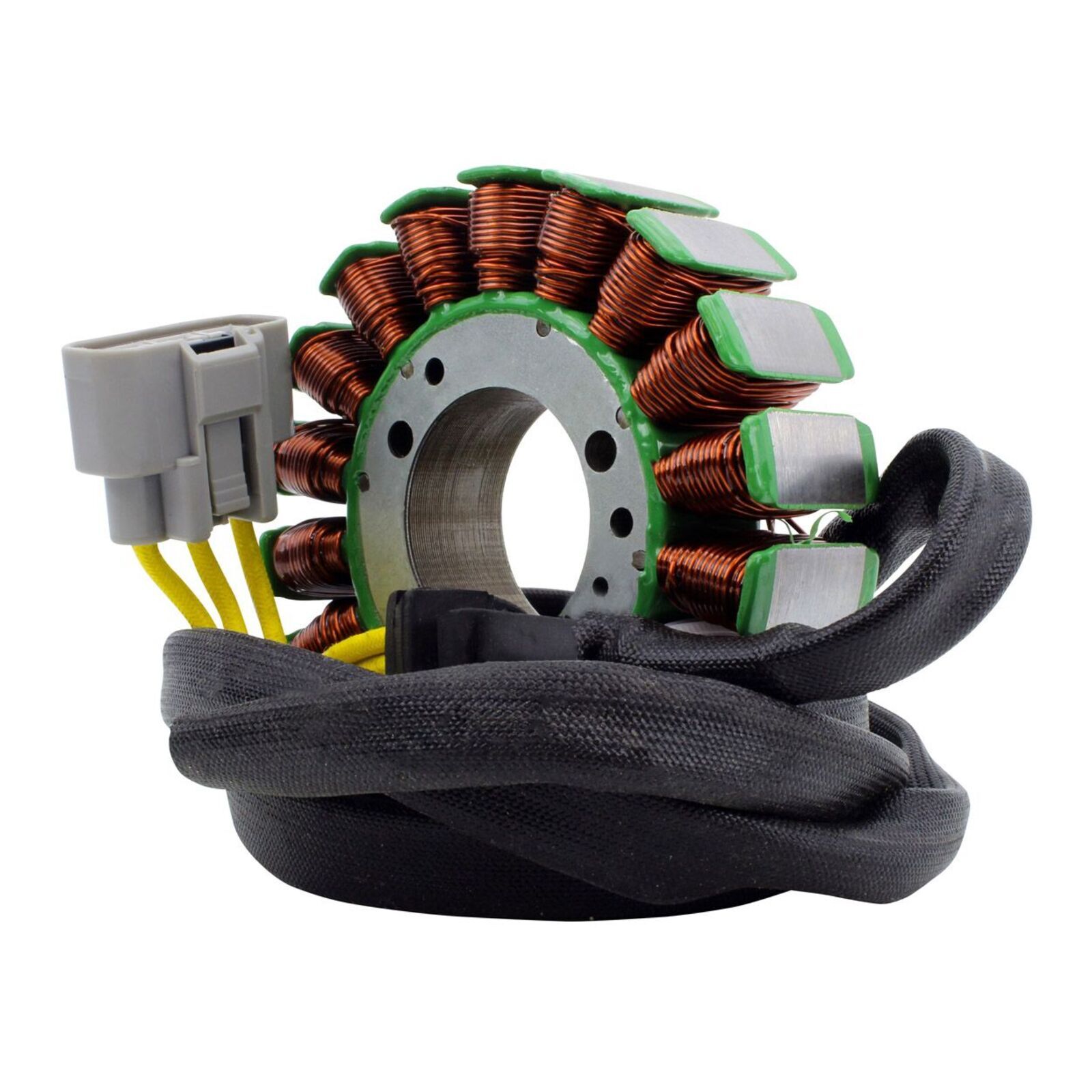

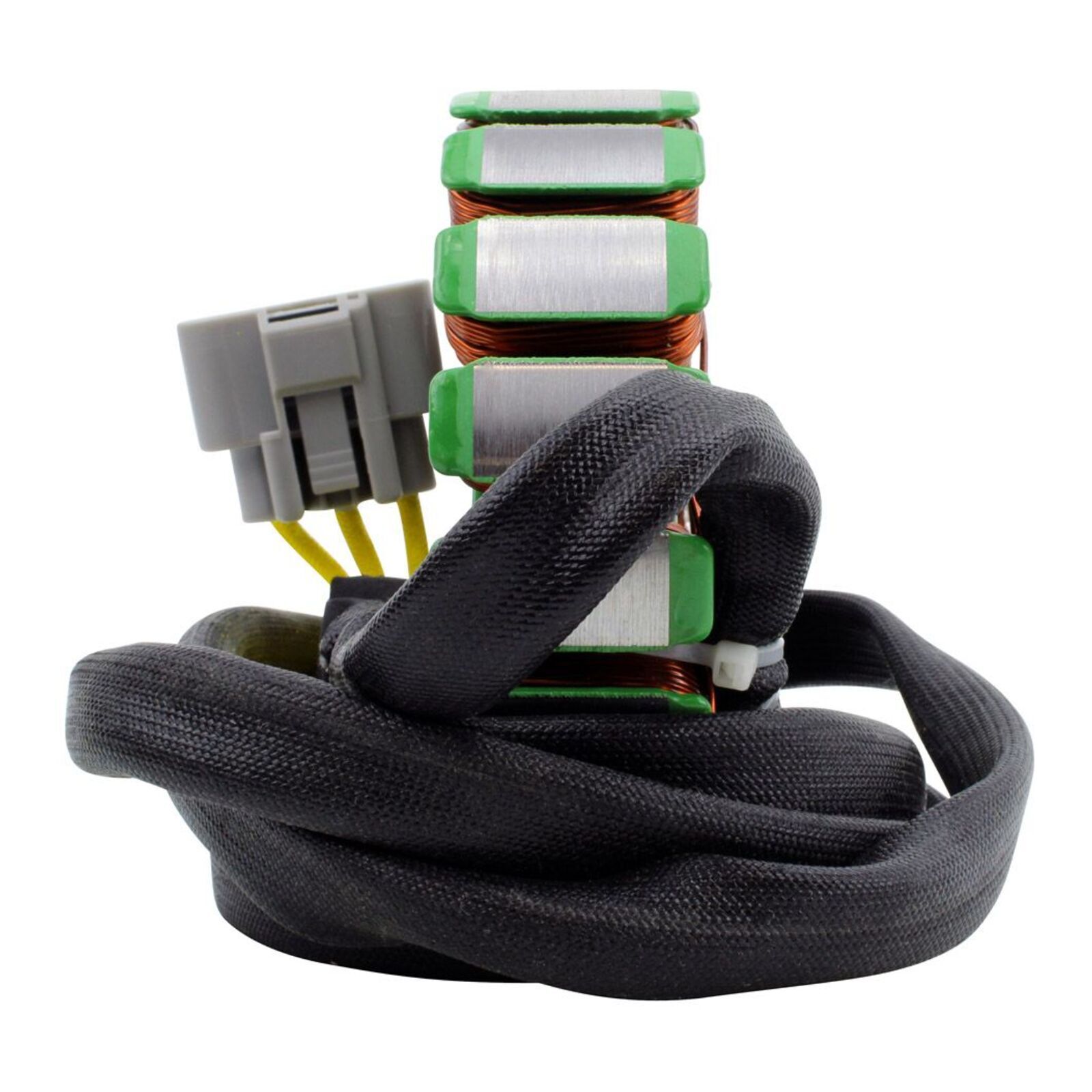

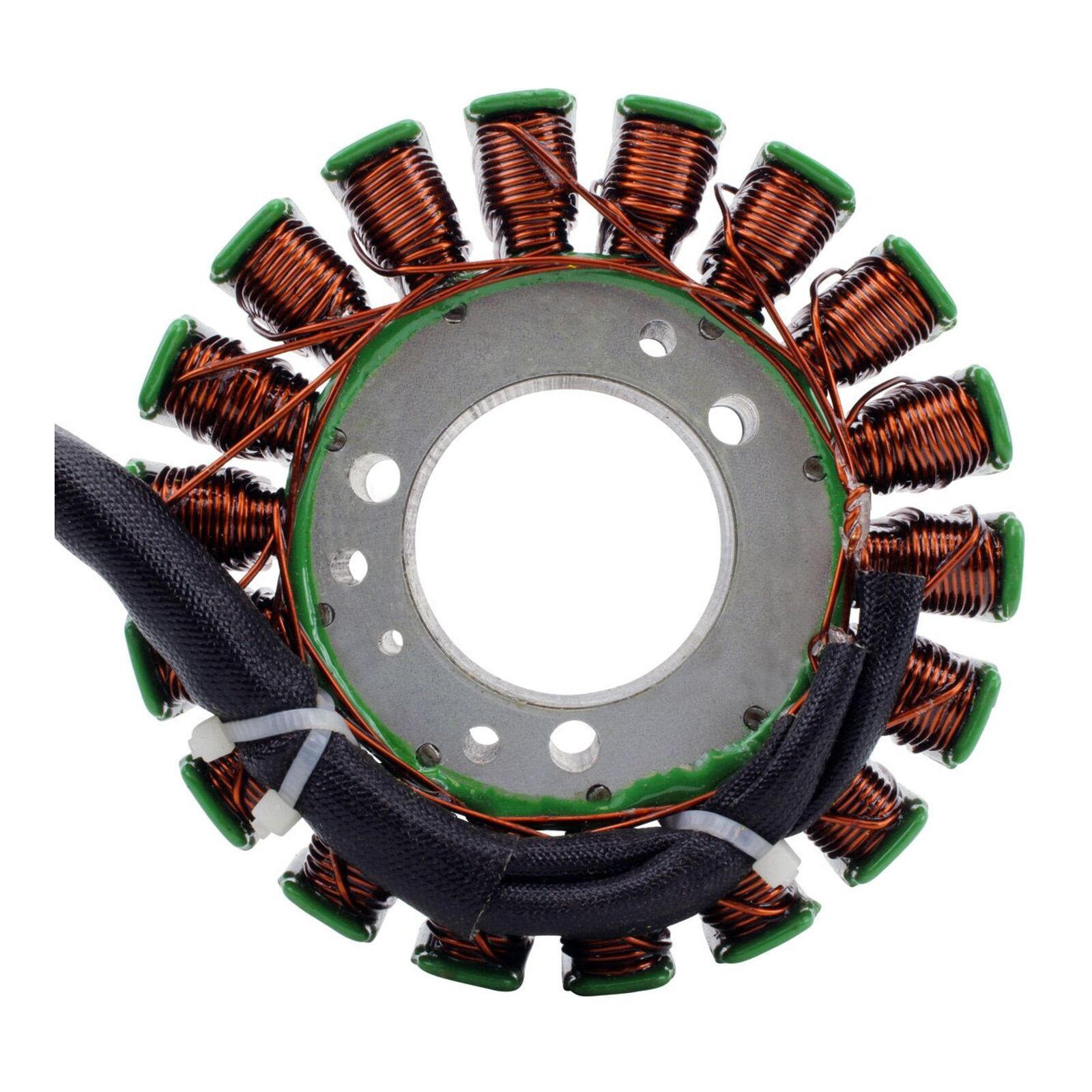

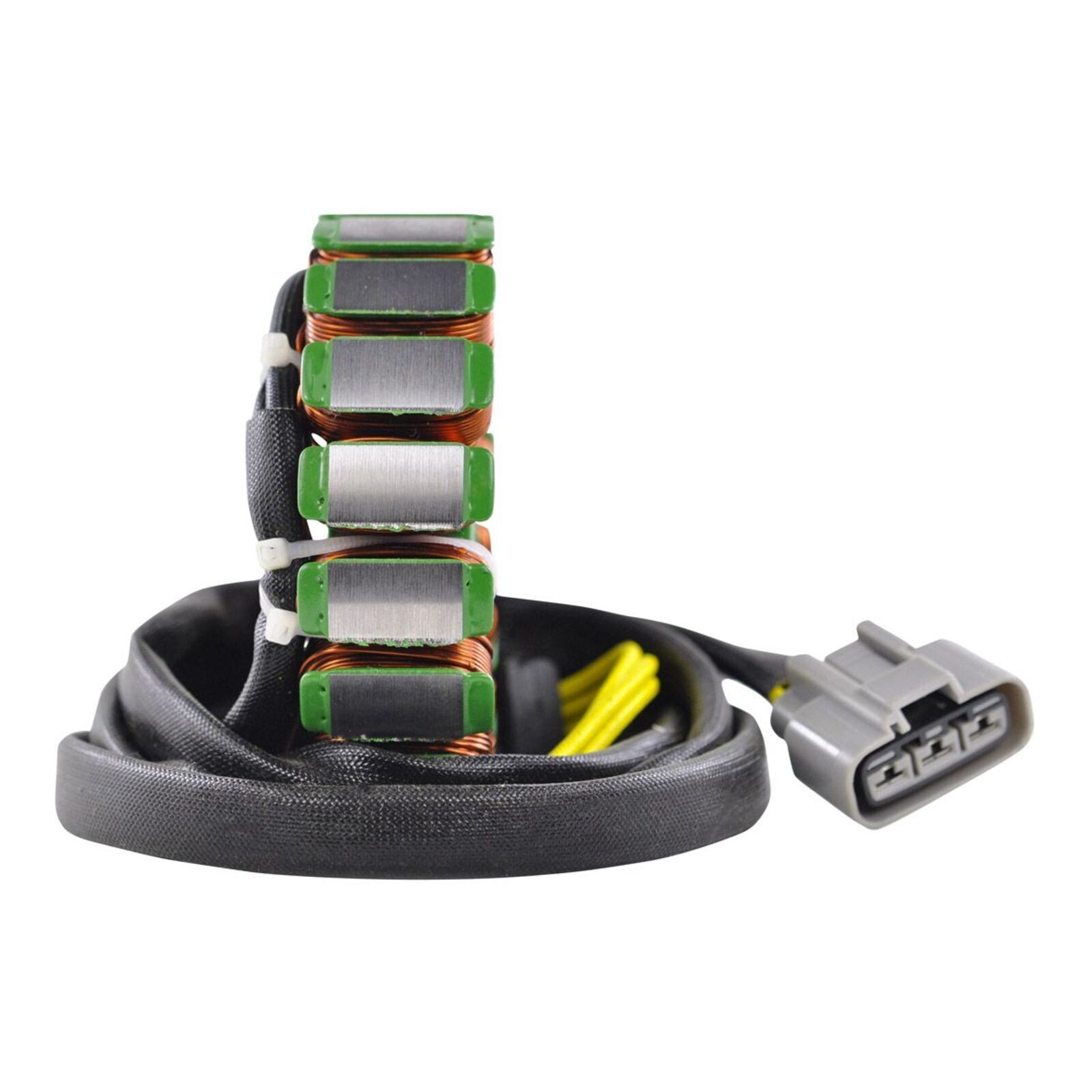

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

  • Interior diameter: 42mm
  • Exterior diameter: 115mm
  • Thickness: 24mm
  • Length of wires stator to grommet: 150mm
  • Length of wires grommet to plug: 1470mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Yellow to Yellow = 0.4 ohms +-20%

Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

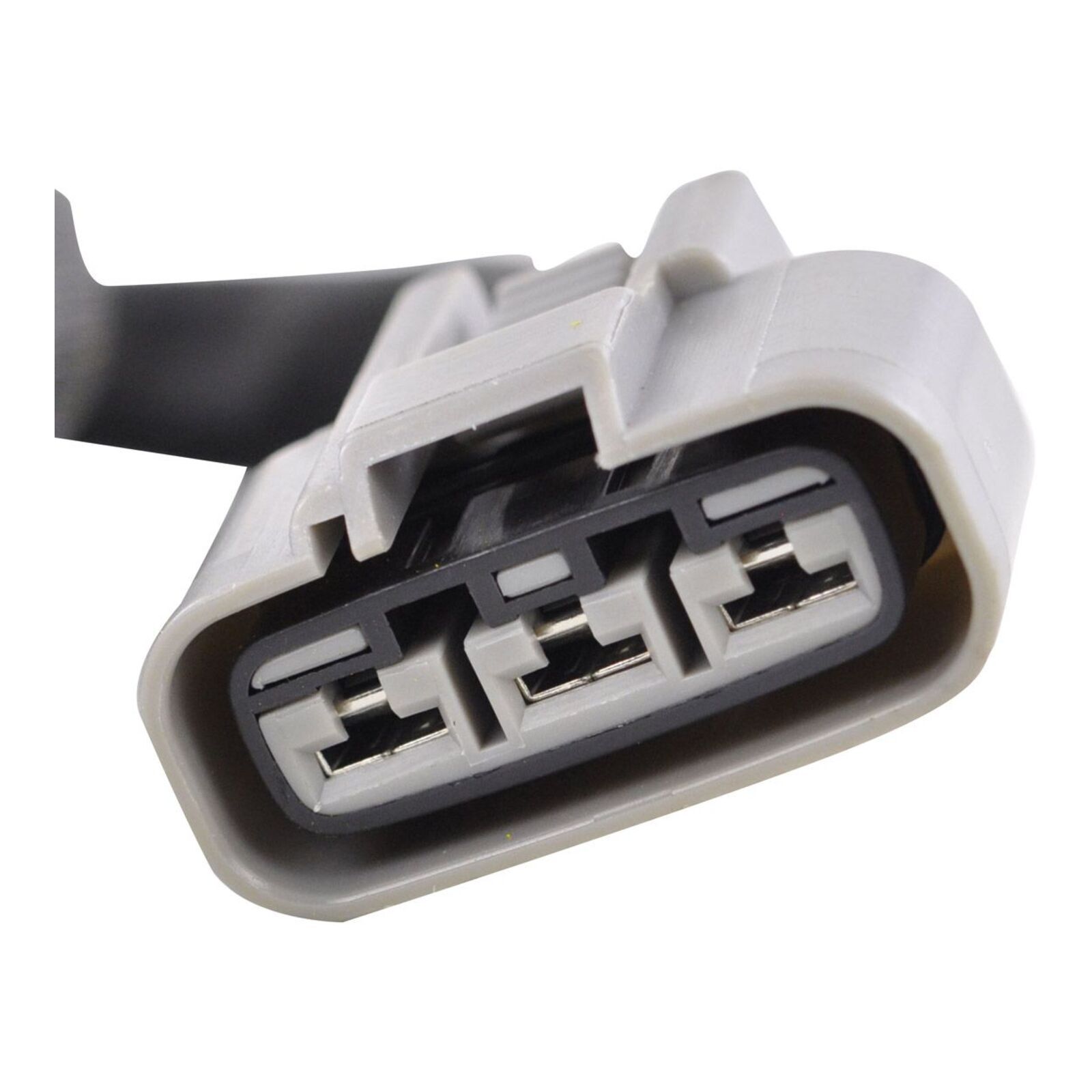

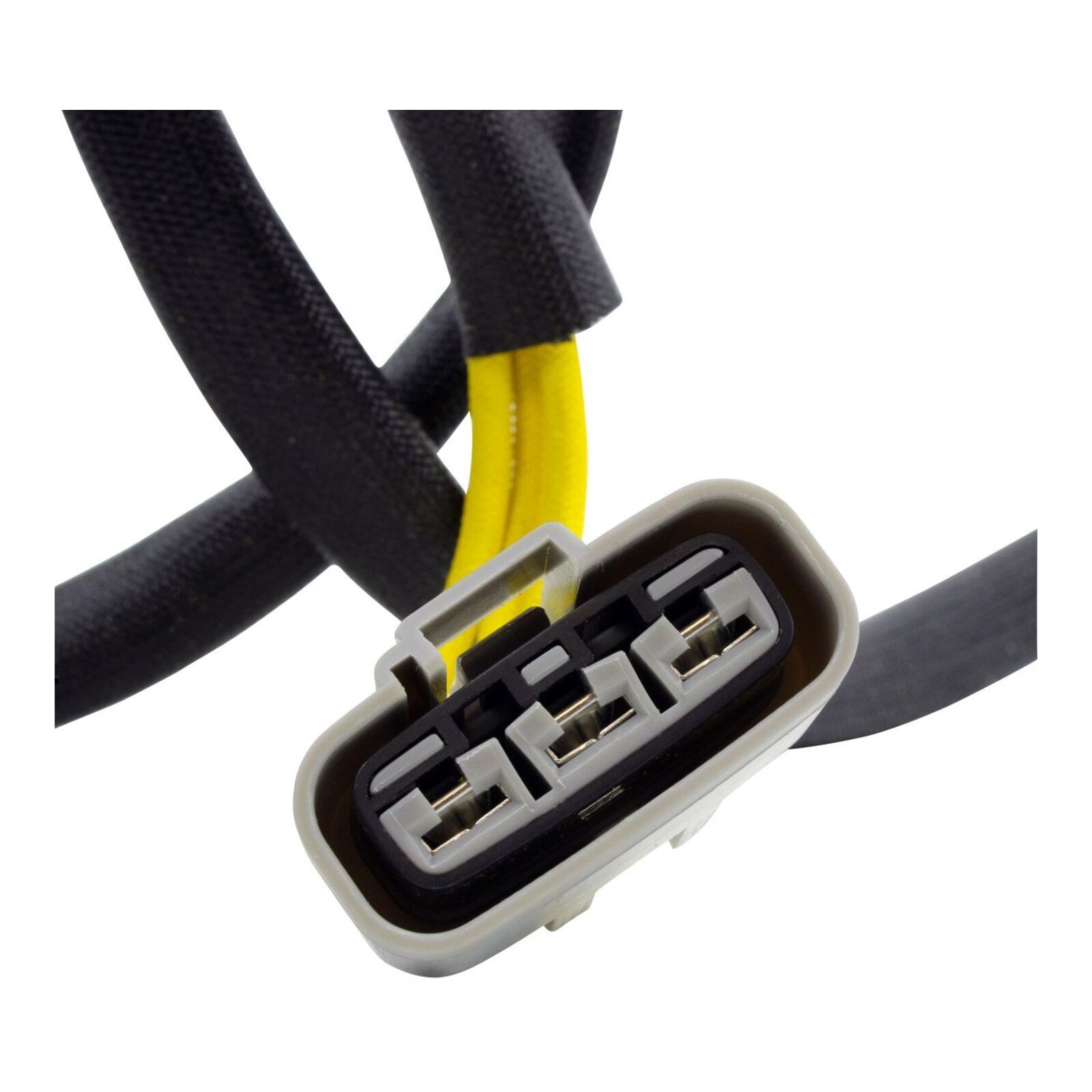

  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Fits: Can-Am Commander 1000 11-14, Commander 800 2011, Defender 1000 16-18, Defender DPS 800cc 16-19, Defender HD8 2019, Maverick 1000R 2015, utlander 1000 EFI DPS 2013, Outlander 1000 Max Limited 15-19, Outlander 1000 XMR 13-15, utlander 1000 XT 15-16, Outlander 500 4WD 07-14, Outlander 500 4WD DPS 2015, Outlander 500 DPS 2013, Outlander 500 Max 4WD 11-14, Outlander 500 Max 4WD DPS 20015, Outlander 500 Max DPS 2015, Outlander 500 Max DPS 4WD Power Steering 13-14, Outlander 500 Max XT 4WD Power Steering 11-12, Outlander 500 XT 4WD 08-09, Outlander 500 XT 4WD Power Steering 10-15



(RMS01399)

SKU RMS01399
Barcode # RM01399
Brand RM Stator
