RM STATOR APRILIA RSV4 Factory / RSV4R / TUONO 1000 V4R APRC GENERATOR STATOR + MOSFET REGULATOR RECITIFIER

SKU: RMS900107315


$749.99

or 4 fortnightly payments of $187.50 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

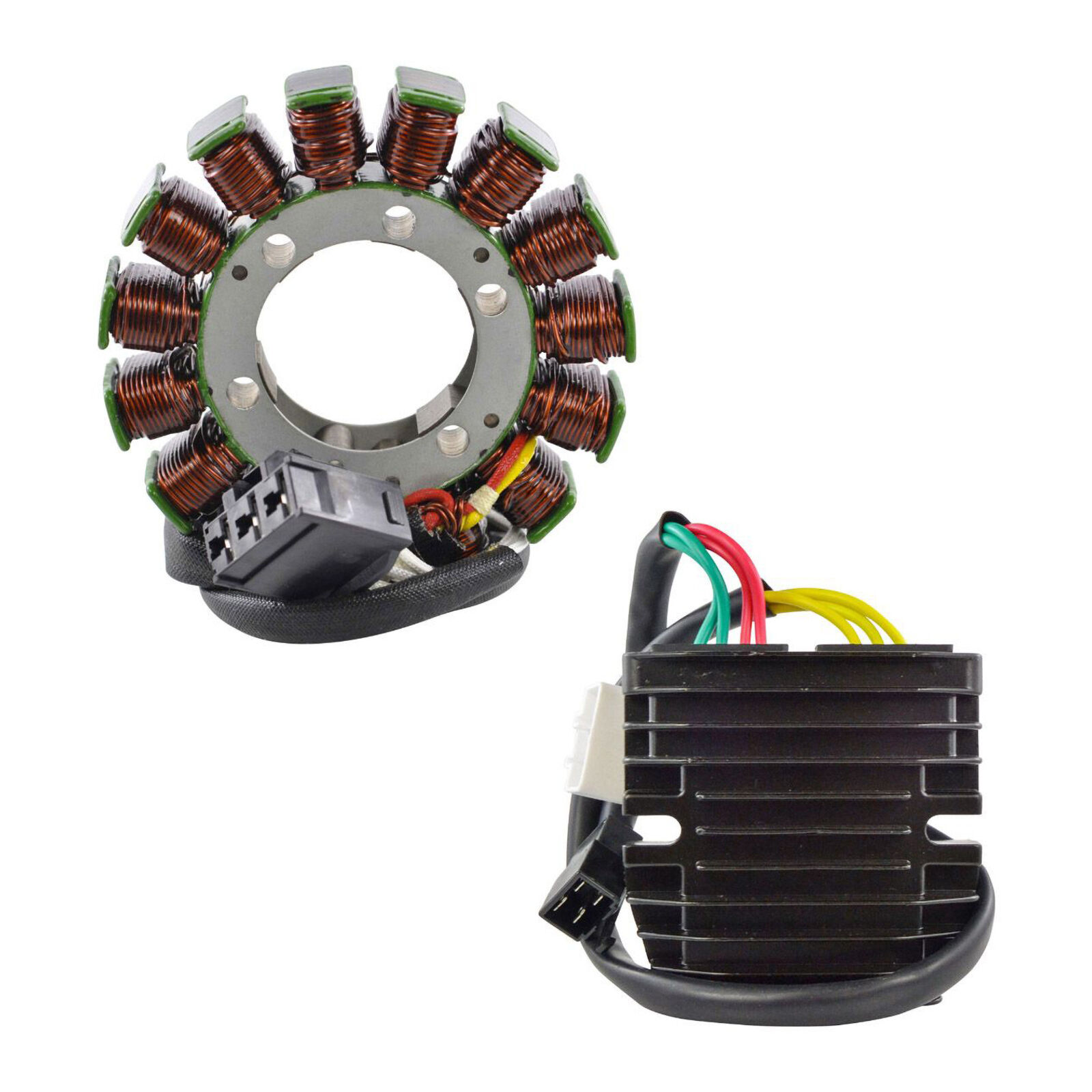

Kit Generator Stator + Mosfet Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested
  • All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

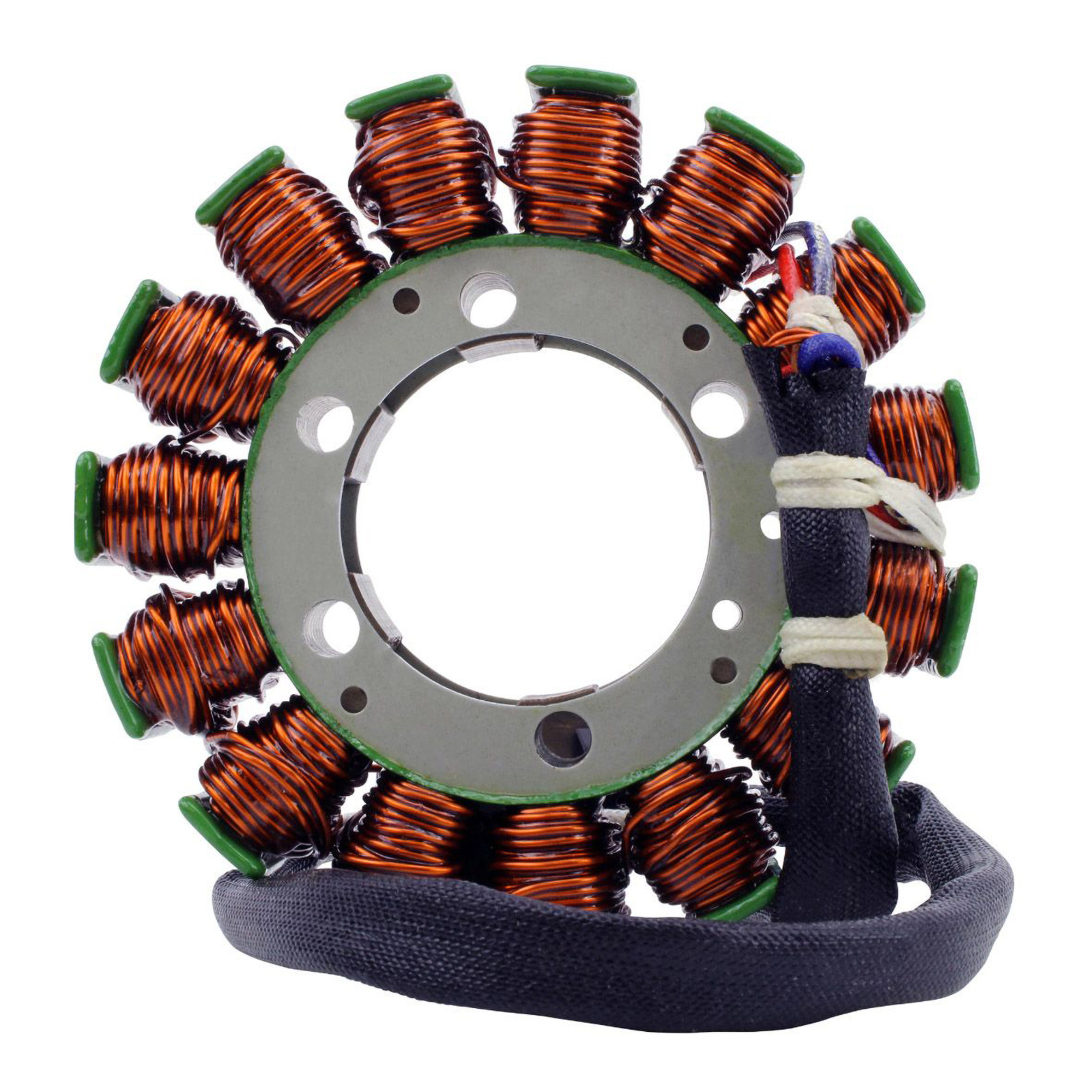

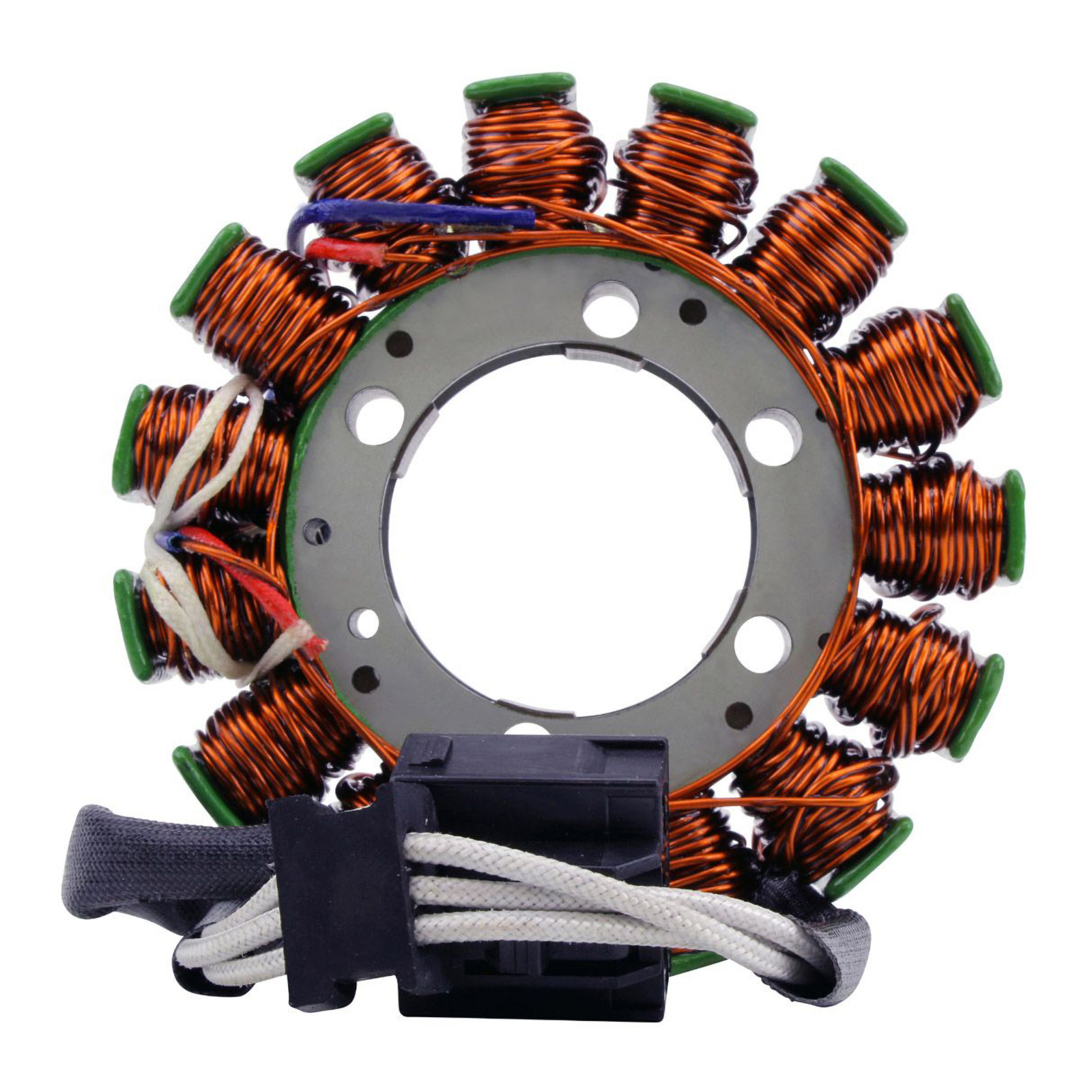

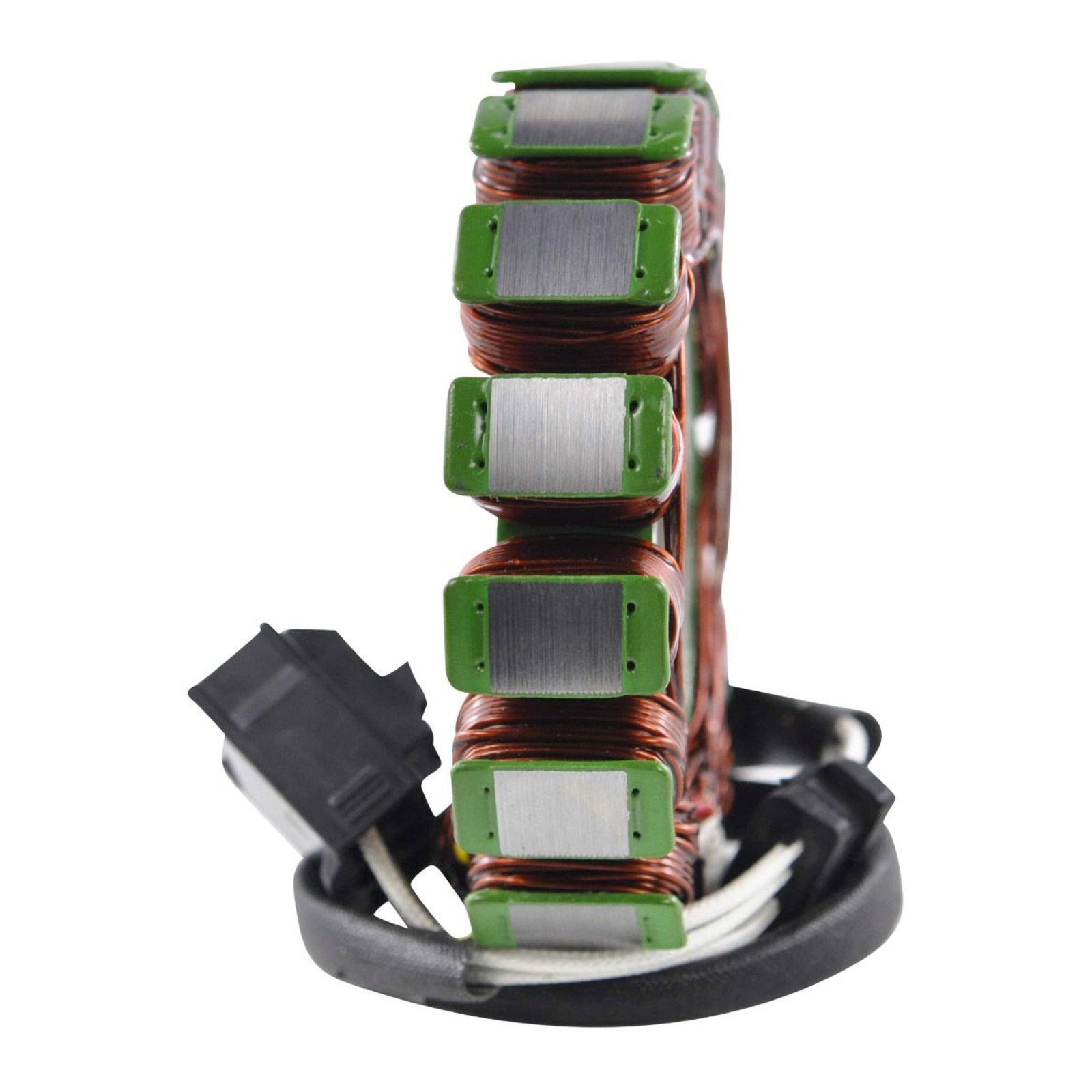

Brand new aftermarket stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included

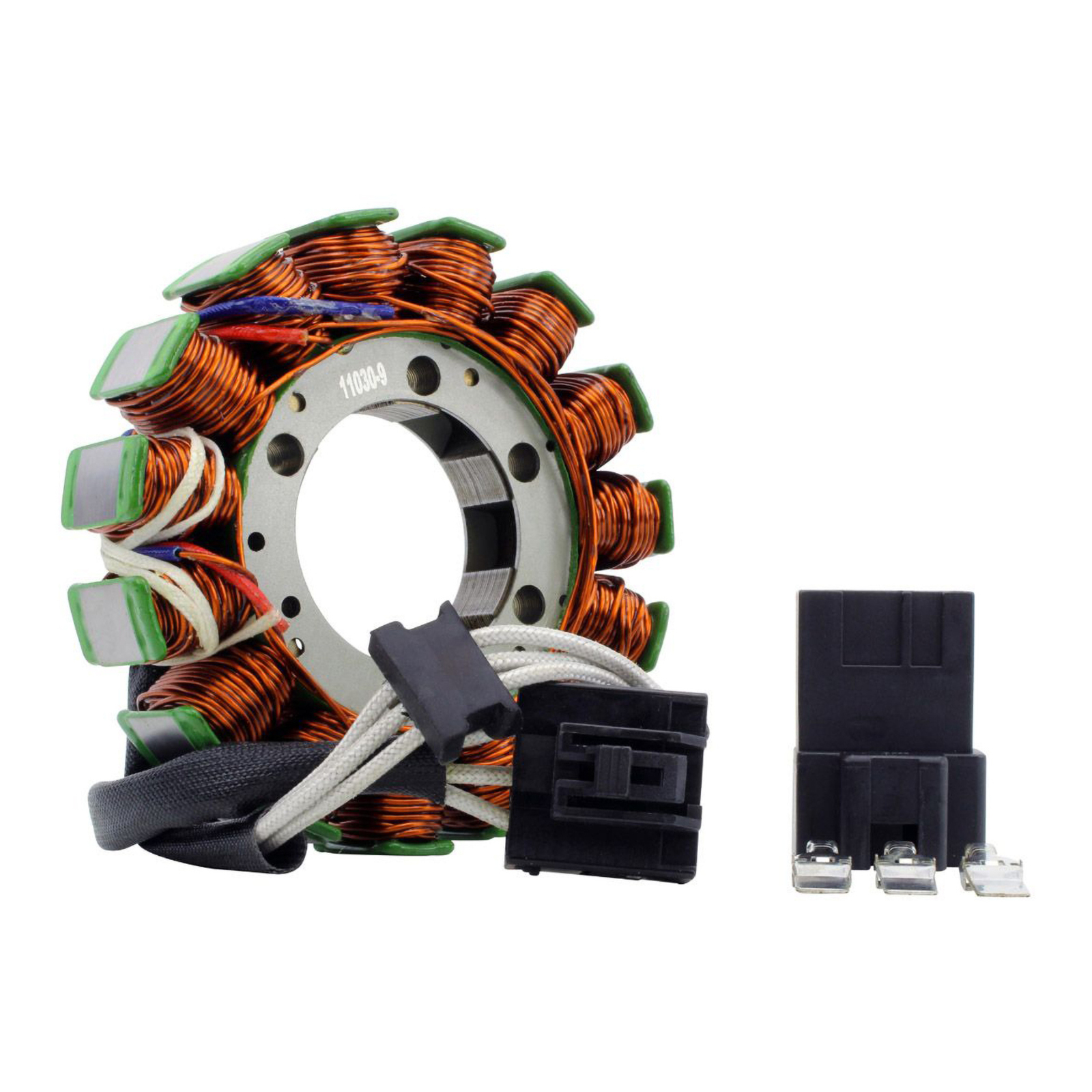

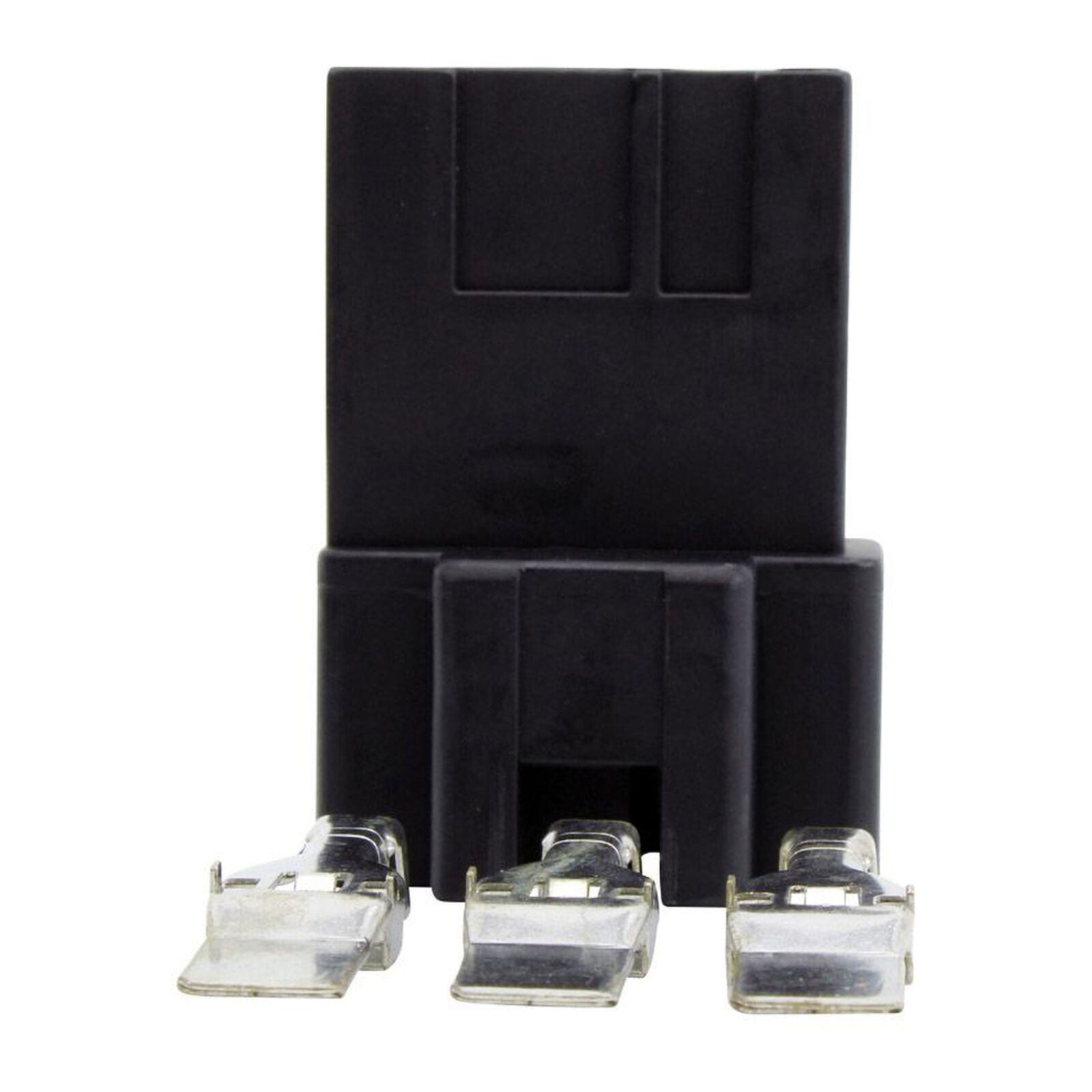

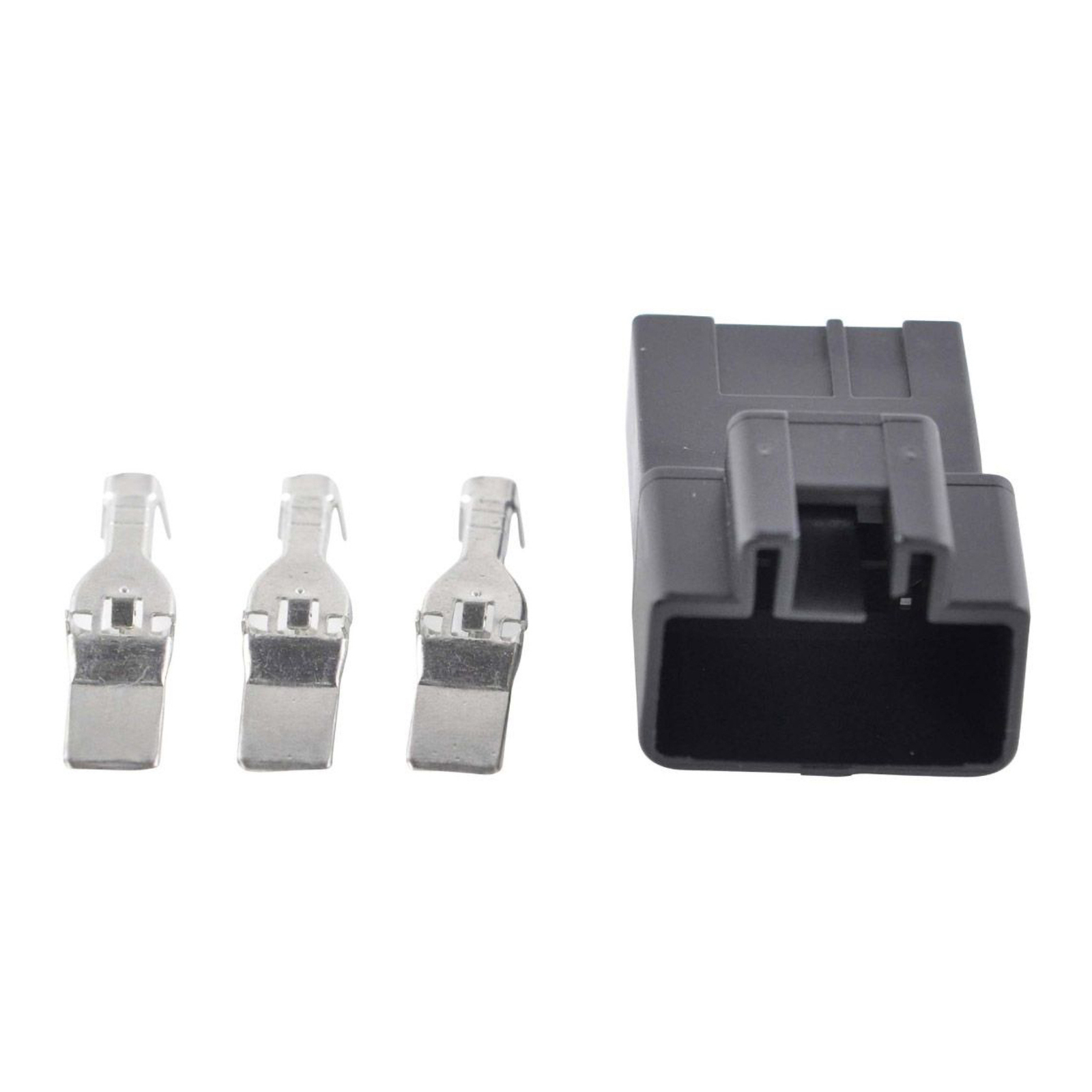

We have even included the opposite connector (main harness side), as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

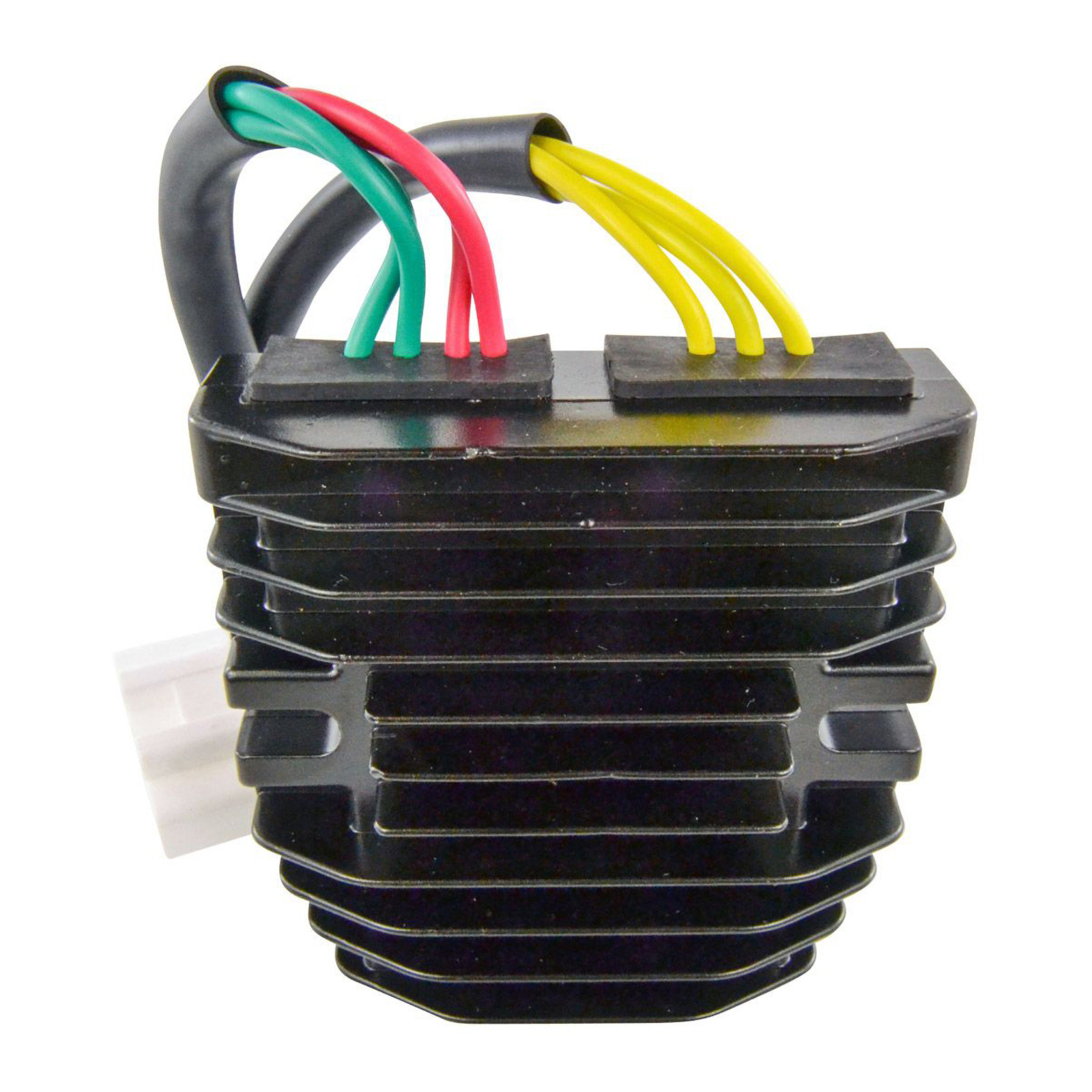

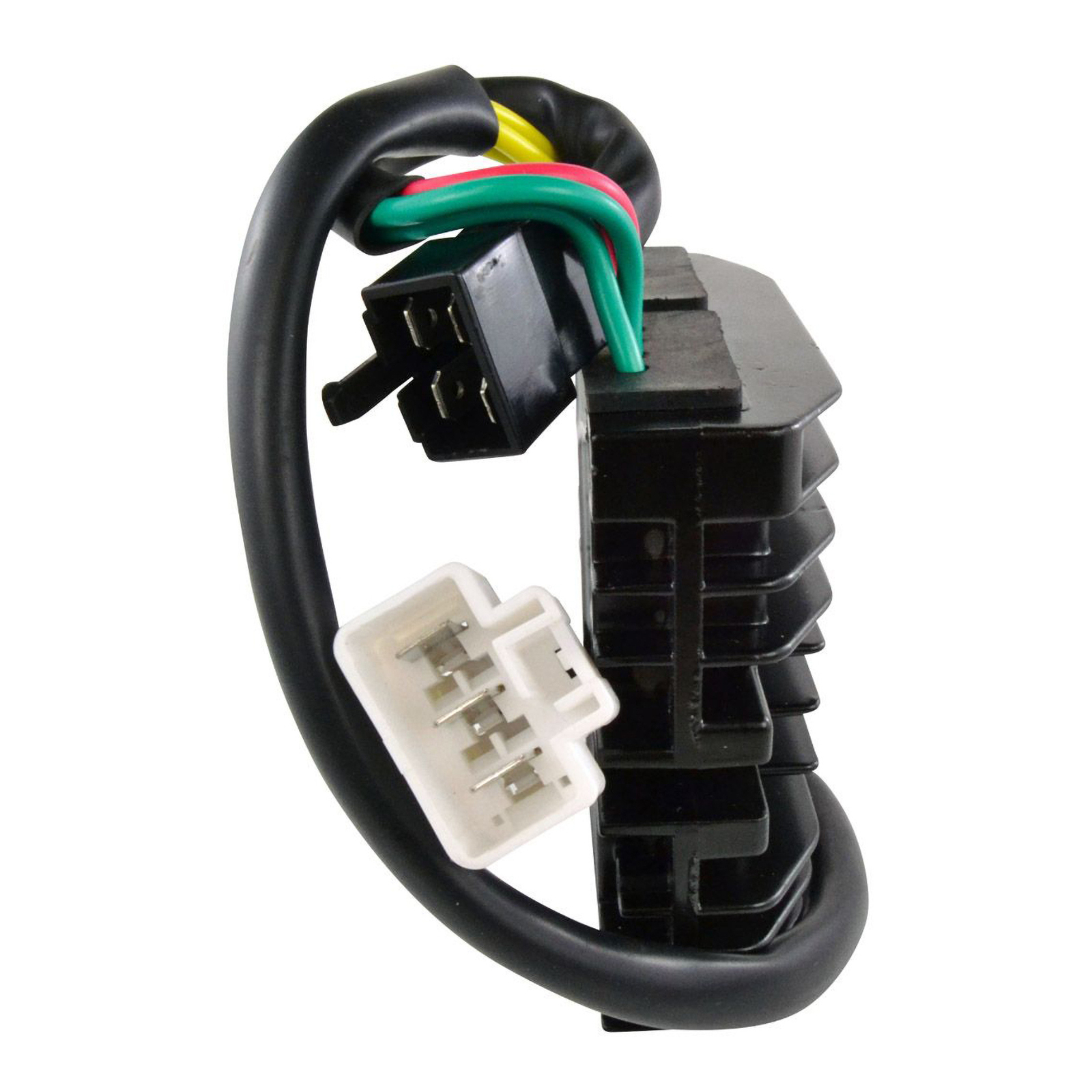

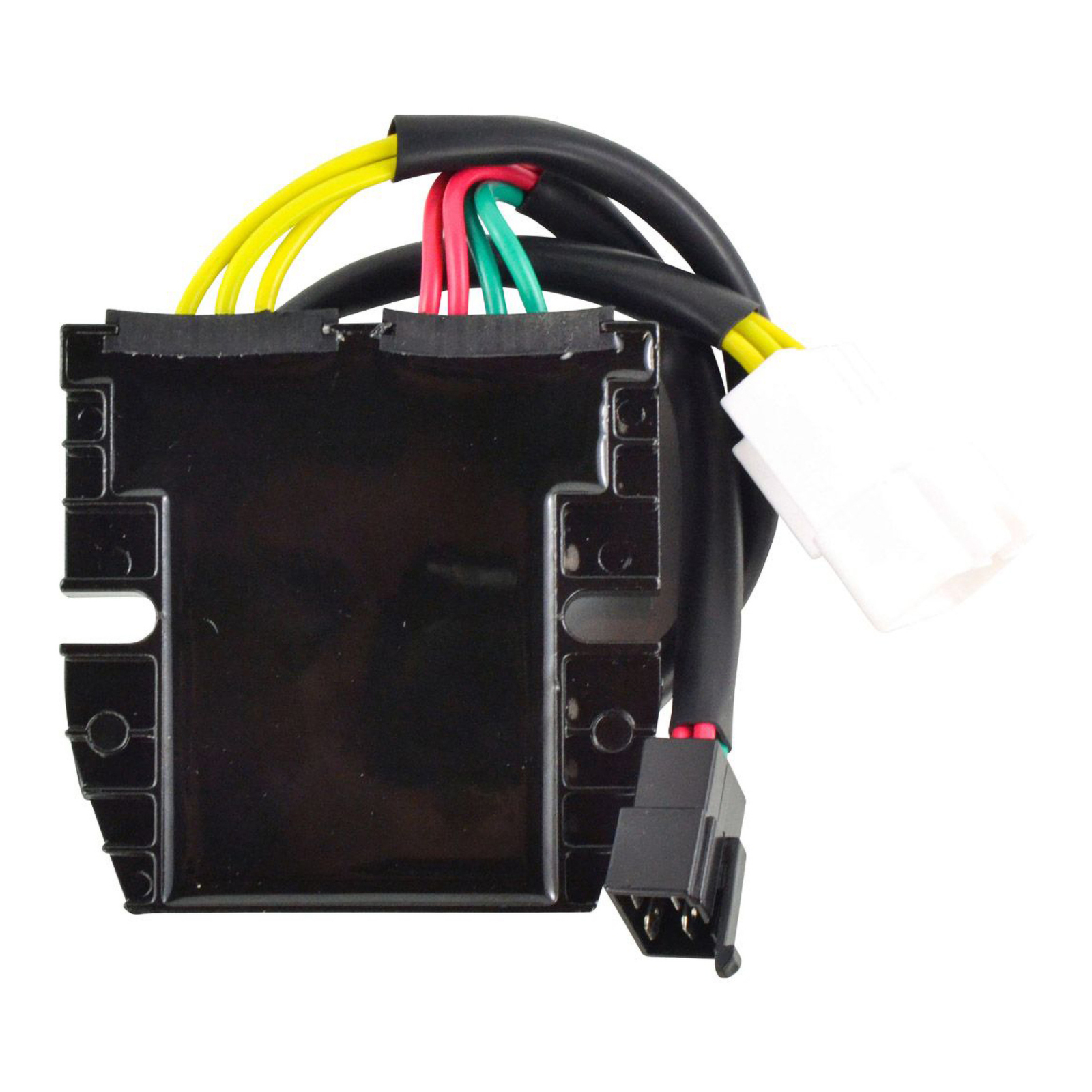

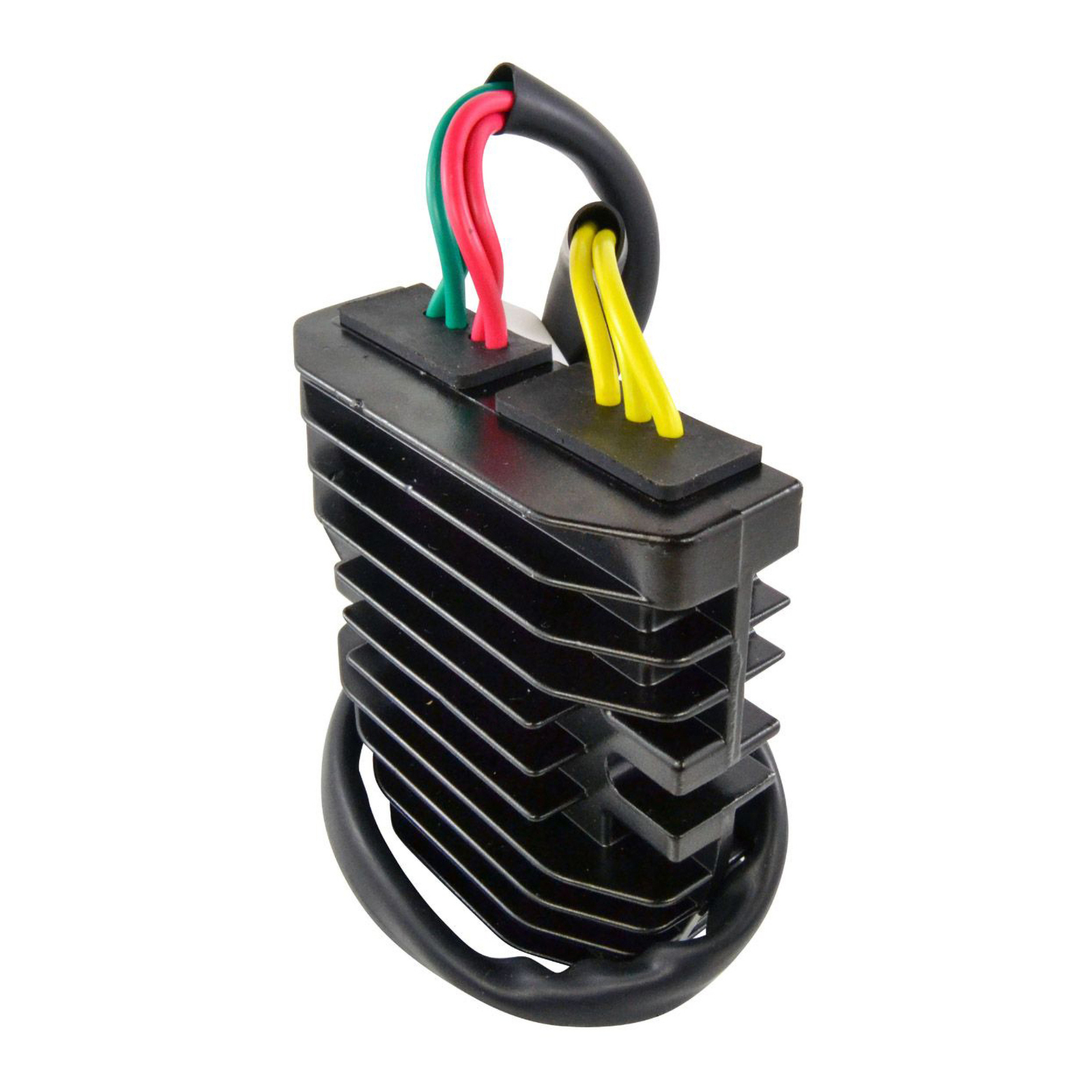

Brand new Mosfet voltage regulator rectifier

STOP BURNING YOUR REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

Stator Dimensions
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 16 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 300 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator : Between each White = 0.4 ohms +/- 20%

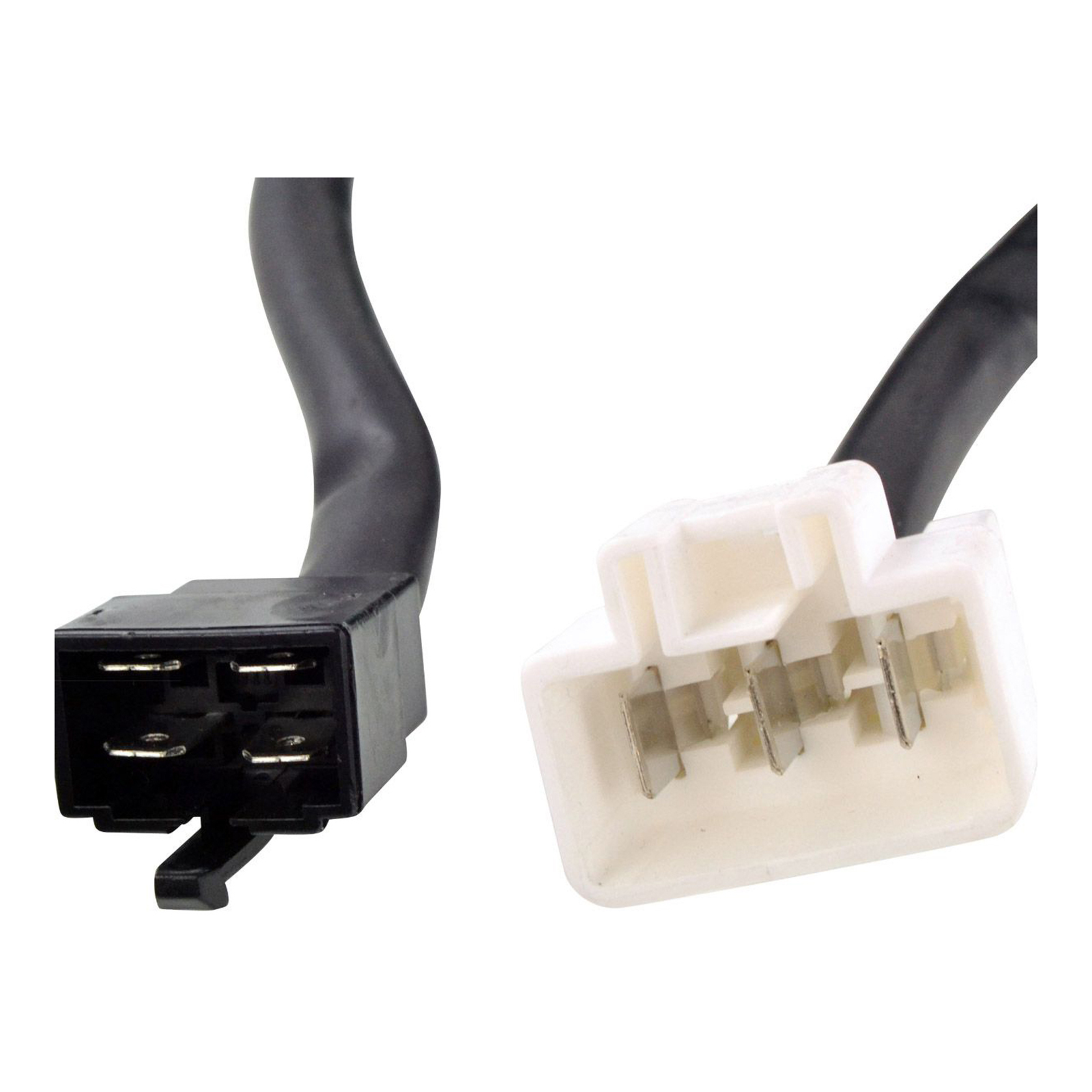

Mosfet Voltage Regulator Rectifier Dimensions
Width: 95 mm
Length: 95 mm
Height: 28 mm
Wires length: 150 mm & 400 mm
Fixation holes center to center: 80 mm

Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20° to 85°

Fits Bikes: Aprilia RSV4 Factory 2011-2012, Aprilia RSV4R 2010-2012 and Aprilia Tuono 1000 V4R APRC 2012

(RMS900107315)

SKU RMS900107315
Barcode # RMS900-107315
Brand RM Stator
