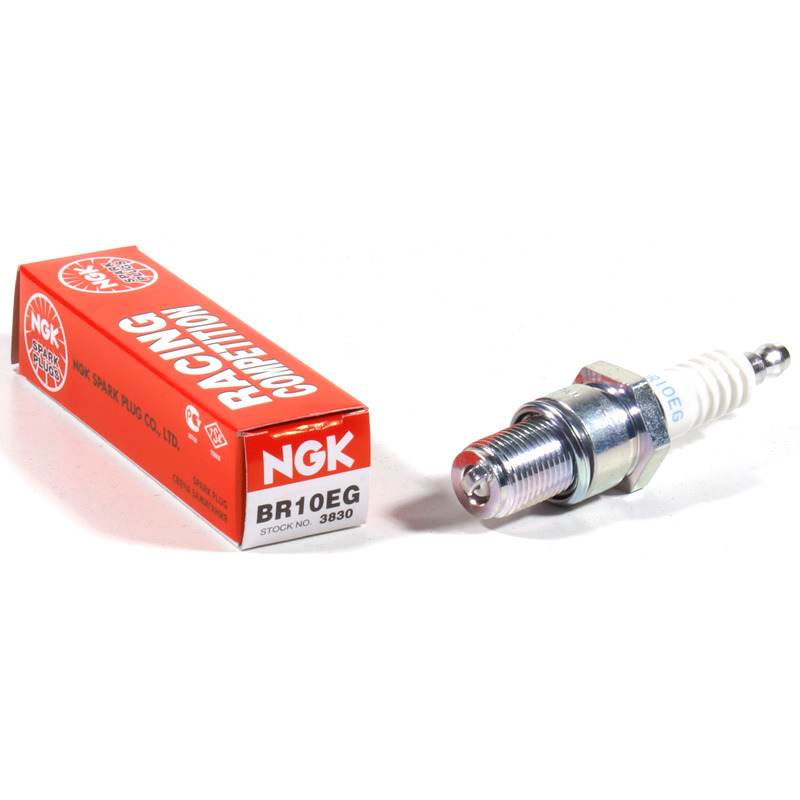

NGK BR10EG Spark Plug

SKU: BR10EG


$33.95

or 4 fortnightly payments of $8.49 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

Spark plugs used for racing must withstand especially hard stresses. The speeds during a race are frequently in excess of 10,000 rpm. Temperature, pressure, and vibrations in the combustion chamber are so immense that conventional ground electrodes could break or melt. For this reason, racing spark plugs often come with specially designed ground electrodes, the most extreme form with a ring-shaped ground electrode. The spark jumps from the middle electrode to the ring-shaped ground electrode.

Shell:

  • Thread Size: 14mm
  • Thread Pitch: 1.25mm
  • Seat Type: Gasket
  • Resistor Value: 5K Ohm
  • Reach: 19mm (3/4")
  • Hex Size: 21mm (13/16")
  • Terminal Type: Removable Nut
  • Overall Height: ISO
  • Gap: 0.6mm (0.024")

Centre Electrode:

  • Material: Nickel
  • Type: Fine Wire
  • Size: 1.3mm
  • Projection: Non-Projected

Ground Electrode:

  • Material: Nickel
  • Type: Standard
  • Quantity: 1

Specifications:

  • Heat Range: 10
  • Resistor: Yes

(BR10EG)

This is a generic product which is suitable for many motorbike models.

Please refer to the product description and your manufacturer's instruction manual to determine whether this product is suitable for your bike or not.

SKU BR10EG
Brand NGK Spark Plugs
