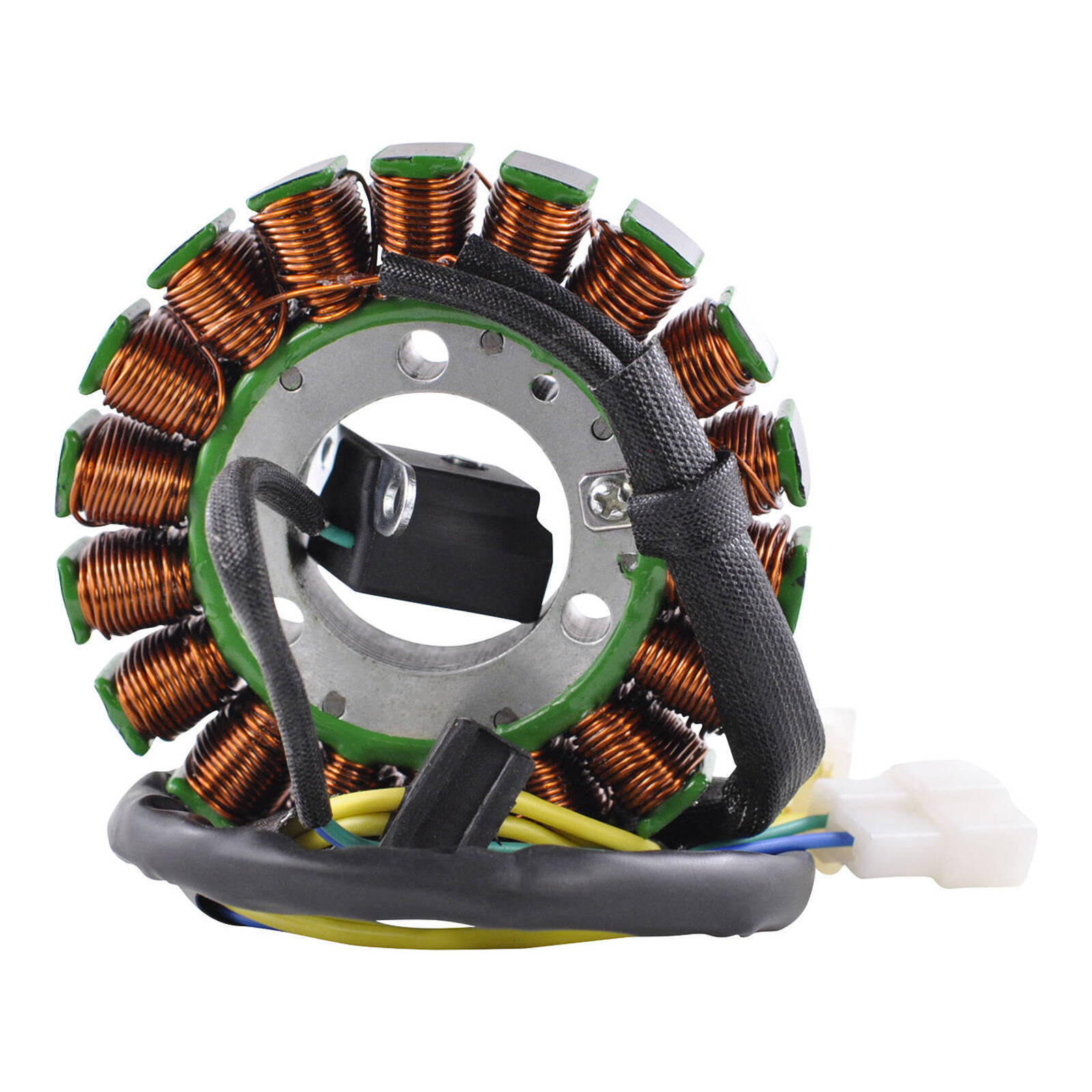

HYOSUNG GT650 GT650R GT650S GV650 GV650 Aquila ST7 5-15 GENERATOR STATOR

SKU: RMS010101583


$429.99

or 4 fortnightly payments of $107.50 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

Fits: Hyosung GT650 Comet 05-13, GT650R 05-15, GT650S 06-14, GV650 06-14, GV650 Aquila 2005, V650C Aquila Classic 2015, GV650C Aquila Sport 2015, ST7 10-14 ST7L EFI 2015



(RMS010101583)

Dimensions :
Interior diameter : 38 mm
Exterior diameter : 104 mm
Thickness : 20 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 515 mm
Length of pickup coil's wire to grommet : 75 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow Between Yellow = 0.5 ohms +/-20%
Pickup : Blue to Green = 129 ohms +/-20%

SKU RMS010101583
Barcode # RMS010-101583
Brand RM Stator
