Honda CRF250R 04-09 Bottom End Kit

SKU: BKCRF25004


$627.95

or 4 fortnightly payments of $156.99 with

RRP $694.80
SAVE $66.85 (10%)

Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

CRF250R Bottom End Rebuild Kit with Complete Gasket Set - This kit has all the best parts placed together so you get all the right parts at a price great.

All parts are of the highest quality standards that meet or exceed those of genuine.

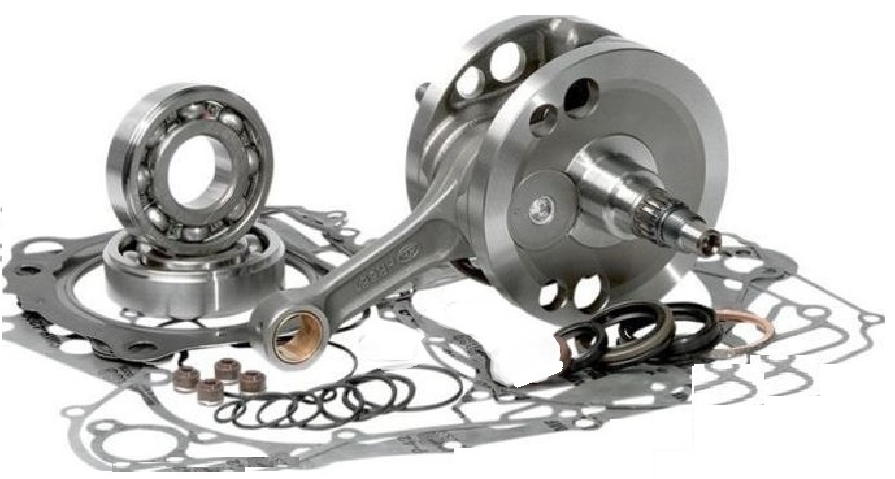

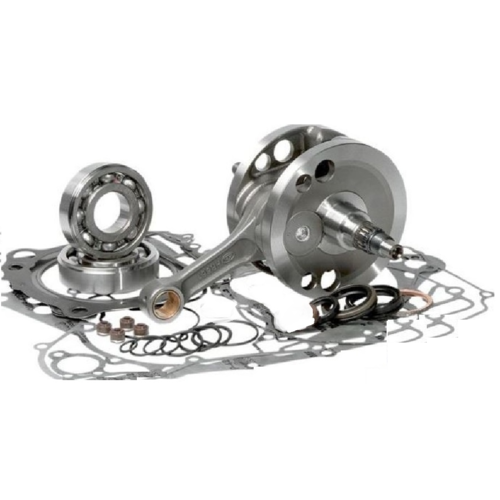

Kit includes:

  • Crankshaft
  • Complete Gasket Set -  Top to Bottom
  • Crankshaft Main Seals
  • Main Crankcase Bearings

Crankshaft Crankworx Forged Crank
Factory assembled and trued to genuine specifications, Crankworx cranks surpass genuine in performance and durability.
Crank is fitted with a Crankworx "Pro Double Forged Rod" - being manufactured from double forgings resulting in the correct grain flow for strength.
Bushed top end bearing this is made from special aluminum/silicon/bronze material increases piston and pin life - increase lubrication - stops pin-lock in the piston. Pin-lock is the main reason an engine throws the conrod through the cases.

Main crankcase bearings (2 of)
Meets genuine specifications

Crankshaft Main Seals (2 of)

Complete Gasket / Valve Seals / O-ring Set- Pro-Seal Race Series
Steel Head gasket – Hi-Performance MSL gasket.
Base gasket Hi-Performance MSL gasket.
Inlet & exhaust valve stem seals (Viton rubber).
Exhaust pipe-head gasket.
Water pump body o-ring or gasket.
Timing/cam chain tensioner gasket.
All lower crankcase gaskets.
Clutch & flywheel cover gaskets & o-rings.
Top end o-rings.

Tip - Don't forget to change the clutch kit best to do when doing a full rebuild, also oil and air filter.

Note - the main image is generic - parts may differ in design.

(BKCRF25004)

SKU BKCRF25004
Brand Motoxparts
