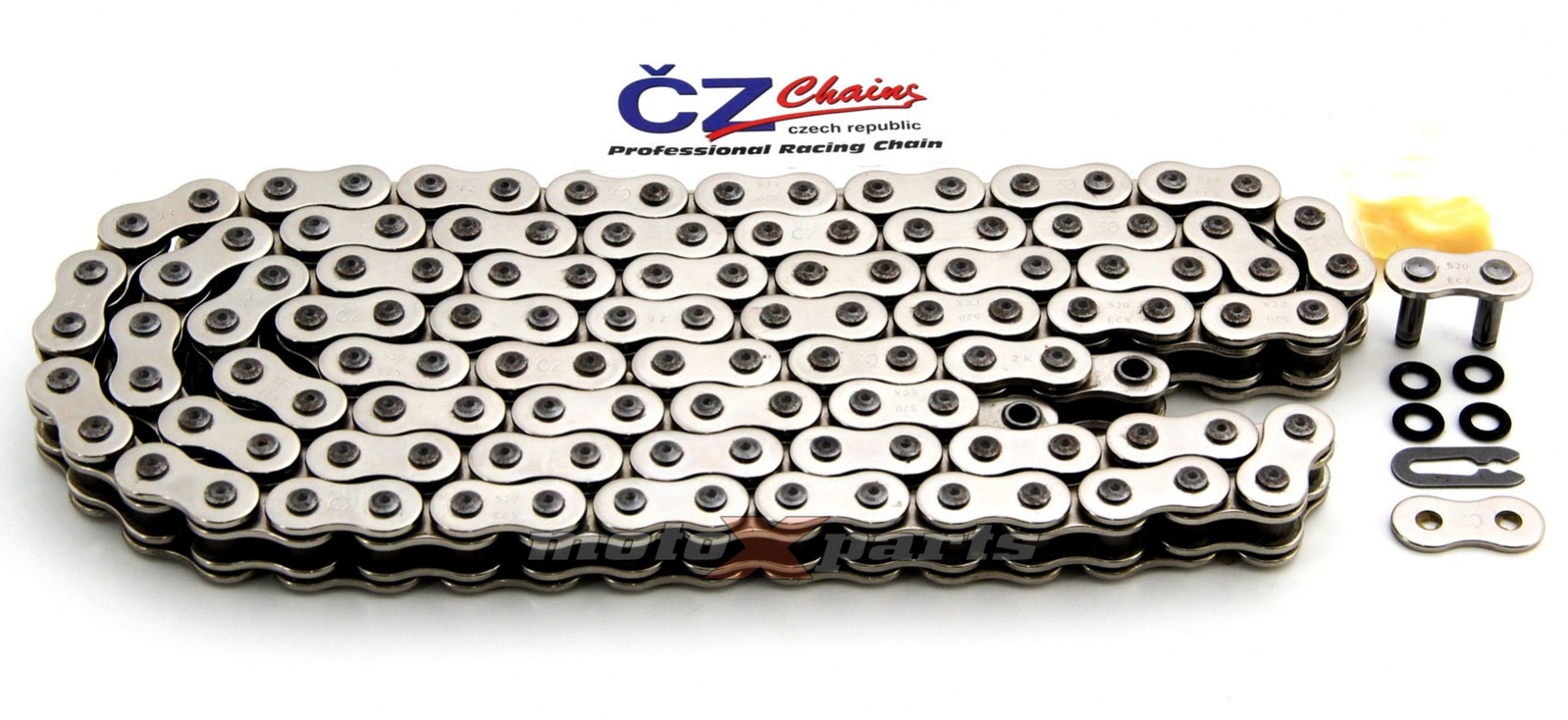

The Chrome X-ring Motorbike Chain from CZ Chain of Europe – For most riders choosing this CZ X-ring ECX motorcycle chain makes a lot of sense – the hardest-wearing and best sealed off road chain on the market, at a great price that is rated to a very impressive 800cc. X-ring motorcycle chains are excellent in dusty, wet, muddy and grimy conditions. The "X" ring seals ensure dirt, sand and mud are kept out of the chain links and chain rollers. The "X" ring design also contains a special lubricant inside the chain joints to ensure maximum wear life and excellent performance.
Tests show that the CZ X-Ring sealed chain can last over 2 times longer than a sealed O-ring chain and up to 3-4 times the life of a non-sealed chain.
For chain specifications click "Specs" tab above.
Note: This is one of the highest rated 520 chains available (800cc), due to this it will have longer life and very low stretch rate. Great chain for high power bikes, we highly recommend this chain for high torque bikes such as the FE 501. If you want a chain for a 450cc that will have a higher life than other chains on the market is the one.
- Specially designed to work perfect on all brands and any material of front and rear sprockets.
- ECX 520 Sealed X ring chain
- Colour: Chrome
- Resistant to corrosion
- CZ Motorbike Chain proudly made in Europe for more than 80 years.
- Chain 120 links - Can be cut to length.
- 520 chain pitch.
- Rated up to 800cc or 37,800 kN strength break.
- Supplied with chain joining link.
- Note: This is a slightly wider chain and heavy duty so check specs tab above. A sprocket spacer is supplied with this chain for the CRF's
(CZ520ECX105)
- Honda CRF250L 2014
- Honda CRF250X 2017
- Honda CRF250RX 2018
- Honda CRF250RX 2019
- Honda CRF250R 2020
- Honda CRF250RX 2020
- Honda CRF250R 2021
- Honda CRF250RX 2021
- Honda CRF250R 2022
- Honda CRF250RX 2022
- Honda CRF250R 2023
- Honda CRF250RX 2023
- Honda CRF250R 2024
- Honda CRF250RX 2024
- Honda CRF250L 2013
- Honda CRF250X 2016
- Honda CRF250L 2015
- Honda CRF250L 2016
- Honda CRF250L 2017
- Honda CRF250L 2018
- Honda CRF250L 2019
- Honda CRF250L 2020
- Honda CRF300L 2021
- Honda CRF300L 2022
- Honda CRF300L 2023
- Honda CRF300L 2024
- Honda CRF300 Rally 2021
- Honda CRF300 Rally 2022
- Honda CRF300 Rally 2023
- Honda CRF300 Rally 2024
- Honda CRF250X 2015
- Honda CRF250R 2004
- Honda CRF250R 2005
- Honda CRF250R 2006
- Honda CRF250R 2007
- Honda CRF250R 2008
- Honda CRF250R 2009
- Honda CRF250R 2010
- Honda CRF250R 2011
- Honda CRF250R 2012
- Honda CRF250R 2013
- Honda CRF250R 2014
- Honda CRF250R 2015
- Honda CRF250R 2016
- Honda CRF250R 2017
- Honda CRF250R 2018
- Honda CRF250R 2019
- Honda CRF250X 2004
- Honda CRF250X 2005
- Honda CRF250X 2006
- Honda CRF250X 2007
- Honda CRF250X 2008
- Honda CRF250X 2009
- Honda CRF250X 2010
- Honda CRF250X 2011
- Honda CRF250X 2012
- Honda CRF250X 2013
- Honda CRF250X 2014
Chain | Pitch (mm) | Inner width (mm) | Roller diameter (mm) | Pin length (mm) | Plate thickness inner/outer (mm) | Middle static strenght (N) | Weight of 100 links (kg) | Connecting link | Type of sealing ring | Plates colour outer-inner |
---|---|---|---|---|---|---|---|---|---|---|
520 DZX (ECX) | 15.875 | 6.35 | 10.2 | 20.9 | 2.2/2.2 | 37800 | 1.78 | RIVET (CLIP) | Active-ring | silver-black |
520 ORH | 15.875 | 6.35 | 10.16 | 20.9 | 2.2/2.2 | 35800 | 1.63 | CLIP (RIVET) | Active-ring | yellow-black |
520 ORMX | 15.875 | 6.35 | 10.16 | 20.4 | 2.2/2 | 34500 | 1.59 | CLIP (RIVET) | Active-ring | gold-black |
525 DZX | 15.875 | 7.94 | 10.3 | 22.8 | 2.4/2.2 | 40000 | 1.98 | RIVET | Active-ring | silver-black |
SKU | CZ520ECX105 |
Brand | CZ Chain |
