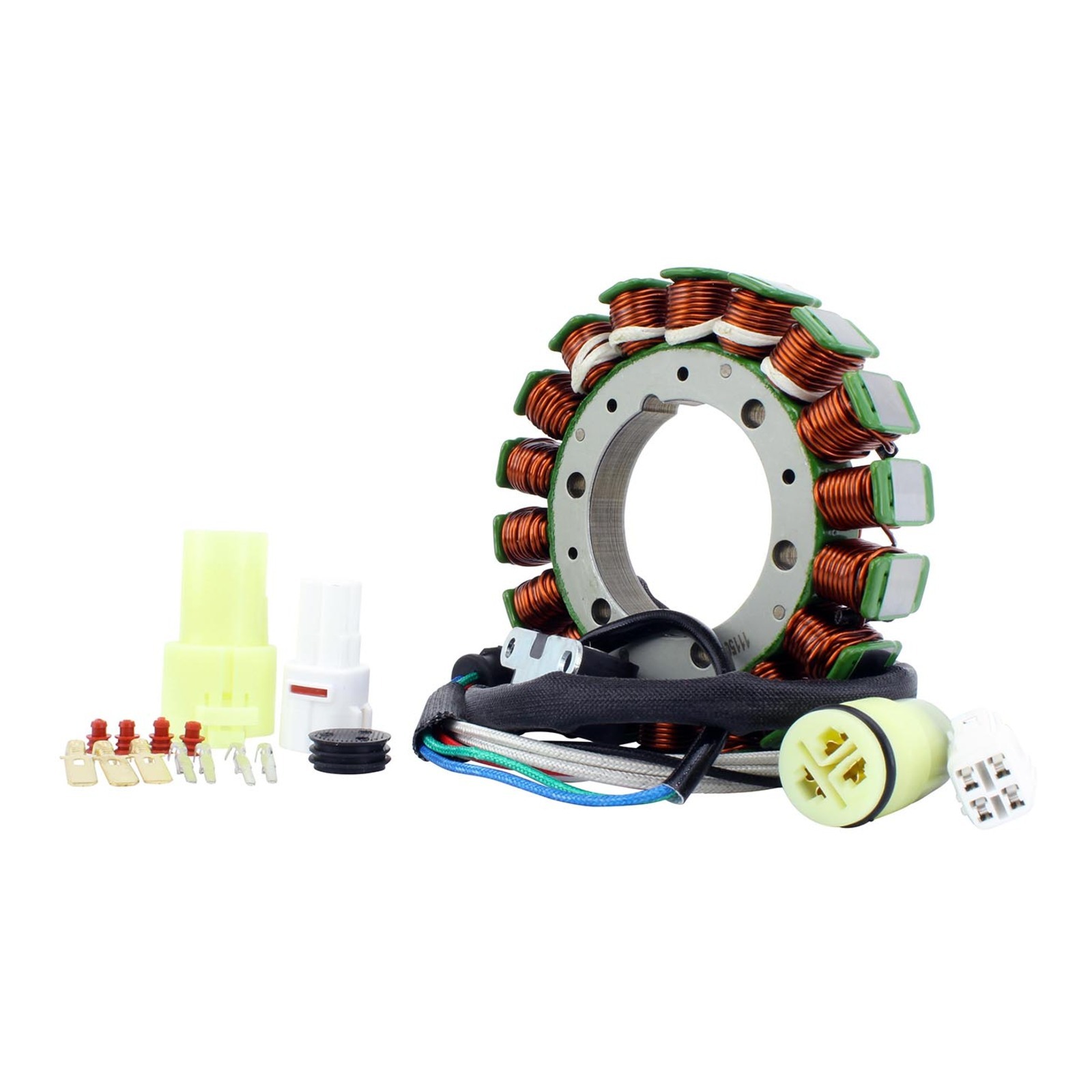

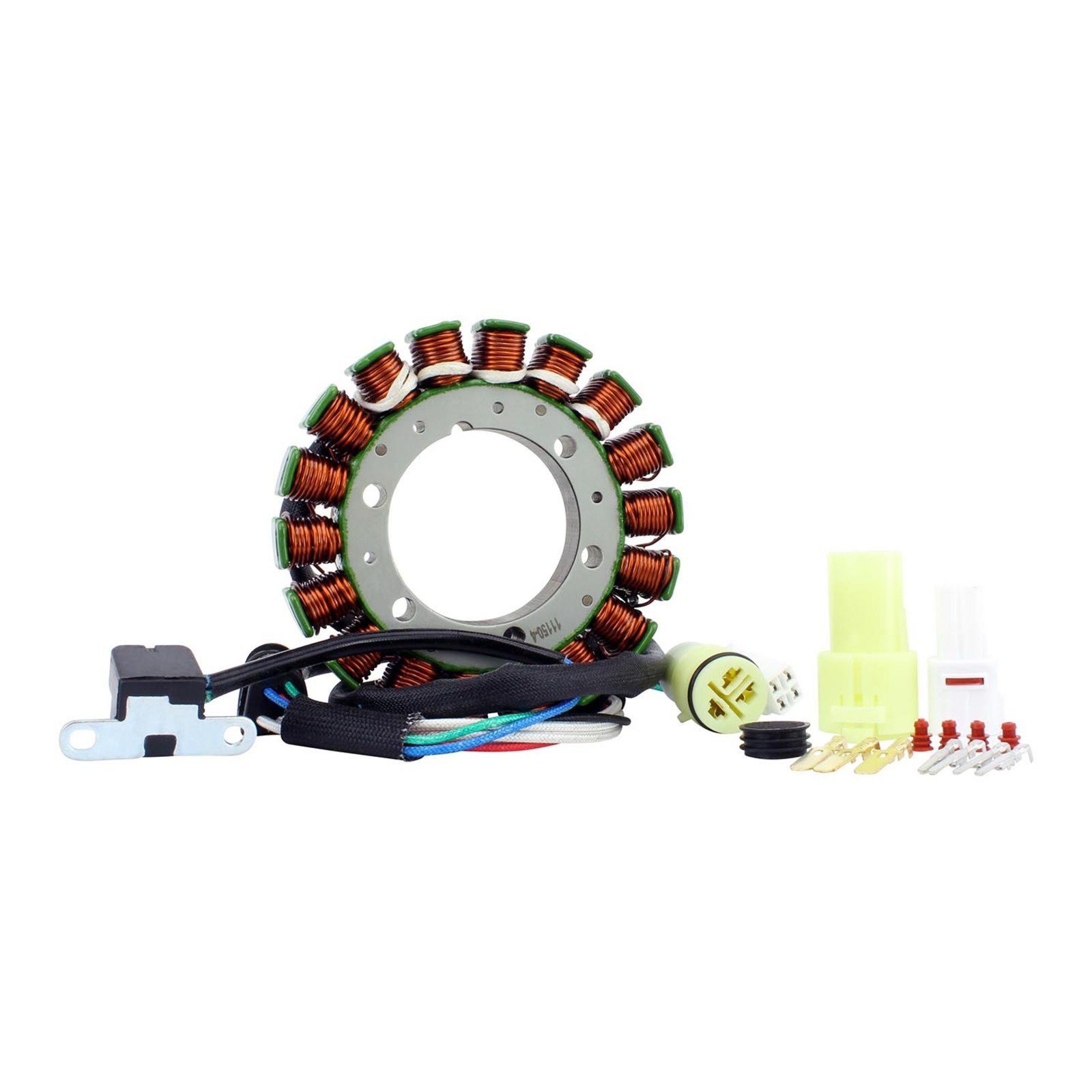

High Output Stator for Yamaha YFM 350 Bruin Grizzly Wolverine YFM 660 Grizzly Rhino

SKU: RMS01003


$499.99

or 4 fortnightly payments of $125.00 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

Fits Bikes:

Yamaha YFM350A Bruin Auto 2X4 04-06, YFM350A Grizzly 2X4 09-14, YFM350FA Bruin Auto 4X4 04-06, YFM350FA Grizzly 4X4 07-14, YFM350FG Grizzly IRS 07-11, YFM660 Grizzly 02-08, YXR660 Rhino 04-05, YXR660 Rhino Auto 4X4 06-07



(RMS01003)

Stator:

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 114.7 mm
Thickness: 13 mm
Length of wires stator to grommet: 300 mm
Length of wires grommet to plug: 470 mm
Length of pickup coil's wire to grommet: 240 mm

Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7
Number of poles: 18

Wire to wire resistance:
Alternator: White to White = 0.6 ohms +/-20%
Alternator: White to ground = O.L
Pickup: Blue to Green = 501 ohms +/-20%
Position Sensor: Red to Blue/White = 0.3 ohms +/-20%

SKU RMS01003
Barcode # RM01003
Brand RM Stator
