Haro Race Lite Expert XL 20 Inch Black BMX

SKU: 24533


$999.00

or 4 fortnightly payments of $249.75 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

Note: This product is for delivery within New Zealand only.

Almost there. Just short of full-sized, the Haro Race Lite Expert XL features a 20" top tube length with room to move. Lightweight aluminum construction with a sturdy chromoly fork to handle the hard landings of the learning curve. The parts are size-matched to fit the slightly longer frame with 170mm 2-piece alloy cranks and instead of the narrower "Mini" sized wheels and tires of the smaller bikes in the lineup, the Expert XL features 20 X 1.5" alloy rims with a 1.65" front and 1.5" rear tire for more surface contact to put the power to the ground. A rear disc brake slows your roll when you've crossed the finish line.

FEATURES
6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners. 20" top tube.
Full chromoly 1" with threadless steerer tube
2-pc Forged Alloy 165mm crank w/ 24mm hollow spindle. 38T chainring.
20" Alloy 36h double wall rims
36h alloy sealed bearing hubs w/disc 15T cassette rear
Kenda "Konversion" tires: 20 x 1.65" front/20 x 1.50" rear

FRAMESET
Frame 6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners

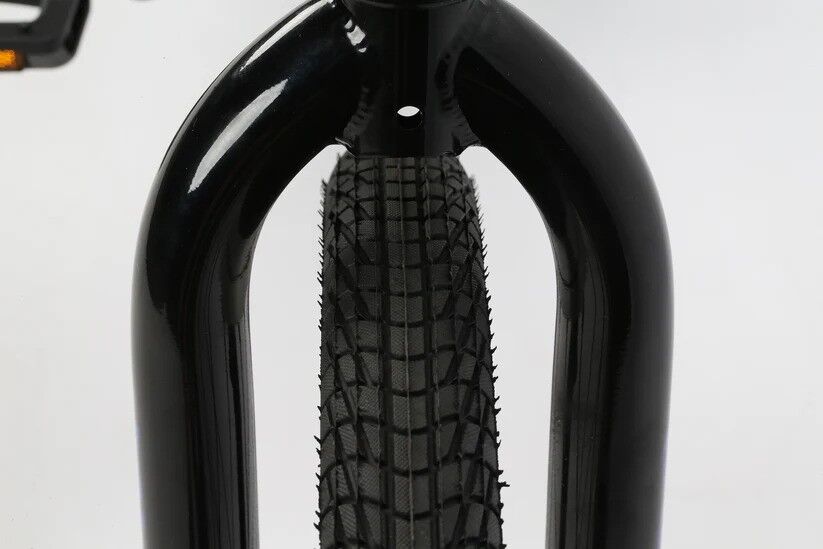

Fork Full chromoly 1 1/8" Threadless Steerer w/tapered legs
Colors Black
DRIVETRAIN
Cranks 2-pc Forged Alloy w/ 24mm Hollow Spindle. 165mm
Bottom Bracket Press-Fit BB86, Sealed Bearing
Sprocket 38t Alloy Chainring
Gearing 38/15
Pedals Alloy DX, 9/16"
Chain KMC Z33 1/2 X 3/32"
Cassette 15t Cassette
WHEELS
Tires Kenda "Konversion" tires: 20 x 1.65" front/20 x 1.50" rear
Front Hub 36h Alloy Sealed-Bearing
Rear Hub 36h Alloy Sealed-Bearing w/ Disc Cassette Rear
Rims 20" Alloy 36h, Double Wall
BRAKING SYSTEM
Brake Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
Brake Lever Promax XL-373 Two Finger
OTHER COMPONENTS
Grips Micro-Knurl Grip

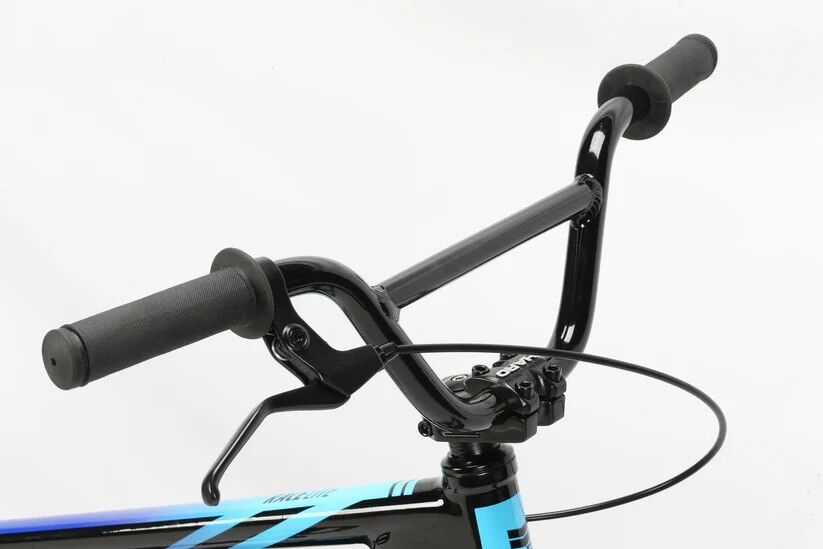

Handlebar Haro Mini Alloy Bar, 6.5" Rise

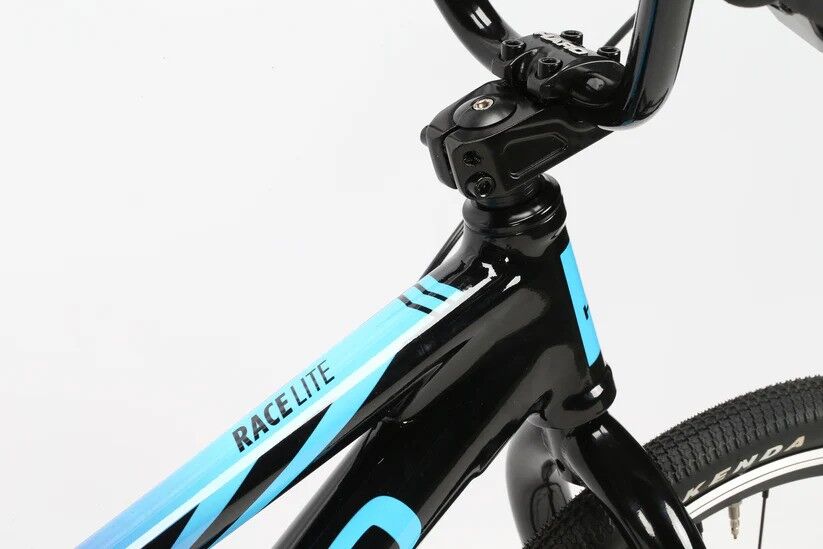

Stem Forged Alloy Top-Load, 45mm Ext.
Headset 1-1/8" Sealed Threadless
Seat Haro Slim Plastic Pivotal

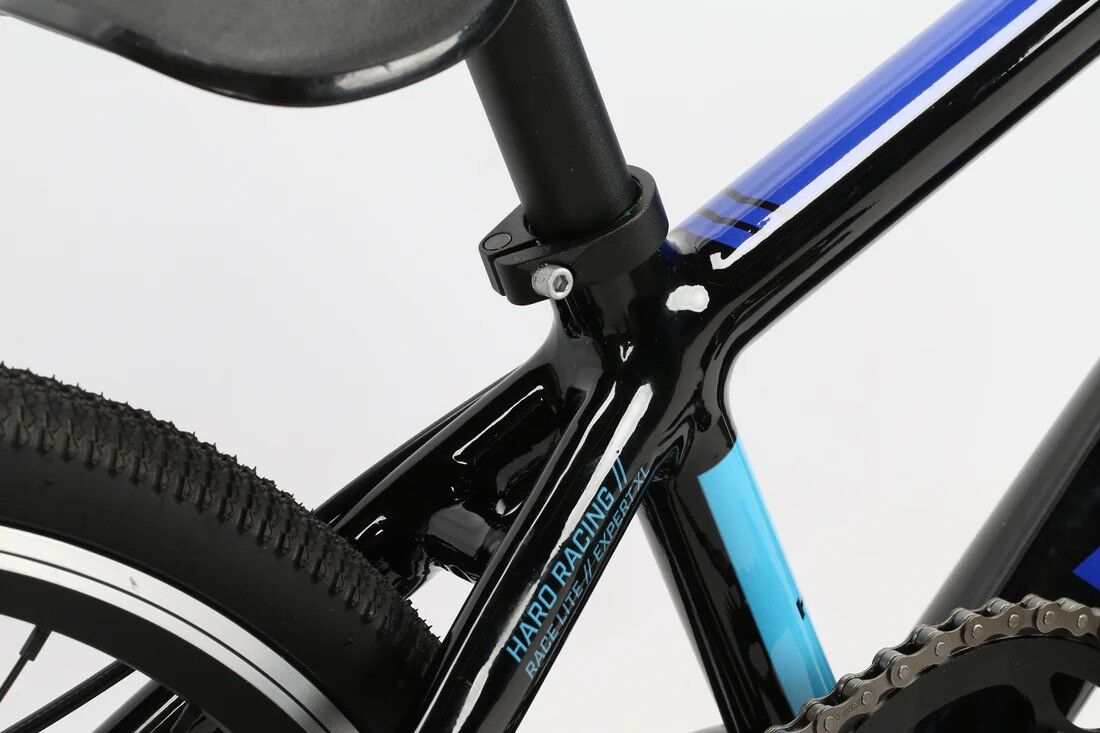

Seat Post Alloy Pivotal, 27.2mm
Seat Post Clamp Alloy, 31.8mm

Size 20 (5'3" - 5'8" inches)
Head Angle 73°
Seat Angle 70°
Top Tube 20" (507mm)
Seat Tube 8.8" (224mm)
Chainstay 13.9" (352mm)
BB Height 11" (280mm)
Stand Over 19.5" (495.3mm)

(24533)

This is a generic product which is suitable for many motorbike models.

Please refer to the product description and your manufacturer's instruction manual to determine whether this product is suitable for your bike or not.

SKU 24533
Brand Haro Bikes
