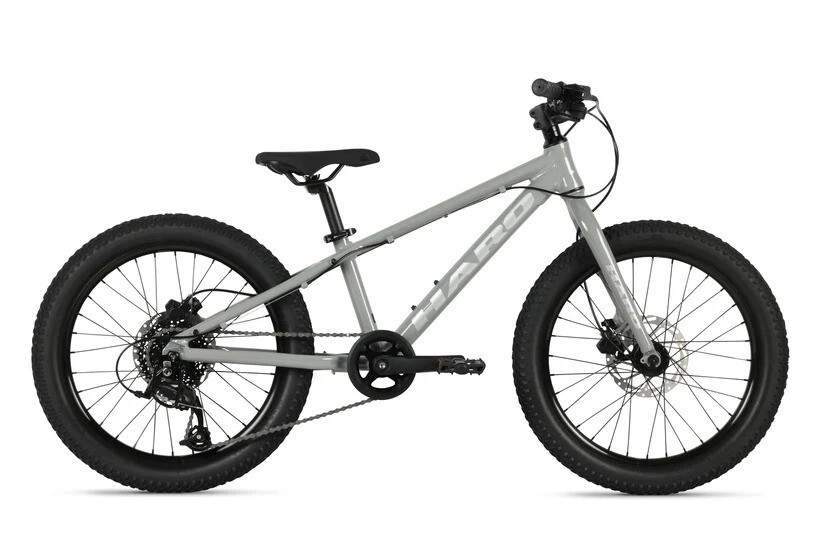

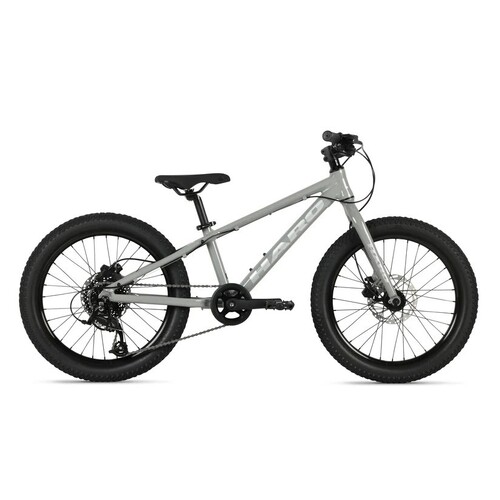

Haro Kids Flightline 20 Inch Disc Brake Grey MTB

SKU: 14026


$849.00

or 4 fortnightly payments of $212.25 with


Flat fee shipping!
Overnight courier just $5
*Conditions Apply

Order before 3.30pm,
we ship today
*Conditions Apply

Note: This product is for delivery within New Zealand only.

FEATURES
FL 20" Plus X6 Series frame, new chainstays
6000 Series aluminum 1-1/8" fork
Aluminum 3-pc 28T crankset w/ double chainguard
Shimano Altus 8-SPD, Rear Derailleur
Chao Yang H5183 20"x2.60"
Tektro HD-J285 Hydraulic disc brakes with 160mm rotors and short reach levers
Alloy Riser Bar, 620mmW, 9° back sweep, 25mm Rise, ø31.8

FRAMESET
Frame FL 20" Plus X6 Series frame, new chainstays
Fork 6000 Series aluminum 1-1/8" fork
Colors Cool Grey
DRIVETRAIN

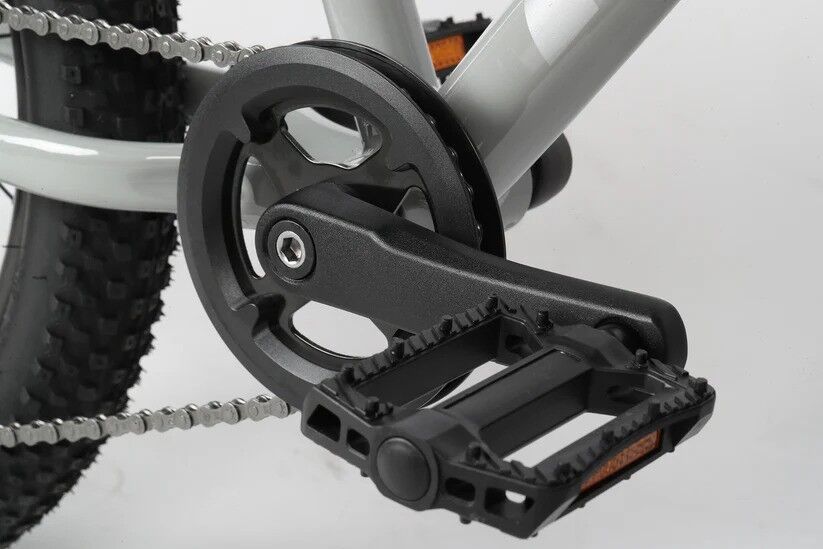

Cranks Aluminum 3-pc 28T crankset w/ double chainguard
Pedals MTB nylon body 9/16"
Chain KMC Z8 8.3, 1/2"x3/32", 92L, GYGY
Bottom Bracket Cartridge Bearing 73mmX122.5mm
Front Derailleur N/A

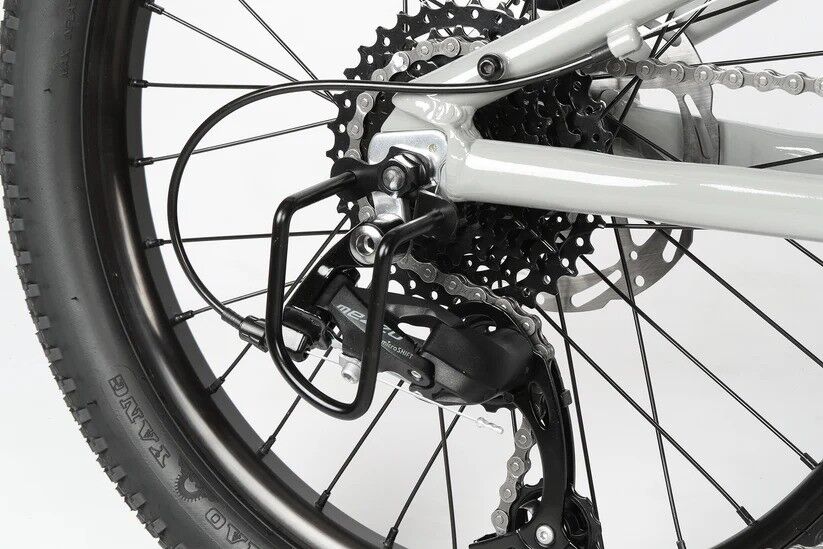

Rear Derailleur Shimano Altus 8-SPD, RD-M310-L

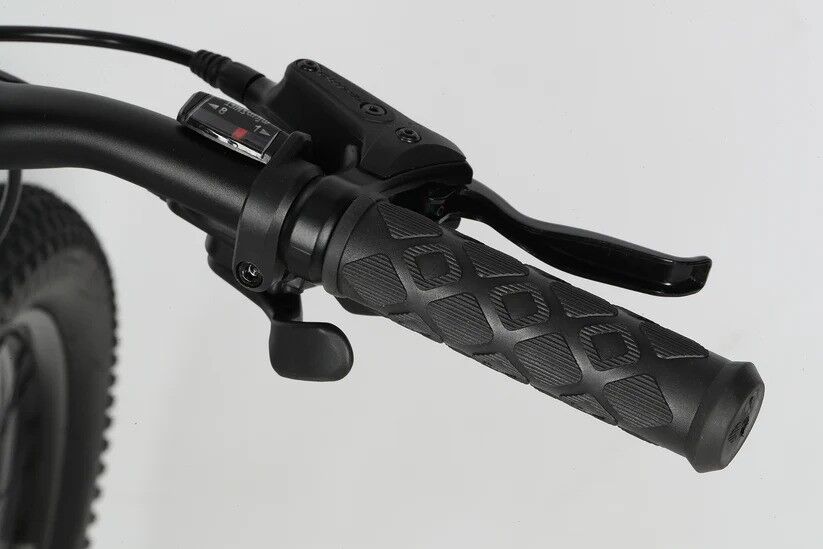

Derailleur Shifter Shimano SL-m315-r rapid fire 8spd
Freewheel/Cassette Shimano cs-hg200-8 12-32T
WHEELS
Tires Chao Yang H5183 20"x2.60"
Wheels/Rims Aluminum single wall 20" 31mm wide
Front Hub Steel 6 bolt rotor compatible
Rear Hub Steel 6 bolt rotor compatible
BRAKING SYSTEM

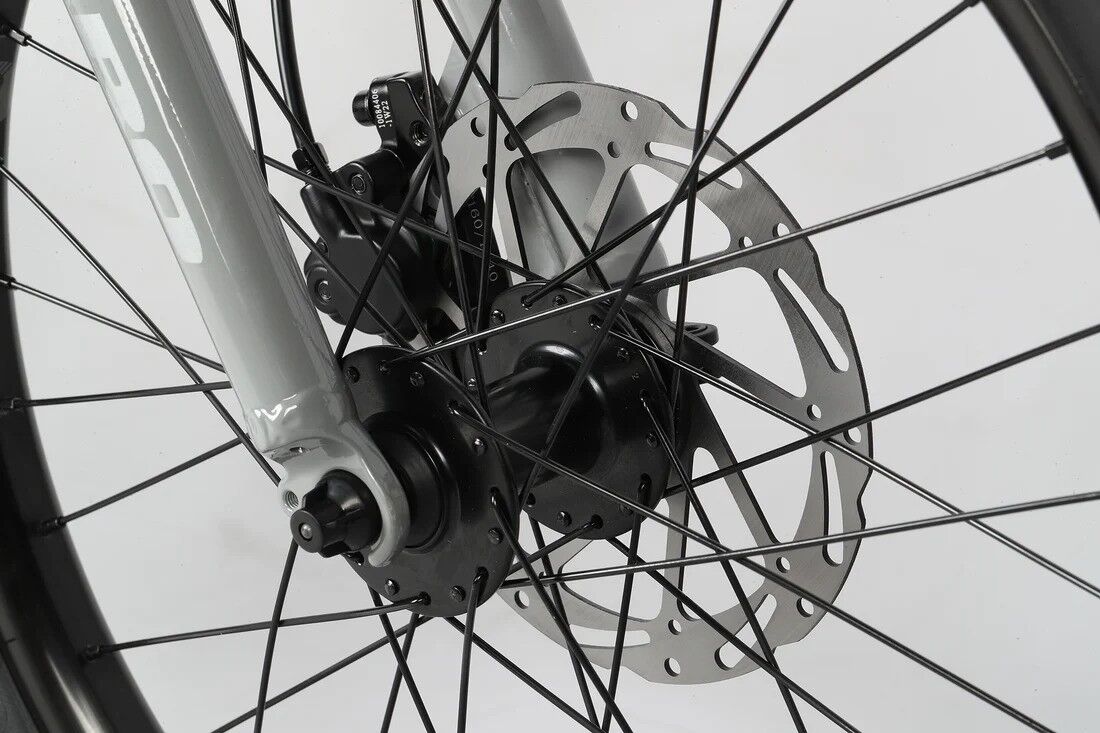

Brakes Tektro HD-J285 Hydraulic disc brakes with 160mm rotors
Brake Levers Kids specific Tektro HD-J285 brake levers
OTHER COMPONENTS
Grips/Tape Krayton rubber 127mmL

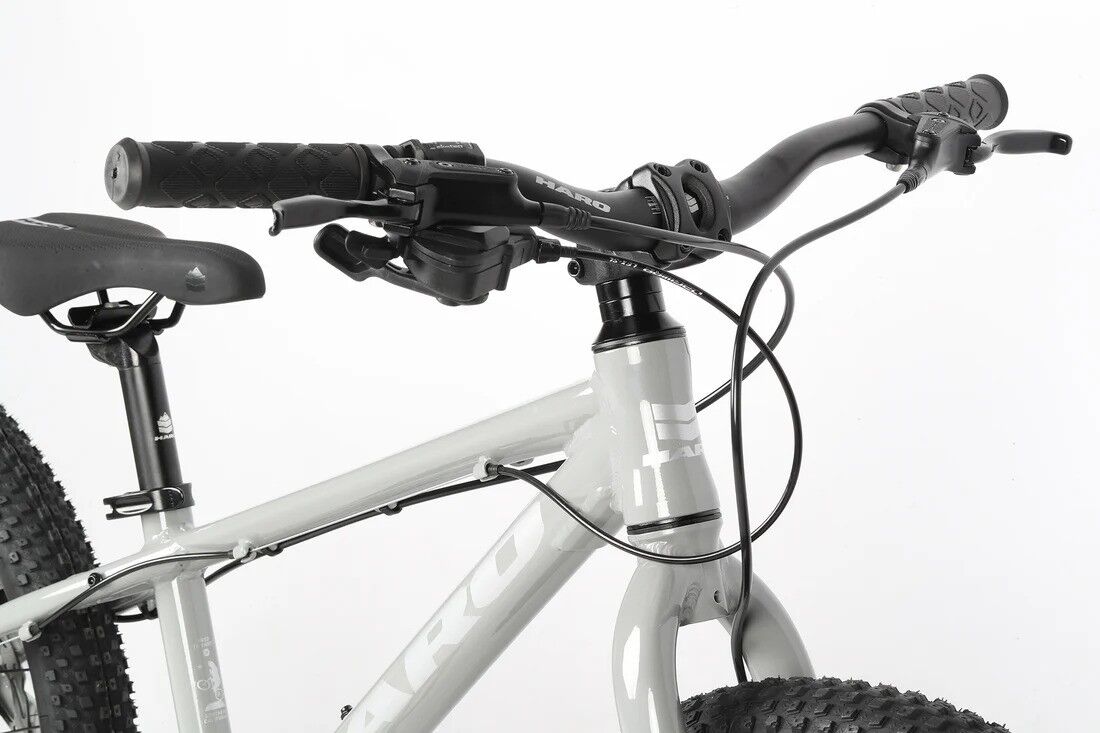

Handlebar Alloy Riser Bar, 620mmW, 9° back sweep, 25mm Rise, ø31.8
Stem Alloy 1-1/8", ø31.8 bar bore, 45mmL, 7° Rise
Headset 1-1/8" Threadless

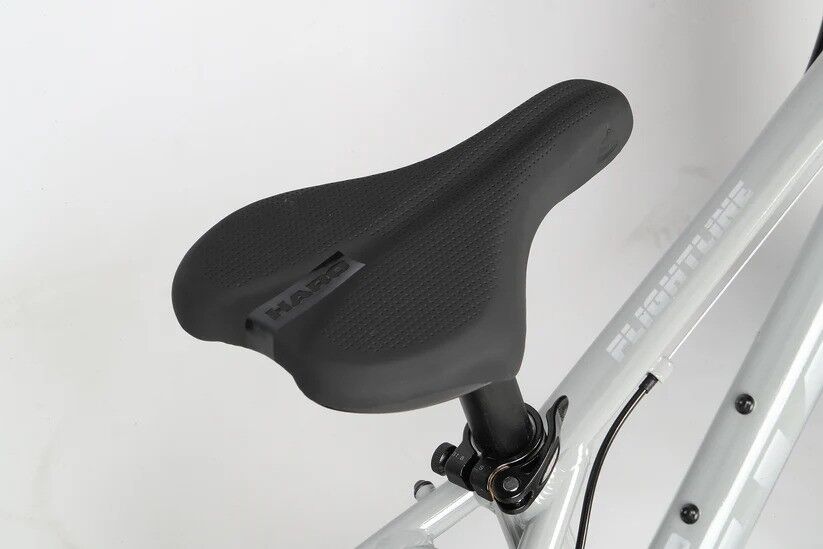

Saddle Haro Flightline Jr
Seat Post Alloy micro adjust ø27.2
Seat Clamp Alloy ø31.8 quick release

SIZE 20
Seat Tube (C-T) 260mm (10.2")
Top Tube (Effective) 469mm (18.5")
Head Tube Angle 69°
Seat Tube Angle 71°
Chainstay Length 372mm (14.6")
BB Drop 15mm (0.6")
Wheelbase 890mm (35")
Head Tube Length 100mm (3.9")
Standover 554mm (21.8")
Stack Height 432mm (17")
Reach 320mm (12.6")
Axle to Crown 351mm (13.8")
Fork Offset 35mm (1.4")
Stem Length 45mm
Bar Width 620mm
Crank Length 127mm
Wheel Size 20

(14026)

This is a generic product which is suitable for many motorbike models.

Please refer to the product description and your manufacturer's instruction manual to determine whether this product is suitable for your bike or not.

SKU 14026
Brand Haro Bikes
