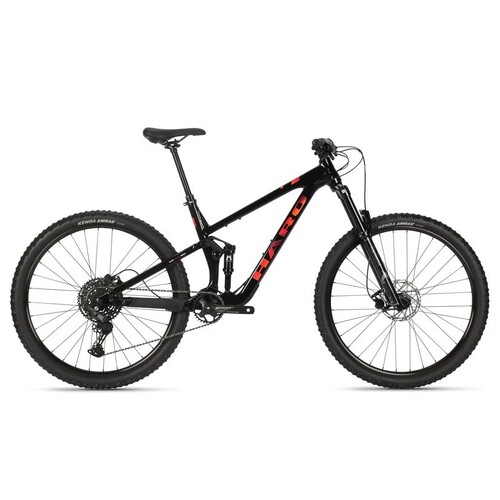

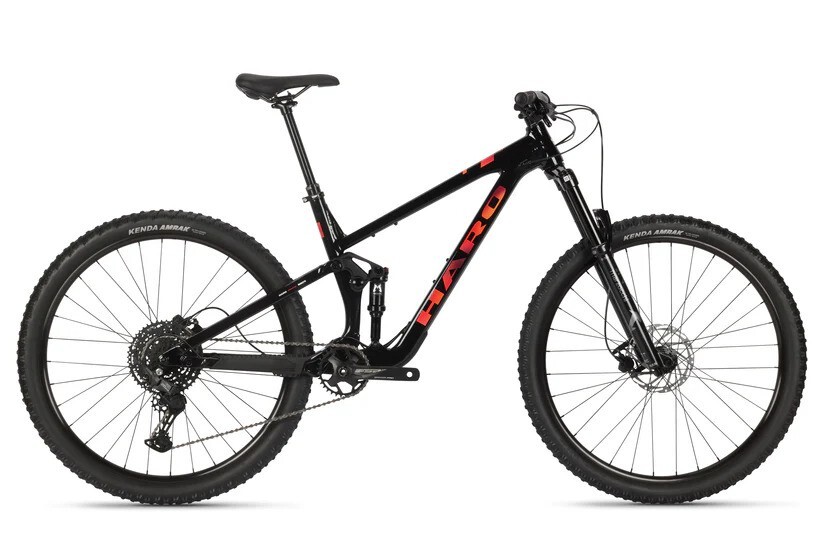

Named after one of our go-to trail networks, the Daley is our all-new, all-mountain 29er, ready for the climb & grind. Starting with our exclusive aluminum frame design, the Daley is built on a trusted suspension platform with 150/140mm travel, custom tuned for each spec level. This is our go-to all mountain machine: Playful on the trails, with maximum traction through the turns and on the climbs. Ready to launch the jumps, turn and burn. No gimmicks, nothing wacky, just everything you need for days in the dirt. FEATURES Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger Marzocchi Inline R, 140mm travel shock Marzocchi Bomber Z2 fork. 150mm travel with rail/sweep adjust, Kabolt 110 x 15mm thru axle, 44mm offset FSA Gamma Pro cranks, 165mm, 32T chainwheel Shimano Cues 10-speed rear derailleur Tektro Gemini SL 4-piston hydraulic disc brakes, with 180mm rotors Kind Shock I900 dropper post, size-specific FRAMESET Frame Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger Fork Marzocchi Bomber Z2, Rail - Sweep Adjust, Kabolt 110 x 12mm thru-axle, 44mm offset, 150mm travel Frame Shock Marzocchi Inline R, 140mm travel Colors Trans Black / Amber, Matte Stone Grey Weight 37.7 lbs 16.98 kg, (L) DRIVETRAIN Cranks FSA Gamma Pro 165mm, 32T chainring Pedals N/A Chain KMC E Glide Bottom Bracket FSA Mega EXO 73mm Front Derailleur N/A Rear Derailleur Shimano Cues Shadow Plus 10-speed Derailleur Shifter Shimano Cues Rapid Fire 10-speed Freewheel/Cassette Shimano Cues 11-48T WHEELS Tires CST L-CAT DK27 2.35" front & rear Wheels/Rims Double-wall alloy 32h, I25 Hubs Alloy hub shells, 2 sealed bearings, 110x15 Front, 148x12 Rear BRAKING SYSTEM Brakes Tektro Gemini 2-piston hydraulic disc with 180mm rotors Brake Levers Tektro Gemini OTHER COMPONENTS Grips/Tape WTB Trail II,140x30mm Handlebar Alloy 6061-T6 Riser bar, 800mm wide, 20mm rise, 6° back sweep, 4° upsweep Stem 6061-T6 Forged Alloy 31.8 ID, 45mm reach Headset FSA Orbit 1.5E ZS/ NO.57E tapered headset, 44/56mm head tube Saddle WTB Volt Medium, w/steel rails Seat Post Kind Shock I900 34.9 OD. Sizes: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm Seat Clamp 3D Forged 6061 aluminum 38.9mm ID Extras Includes tubeless valves and sealant SIZE S M L XL Seat Tube (C-T) 361mm 410mm 448mm 473mm Top Tube (Effective) 553mm 590mm 617mm 644mm Head Tube Angle 64.5° 64.5° 64.5° 64.5° Seat Tube Angle 78° 78° 78° 78° Chainstay Length 428mm 445mm 445mm 445mm BB Drop 23mm 33mm 33mm 33mm Wheelbase 1172mm 1237mm 1266mm 1296mm Head Tube Length 90mm 100mm 110mm 120mm Standover 691mm 685mm 705mm 705mm Stack Height 579mm 610mm 619mm 628mm Reach 430mm 460mm 485mm 510mm Axle to Crown 544mm 561mm 561mm 561mm Fork Offset 44mm 44mm 44mm 44mm Stem Length Bar Width Crank Length Wheel Size 27.5 29 29 29 Size Inches CM XL 6' - 6' 5" 180 - 196
